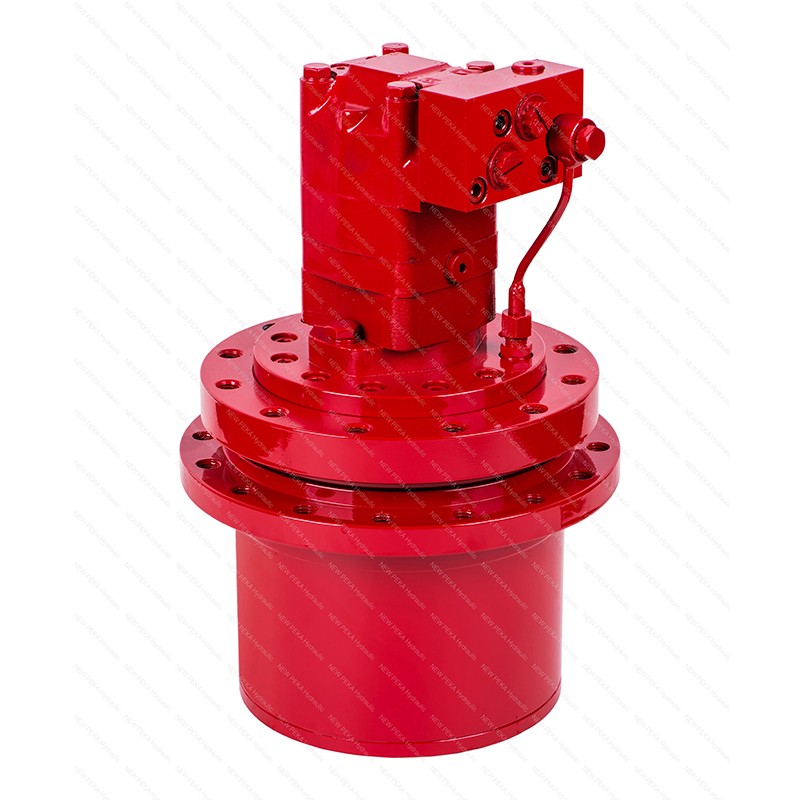

BKY series tracked travel motor

Description: BKY series travel motor applied to tracked(wheel) is consisted of valve bank with brake function, hydraulic motor,brake, one or two stage planetary gearbox.
Feature:The equipment is high efficient in working and starting, and reliable for working. The output depends on the rotational of the shell, can be directly connected to wheel or crawler drive sprocket. Due to the small axial size, it can hide into the wheel or track, consequently, The mobile machine 's through capacity of machine is improved . And it also make a compact structure beautiful shape for the whole machine.
Application:The product now is widely used for transmission devices of tracked (wheel) in such equipment as engineering vehicle, tracked excavator , horizontal drilling rig, down-hole drill, railway vehicles, entry-driving machine, mining rig,rotary drilling rig etc.

Send Inquiry

Model	Torque (N.m)		Speed (r/min)	Reduction Ratio	Pressure (MPa)		Total displacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max.	Speed (r/min)	Reduction Ratio	Rated	Max	Total displacement (ml/r)	Model	Displacement (ml/r)	Gross weight (Kg)	Approx. weight of machine (T)

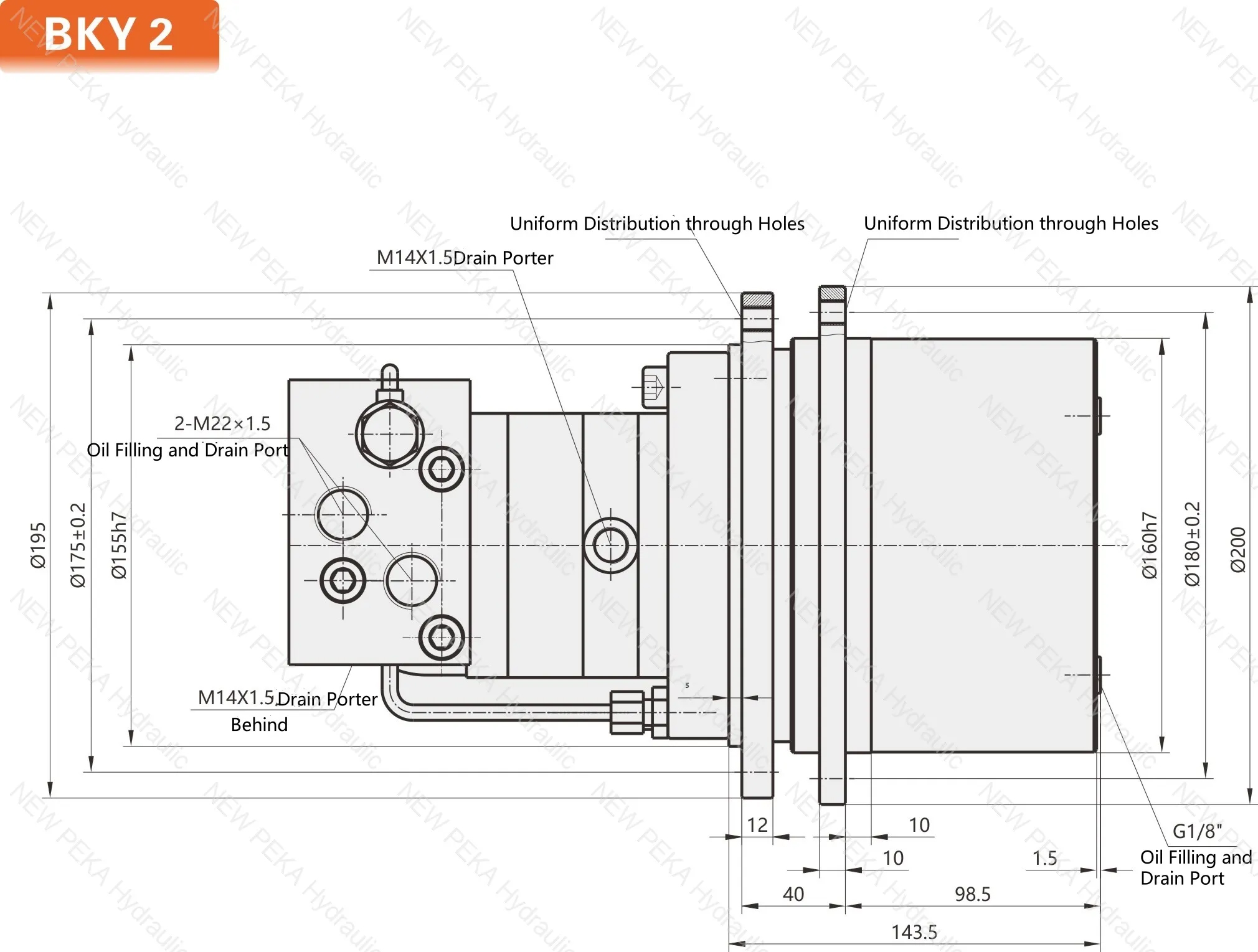

BKY2-460F01Z	950	1200	3-138	5.75	16	21	463	BM5-80	80.5	28	0.5~0.8
BKY2-570F01Z	1100	1450	3-130	5.75	16	21	575	BM5-100	100	28	0.6~1.0
BKY2-715F01Z	1350	1700	3-110	5.75	16	21	722	BM5-125	125.7	28	1.0~1.3
BKY2-920FO1Z	1750	2300	3-83	5.75	16	21	918	BM5-160	159.7	28	1.2~1.5
BKY2-1150FO1Z	2200	3000	3-67	5.75	16	21	1150	BM5-200	200	28	1.5~2.5

Model	Torque (N.m)		Speed (t/min)	Reduction Ratio	Pressure (MPa)		Total displacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max	Speed (t/min)	Reduction Ratio	Rated	Max	Total displacement (ml/r)	Model	Displacement (ml/r)	Gross weight (Kg)	Approx. weight of machine (T)

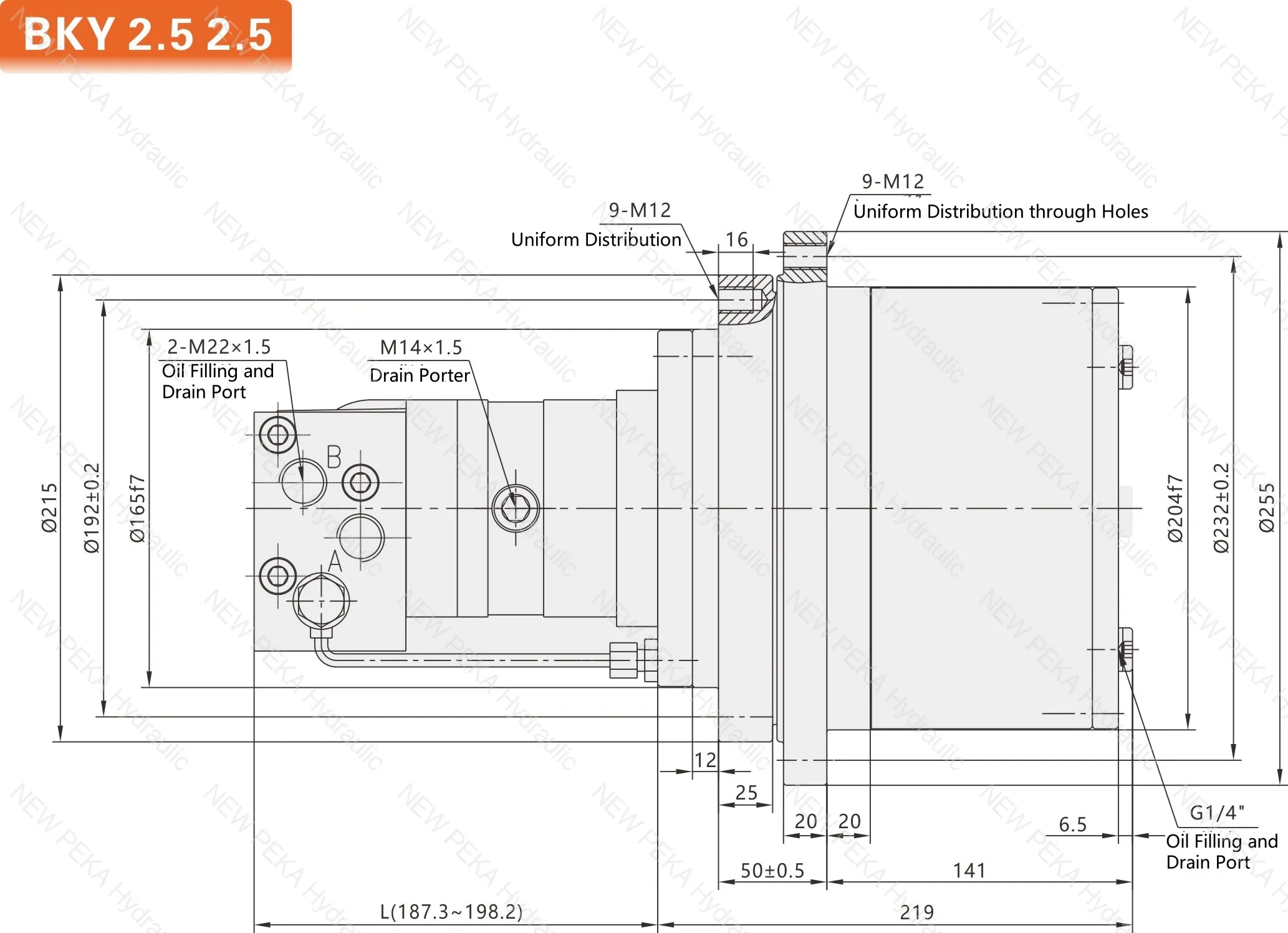

BKY2.52.5-1700F01Z	2800	3800	1-38	21.4	14	19	1722	BM5-80	80.5	60	2~3
BKY2.52.5-2140F01Z	3500	4500	1-35	21.4	14	19	2140	BM5-100	100	60	3~4
BKY2.52.5-2670F01Z	4300	6000	1-30	21.4	14	19	2690	BM5-125	125.7	60	4~5
BKY2.52.5-3420F01Z	5500	7000	1-22	21.4	14	19	3417	BMS-160	159.7	60	4~5

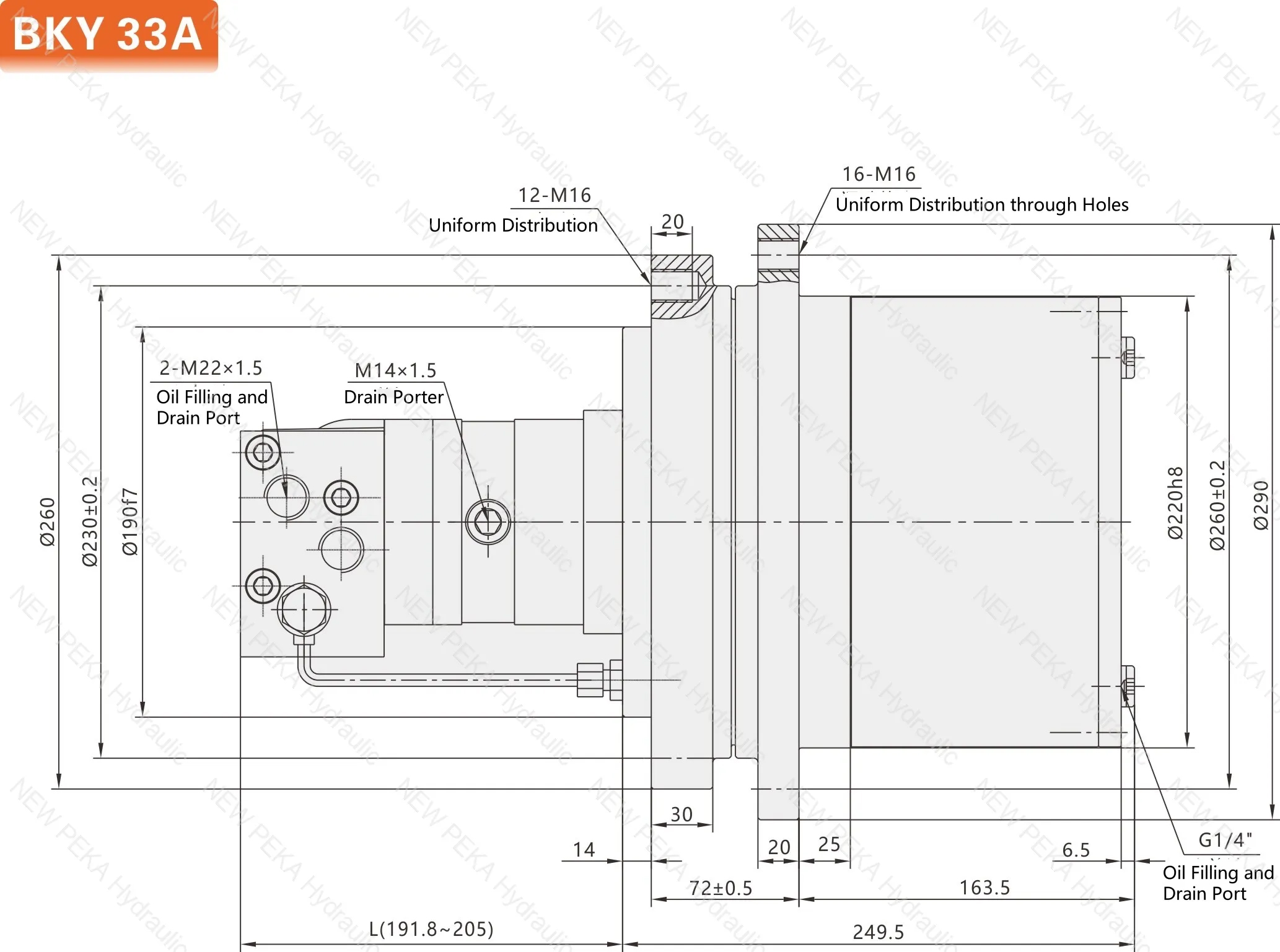

Model	Torque (N.m)		Speed (r/min)	Reduction Ratio	Pressure (MPa)		Total displacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max.	Speed (r/min)	Reduction Ratio	Rated	Max	Total displacement (ml/r)	Model	Displacement (ml/r)	Gross weight (Kg)	Approx. weight of machine (T)
BKY33A-2150F01Z	4200	5500	1-35	21.5	16	21	2156	BM5-100	100	80	3~4
BKY33A-2700F01Z	5200	6500	1-30	21.5	16	21	2710	BM5-125	125.7	80	4~5
BKY33A-3450F01Z	6500	8200	1-22	21.5	16	21	3443	BM5-160	159.7	80	5~6
BKY33A-4310F01Z	8000	10000	1-18	21.5	16	21	4312	BM5-200	200	80	6~7

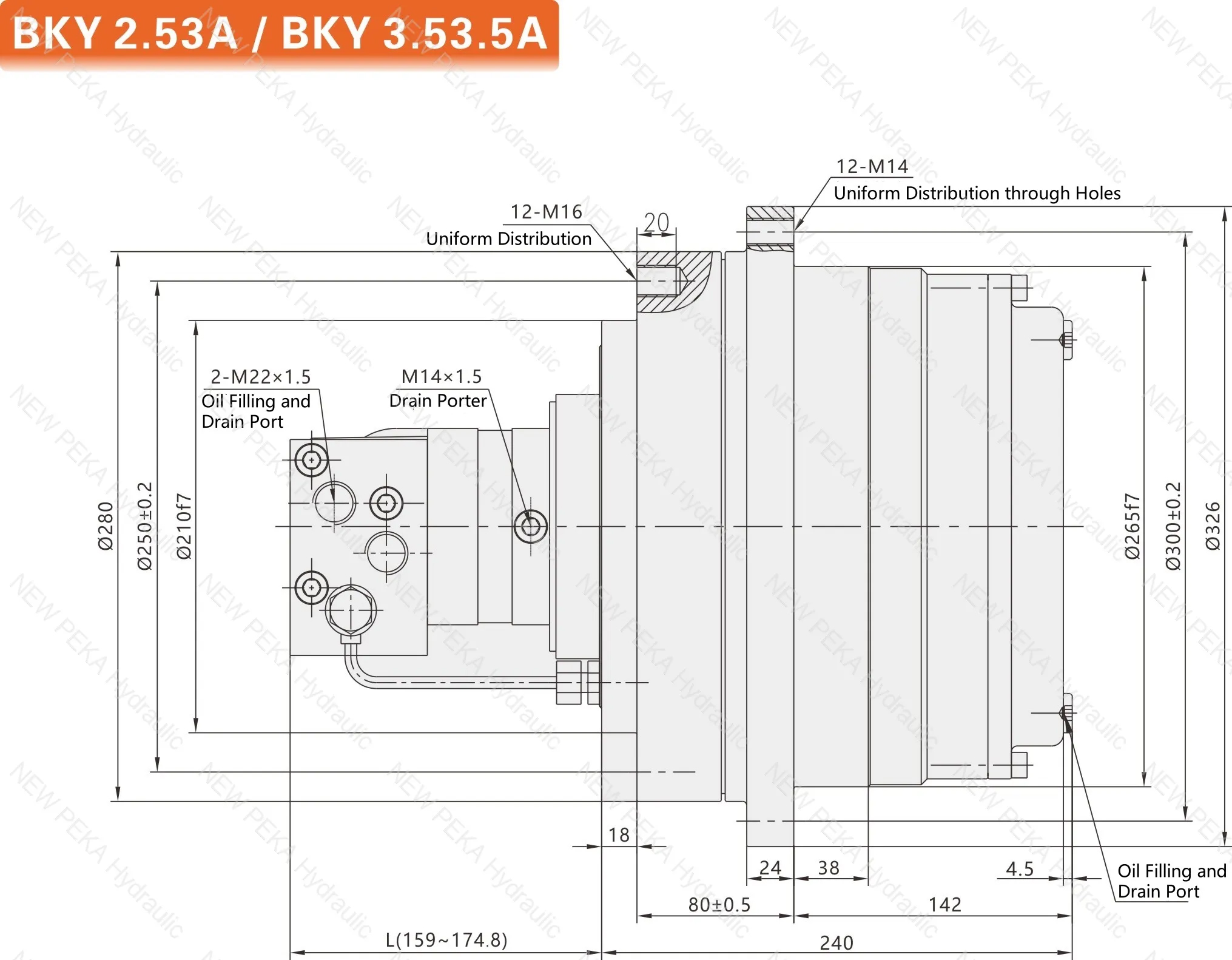

Model	Torque (N.m)		Speed (r/min)	Reduction ratio	Pressure (MPa)		Totaldisplacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max	Speed (r/min)	Reduction ratio	Rated	Max	Totaldisplacement (ml/r)	Model	Displacement(ml/r)	Gross weight (Kg)	Approx. weight of machine (T)
BKY2.53A-2870F01Z	5500	7000	1-27	23	16	21	2891	BM5-125	125.7	95	6~7
BKY2.53A-3680F01Z	7500	9500	1-21	23	16	21	3673	BM5-160	159.7	95	7~8
BKY2.53A-4600F01Z	8800	12500	1-16	23	16	21	4600	BM5-200	200	95	8~10
BKY3.53.5A-4240F01Z	8500	10000	1-18	26.5	16	21	4232	BM5-160	159.7	105	7~8
BKY3.53.5A-5300F01Z 10000		12500	1-14	26.5	16	21	5300	BM5-200	200	105	8~10
BKY3.53.5A-6620F01Z	12500	16000	1-11	26.5	16	21	6625	BM5-250	250	105	10~13

Model	Torque (N.m)		Speed (r/min)	Reduction ratio	Pressure (MPa)		Total displacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max.	Speed (r/min)	Reduction ratio	Rated	Max	Total displacement (ml/r)	Model	Displacement (ml/r)	Gross weight (Kg)	Approx. weight of machine (T)

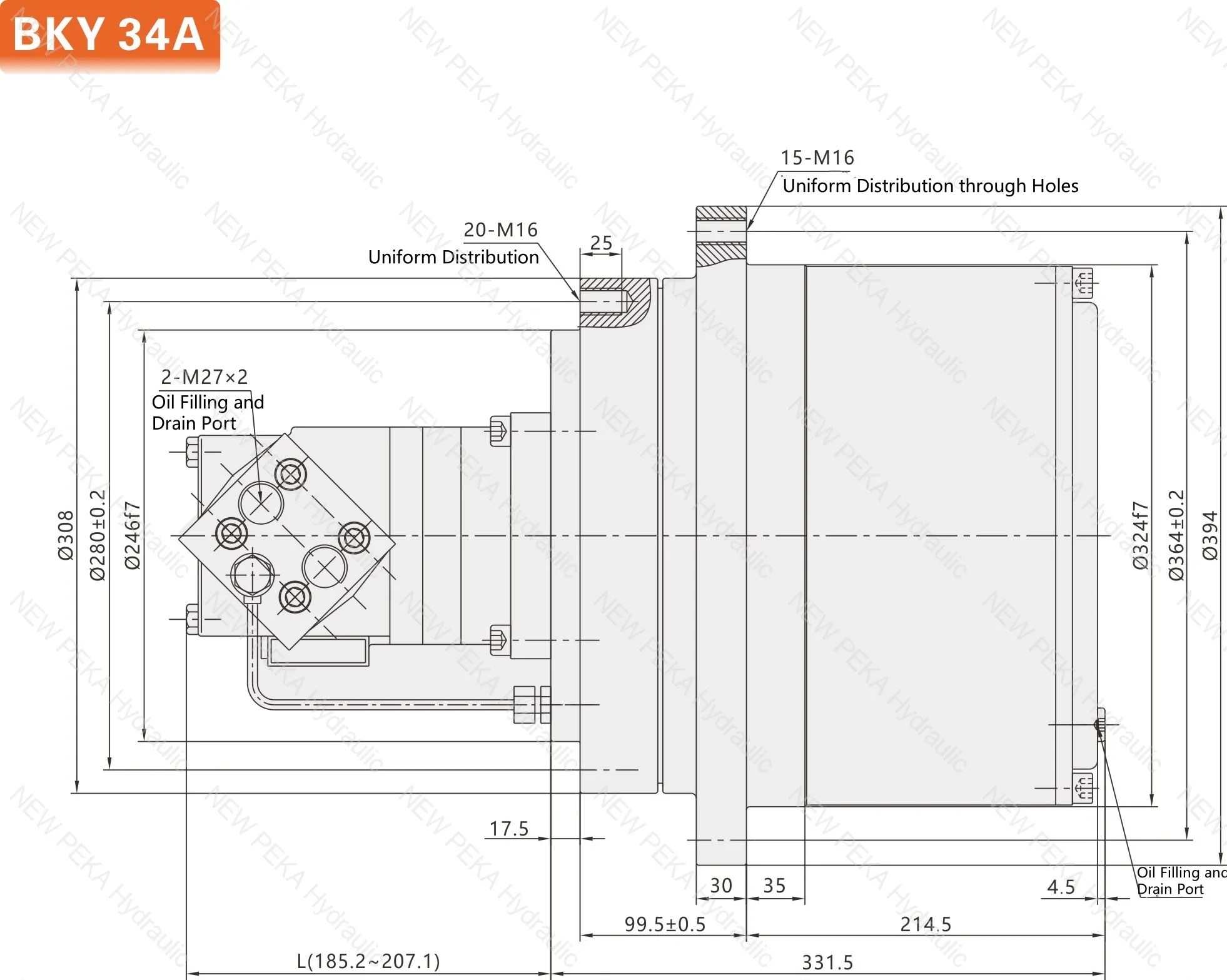

BKY34A-5800F01Z	11000	14000	2-26	23	16	21	5791.4	BM6-245	251.8	190	10~12
BKY34A-7500F01Z	14300	19000	2-30	23	16	21	7504.9	BM6-310	326.3	190	13~14
BKY34A-9500F01Z	18000	22500	2-17	23	16	21	9450.7	BM6-390	410.9	190	15~17
