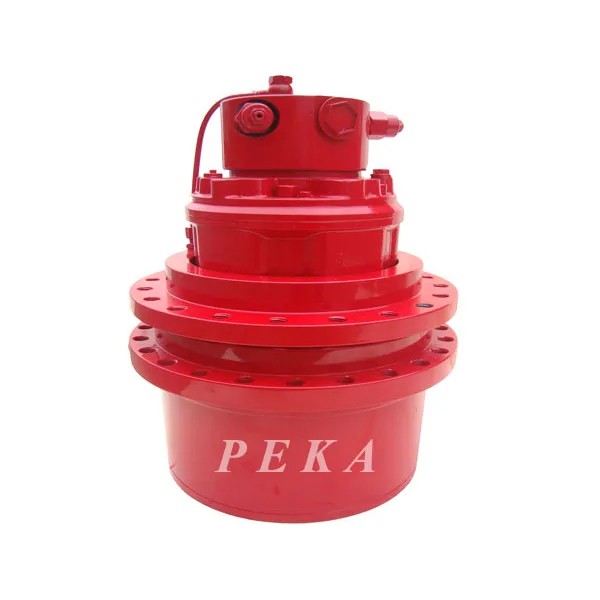

PKY travel motor

PKY series travel motor applied to tracked(wheel) is consisted of valve bank with brake function, hydraulic motor(SAl),brake, one or Iwo stage planetary gearbox.
Feature:PKY series travel motor applied to tracked(wheel) is consisted of valve bank with brake function, hydraulic motor(SAl),brake, one or Iwo stage planetary gearbox.
Application: The product now is widely used for Transmission devices of tracked (wheel) in such equipment as Engineering vehicle, Tracked excavator . horizontal drilling rig. down-hole drill, railway vehicles, entry-driving machine, mining rig ,rotary drilling rig etc.

Send Inquiry

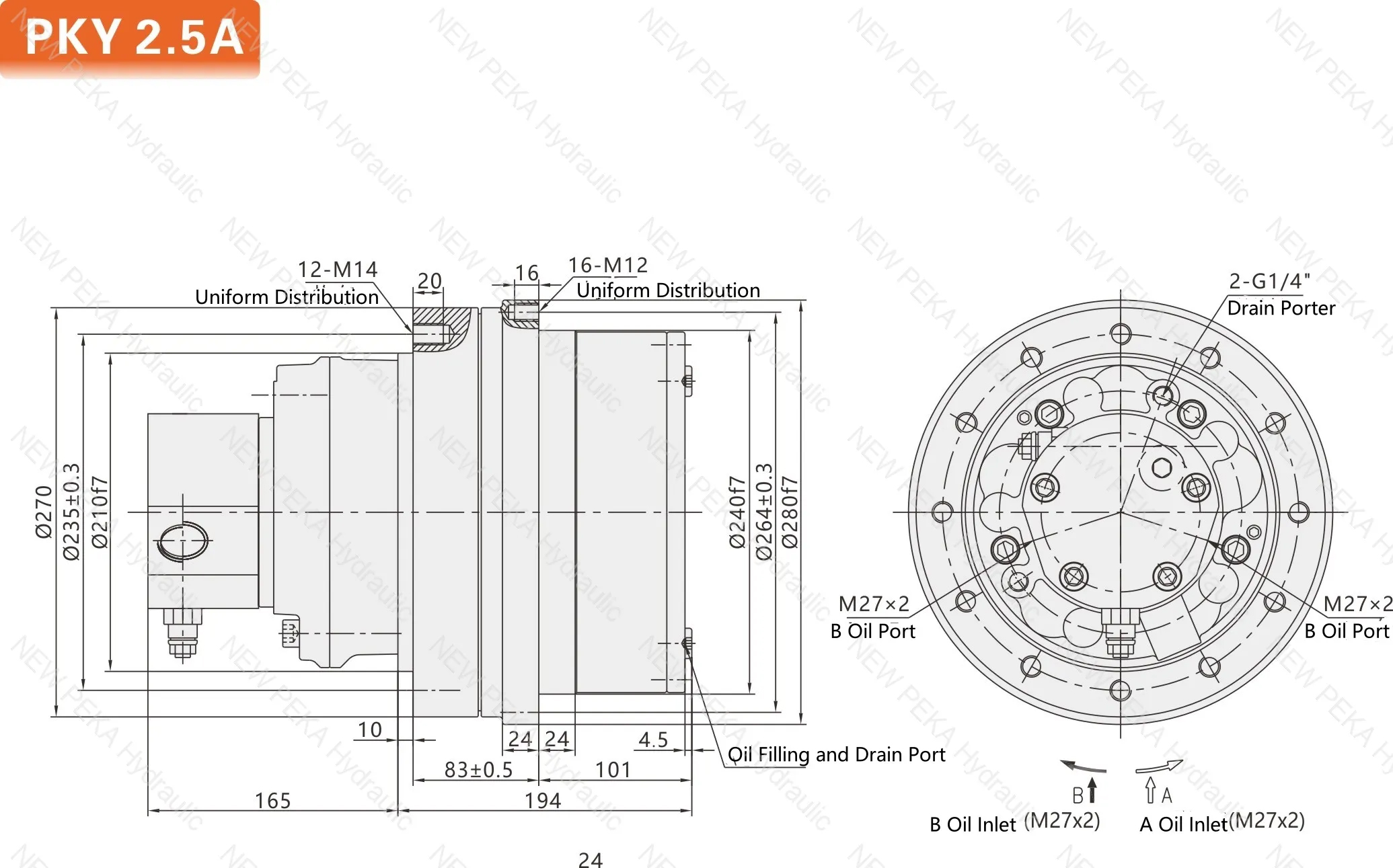

Model	Torque (N.m)		Speed (r/min)	Reduction	Pressure (MPa)		Total	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Disglacerment
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Omd/M)
PKY2.5A·750D1202	1900	2500	0.5-95	6	20	25	774	GNO5-130D1202	129	60	1~2
PKY2.5A-900D1202	2200	2800	0.5-90	6	20	25	906	GN05-150D1202	151	60	1.5~2
PKY2.5A-1000D1202	2400	3000	0.5-85	6	20	25	996	GN05-170D1202	166	60	2~3
PKY2.5A-1200D1202	2800	3500	0.5-81	6	20	25	1146	GNO5-200O1202	191	60	3~4

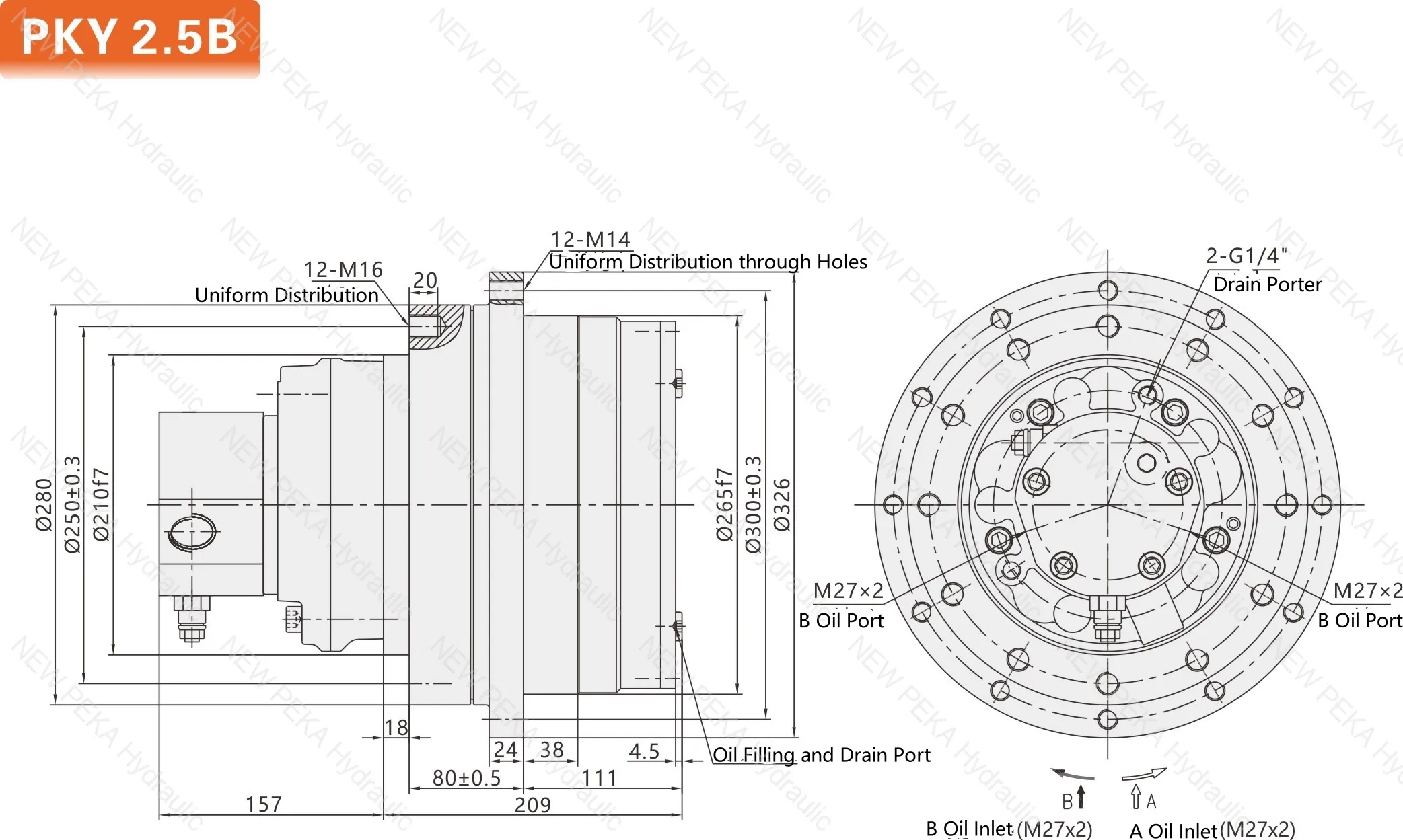

Model	Torque (N.m)		Speed (r/min)	Reduction	Pressure (MPa)		Total	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Disglacerment
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Omd/M)
PKY2.5B-750D1202	1900	2500	0.5-95	6	20	25	774	GNO5-13001202	129	70	1~2
PKY2.5B-900D1202	2200	2800	0.5-90	6	20	25	906	GN05-150D1202	151	70	2~3
PKY2.5B-1000D1202	2400	3000	0.5-85	6	20	25	996	GNO5-170D1202	166	70	2~3
PKY2.5B-1200D1202	2800	3500	0.5-81	6	20	25	1146	GNO5-200D1202	191	70	3~4

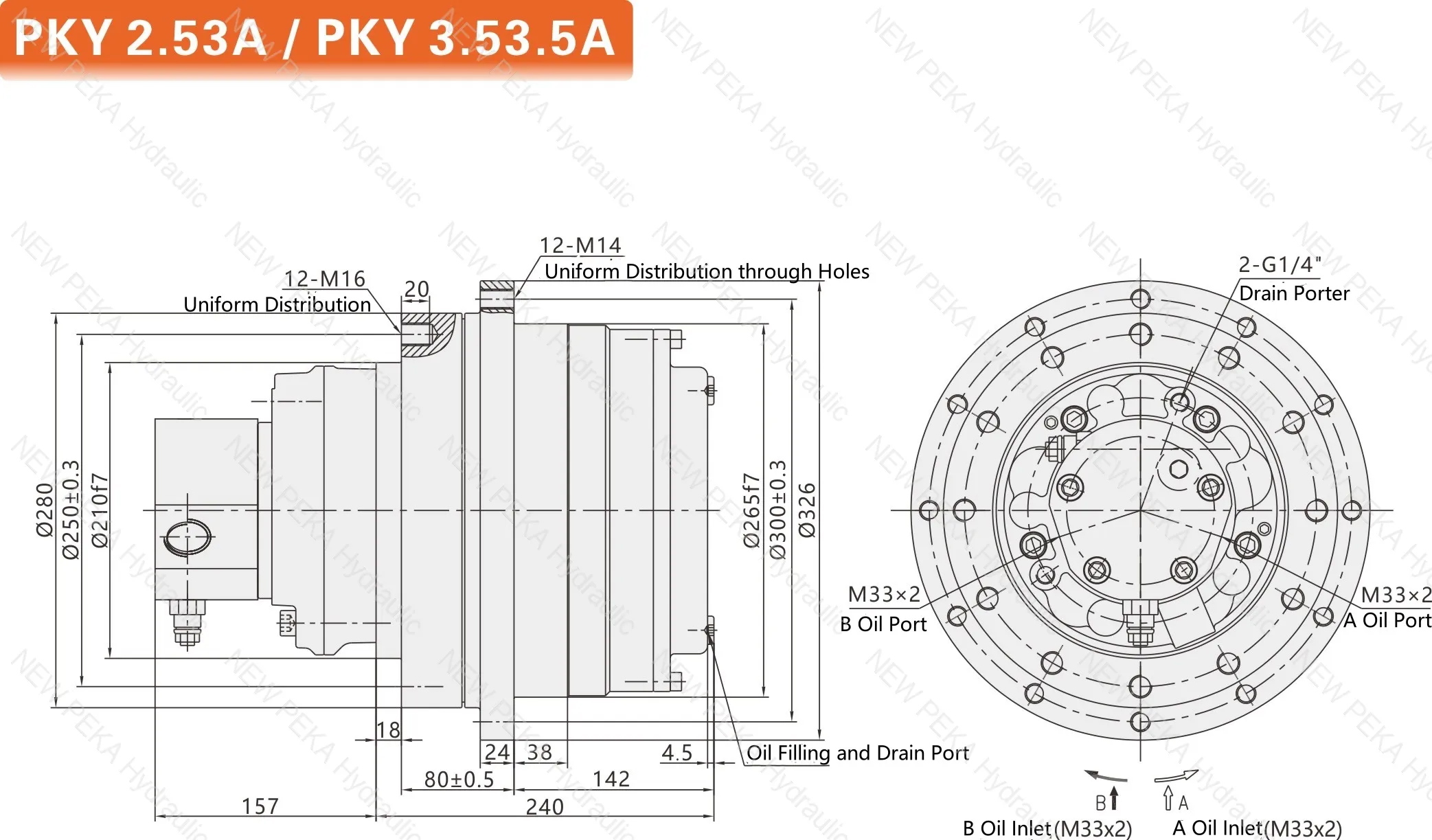

Model	Torque (N.m)		Speed (r/min)	Reduction	Pressure (MPa)		Total	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Disglacerment
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Omd/M)
PKY2.53A-2200D1202	6000	7500	0.5-35	19	20	25	2185	GN05-110D1202	115	80	6~8
PKY2.53A-2900D1202	8000	10000	0.5-30	19	20	25	2869	GN05-150D1202	151	80	6~8
PKY2.53A-3600D1202	10000	12500	0.5-26	19	20	25	3629	GN05-200D1202	191	80	8~10
PKY3.53.5A-4000D1202	11000	14000	0.5-22	27	20	25	4077	GN05-150D1202	151	90	8~10
PKY3.53.5A-4400D1202	12500	15000	0.5-20	27	20	25	4482	GN05-170D1202	166	90	10~12
PKY3.53.5A-5000D1202	13500	16000	0.5-18	27	20	25	5157	GNO5-200D1202	191	90	10~12

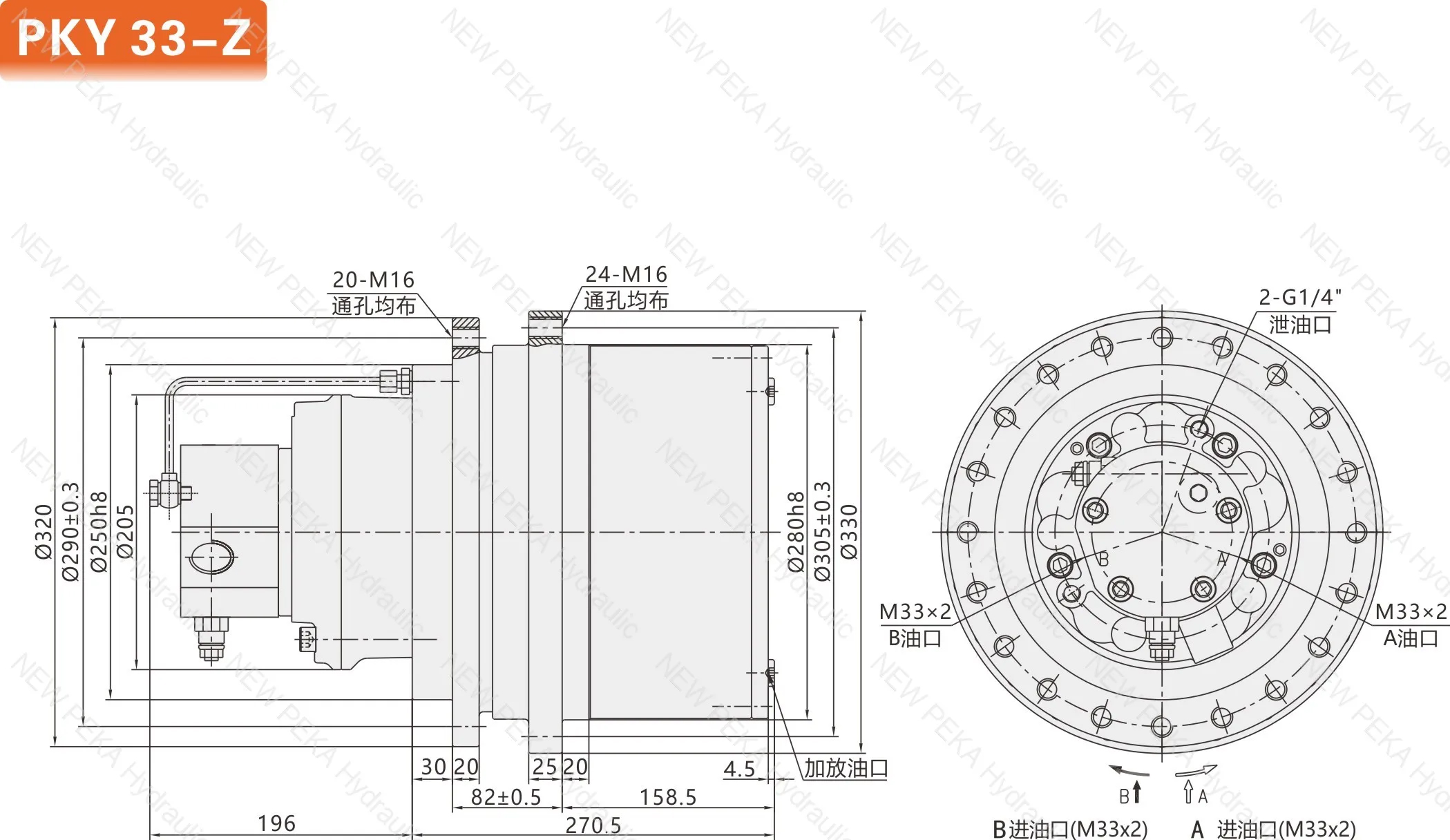

Model	Torque (N.m)		Speed (r/min)	Reduction	Pressure (MPa)		Total	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Disglacerment
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Omd/M)
PKY33- 4800D120201Z	11000	13000	0.5-17	37.5	16	20	4837	GNOS- 1300120201	129	125	10~12
PKY33- 5600D120201Z	12500	15500	0.5-15	37.5	16	20	5662	GNO5- 1500120201	151	125	10~12
PKY33- 6300D120201Z	13500	16500	0.5-15	37.5	16	20	6225	GNOS- 1700120201	166	125	12~14

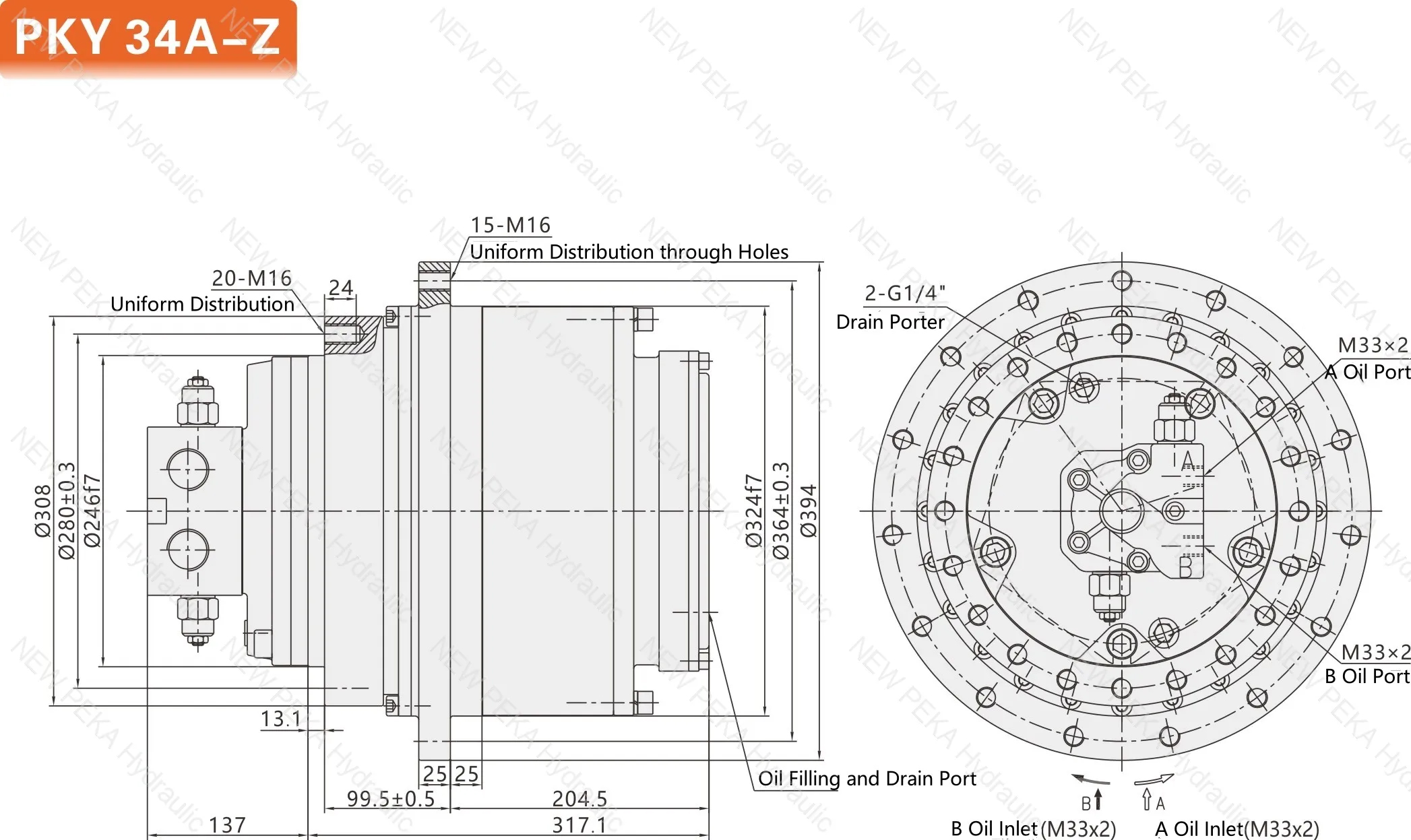

Model	Torque (N.m)		Speed (r/min)	Reduction	Pressure (MPa)		Total	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Disglacerment
	Rated	Max		ratio	Rated	Max	displacement Orml/Y)	Model	Omd/M)
PKY34A 5800D240201Z	13000	16500	0.5-15	37.5	16	20	5775	Gnt. 1500240201	154	210	10~12
PKY34A- 6500D240201Z	14500	18000	0.5-15	37.5	16	20	6450	Gn1. 1750240201	172	210	12~14
PKY34A- 7500D240201Z	17000	21000	0.5-15	37.5	16	20	7537	Gnf- 2000240201	201	210	14~18
PKY34A- 9100D240201Z	19000	25000	0.5-12	37.5	16	20	9112	Gn1- 2500240201	243	210	14-18
