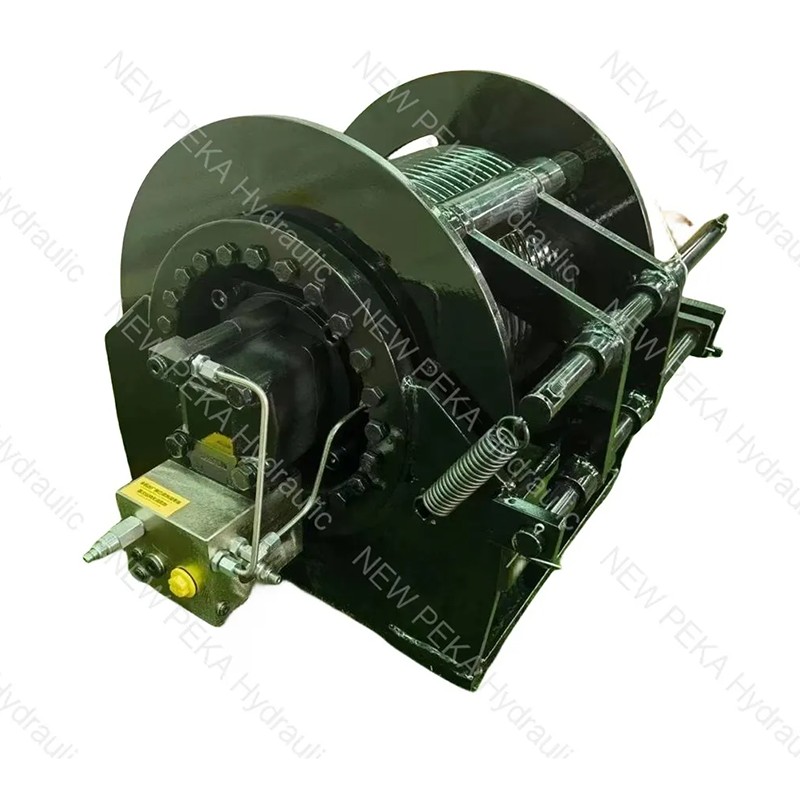

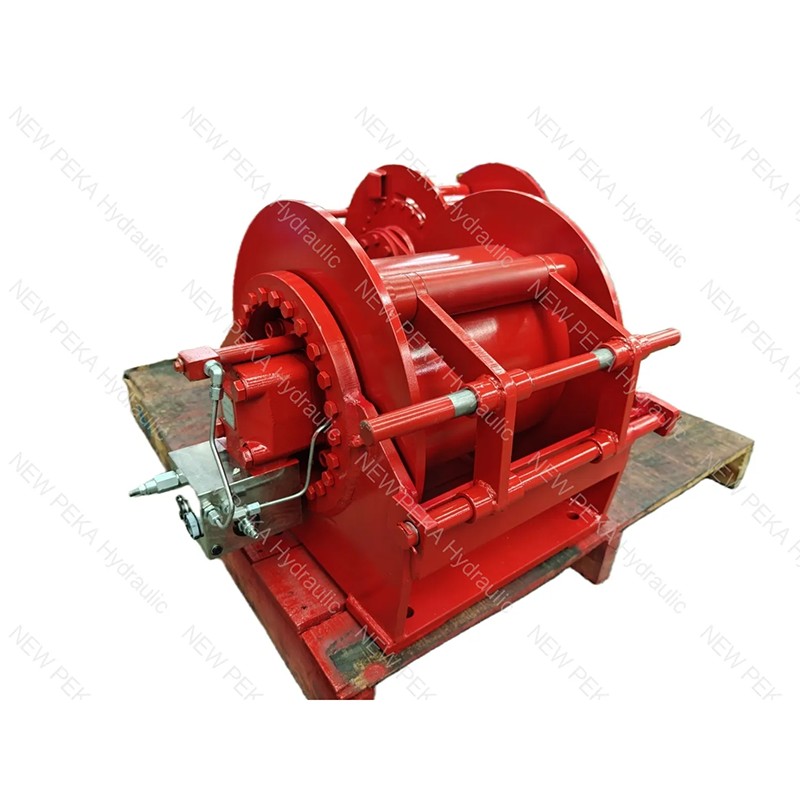

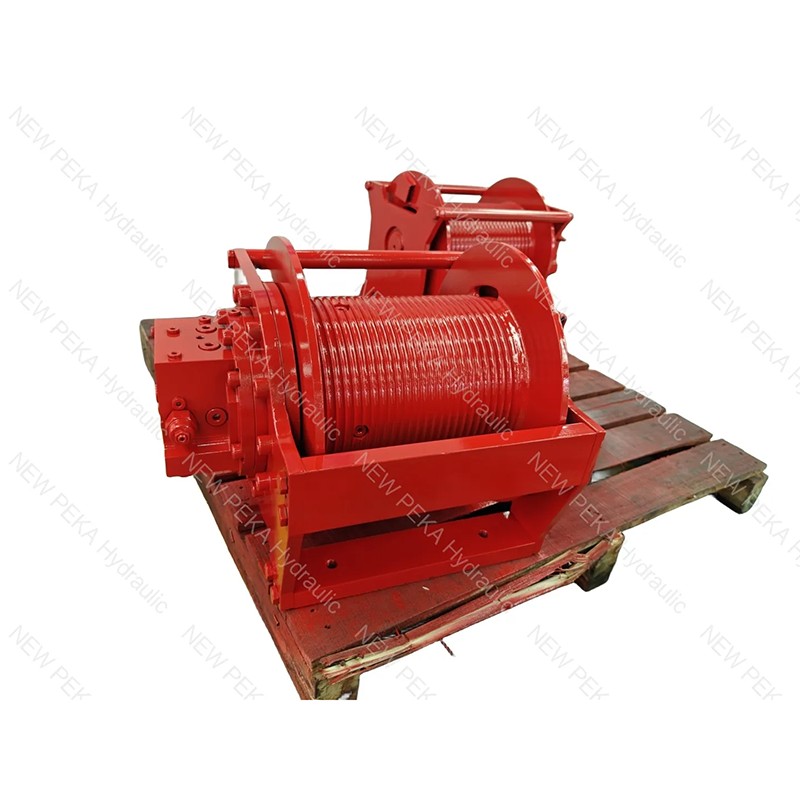

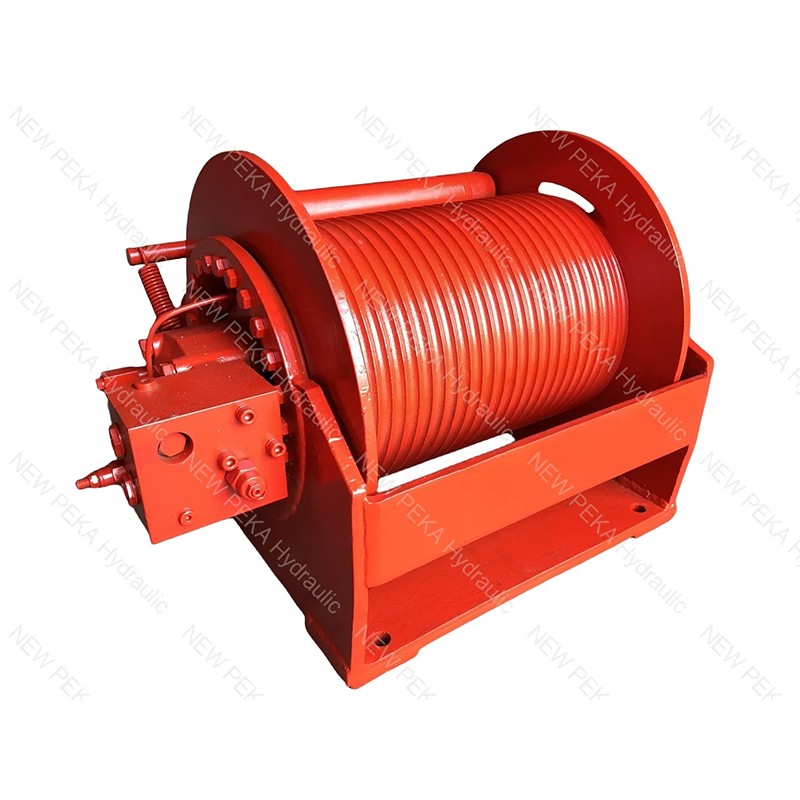

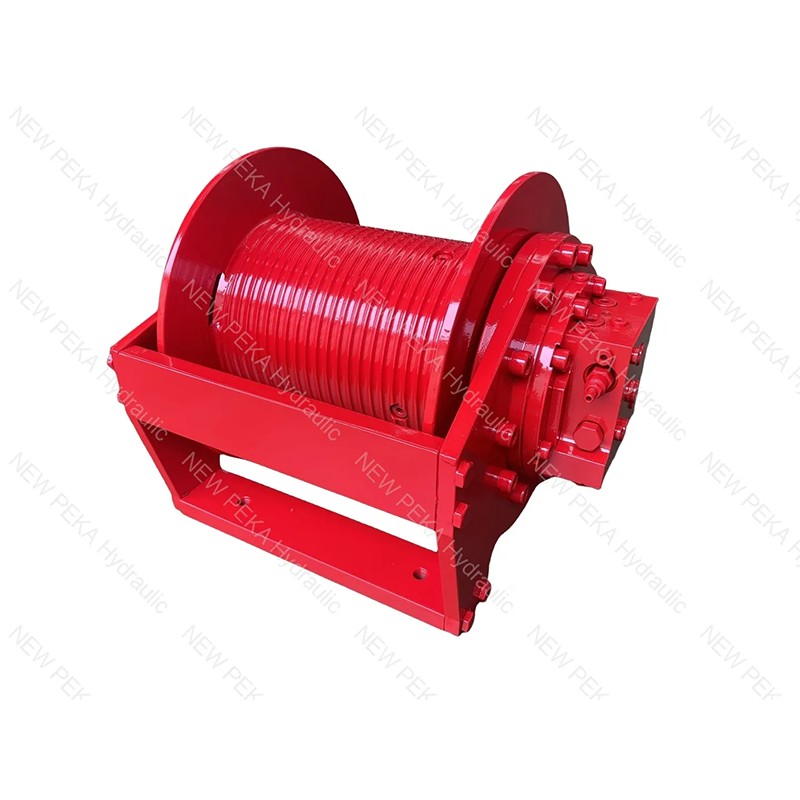

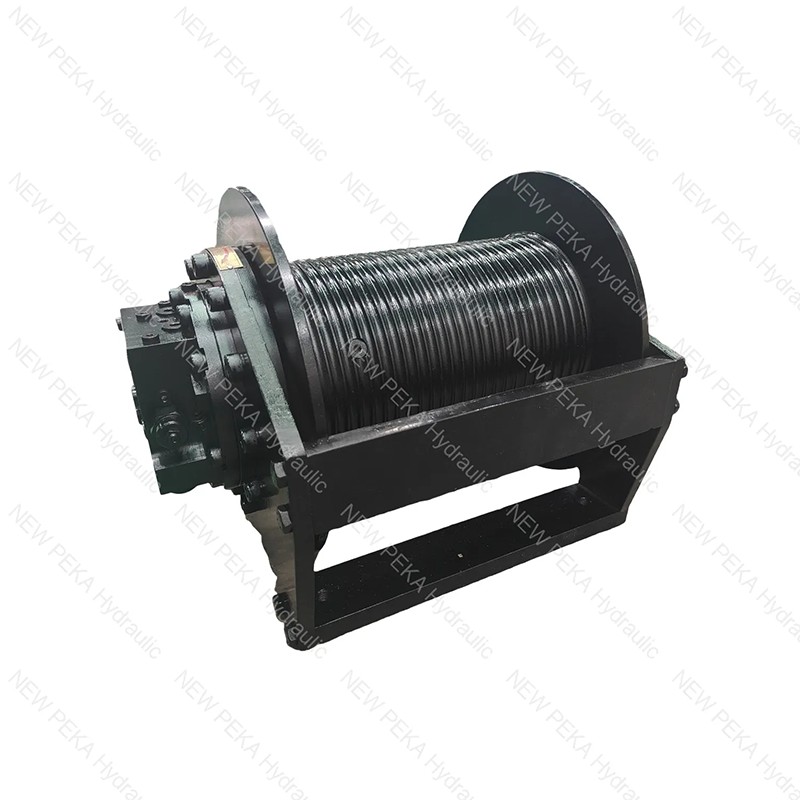

Description: PYJ series hydraulic winches are mainly consist of cam plate piston hydraulic motor, Z type hydraulic multi-disc brake and C type or KC type planetary gearbox, clutch, drum, support shaft, frame.hydraulic motor can choose different distributor according to the working conditions, such as counterbalance valve、overload valve、shuttle valve、speed control directional valve and other functions'valve.
Feature: This series winches compact and elegant figure, small size and lightweight,and a high efficiency and power,low noise and good operating performance.
Application: This series hydraulic winches have been widely used in mobile crane, vehicle crane, aerial platform, tracked vehicle and so on
Send Inquiry

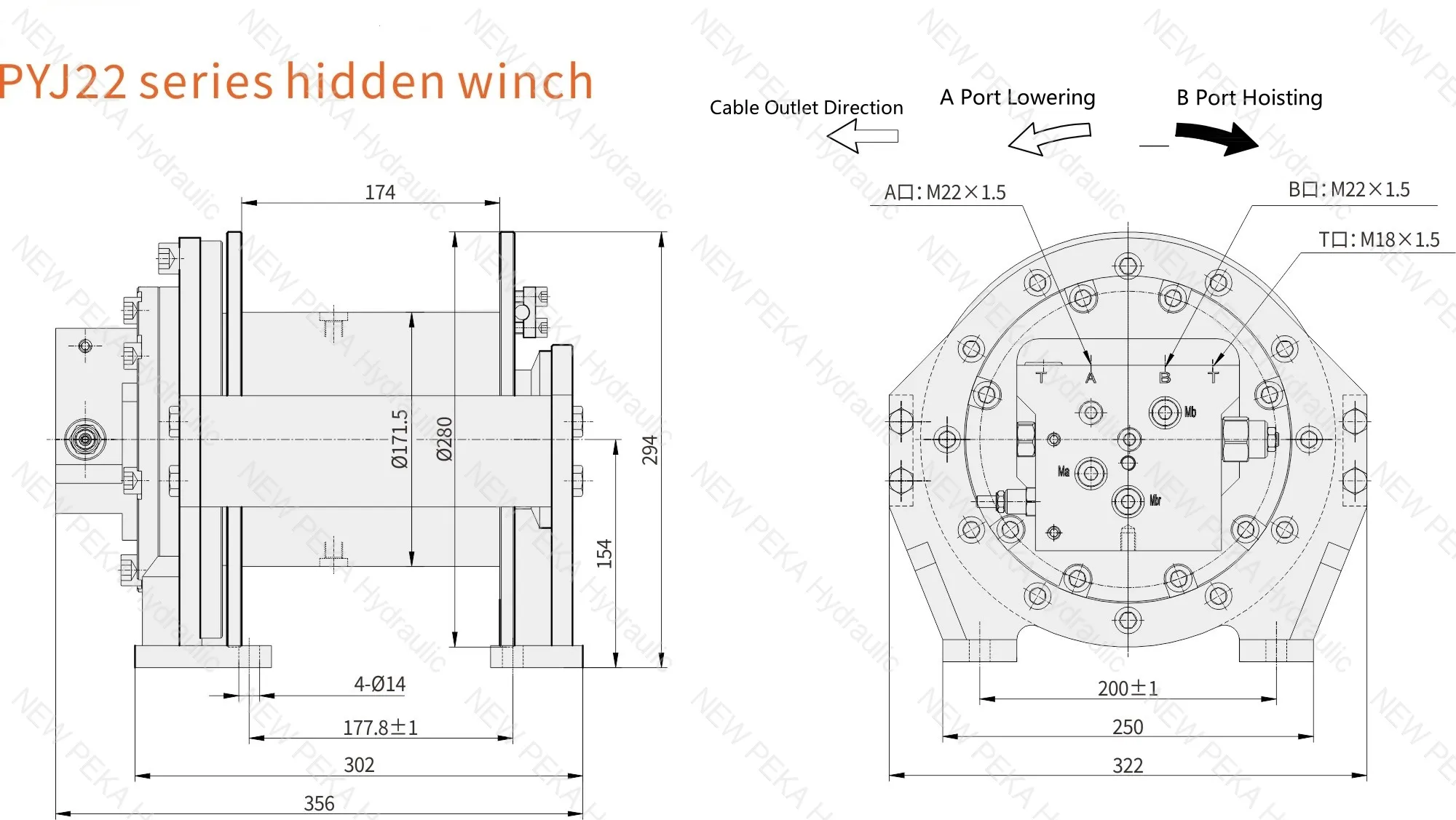

Model The 1st layer Total displacement  （ml/r） Working pressure diff.(MPa) Oil flow supply
(L/min) 		Rope diameter (mm) Layer Wire rope Capacity
(m) 		Hydraulic motor Gearbox model   (Ratio)
Pull  (kN) Rope speed（m/min）
PYJ22-10-86-8-ZP 10 40 480.9 16 36 8 6 86 IM22 KC22(i=21.8)
PYJ22-15-55-10-ZP 15 40 568.4 21 43 10 5 55 IM26
PYJ22-20-55-10-ZP 20 40 644.9 24 49 10 5 55 IM30
PYJ22-25-38-12-ZP 25 40 762.9 25 57 12 4 38 IM35

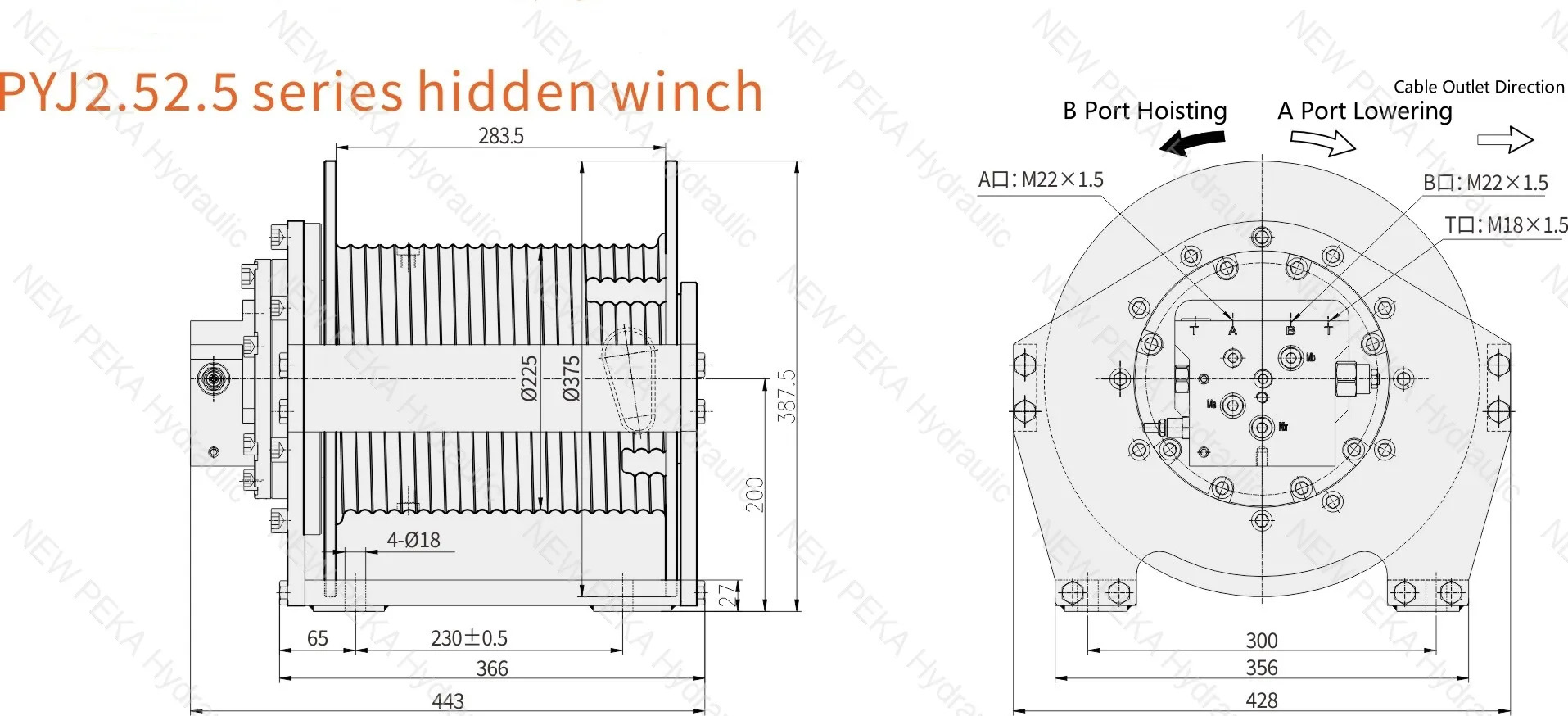

Model The 1st layer Total displacement  （ml/r） Working pressure diff.(MPa) Oil flow supply
(L/min) 		Rope diameter (mm) Layer Wire rope Capacity
(m) 		Hydraulic motor Gearbox model   (Ratio)
Pull
(kN) 		Rope speed（m/min）

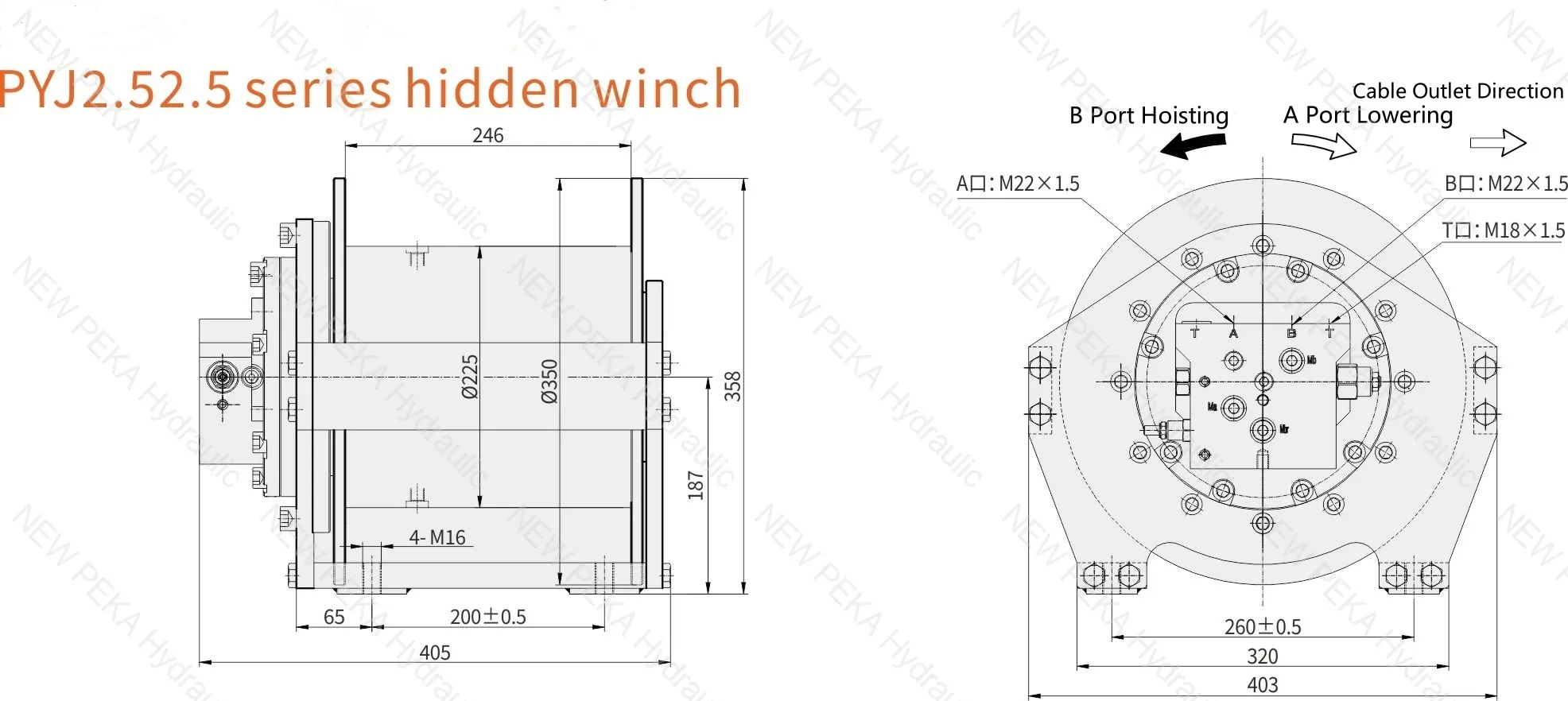

PYJ2.52.5-15-100-12-ZP 15 36 1136.8 15 60 10 5 100 PM35 KC2.52.5-B(i=32.48)
PYJ2.52.5-18-100-12-ZP 18 36 1136.8 17 60 10 5 100 PM35
PYJ2.52.5-20-100-12-ZP 20 32 1429.1 16 70 12 4 90 PM44
PYJ2.52.5-25-100-12-ZP 25 32 1429.1 19 70 12 4 90 PM44
PYJ2.52.5-30-160-12-ZP 30 32 1429.1 23 70 12 4 90 PM44

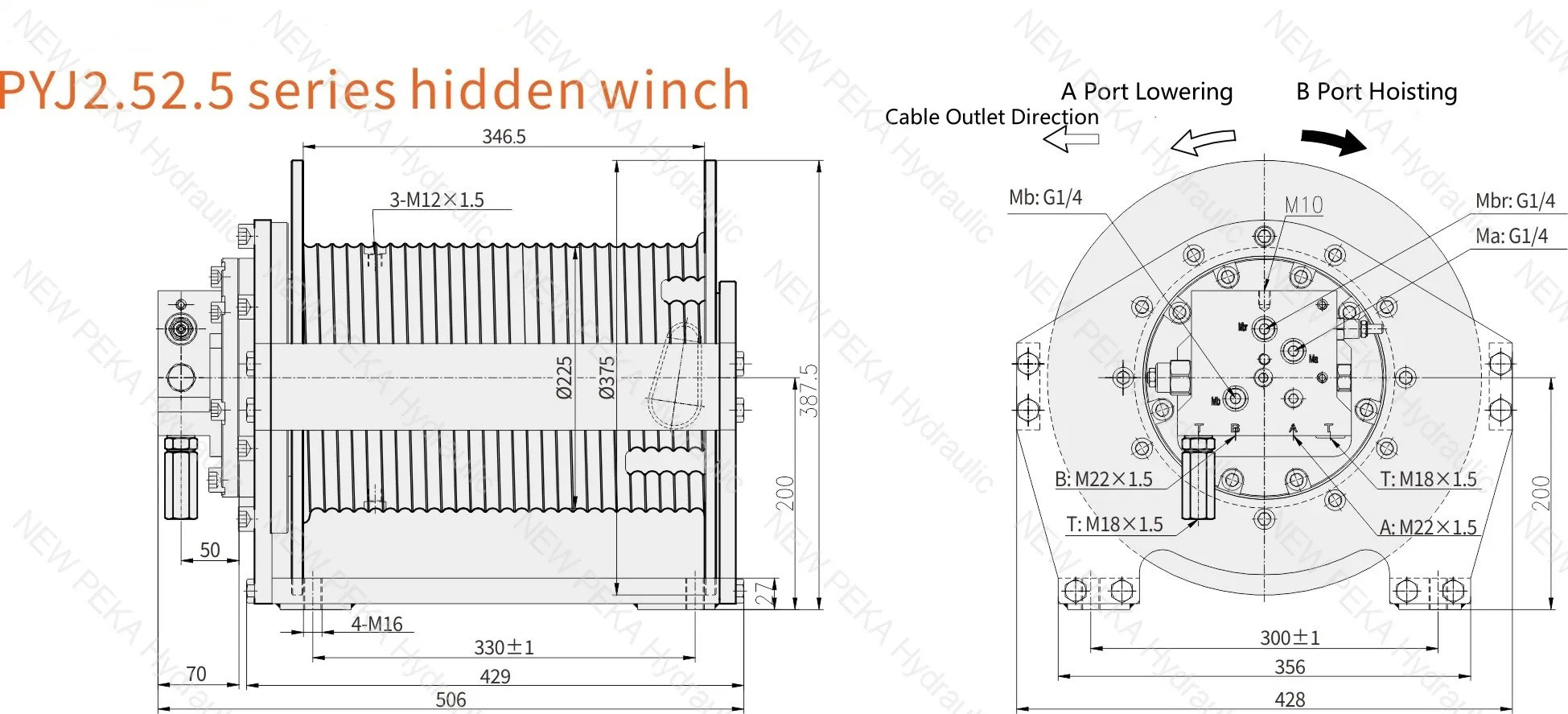

Model The 1st layer Total displacement  （ml/r） Working pressure diff.(MPa) Oil flow supply
(L/min) 		Rope diameter (mm) Layer Wire rope Capacity
(m) 		Hydraulic motor Gearbox model   (Ratio)
Pull  (kN) Rope speed（m/min）
PYJ2.52.5-20-160-12-ZP 20 32 1429.1 16 70 12 6 160 PM44 KC2.52.5-B(i=32.48)
PYJ2.52.5-25-160-12-ZP 25 32 1429.1 19 70 12 6 160 PM44
PYJ2.52.5-30-160-12-ZP 30 32 1429.1 23 70 12 6 160 PM44

Model The 1st layer Total displacement  （ml/r） Working pressure diff.(MPa) Oil flow supply
(L/min) 		Rope diameter (mm) Layer Wire rope Capacity
(m) 		Hydraulic motor Gearbox model   (Ratio)
Pull  (kN) Rope speed（m/min）
PYJ2.52.5-15-100-10-ZP 15 36 1136.8 15 60 12 5 100 PM30 KC2.52.5-B(i=32.48)
PYJ2.52.5-18-100-10-ZP 18 36 1136.8 17 60 12 5 100 PM30
PYJ2.52.5-20-100-12-ZP 20 32 1429.1 16 70 12 5 100 PM44
PYJ2.52.5-25-100-12-ZP 25 32 1429.1 19 70 12 5 100 PM44
PYJ2.52.5-30-100-12-ZP 30 32 1429.1 23 70 12 5 100 PM44

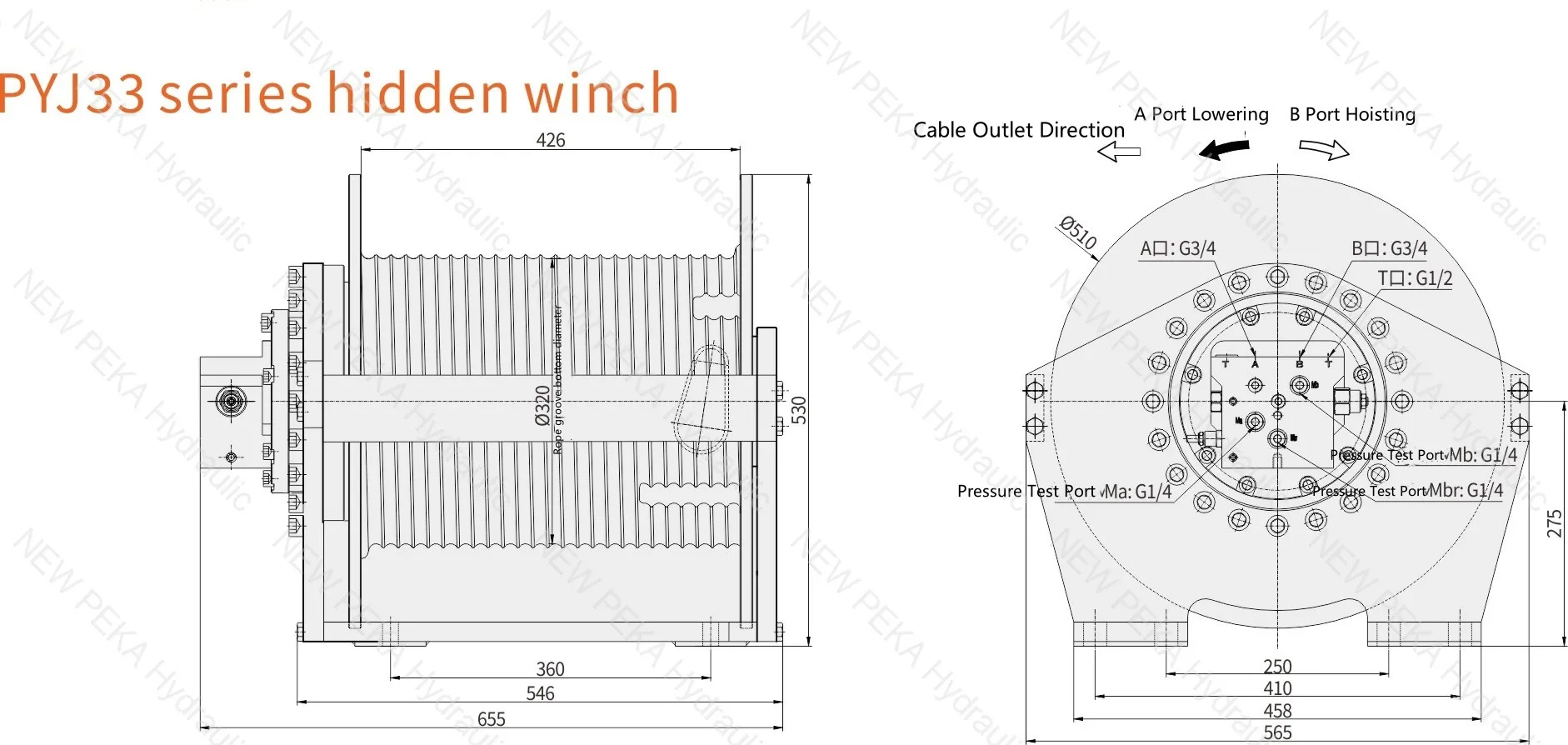

Model The 1st layer Total displacement  （ml/r） Working pressure diff.
(MPa) 		Oil flow supply
(L/min) 		Rope diameter (mm) Layer Wire rope Capacity
(m) 		Hydraulic motor Gearbox model   (Ratio)
Pull  (kN) Rope speed（m/min）
PYJ33-40-120-16-ZP 40 40 2933.2 20 125 16 5 120 PM87 KC33 (i=33.6)
PYJ33-50-120-16-ZP 50 40 2933.2 25 125 16 5 120 PM87
PYJ33-55-120-16-ZP 55 35 2427.2 23 125 16 5 120 PM102
PYJ33-60-120-16-ZP 60 35 2427.2 25 125 16 5 120 PM102

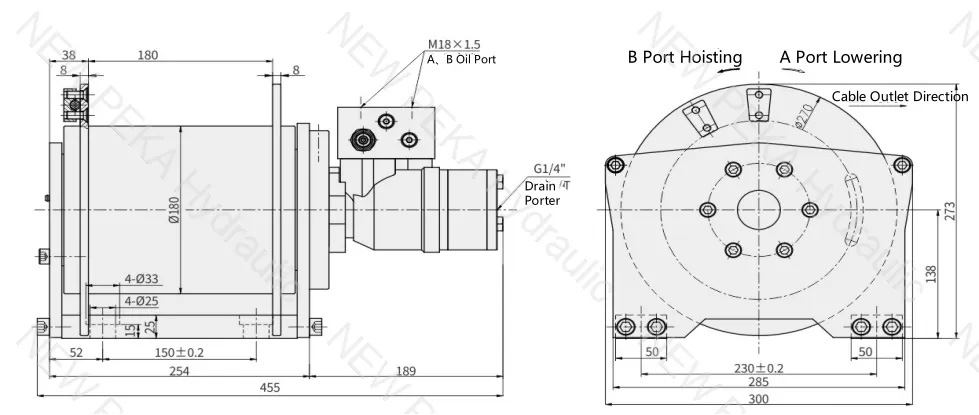

Model The 1st layer Reel bottom diameter
(mm) 		Total displacement  （ml/r） Lifting pressure (MPa) Rope diameter (mm) Wire rope Capacity
(m) 		Weight
(kg) 		Hydraulic motor
Pull  (kN) Rope speed（m/min）
BG05 5 50 180 476 120 6 55 65 OMP100
BG08 8 40 180 761 120 6 55 65 OMP160
BG10 10 30 180 952 120 8 40 65 OMP200
BG15 15 20 180 1190 150 10 35 65 OMP250

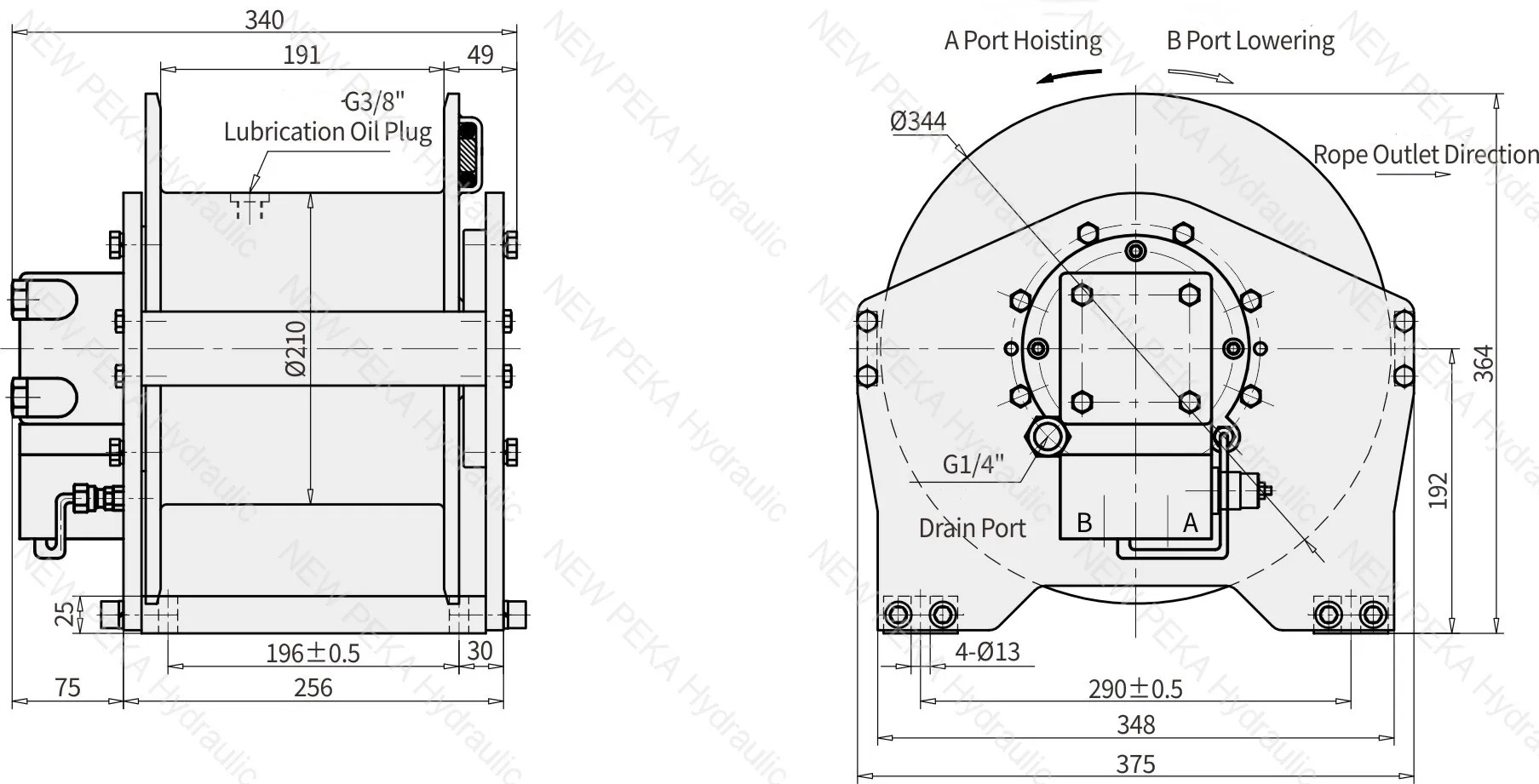

Model The 1st layer Reel bottom diameter
(mm) 		Total displacement  （ml/r） Lifting pressure (MPa) Rope diameter (mm) Wire rope Capacity
(m) 		Weight
(kg) 		Hydraulic motor
Pull  (kN) Rope speed（m/min）
S15 20 40 210 923 205 10 51 80 OMS160
S19 25 45 210 1154 205 12 45 80 OMS200

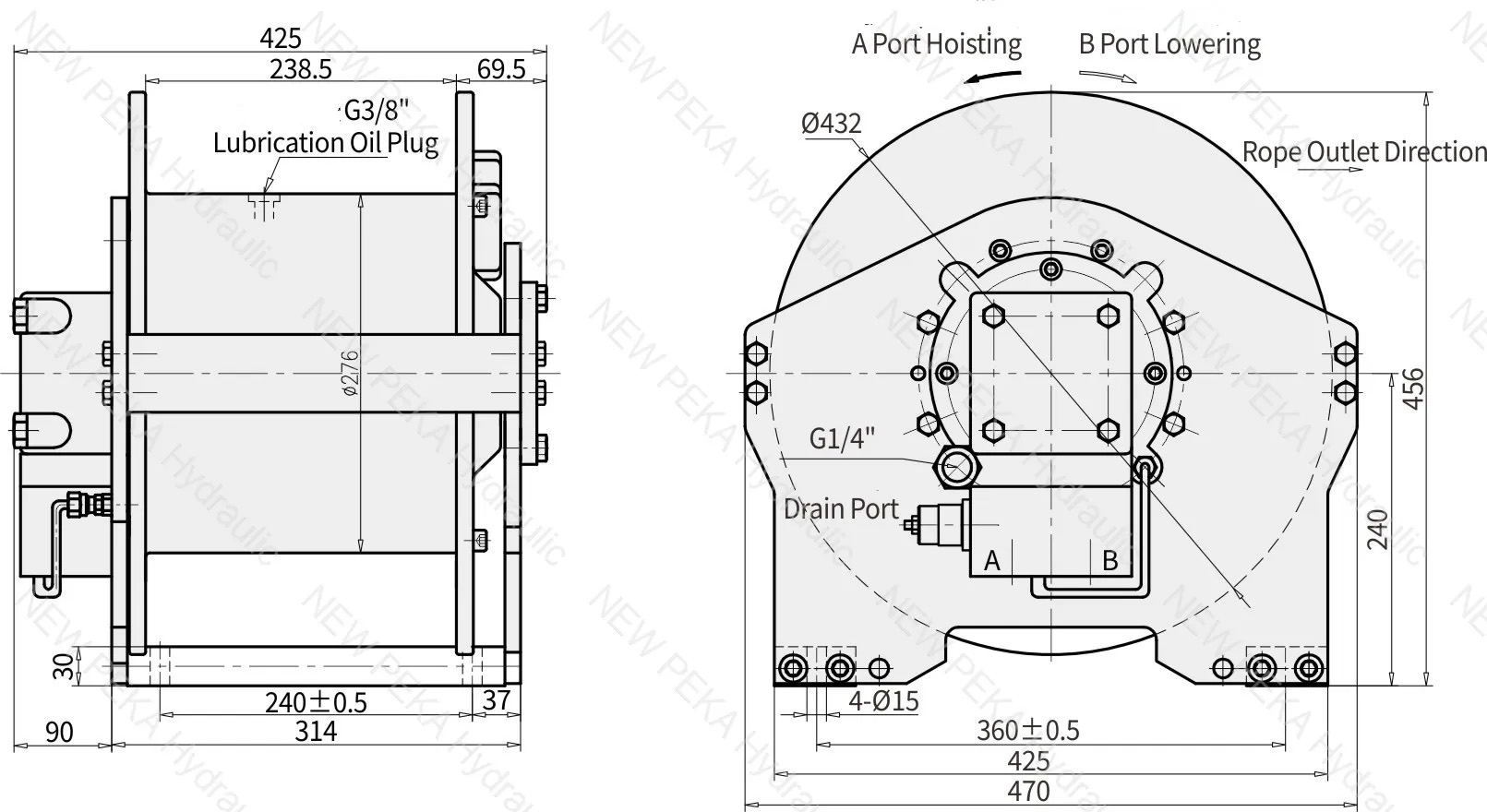

Model The 1st layer Reel bottom diameter
(mm) 		Total displacement  （ml/r） Lifting pressure (MPa) Rope diameter (mm) Wire rope Capacity
(m) 		Weight
(kg) 		Hydraulic motor
Pull  (kN) Rope speed（m/min）
S20 20 46 273 1040 225 10 75 154 OMSW160
S25 25 37
