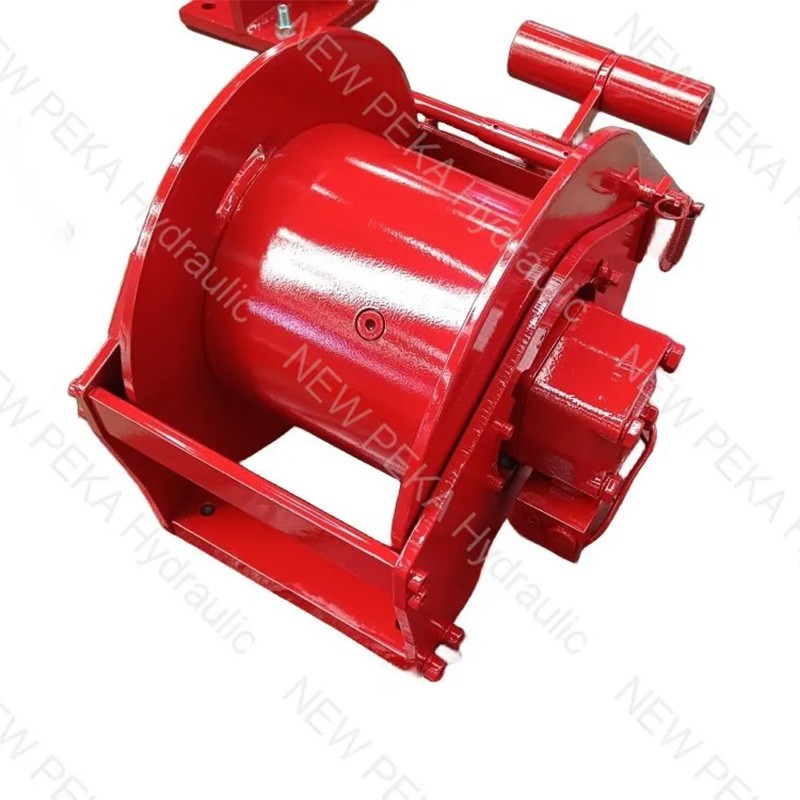

Danamic S series 2-3T hydraulic winch
Danamic S series 2-3T hydraulic winch

Danamic S series 2-3T hydraulic winch

Description:PYJ series hydraulic winches are mainly consist of cam plate piston hydraulic motor, Z type hydraulic multi-disc brake and C type or KC type planetary gearbox, clutch, drum, support shaft, frame.hydraulic motor can choose different distributor according to the working conditions, such as counterbalance valve、overload valve、shuttle valve、speed control directional valve and other functions'valve.
Feature:This series winches compact and elegant figure, small size and lightweight,and a high efficiency and power,low noise and good operating performance .
Application:This series hydraulic winches have been widely used in mobile crane, vehicle crane, aerial platform, tracked vehicle and so on.
Send Inquiry
 Model The 1st layer Reel bottom diameter(mm) Total displacement  （ml/r） Lifting pressure (MPa) Rope diameter (mm) Wire rope Capacity(m) Weight(kg) Hydraulic motor
Pull  (kN) Rope speed（m/min）
S20 20 46 273 1040 225 10 75 154 OMSW160
S25 25 37 273 1625 225 12 71 154 OMSW200
S27 32 30 273 2080 200 16 62 154 OMTW250
Similar product recommendations

Production and Processing

  • client
  • client
  • client

Factory Environment

  • client
  • client
  • client

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity
