| Model | The 1st layer | Total displacement （ml/r） | Working pressure diff.(MPa) | oil flow supply (L/min) | Rope diameter (mm) | Layer | Wire rope Capacity(m) | Hydraulic motor | Gearbox model (Ratio) | |
| Pull (kN) | Rope speed（m/min） | |||||||||
| PYJ2.52.5-15-100-12-ZP | 15 | 36 | 1136.8 | 15 | 60 | 10 | 5 | 100 | PM35 | KC2.52.5-B(i=32.48) |
| PYJ2.52.5-18-100-12-ZP | 18 | 36 | 1136.8 | 17 | 60 | 10 | 5 | 100 | PM35 | |
| PYJ2.52.5-20-100-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 4 | 90 | PM44 | |
| PYJ2.52.5-25-100-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 4 | 90 | PM44 | |
| PYJ2.52.5-30-160-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 4 | 90 | PM44 | |
| PYJ2.52.5-20-160-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 6 | 160 | PM44 | KC2.52.5-B(i=32.48) |
| PYJ2.52.5-25-160-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 6 | 160 | PM44 | |
| PYJ2.52.5-30-160-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 6 | 160 | PM44 | |
| PYJ2.52.5-15-100-10-ZP | 15 | 36 | 1136.8 | 15 | 60 | 12 | 5 | 100 | PM30 | KC2.52.5-B(i=32.48) |
| PYJ2.52.5-18-100-10-ZP | 18 | 36 | 1136.8 | 17 | 60 | 12 | 5 | 100 | PM30 | |
| PYJ2.52.5-20-100-12-ZP | 20 | 32 | 1429.1 | 16 | 70 | 12 | 5 | 100 | PM44 | |
| PYJ2.52.5-25-100-12-ZP | 25 | 32 | 1429.1 | 19 | 70 | 12 | 5 | 100 | PM44 | |
| PYJ2.52.5-30-100-12-ZP | 30 | 32 | 1429.1 | 23 | 70 | 12 | 5 | 100 | PM44 | |

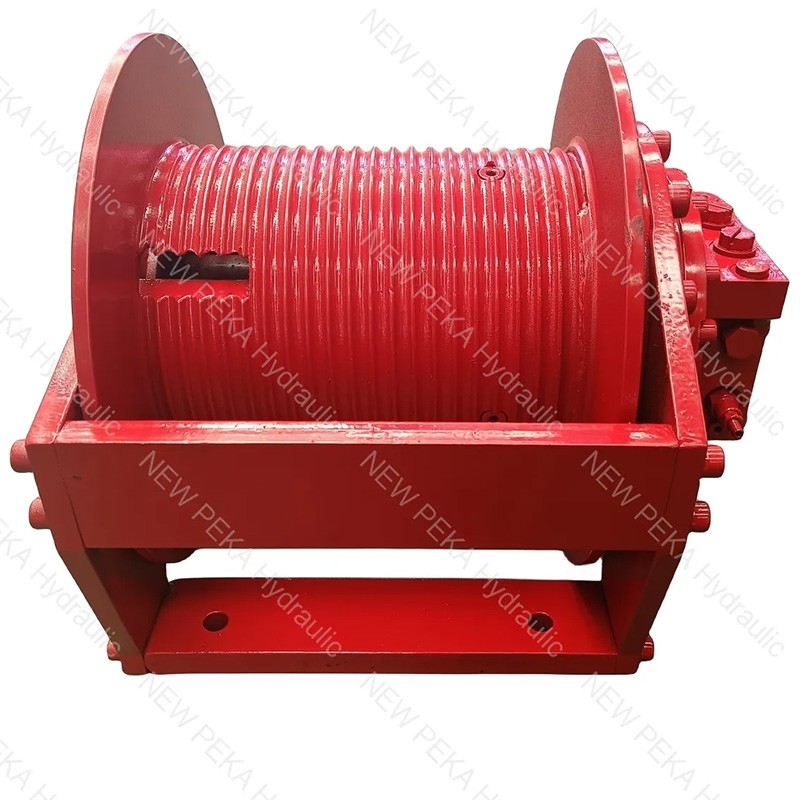

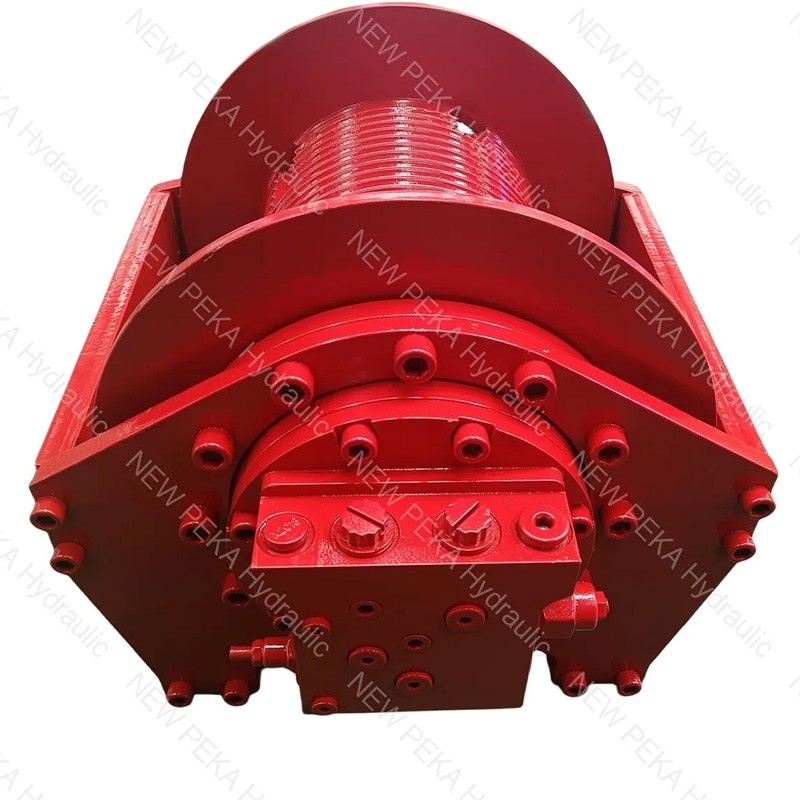

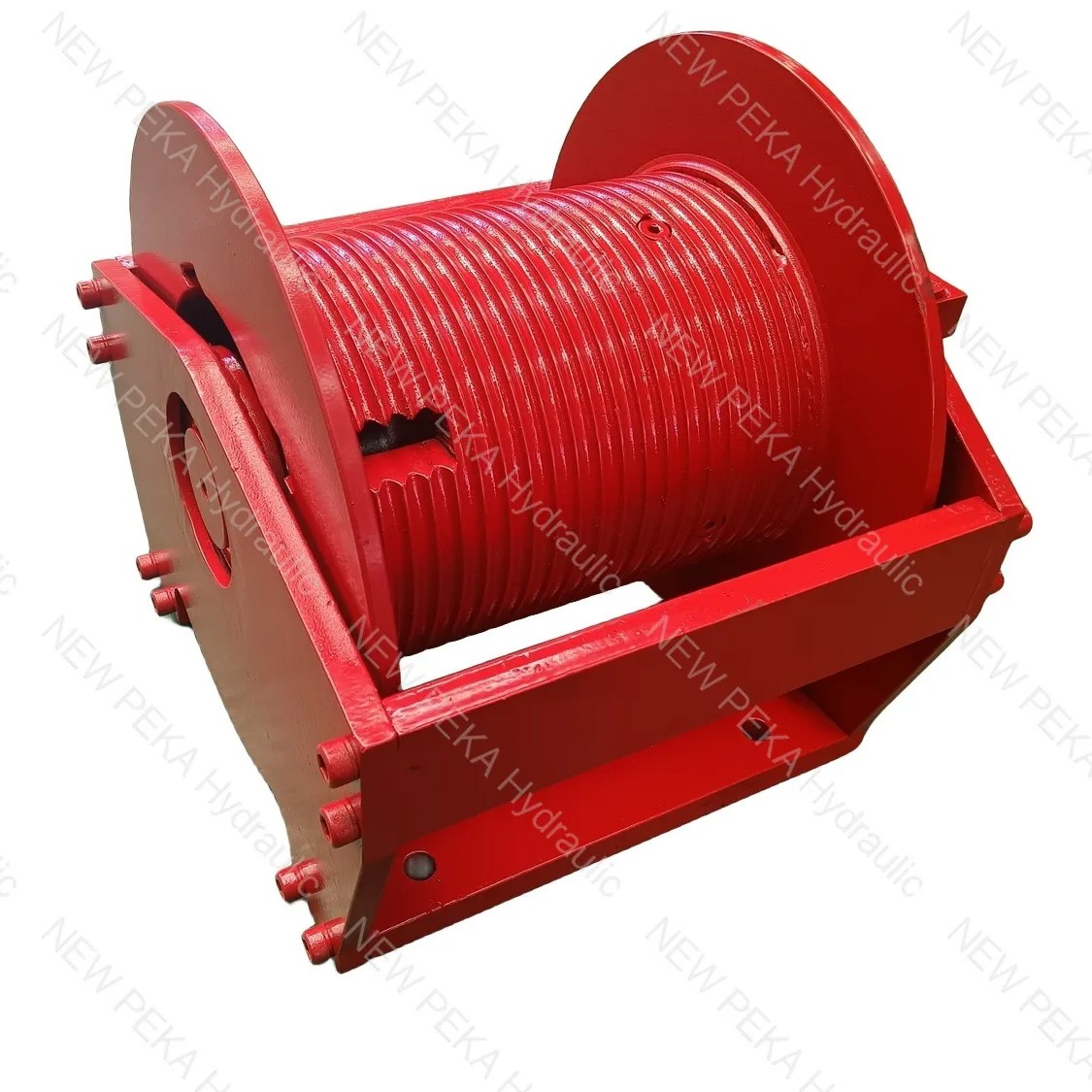

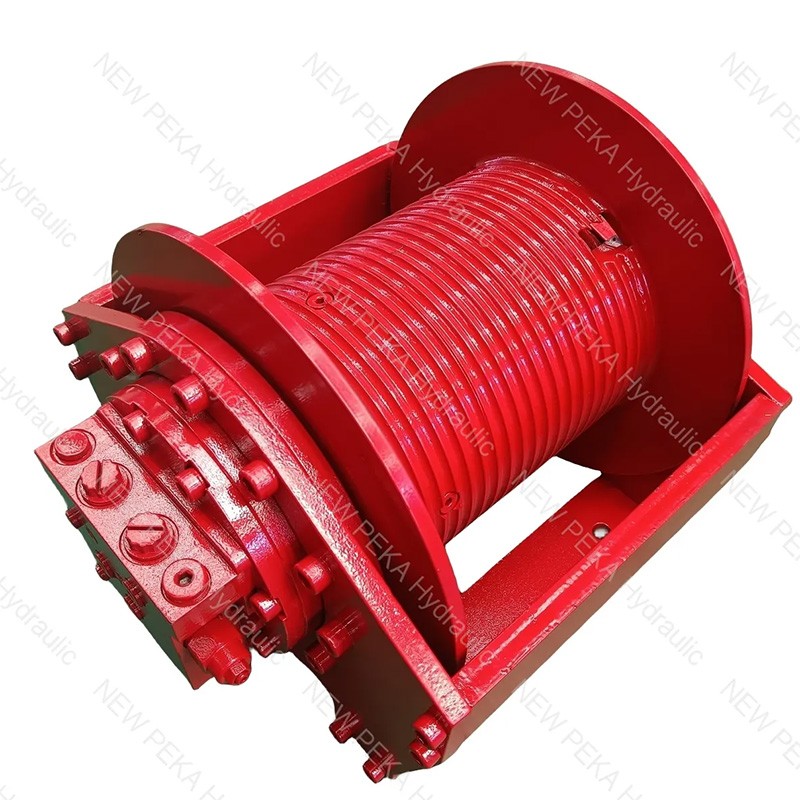

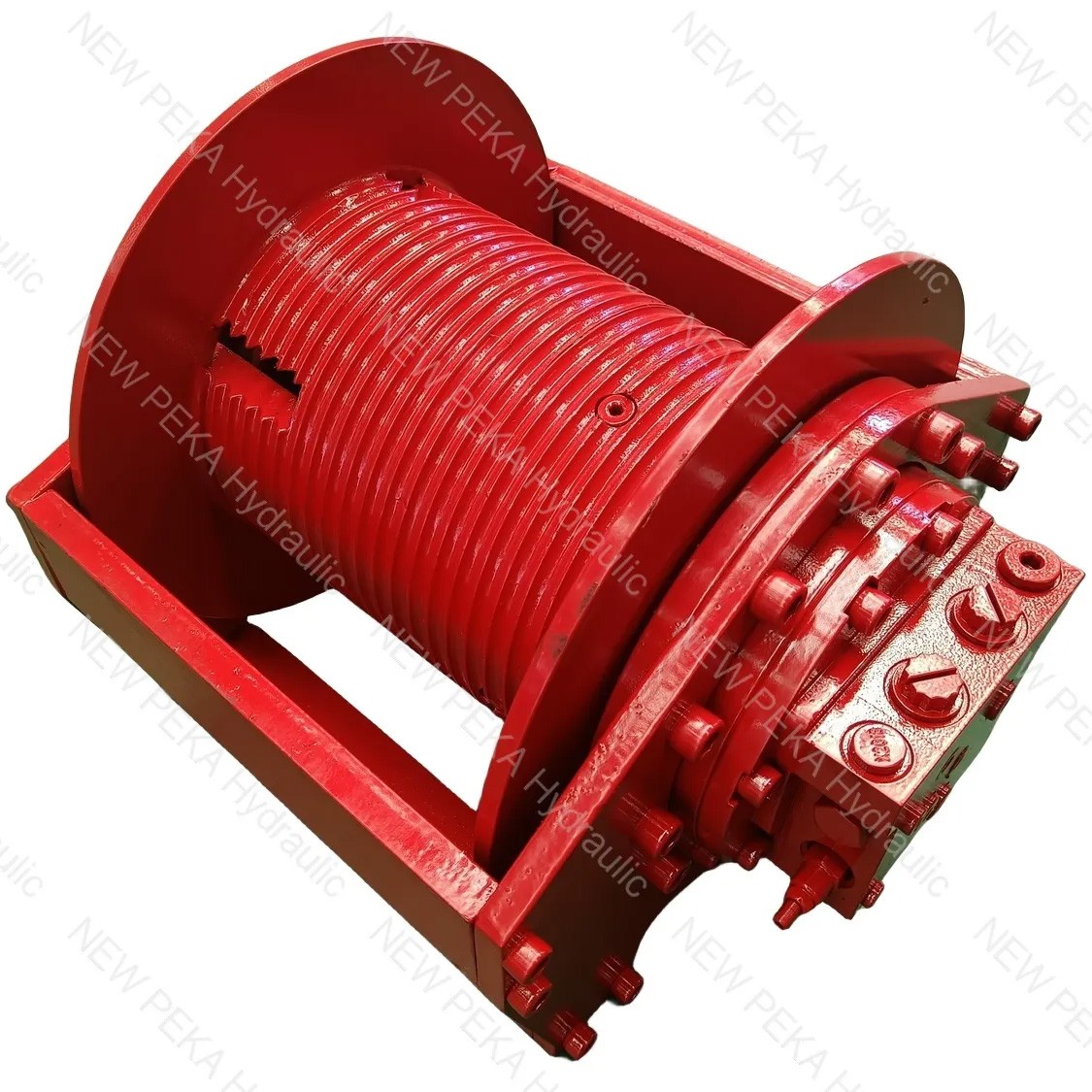

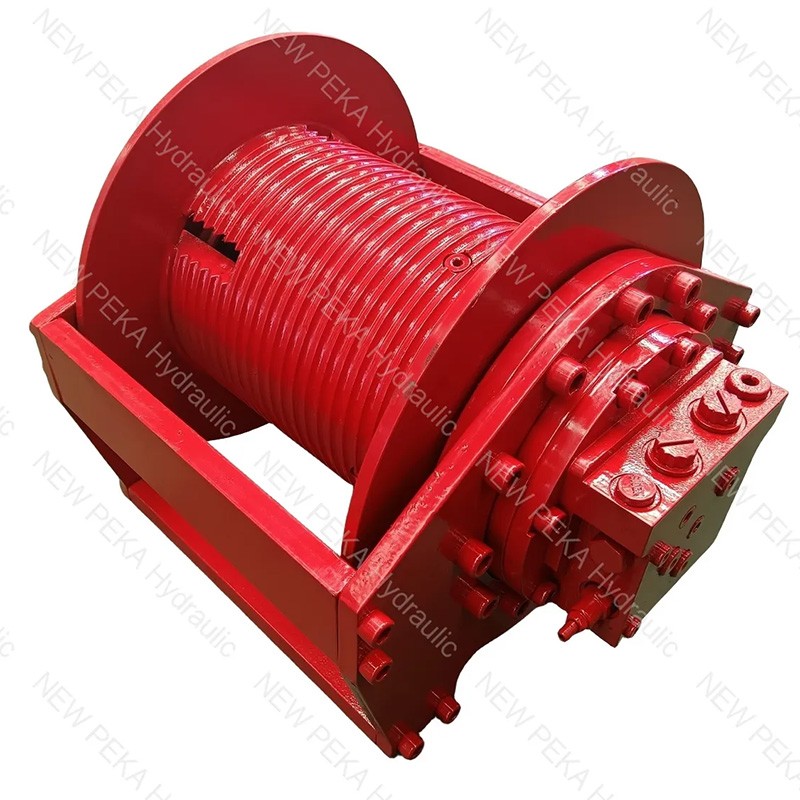

1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
1.5-3T hidden hydraulic winch
Description:PYJ series hydraulic winches are mainly consist of cam plate piston hydraulic motor, Z type hydraulic multi-disc brake and C type or KC type planetary gearbox, clutch, drum, support shaft, frame.hydraulic motor can choose different distributor according to the working conditions, such as counterbalance valve、overload valve、shuttle valve、speed control directional valve and other functions'valve.
Feature:This series winches compact and elegant figure, small size and lightweight,and a high efficiency and power,low noise and good operating performance .
Application:This series hydraulic winches have been widely used in mobile crane, vehicle crane, aerial platform, tracked vehicle and so on.
Feature:This series winches compact and elegant figure, small size and lightweight,and a high efficiency and power,low noise and good operating performance .
Application:This series hydraulic winches have been widely used in mobile crane, vehicle crane, aerial platform, tracked vehicle and so on.
