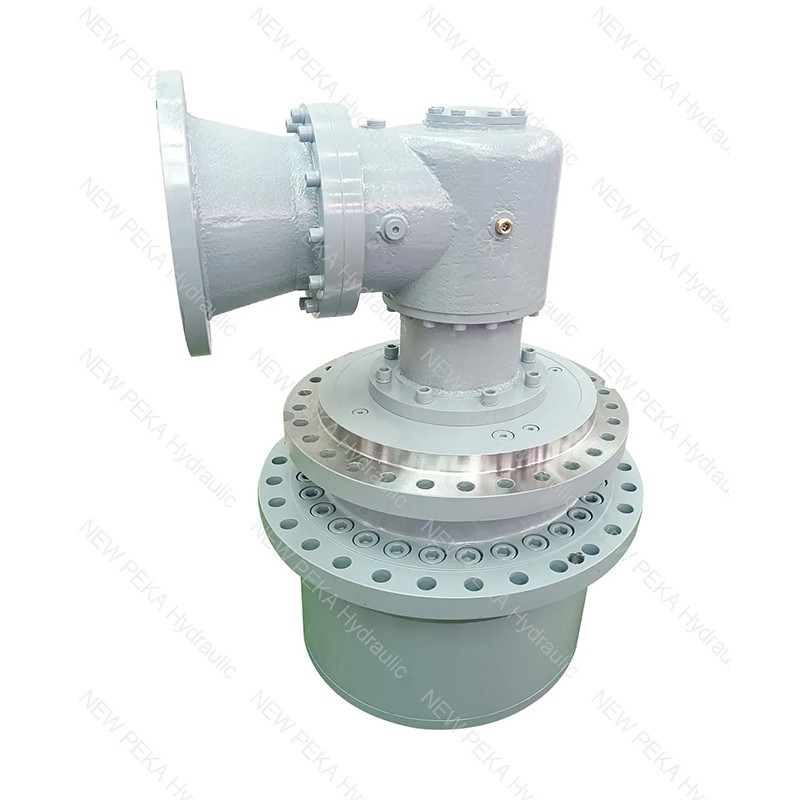

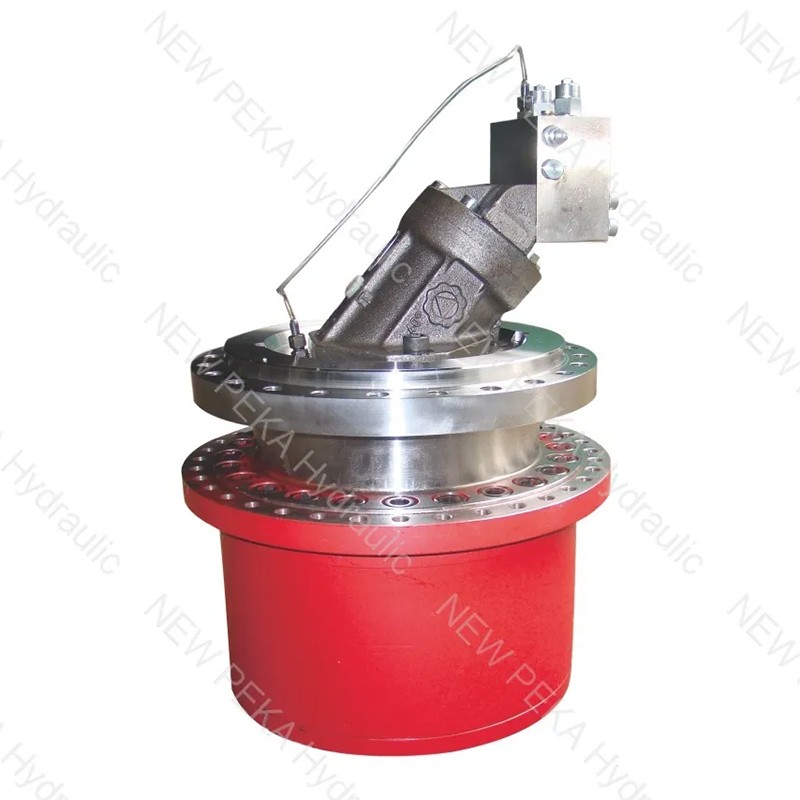

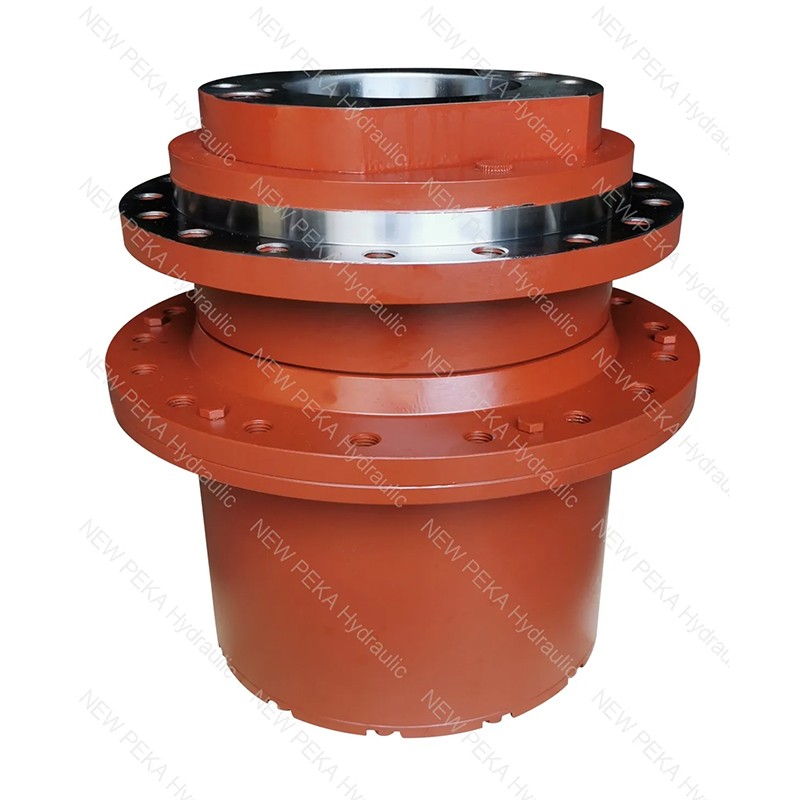

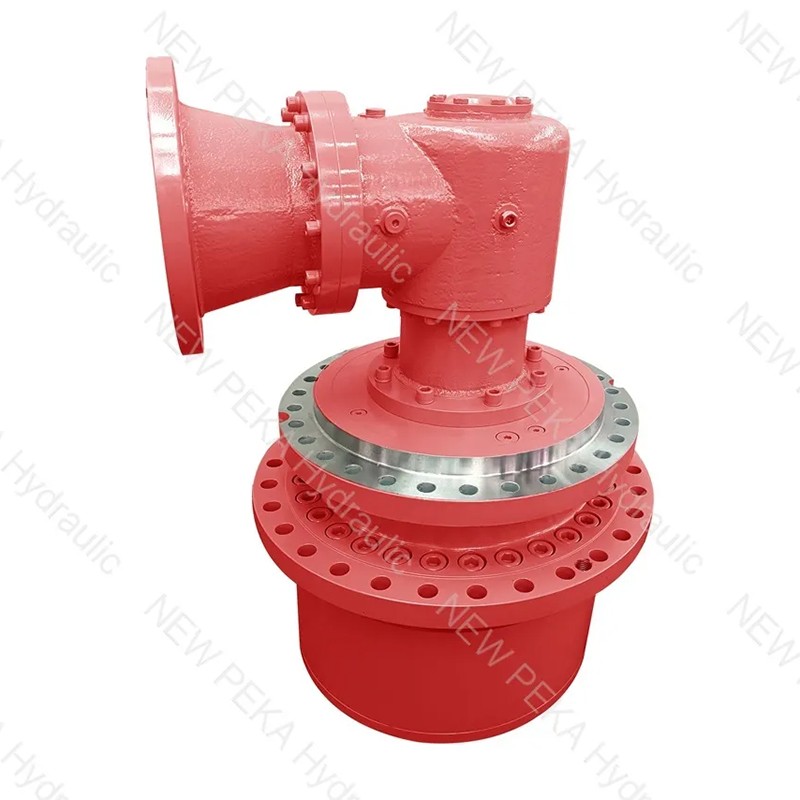

GFT travel drive
GFT travel drive

GFT travel drive

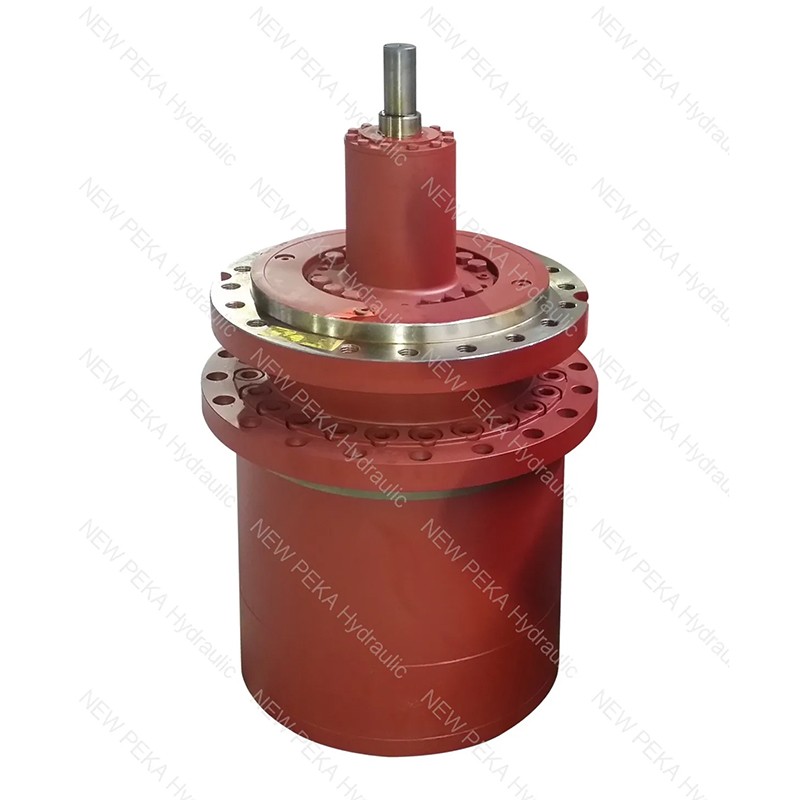

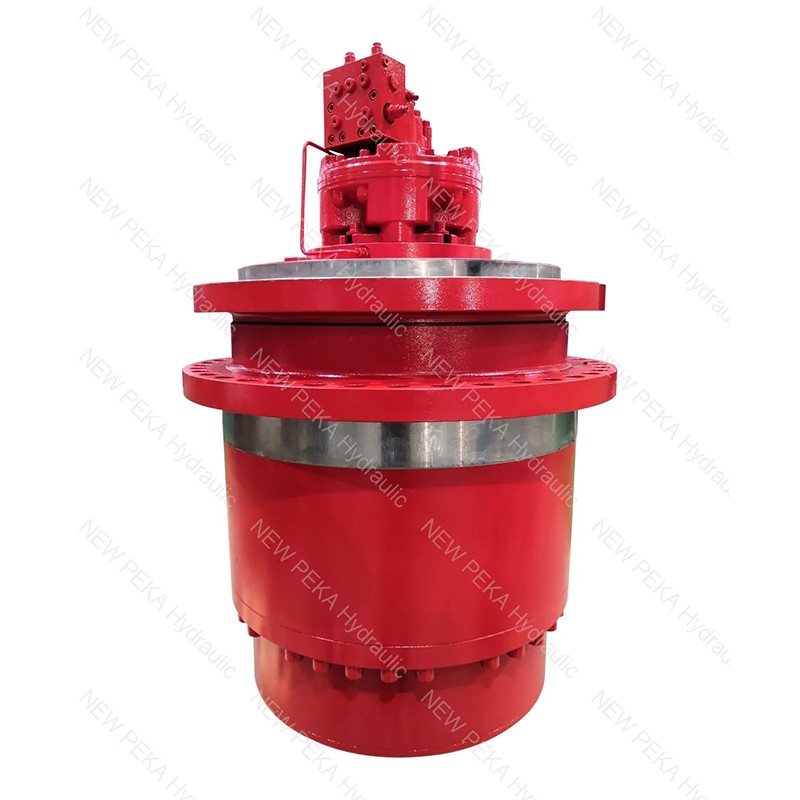

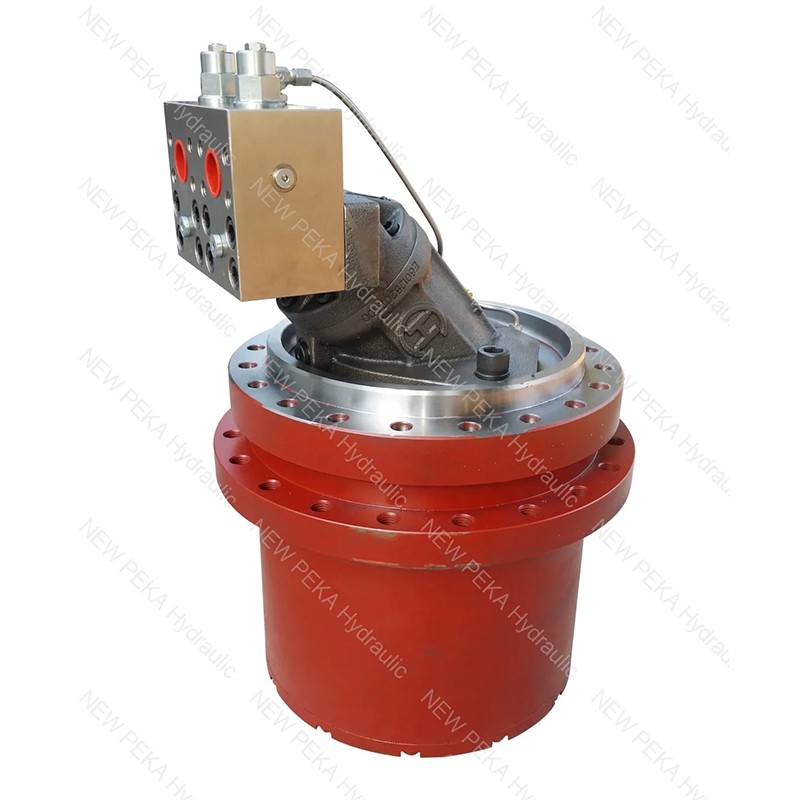

GFT-T travel drive series consist of planetary gearbox and wet fype multi-disc brake.
Feature: Advanced design experience and modern fabrication processes warrant outstanding load carrying capacity and operational safety. The drives feature high total efficiency.compact and module design. The drives can be fitted with various hydraulic motors according to customer requirement.
Application: The drives can be directly installed in a wheei or track of a mobile vehicle, and also can be used in coal road header or milling machine, and other
Send Inquiry
Model Output Torque Tmax Nm Ratio Hydraulic motor Max.Input Speed r/min Braking Torque Max.Nm Brake Press. Mpa Weight kg

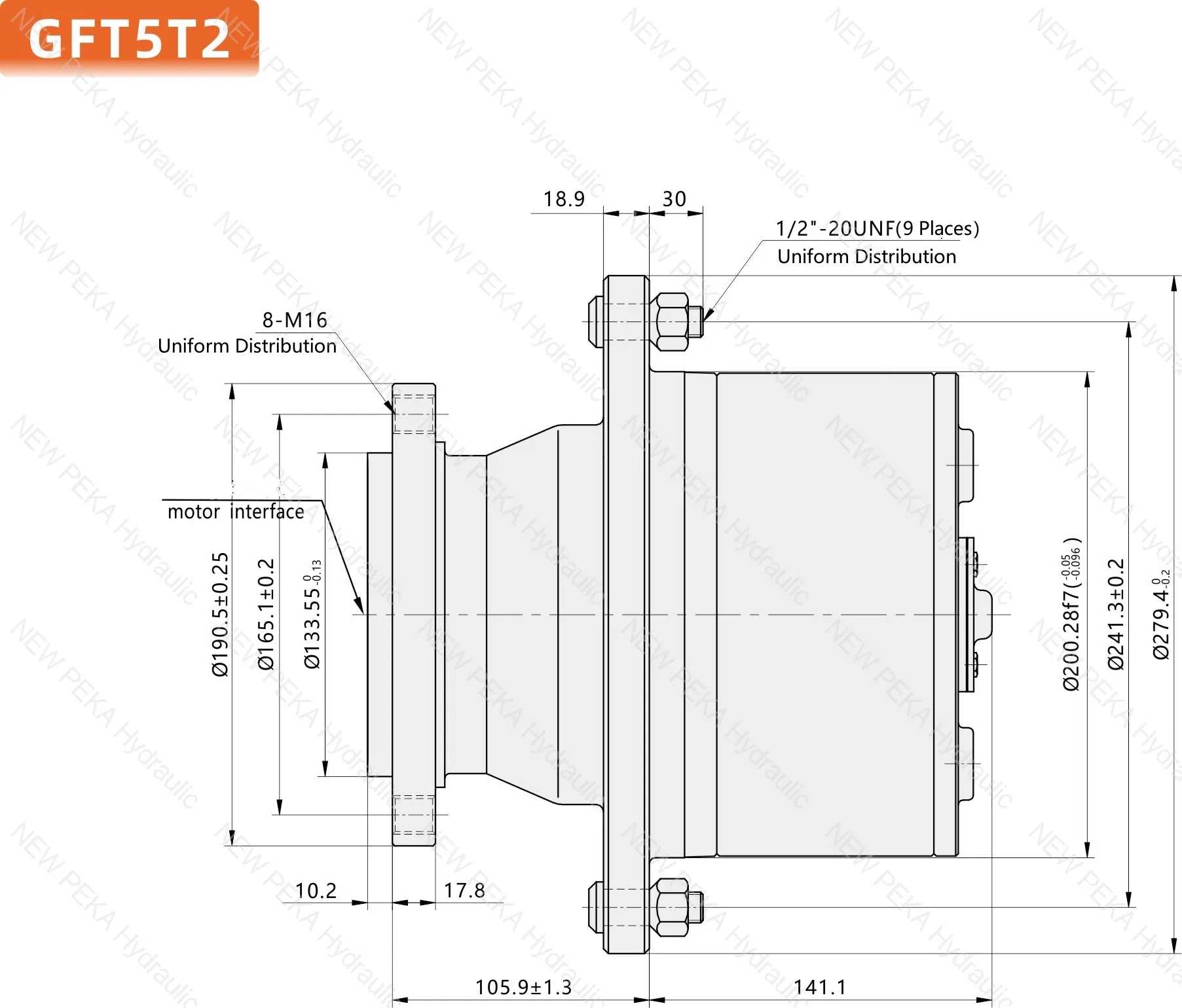

GFT5T2 5000 19 24 29 37 OMR OMS ZK 3500 250 1.8-5 35
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight kg

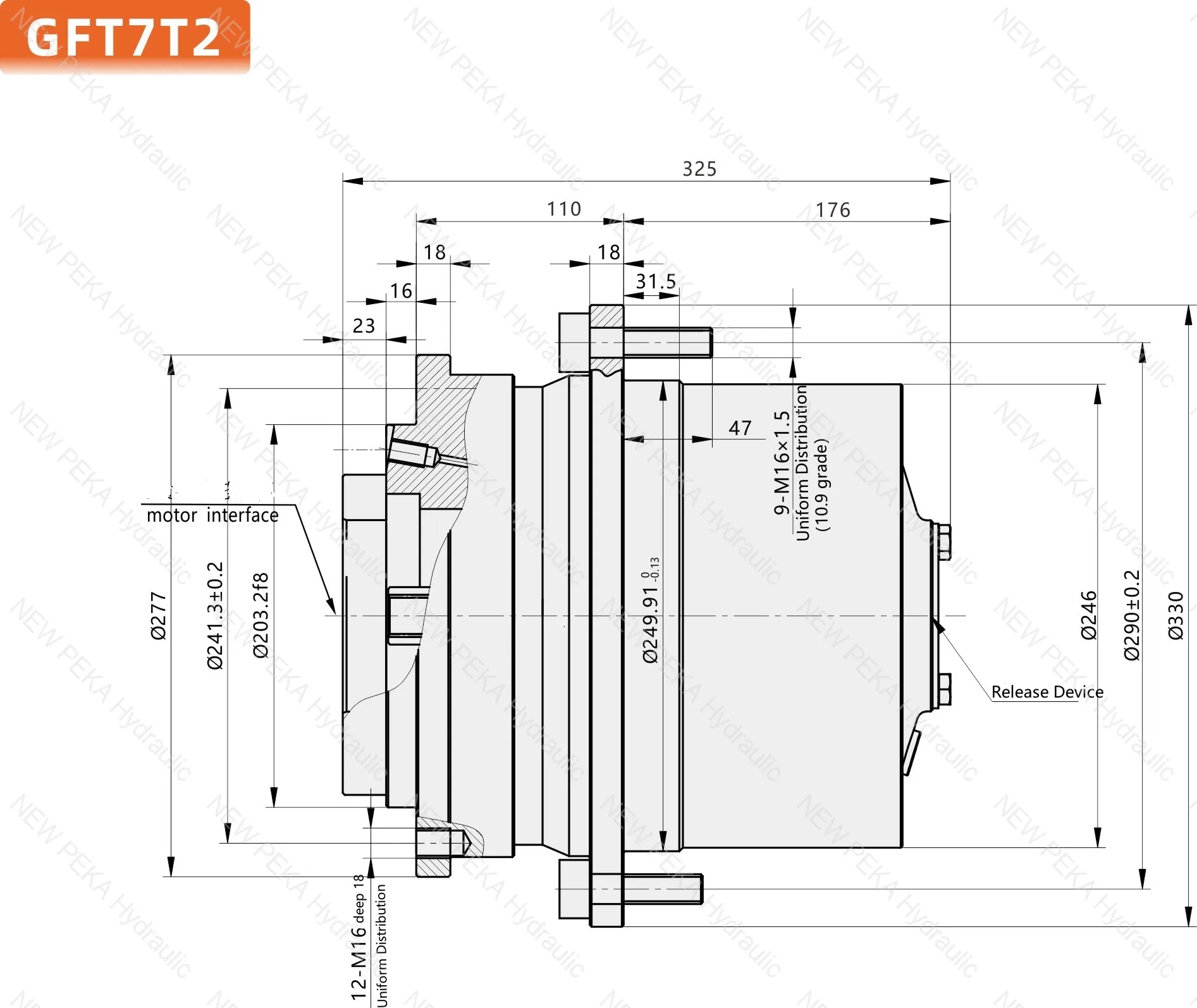

GFT7T2 8000 28
32
38
48 		A2FE45 A2FE32 GOK55 GOM55 51D060 3500 250 1.8-5 68
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

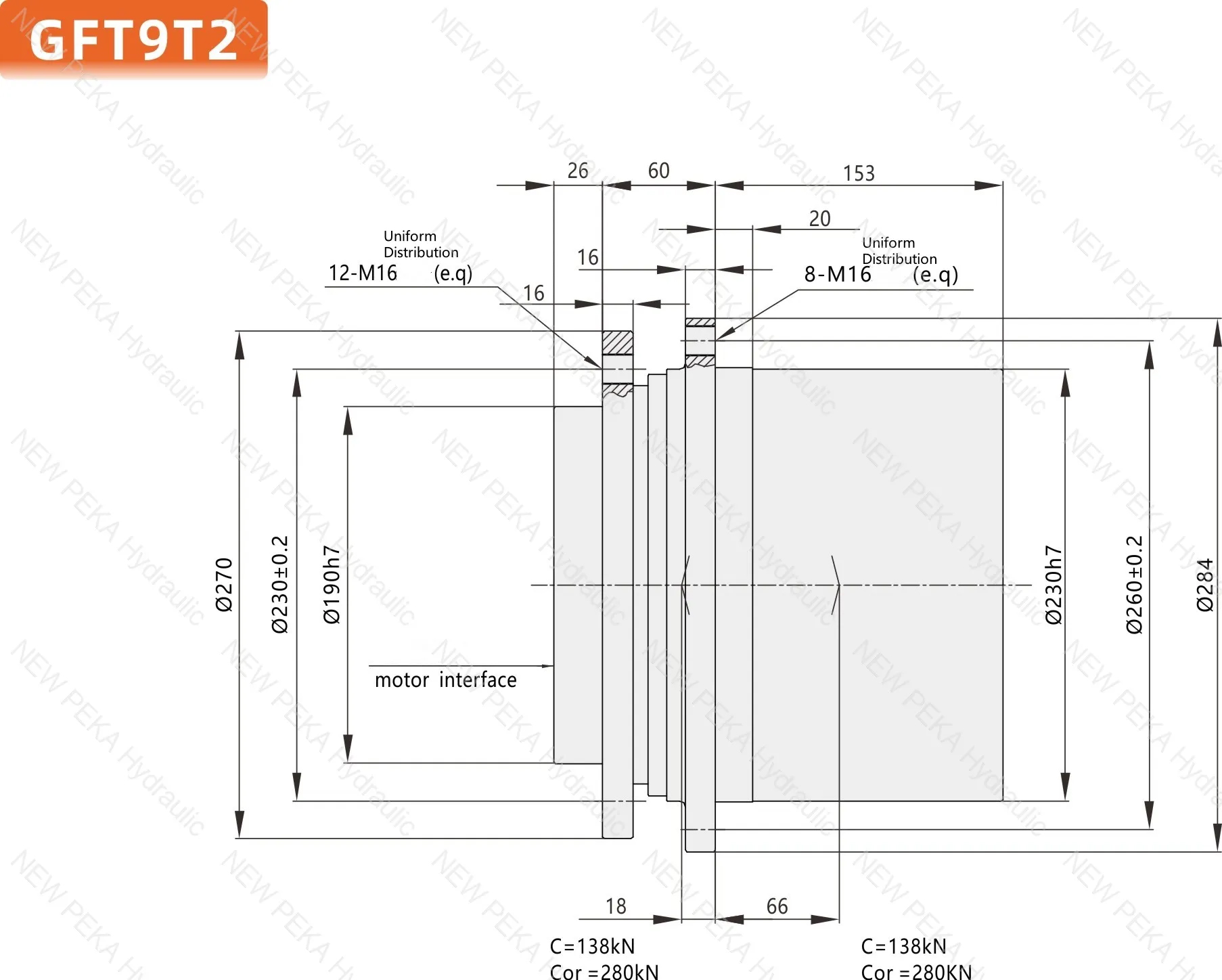

GFT9T2 9000 20
26
30
36
45 		A2F45 A2F55 A2F63 A10VE45 K45 3500 250 1.8-5 49
Model Output Torque Max Nm Ratio Hydraulic motor Max input Speed r/min Braking Torque Max.Nm Brake Press. Mpa Weight =kg

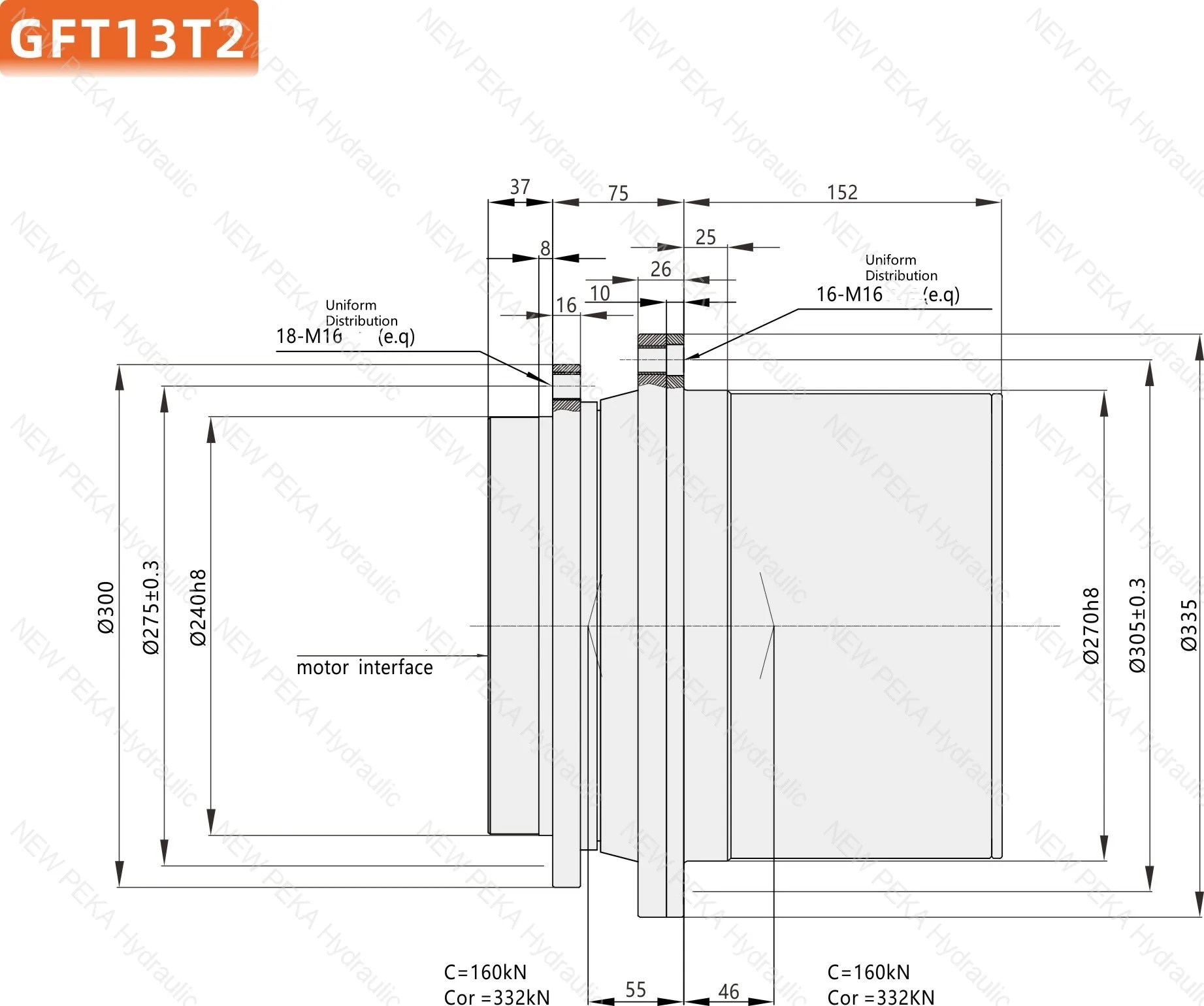

GFT13T2 13000 16
23
32
38 		A2FE45 A2FE56 A2FE63 A6VE55 A10VE45 A10VE63 3500 450 1.8~5 86
Model Output Torque Max Nm Ratio Hydraulic motor Max input Speed r/min Braking Torque Max.Nm Brake Press. Mpa Weight =kg

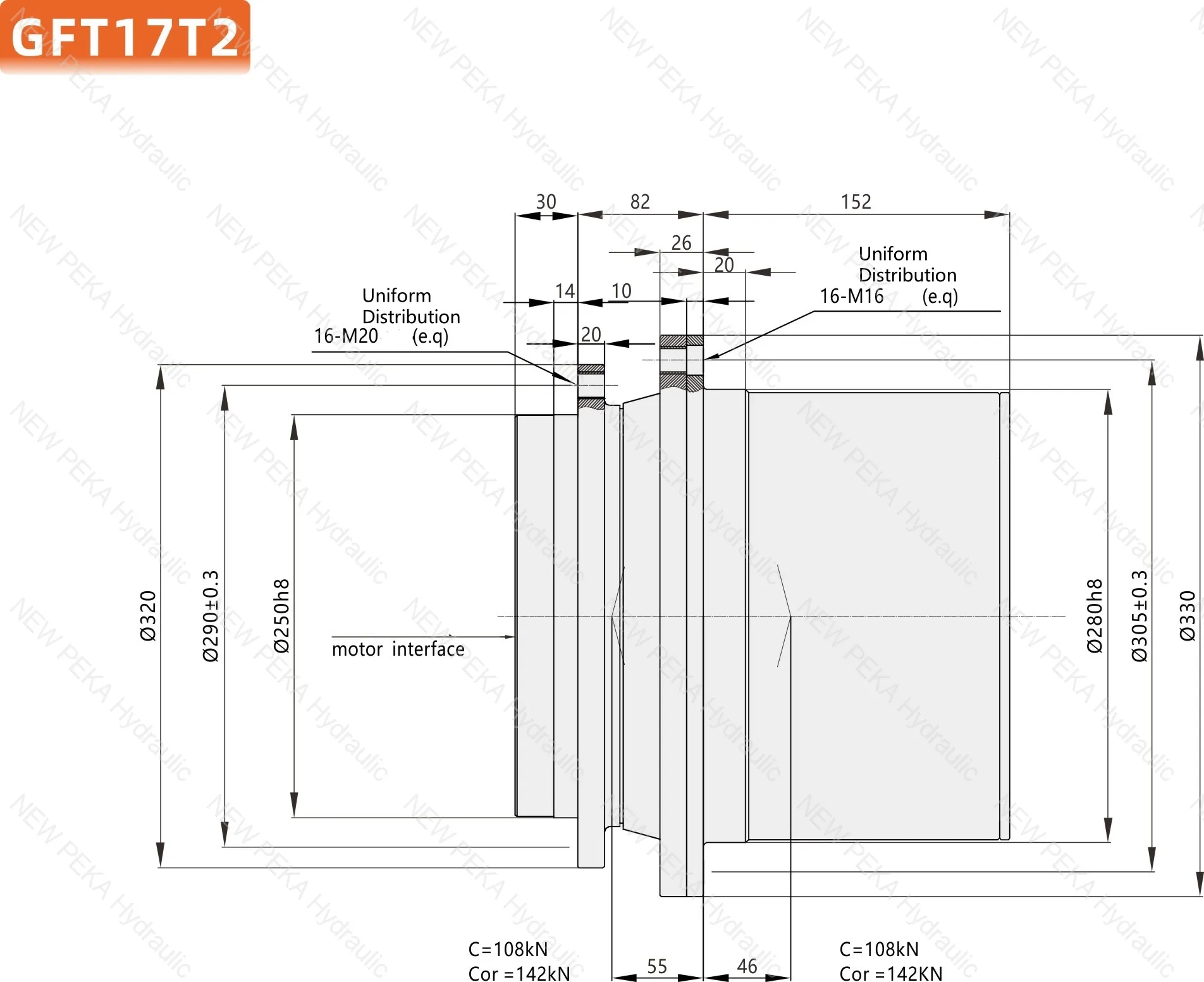

GFT17T2 17000 25
32
38
45
54 		A2FE45
A2FE56
A2FE63 		A6VE55
A1OVE45
A10VE63 		3500 450 1.8-5 90
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg
GFT17T3 17000 64
78
88
103
124 		A2FE28
A2FE32
A2FE45
A2FE56
A2FE63 		A6VE28
A6VE55
A10VE45 		3500 450 1.8~5 90
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

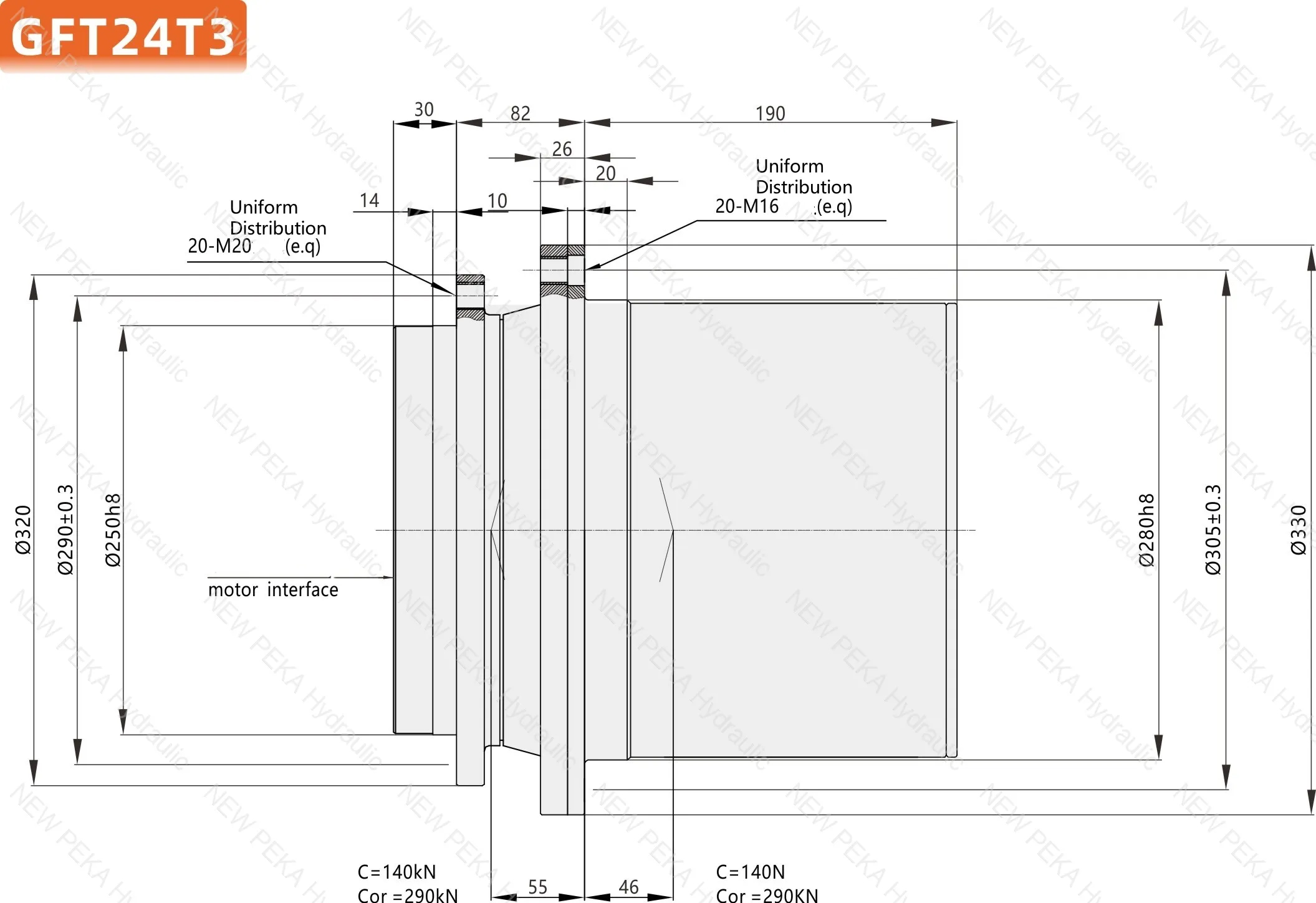

GFT24T3 24000 78
88
102
123
139
160
190 		A2FE45 A2FE56 A2FE63 A6VE55 A10VE45 3500 450 1.8-5 105
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

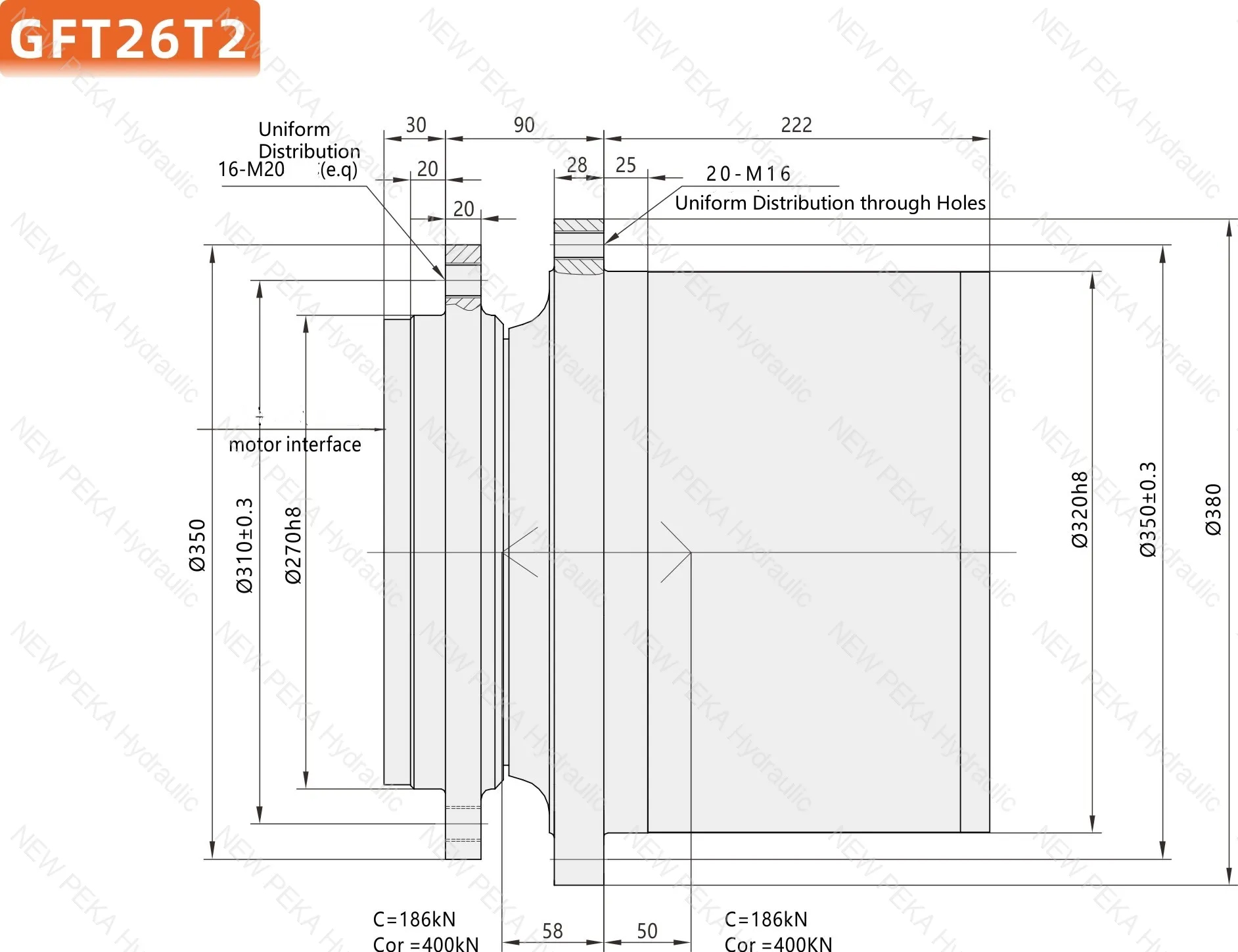

GFT26T2 26000 26
37
43
51
62 		A2FE56 A2FE63 A2FE80 A2FE90 A6VE55 A6VE80 3500 750 1.8-5 150
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

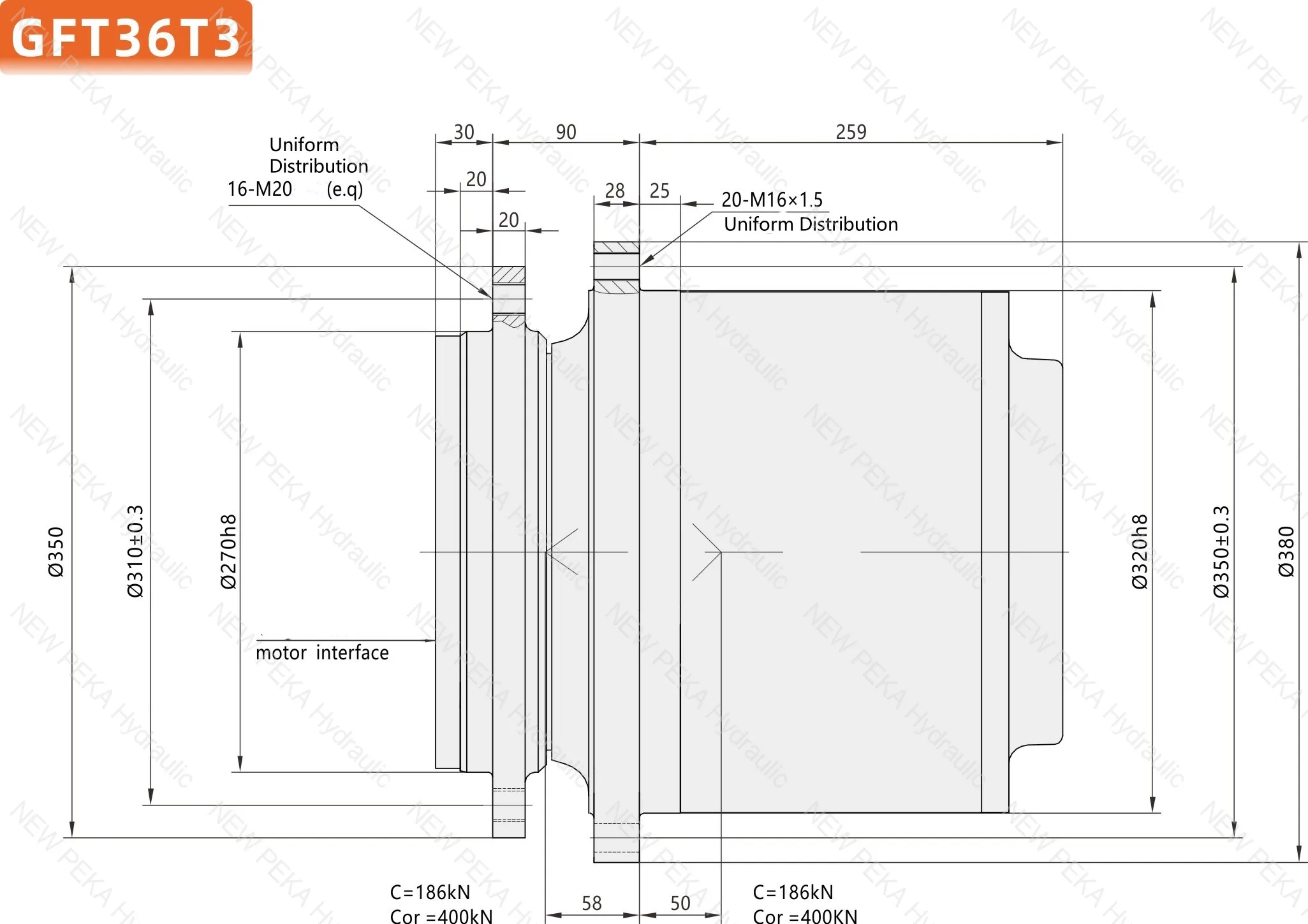

GFT36T3 36000 67 79 100
117
131
139
178
201
233 		A2FE56 A2FE63 A2FE80 A2FE90 A6VE55 A6VE80 3500 750 1.8-5 170
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

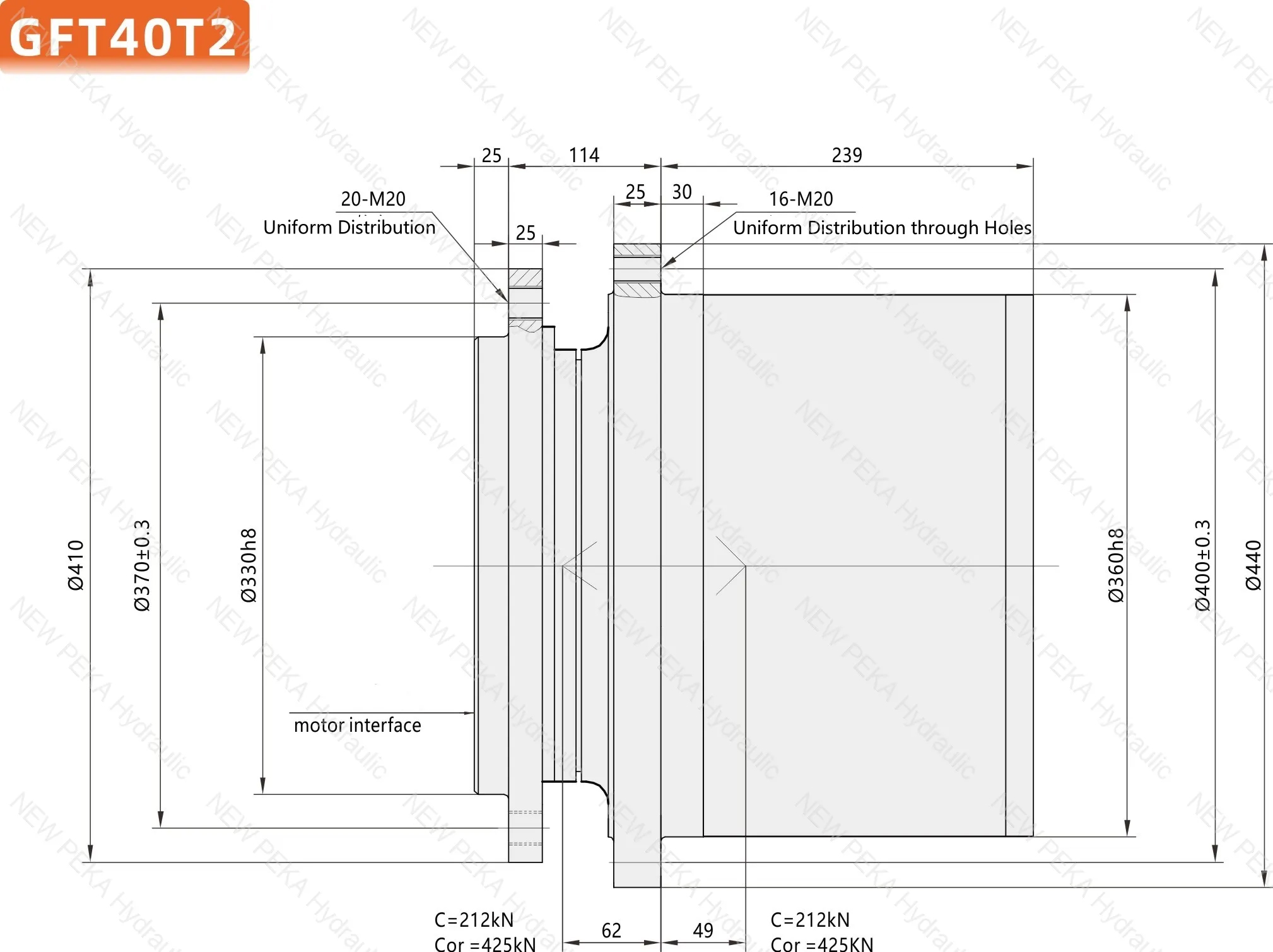

GFT40T2 40000 36
41
48
59 		A2FE80
A2FE90
A2FE107
A2FE125 		A6VE80 A6VE107 3500 800 1.8~5 220
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

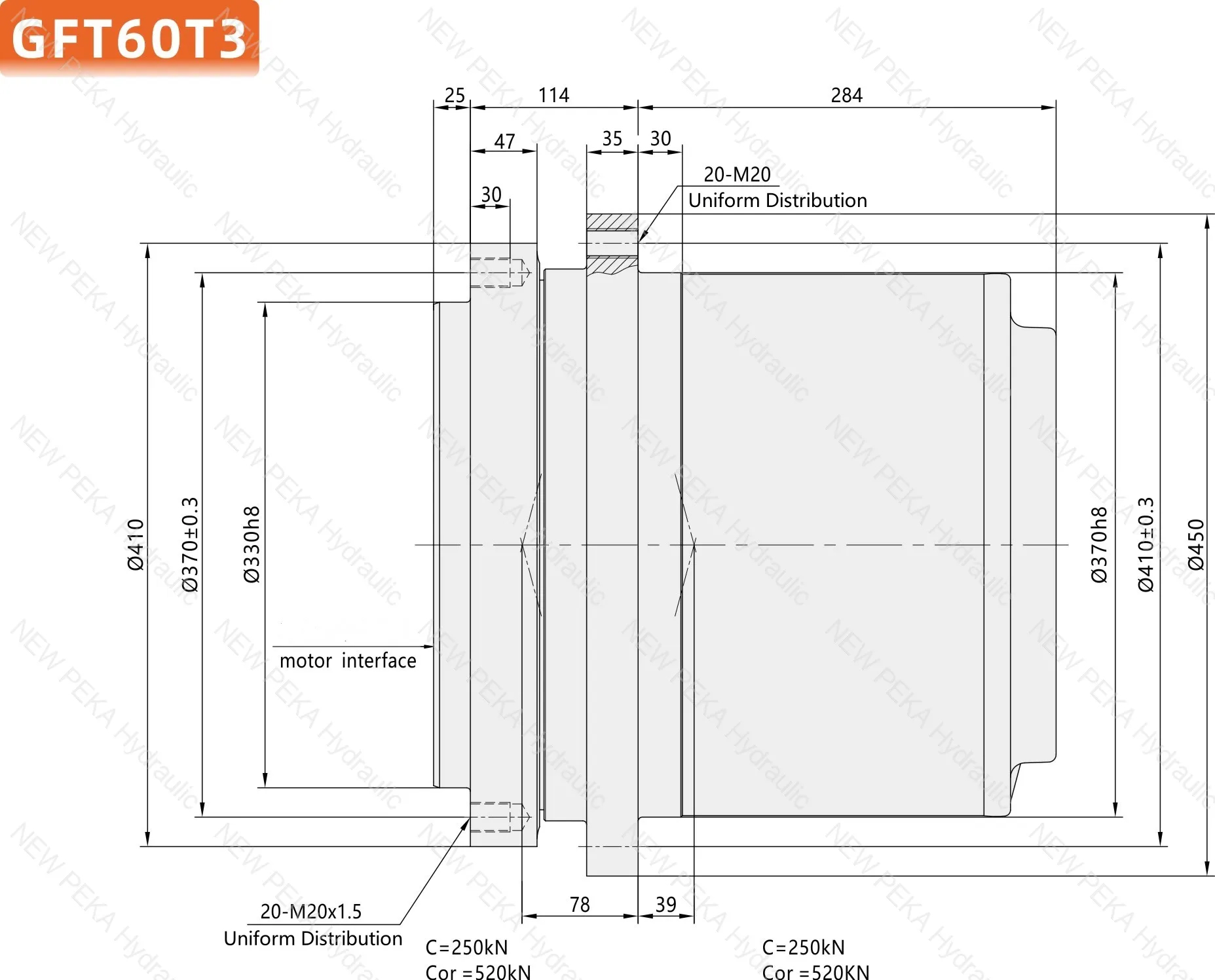

GFT60T3 60000 86
106
120
140
170
248 		A2FE80
A2FE90
A2FE107
A2FE125 		A6VE80 A6VE107 3500 800 1.8-5 242
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

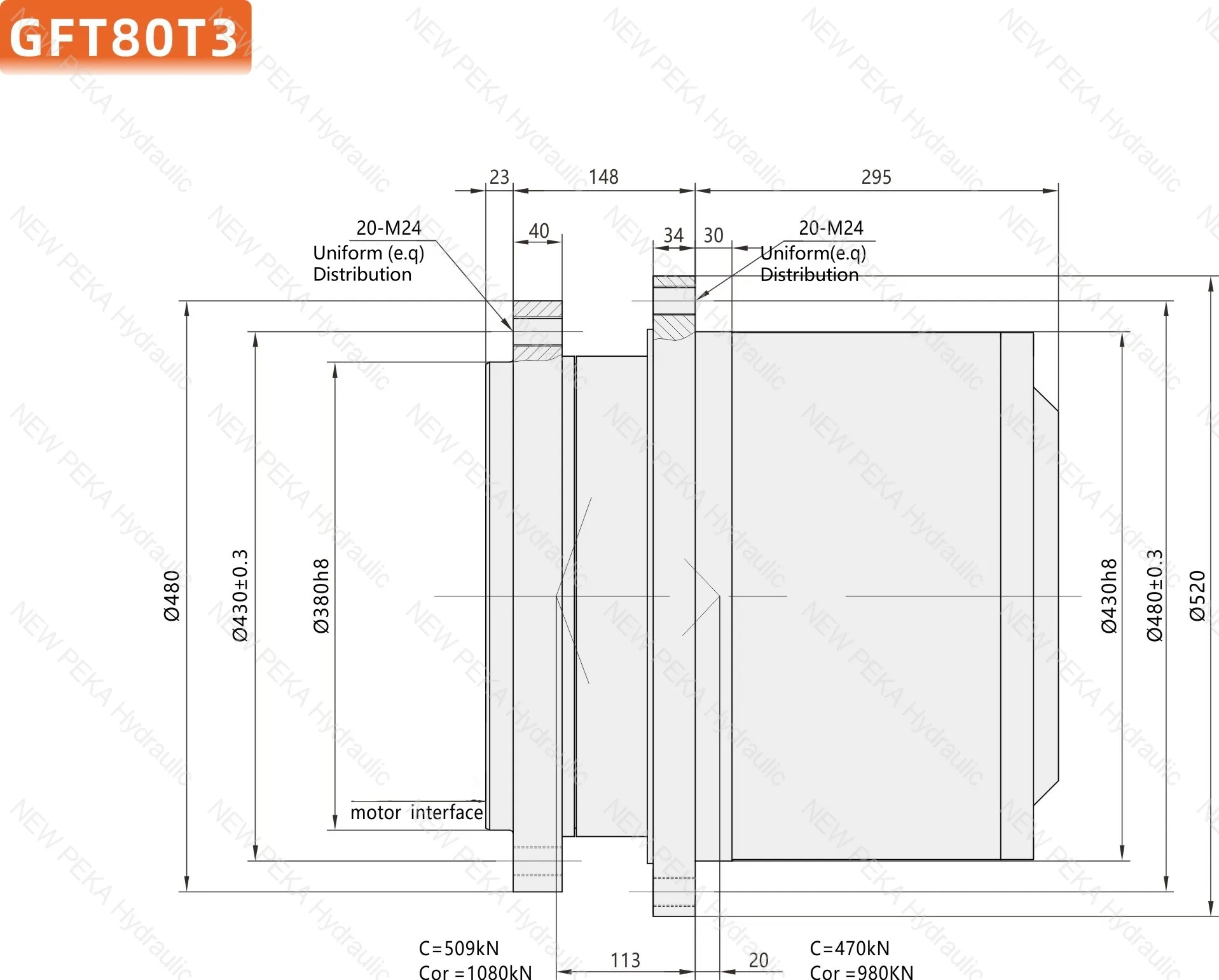

GFT80T3 80000 77
99
127
150
185
235
274 		A2FE107 A2FE125 A2FE160 A2FE180 A6VE 107 A6VE 160 3500 1000 1.8-5 355
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

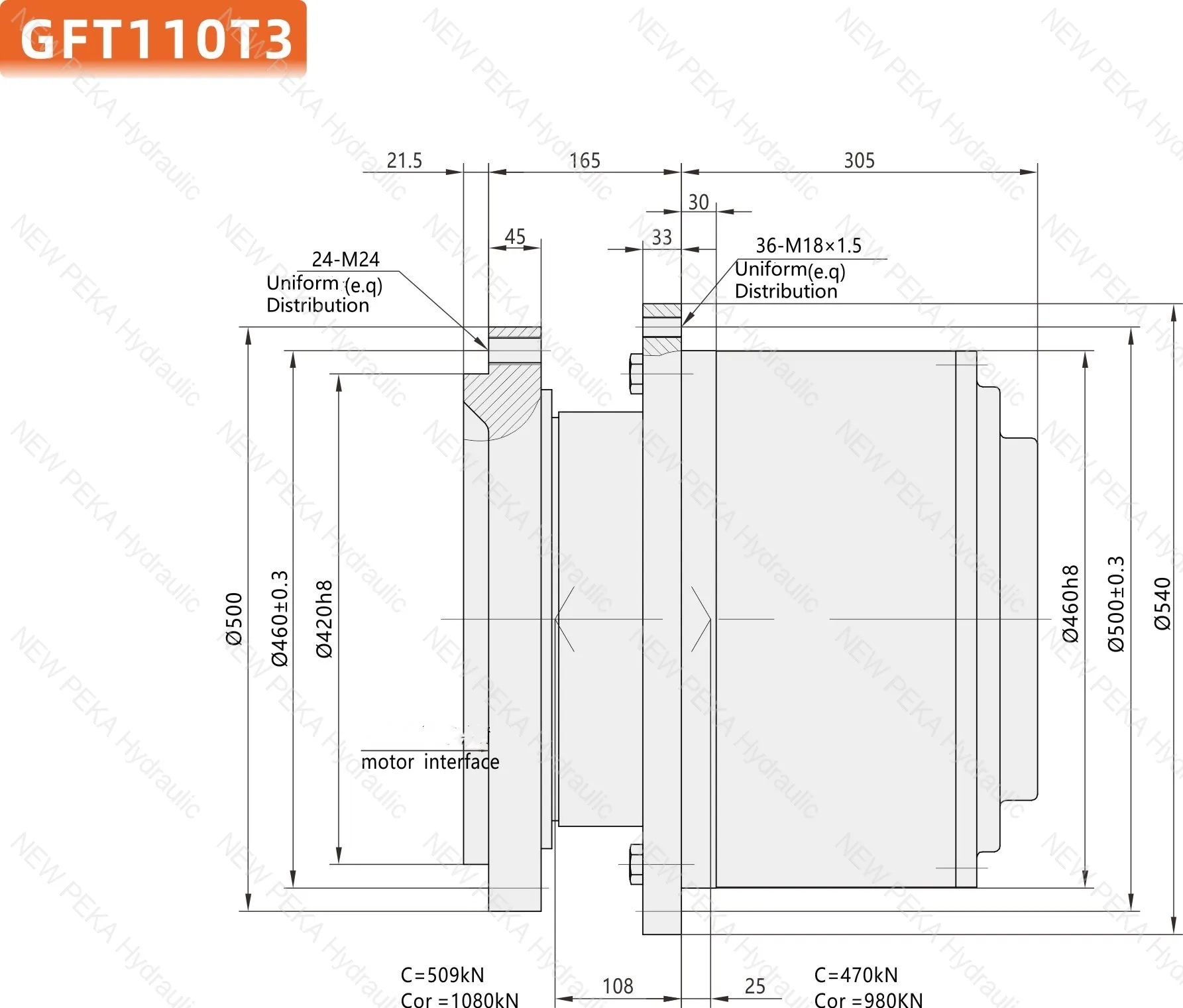

GFT110T3 110000 96
115
129
147
174
215
307 		A2FE107 A2FE125 A2FE160 A2FE180 A6VE107 A6VE160 3500 1000 1.8-5 395
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

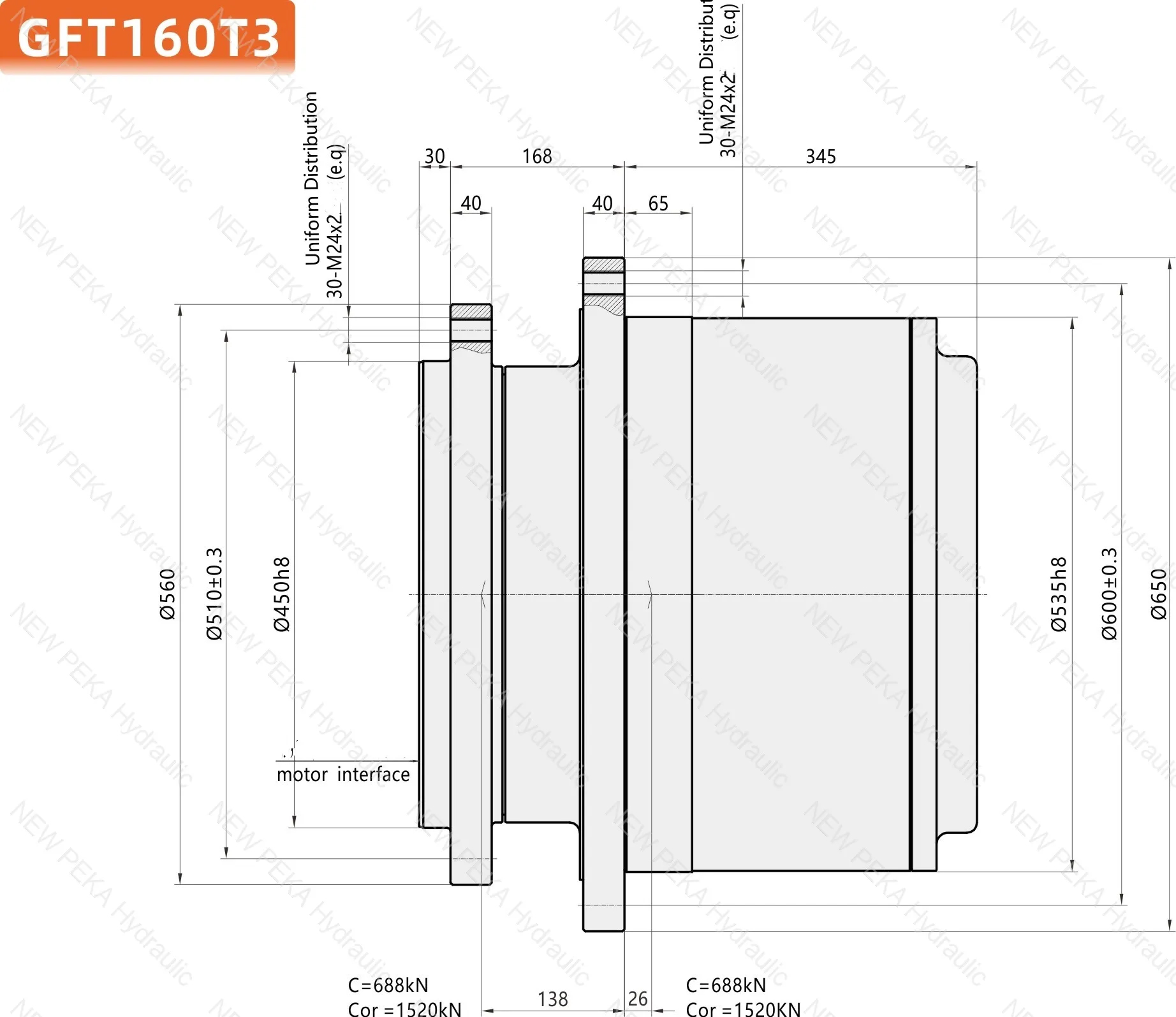

GFT160T3 160000 117
136
164
211
249
305 		A2FE107
A2FE125
A2FE160
A2FE180 		A6VE107 A6VE160 3500 1400 1.8-5 685
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

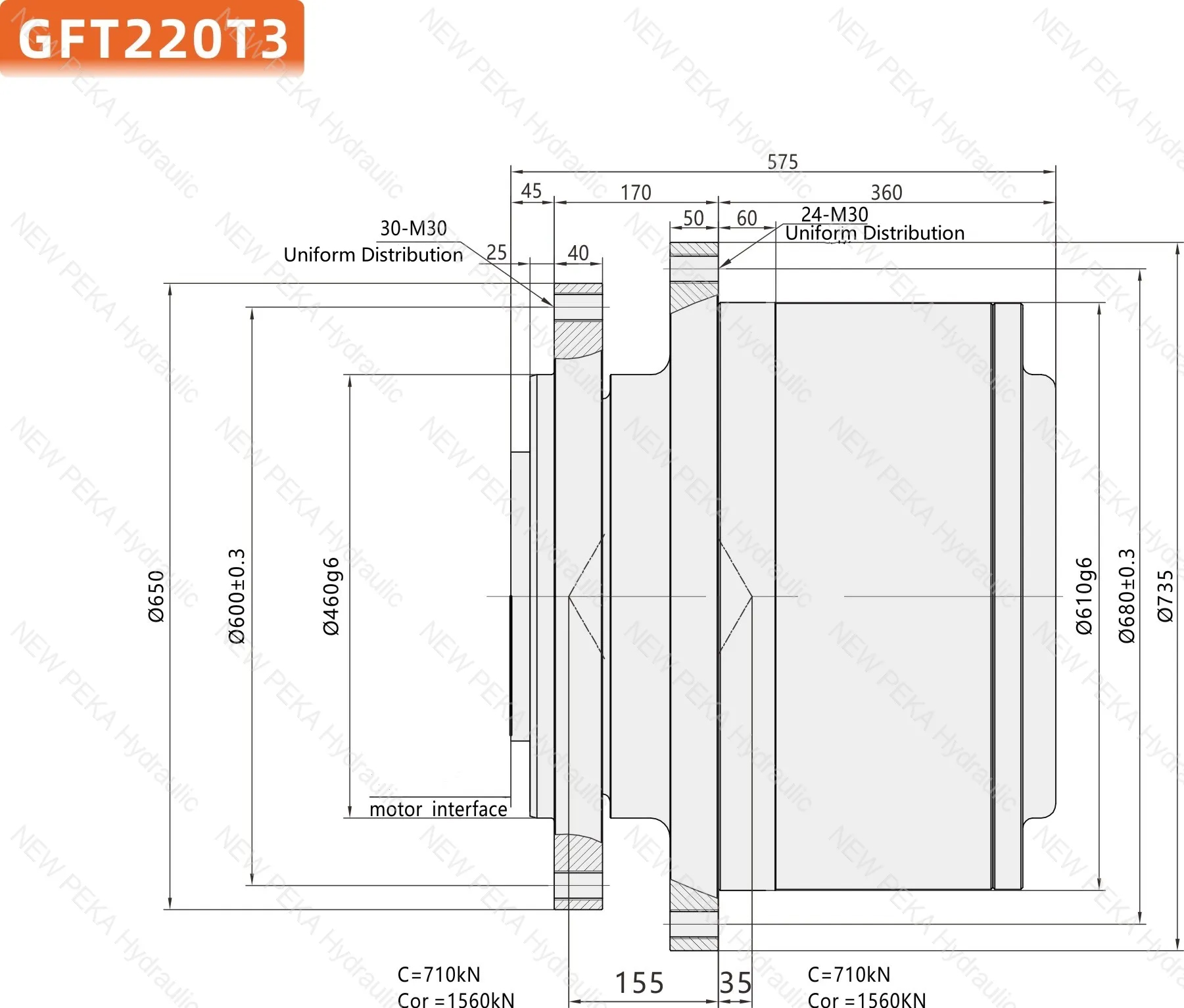

GFT220T3 220000 125
155
189
246
293
365 		A2FE107
A2FE125
A2FE160
A2FE180 		A6VE107
A6VE160
A6VM200
A6VM355 		3500 1400 1.8-5 850
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight kg

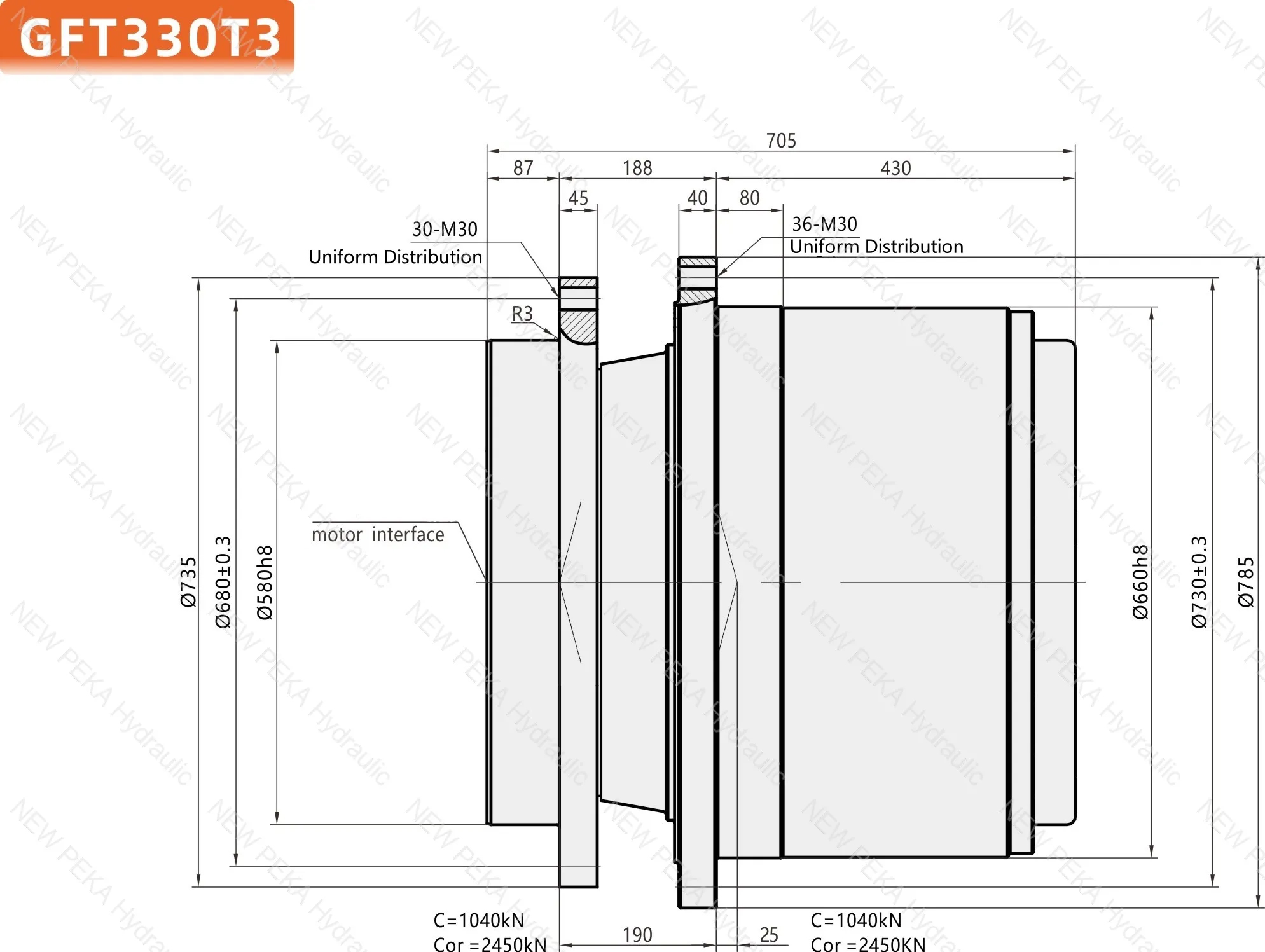

GFT330T3 330000 169
210
252
302 		A2FE160
A2FE180
A2FE250
A2FE355 		A6VE160
A6VE250
A6VM200
A6VM355 		3500 2500 1.8~5 1285
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

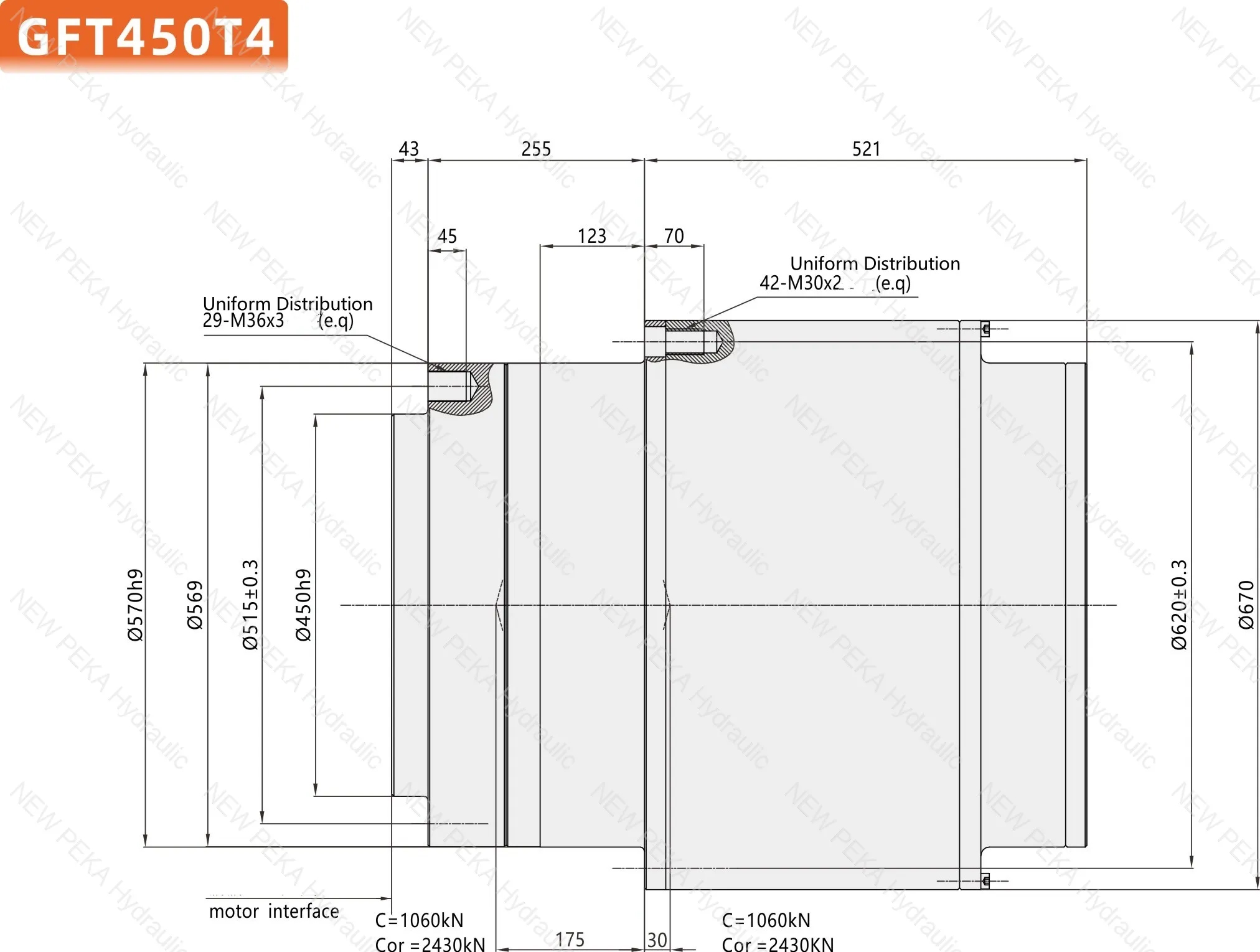

GFT450T4 450000 320
347
422 		A2FE180 A2FE250 A2FE355 A2FM500 A6VE160 A6VE250 A6VM200 A6VM355 3500 1450 1.8~5 1305
