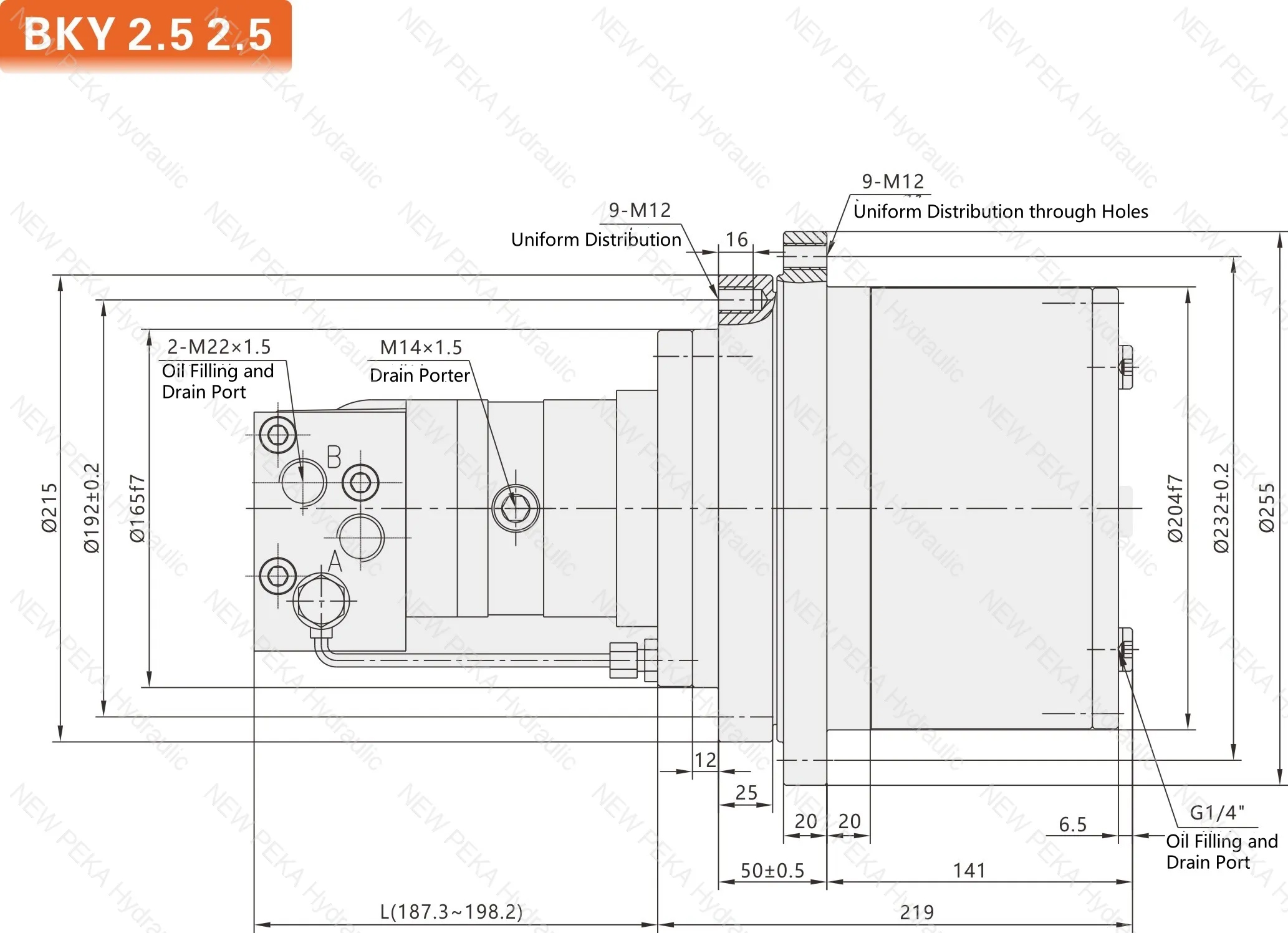

BKY2.5 2.5 travel motor

Description: BKY series travel motor applied to tracked(wheel) is consisted of valve bank with brake function, hydraulic motor,brake, one or two stage planetary gearbox.
Feature:The equipment is high efficient in working and starting, and reliable for working. The output depends on the rotational of the shell, can be directly connected to wheel or crawler drive sprocket. Due to the small axial size, it can hide into the wheel or track, consequently, The mobile machine 's through capacity of machine is improved . And it also make a compact structure beautiful shape for the whole machine.
Application:The product now is widely used for transmission devices of tracked (wheel) in such equipment as engineering vehicle, tracked excavator , horizontal drilling rig, down-hole drill, railway vehicles, entry-driving machine, mining rig,rotary drilling rig etc.

Send Inquiry

Model	Torque (N.m)		Speed (t/min)	Reduction Ratio	Pressure (MPa)		Total displacement (ml/r)	Hydraulic motor		Gross weight (Kg)	Approx. weight of machine (T)
Model	Rated	Max	Speed (t/min)	Reduction Ratio	Rated	Max	Total displacement (ml/r)	Model	Displacement (ml/r)	Gross weight (Kg)	Approx. weight of machine (T)
BKY2.52.5-1700F01Z	2800	3800	1-38	21.4	14	19	1722	BM5-80	80.5	60	2~3
BKY2.52.5-2140F01Z	3500	4500	1-35	21.4	14	19	2140	BM5-100	100	60	3~4
BKY2.52.5-2670F01Z	4300	6000	1-30	21.4	14	19	2690	BM5-125	125.7	60	4~5
BKY2.52.5-3420F01Z	5500	7000	1-22	21.4	14	19	3417	BMS-160	159.7	60	4~5

Production and Processing

Factory Environment

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
