GFT17T2/GFT17T3 travel drive
GFT17T2/GFT17T3 travel drive

GFT17T2/GFT17T3 travel drive

GFT-T travel drive series consist of planetary gearbox and wet fype multi-disc brake.
Feature: Advanced design experience and modern fabrication processes warrant outstanding load carrying capacity and operational safety. The drives feature high total efficiency.compact and module design. The drives can be fitted with various hydraulic motors according to customer requirement.
Application: The drives can be directly installed in a wheei or track of a mobile vehicle, and also can be used in coal road header or milling machine, and other
Send Inquiry
Model Output Torque Max Nm Ratio Hydraulic motor Max input Speed r/min Braking Torque Max.Nm Brake Press. Mpa Weight =kg
GFT17T2 17000 25
32
38
45
54
A2FE45
A2FE56
A2FE63
A6VE55
A1OVE45
A10VE63
3500 450 1.8-5 90

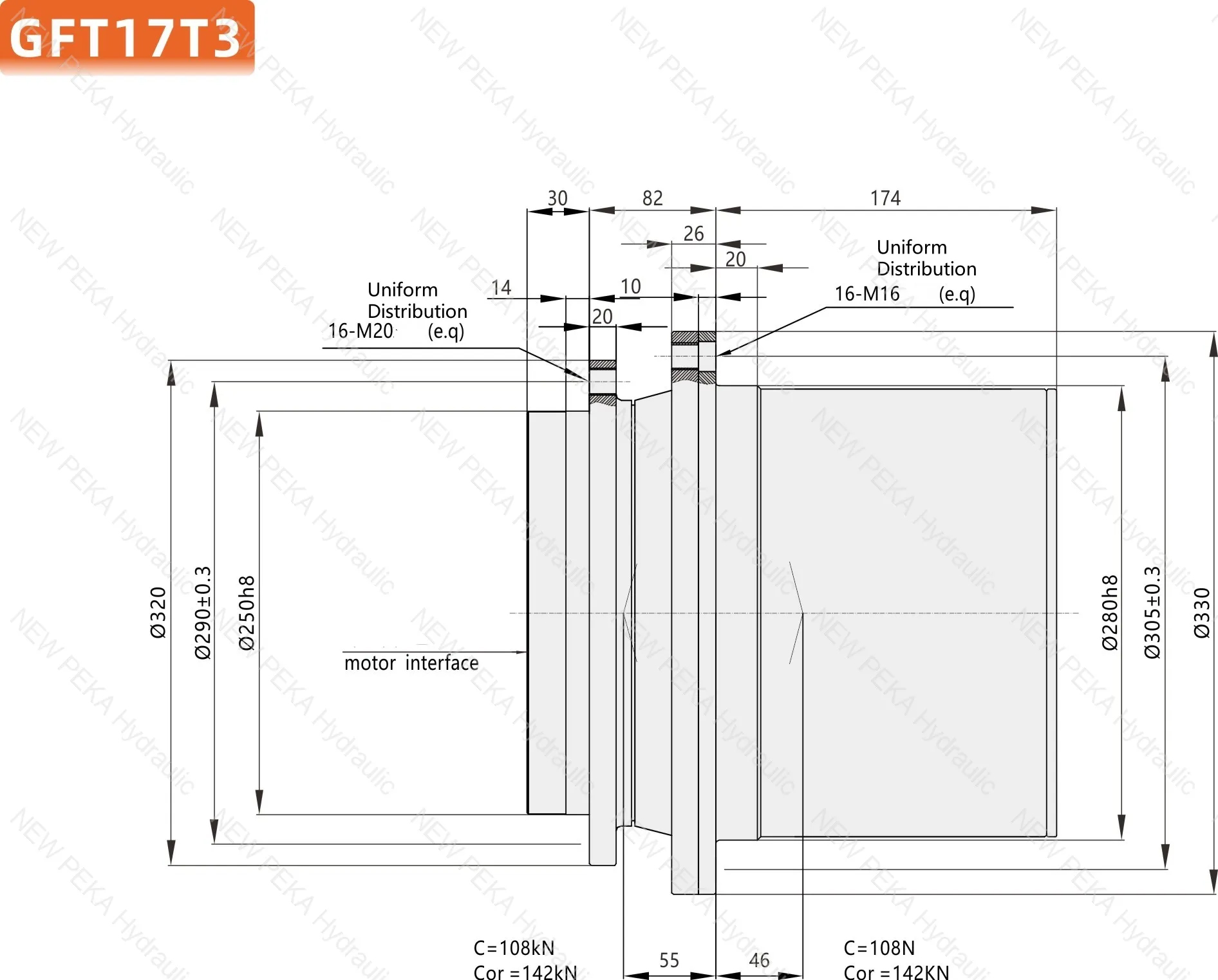

Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg
GFT17T3 17000 64
78
88
103
124
A2FE28
A2FE32
A2FE45
A2FE56
A2FE63
A6VE28
A6VE55
A10VE45
3500 450 1.8-5 90

Production and Processing

  • client
  • client
  • client

Factory Environment

  • client
  • client
  • client

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
