GFT-W End supporting bearing series
GFT-W End supporting bearing series

GFT-W End supporting bearing series

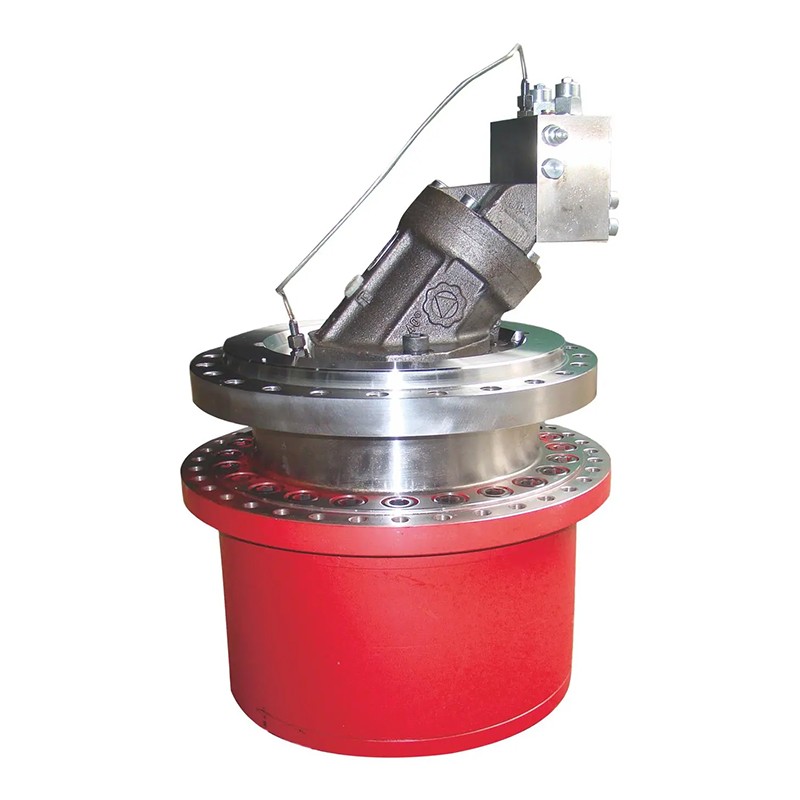

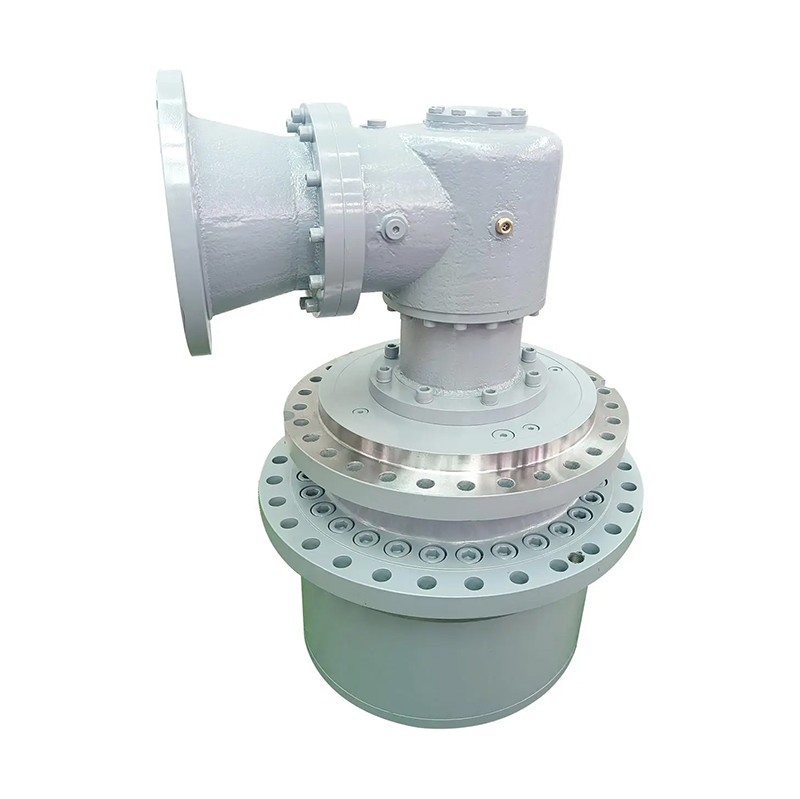

GFT-W winch drive series are ideal drive components for winches. The series have proven their worth under arduous applicatiorn conditions in the most unfavorable operating environments.Due to their extremefy compact design,the gear units can be mounted inside the cable drum in a space-saving manner.
Feature: The drives feature high efficiency.compact size, and long service life. The drives are designed for direct flange installation of a variabie or fixed displacement motor.

Application: If required, the motor and functional valve manifolds could be supplied with the gearbox. The multi-disc parking brake arranged on the input side is not a service brake, but a static holding brake.

Send Inquiry

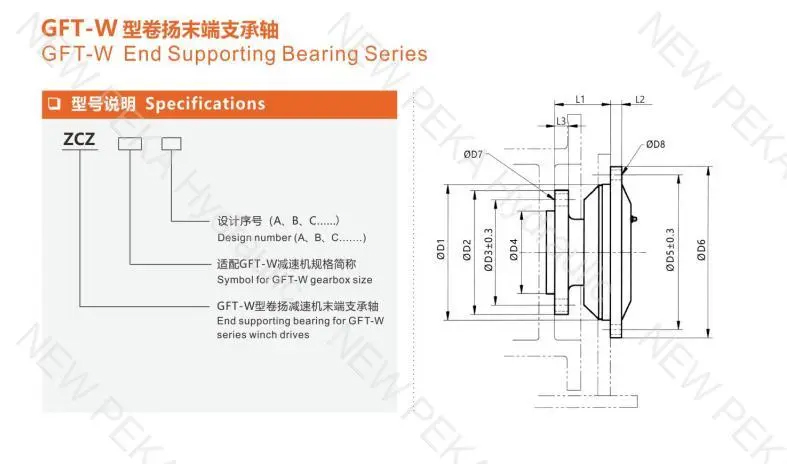

Model D1 D2 D3 D4 D5 D6 D7 D8 L1 L2 L3 Gearbox Size
ZCZ17 140h7 136 115 90j6 157 175 12-φ13 6-φ9 76 10 13 GFT13W
GFT17W
GFT24W
ZCZ17A 175h7 156 130 100j6 200 225 8-φ13 6-φ11 111 15 15
ZCZ36 200h7 175 145 115j6 230 260 8-φ18 8-φ18 91 15 20 GFT26W
GFT36W
GFT40W
ZCZ36A 200h7 199 170 140j6 230 260 12-φ18 12~φ14 155 10 20
ZCZ80 225h7 224 190 150j6 260 290 12-φ22 6-φ18 91 17 25 GFT60W GFT8OW
ZCZ8OA 225h7 224 190 150j6 260 290 8-φ22 8-φ18 101 20 15
ZCZ110 260j6 258 220 180j6 295 330 12-φ22 8-φ18 102 20 25 GFT110W
GFT160W
GFT220W
ZCZ110A 225j6 204 170 140j6 260 290 12-φ22 12-φ18 170 20 25
