GFT17W2/GFT17W3 winch drive

GFT-W winch drive series are ideal drive components for winches. The series have proven their worth under arduous applicatiorn conditions in the most unfavorable operating environments.Due to their extremefy compact design,the gear units can be mounted inside the cable drum in a space-saving manner.
Feature: The drives feature high efficiency.compact size, and long service life. The drives are designed for direct flange installation of a variabie or fixed displacement motor.

Application: If required, the motor and functional valve manifolds could be supplied with the gearbox. The multi-disc parking brake arranged on the input side is not a service brake, but a static holding brake.

Send Inquiry

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

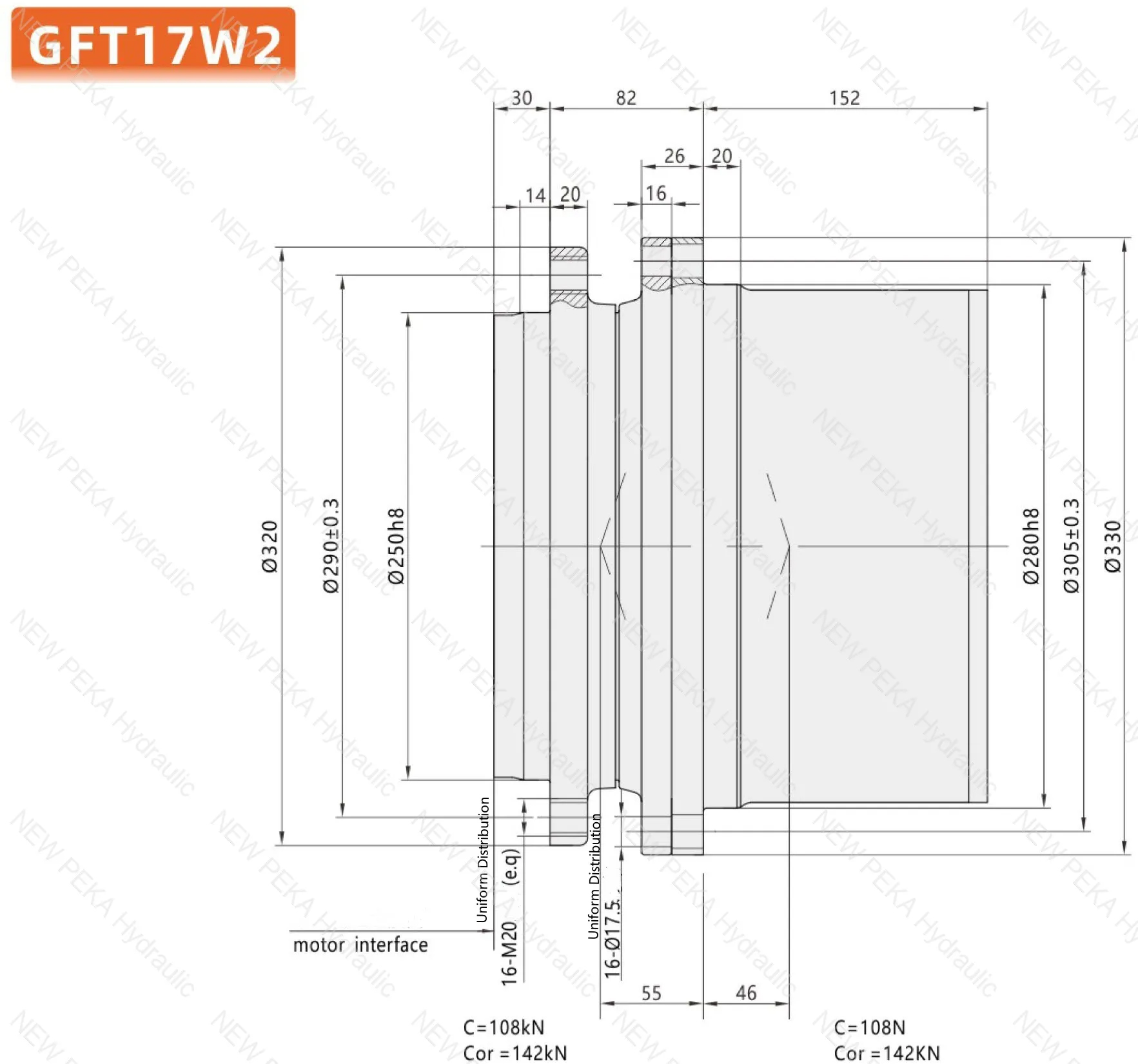

GFT17W2	12500	25 32 38 45 54	A2FE45 A2FE56 A2FE63	A6VE55 A10VE45 A10VE63	3500	450	1.8-5	90

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

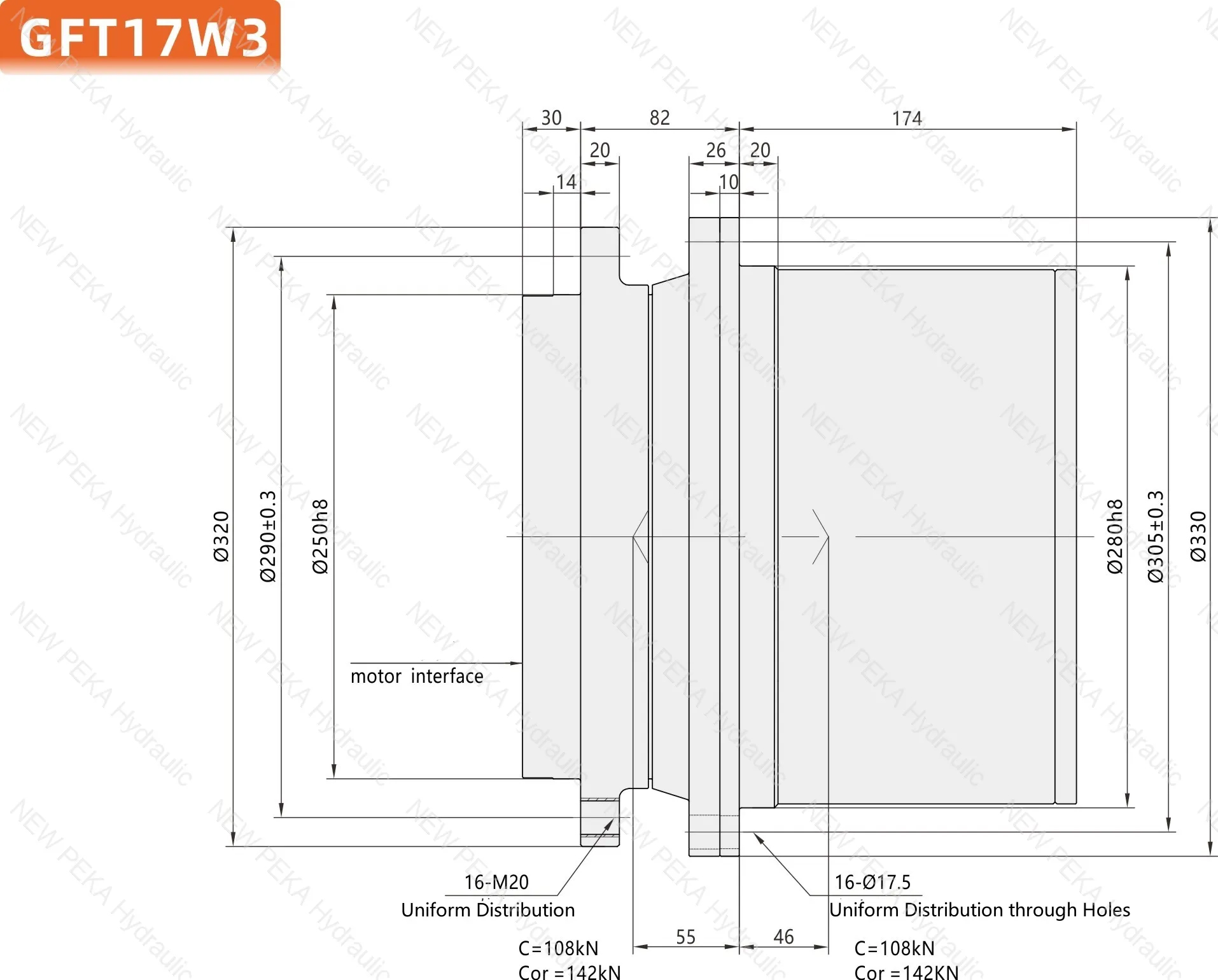

GFT17W3	12500	64 78 88 103 124	A2FE28 A2FE32 A2FE45 A2FE56 A2FE63		3500	450	1.8-5	90
				A6VE28
				A6VE55
				A10VE45

Production and Processing

Factory Environment

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity
