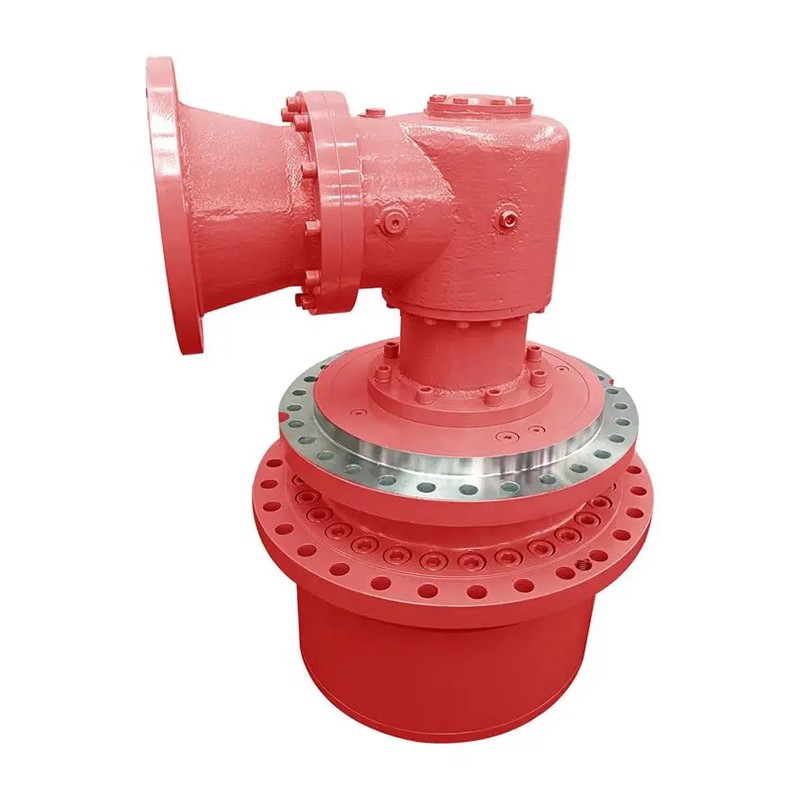

GFT-W winch drive
GFT-W winch drive

GFT-W winch drive

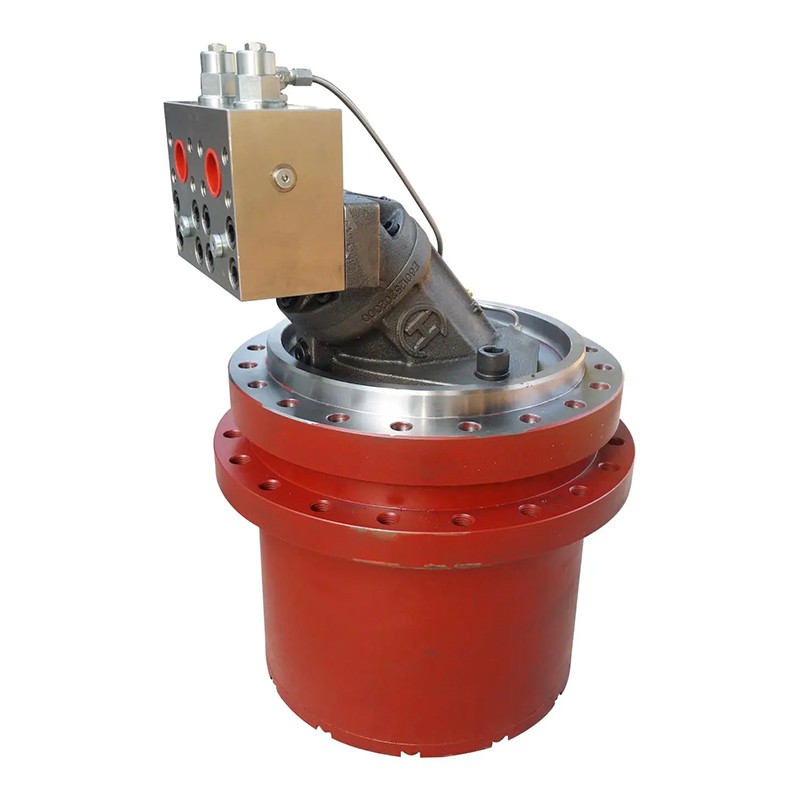

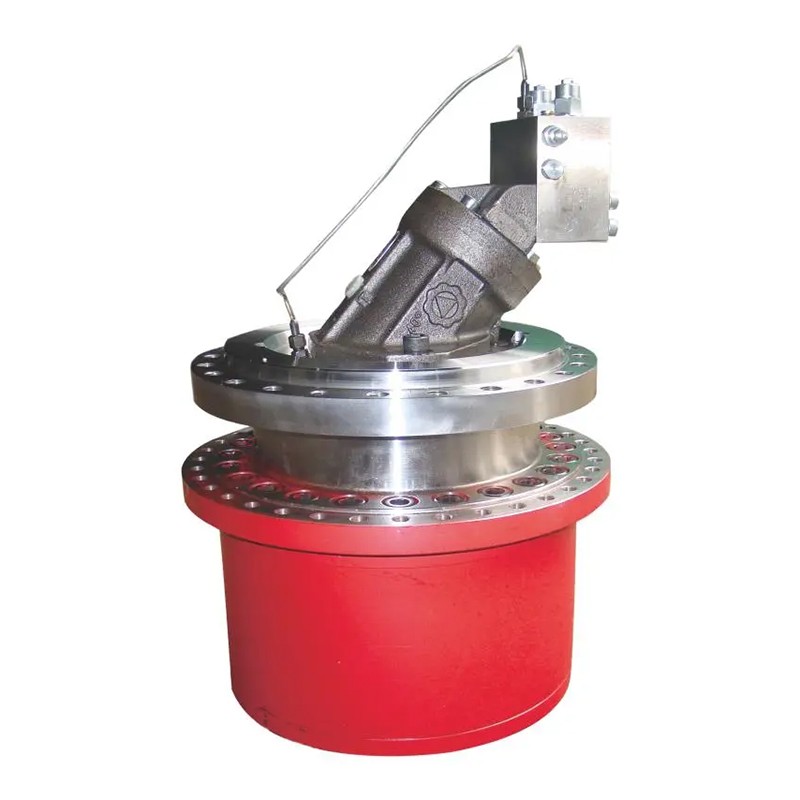

GFT-W winch drive series are ideal drive components for winches. The series have proven their worth under arduous applicatiorn conditions in the most unfavorable operating environments.Due to their extremefy compact design,the gear units can be mounted inside the cable drum in a space-saving manner.
Feature: The drives feature high efficiency.compact size, and long service life. The drives are designed for direct flange installation of a variabie or fixed displacement motor.

Application: If required, the motor and functional valve manifolds could be supplied with the gearbox. The multi-disc parking brake arranged on the input side is not a service brake, but a static holding brake.

Send Inquiry
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

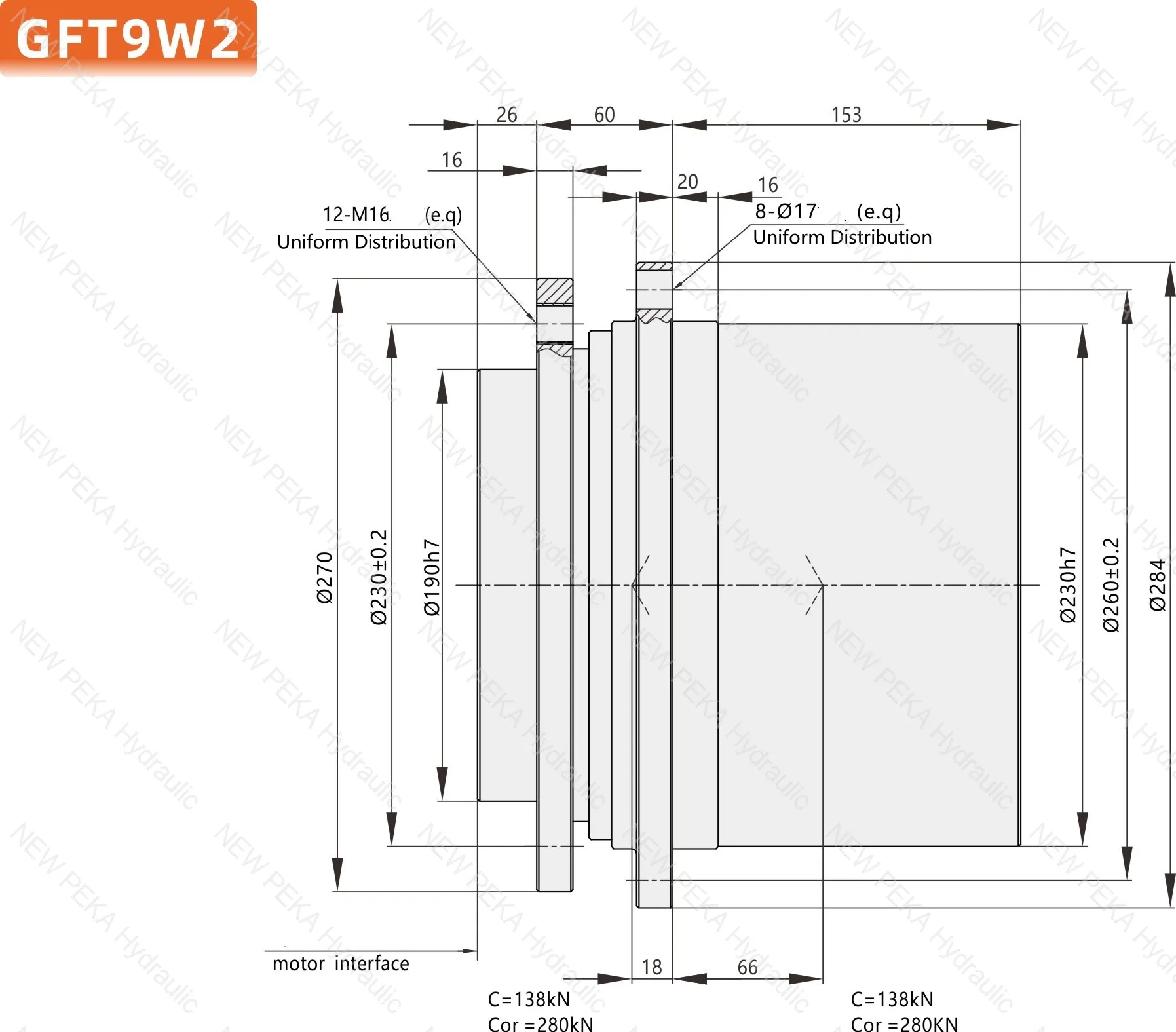

GFT9W2 6300 20
26
30
36
45 		A2F45
A2F55
A2F63 		A1OVE45 K45 3500 250 1.8-5 49
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

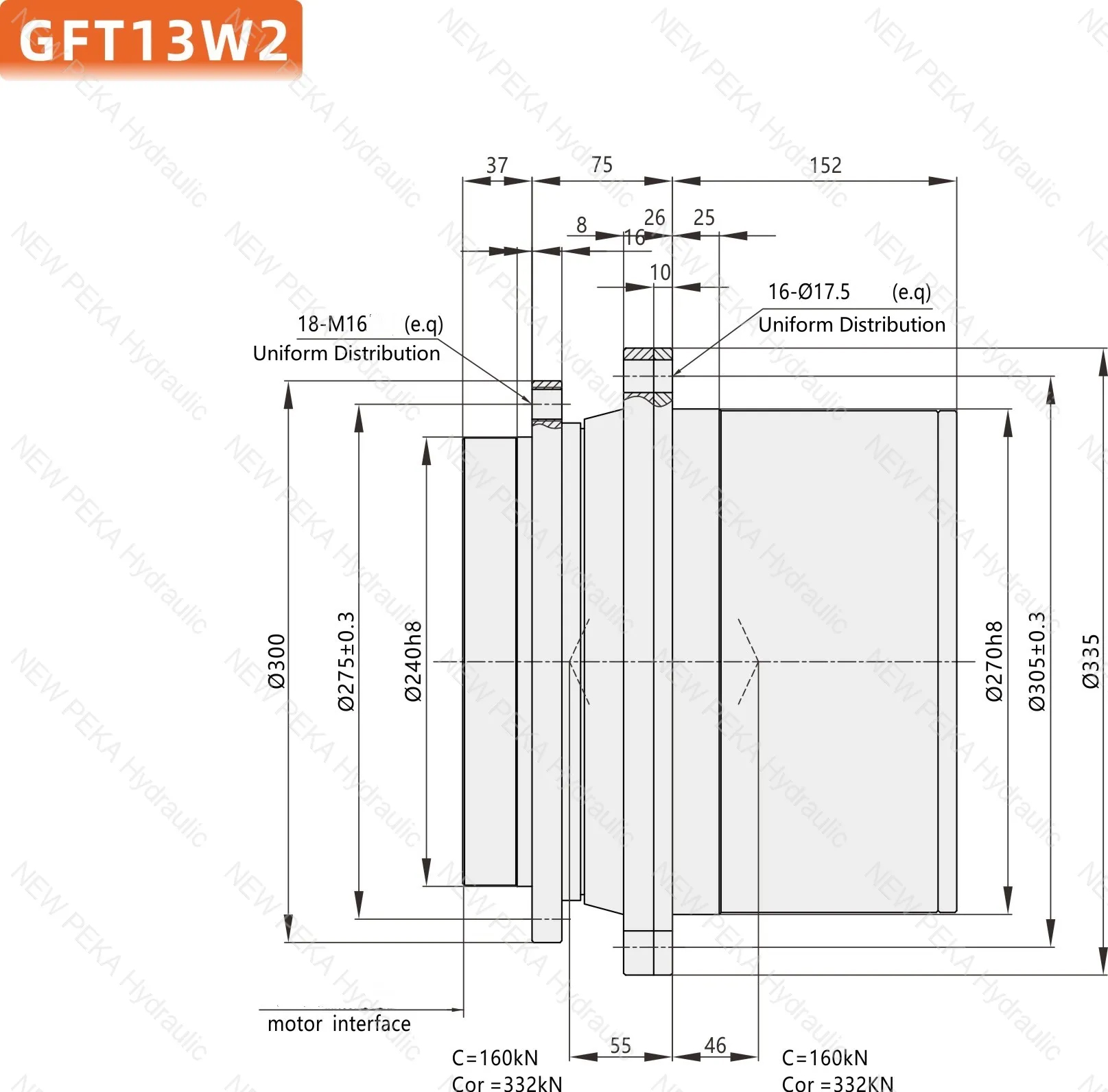

GFT13W2 9500 16
23
32
38 		A2FE45
A2FE56
A2FE63 		A6VE55
A10VE45
A10VE63 		3500 450 1.8~5 86
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

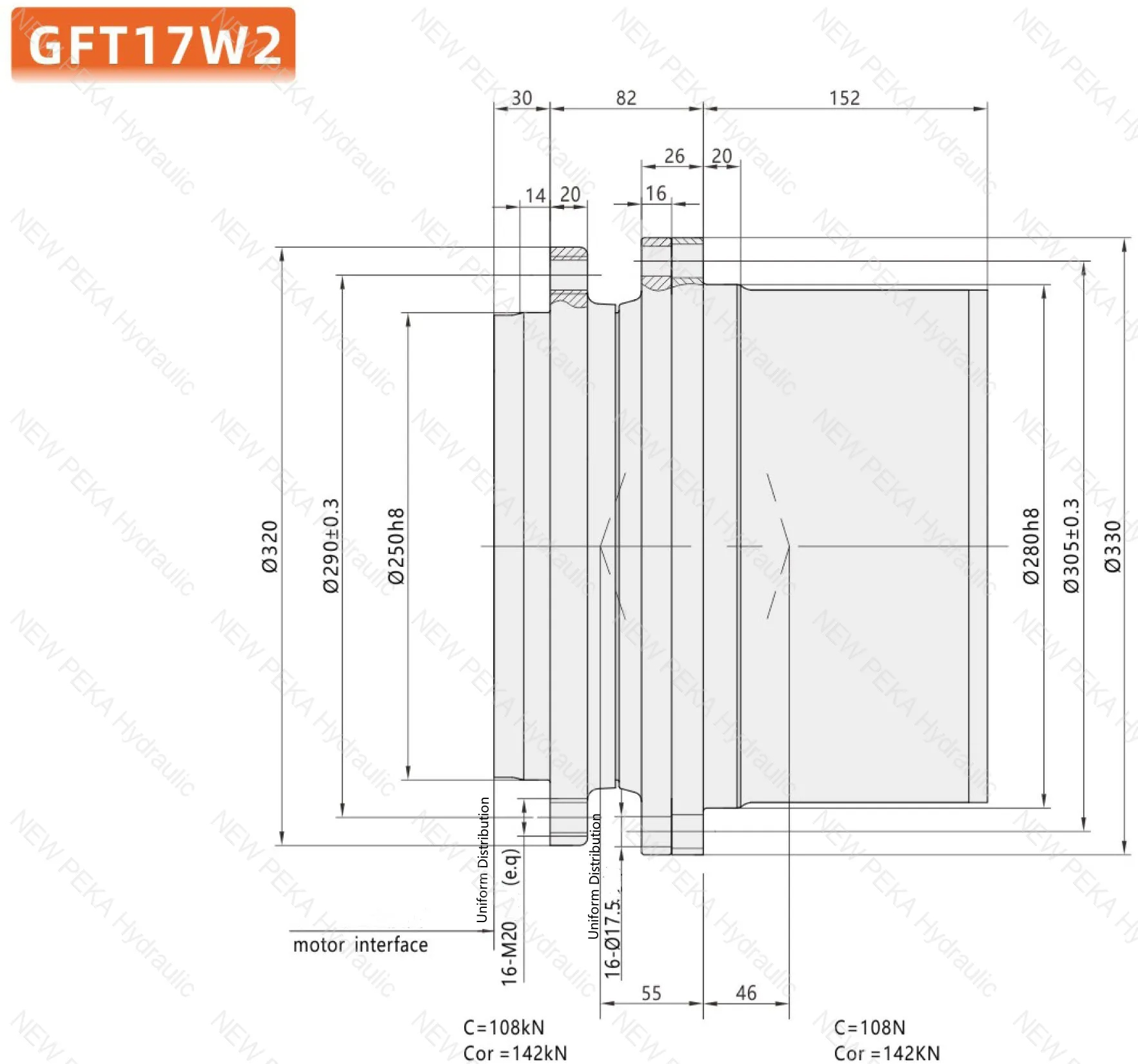

GFT17W2 12500 25
32
38
45
54 		A2FE45
A2FE56
A2FE63 		A6VE55
A10VE45
A10VE63 		3500 450 1.8-5 90
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

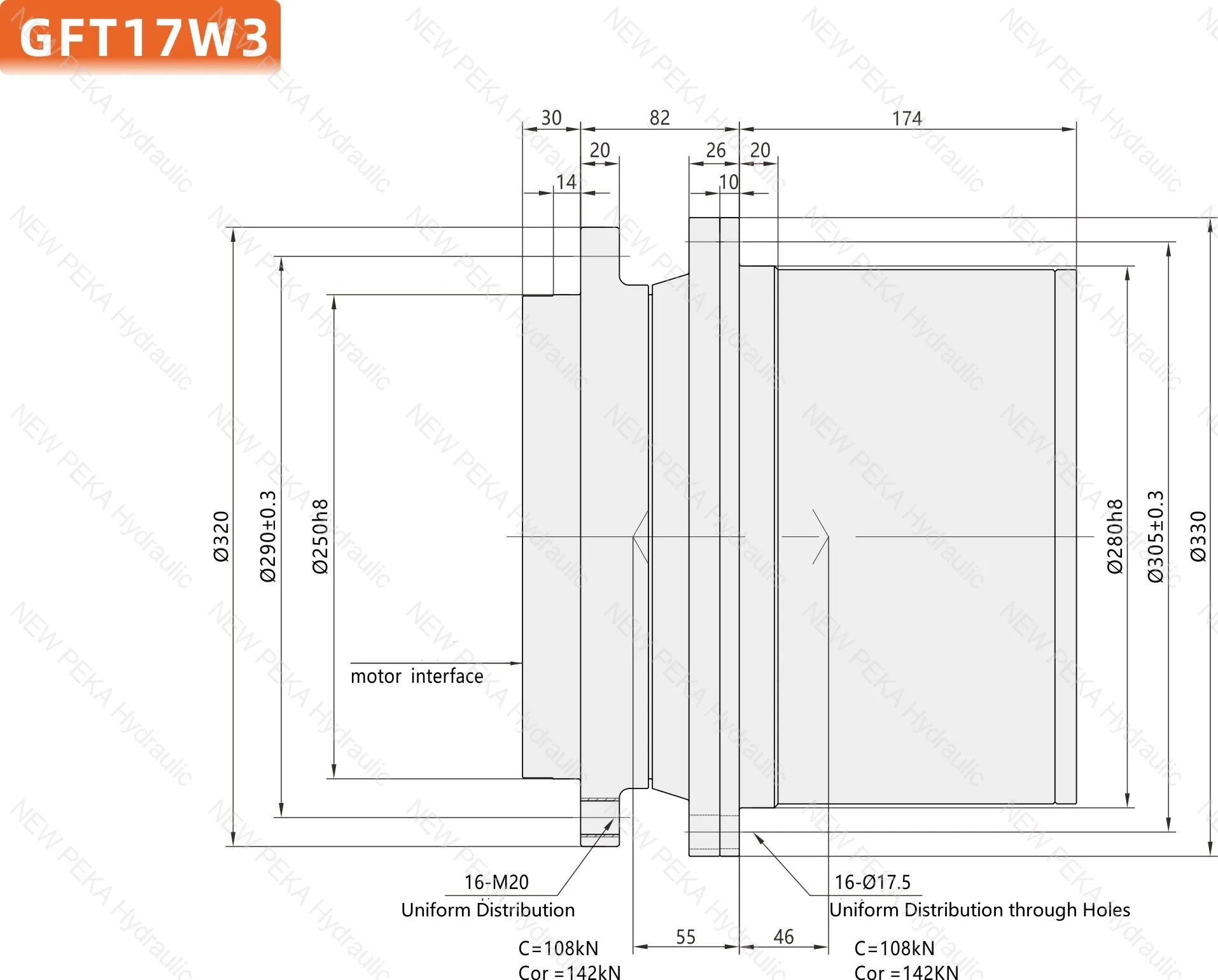

GFT17W3 12500 64
78
88
103
124 		A2FE28
A2FE32
A2FE45
A2FE56
A2FE63 		  3500 450 1.8-5 90
A6VE28
A6VE55
A10VE45

Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

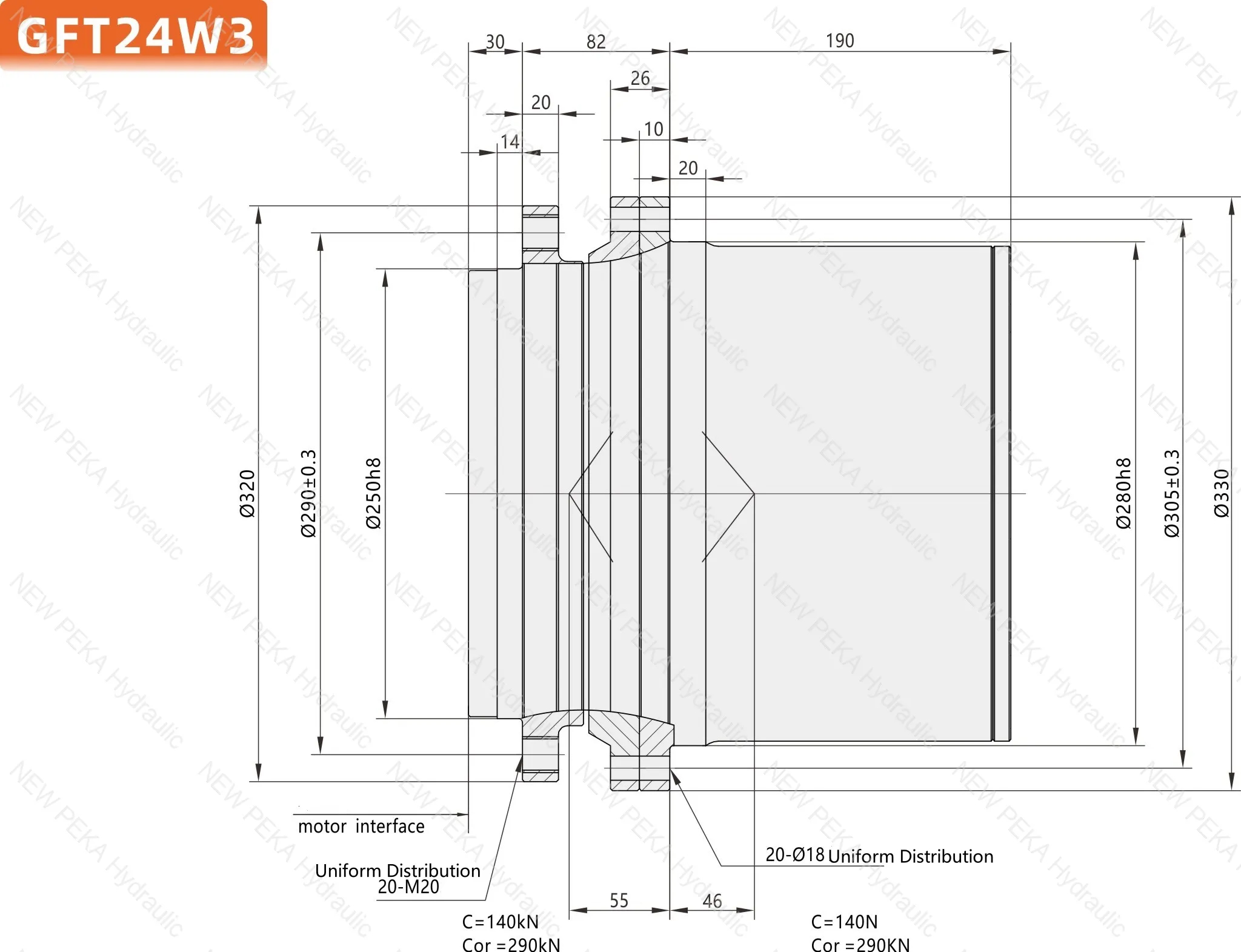

GFT24W3 18000 78
88
102
123
139
160
190 		A2FE45 A2FE56 A2FE63 A6VE55 A10VE45 3500 450 1.8-5 105
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

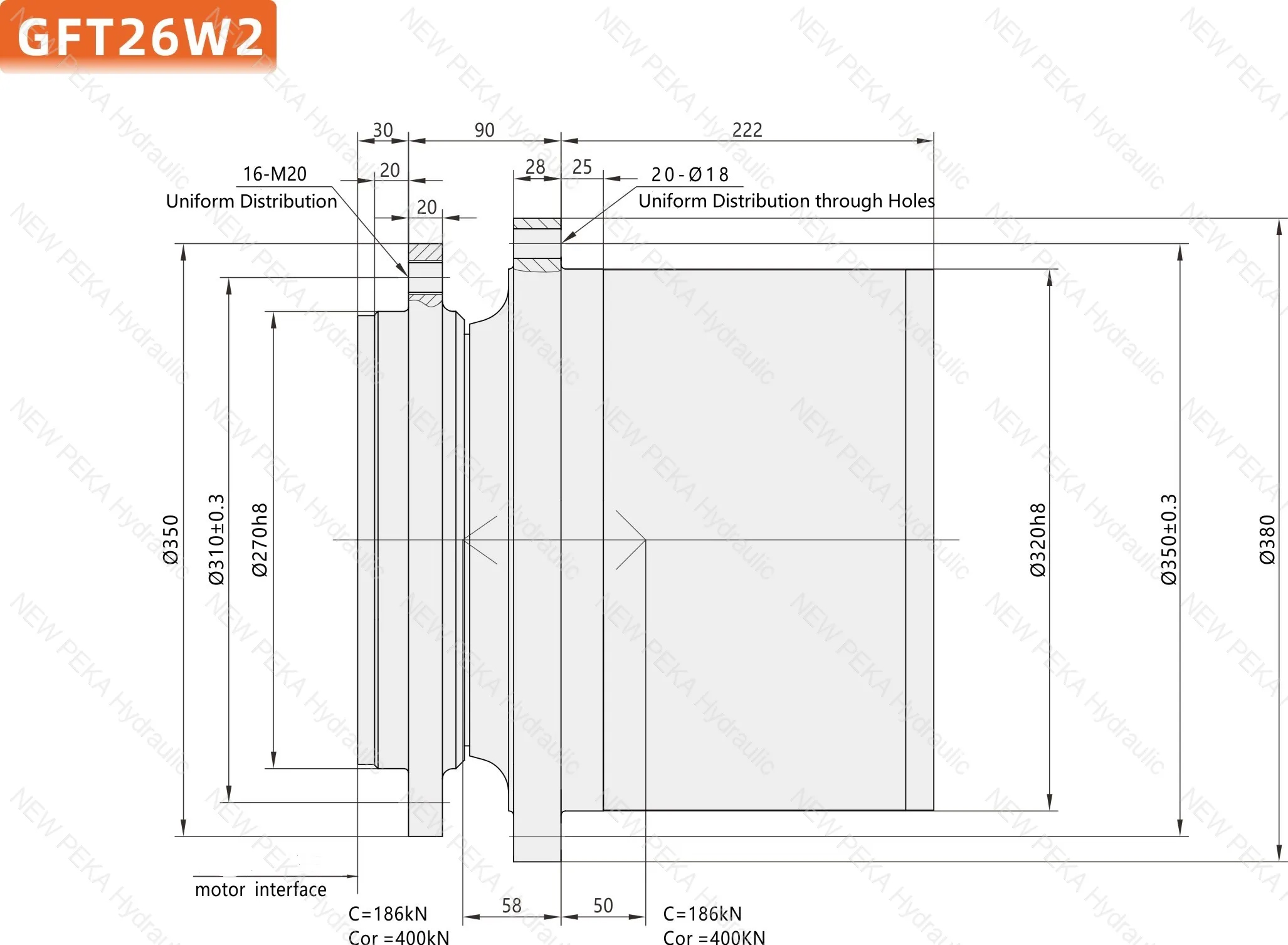

GFT26W2 19000 26
37
43
51
62 		A2FE56 A2FE63 A2FEB0 A2FE90 A6VE55 A6VE80 3500 750 1.8~5 150
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

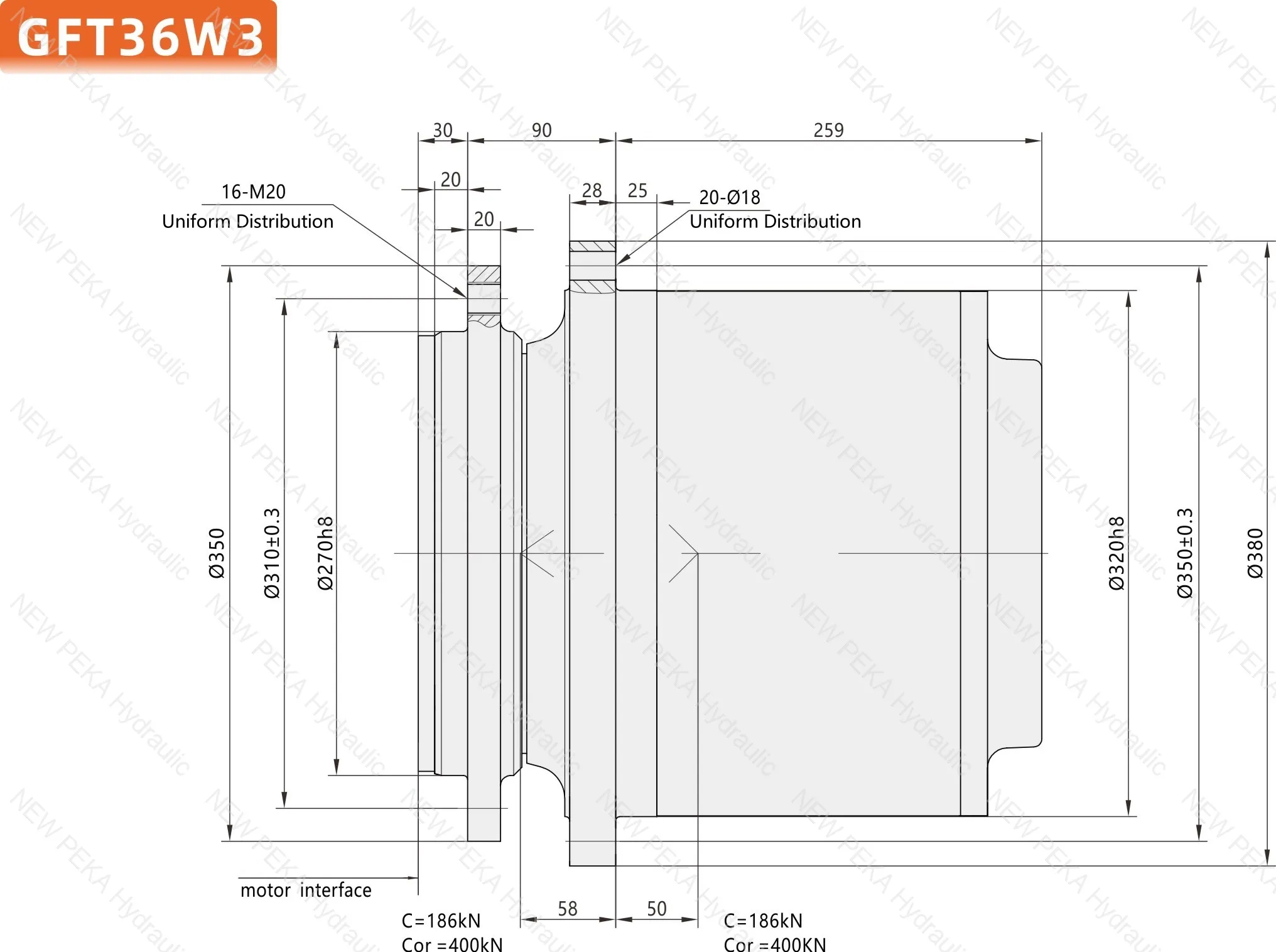

GFT36W3 26000 67 A2FE56 A6VE55 A6VE80 3500 750 1.8~5 170
100
117 A2FE63
131 A2FE80
139
178 A2FE90
201
233
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

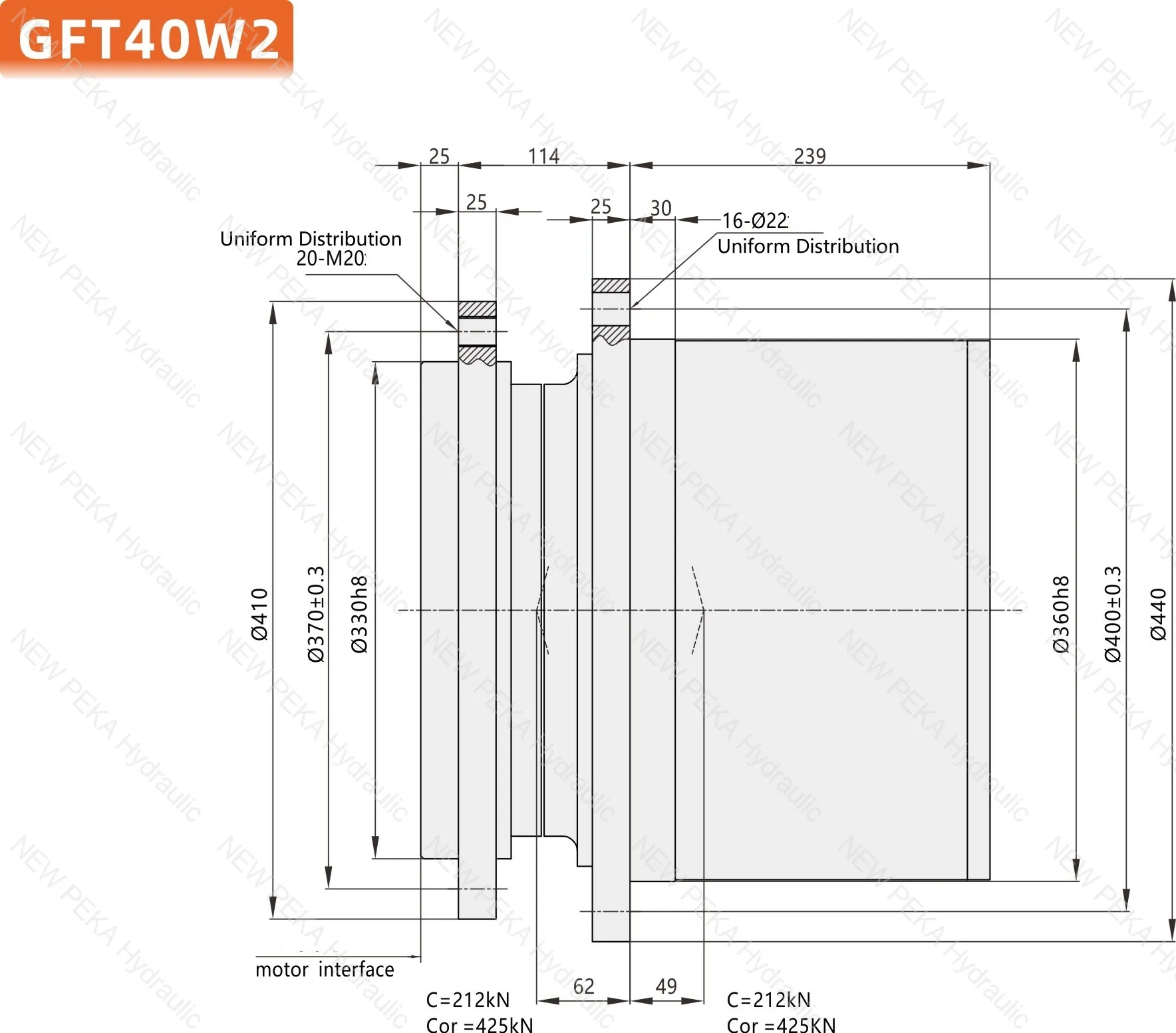

GFT40W2 28000 36
41
48
59 		A2FE80
A2FE90
A2FE107
A2FE125 		A6VE80 A6VE107 3500 800 1.8-5 220
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

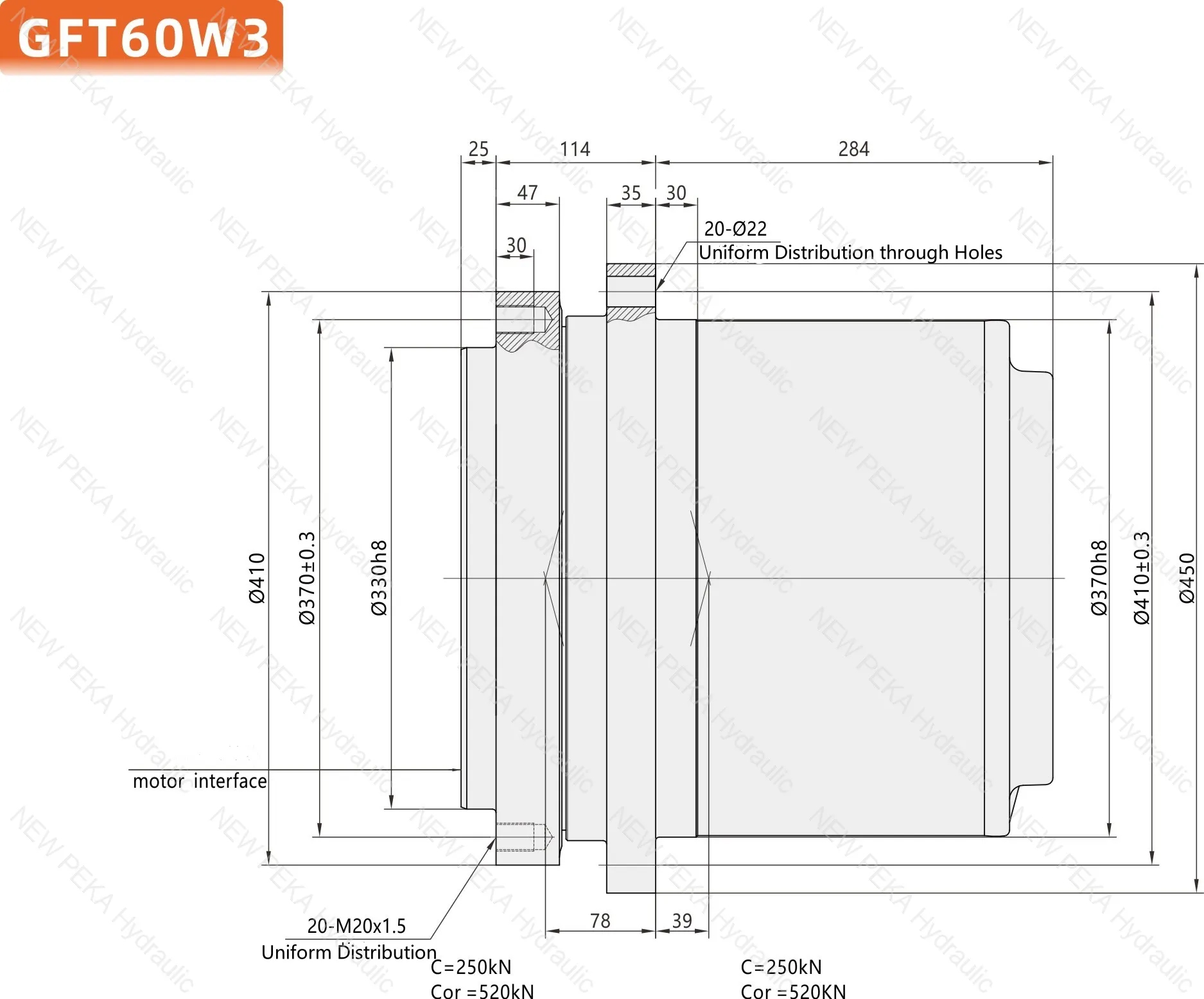

GFT60W3 42500 86
106
120
140
170
248 		A2FE80
A2FE90
A2FE107
A2FE125 		A6VE80 A6VE107 3500 800 1.8-5 242
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

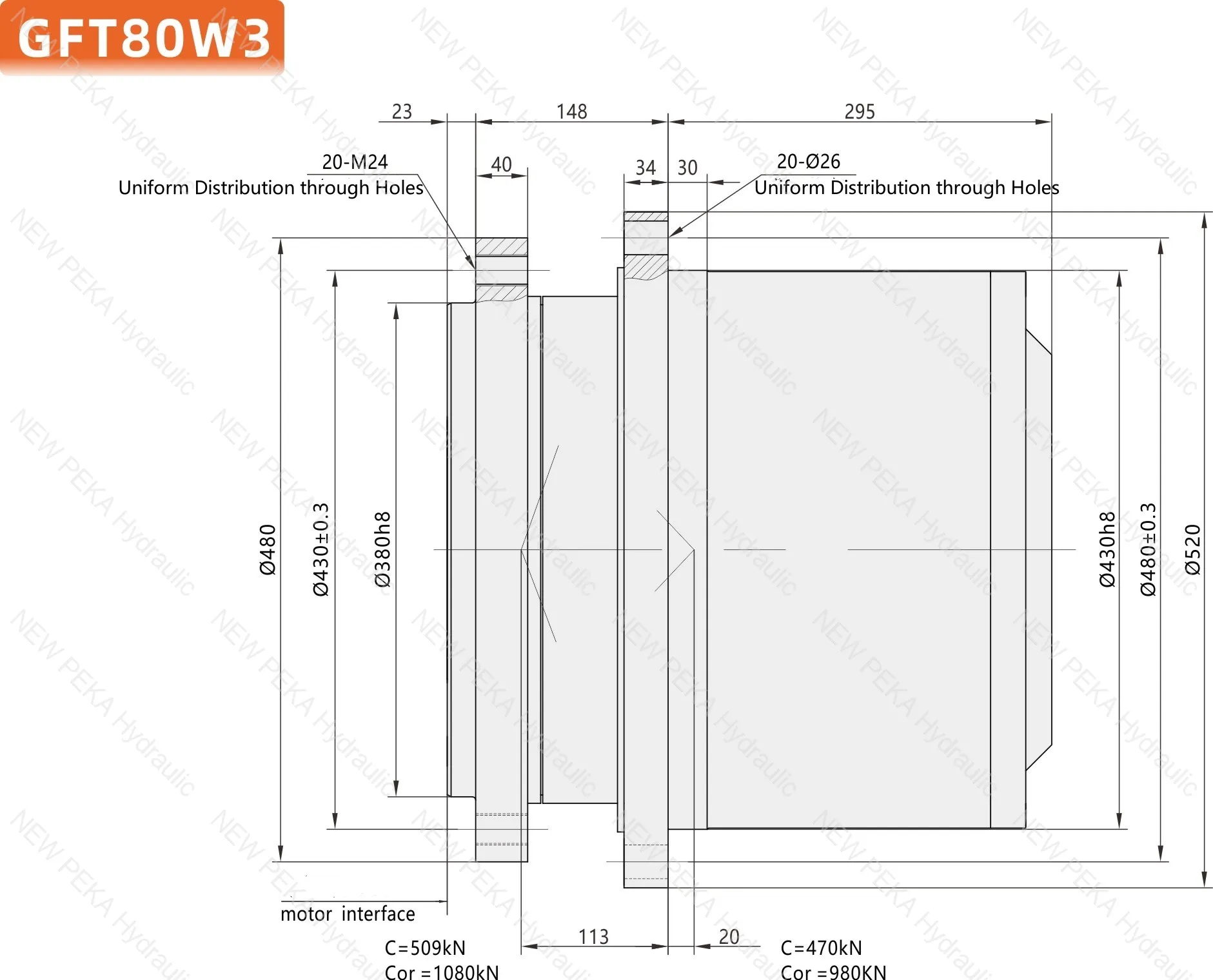

GFT80W3 67000 77
99
127
150
185
235
274 		A2FE107
A2FE125
A2FE160
A2FE180 		A6VE107 A6VE160 3500 1000 1.8-5 355
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

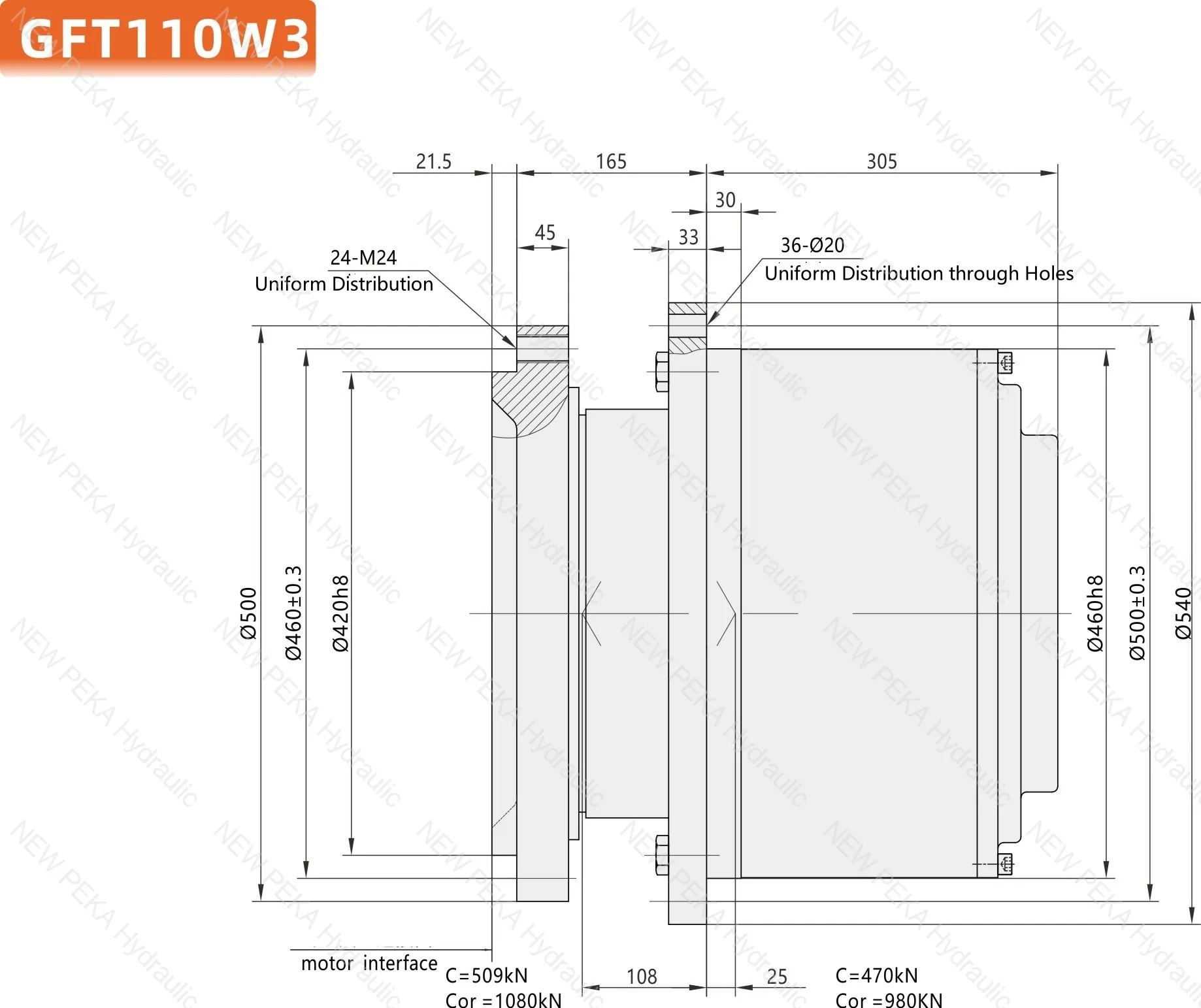

GFT110W3 100000 96
115
129
147
174
215
307 		A2FE107 A2FE125 A2FE160 A2FE180 A6VE107 A6VE160 3500 1000 1.8-5 395
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

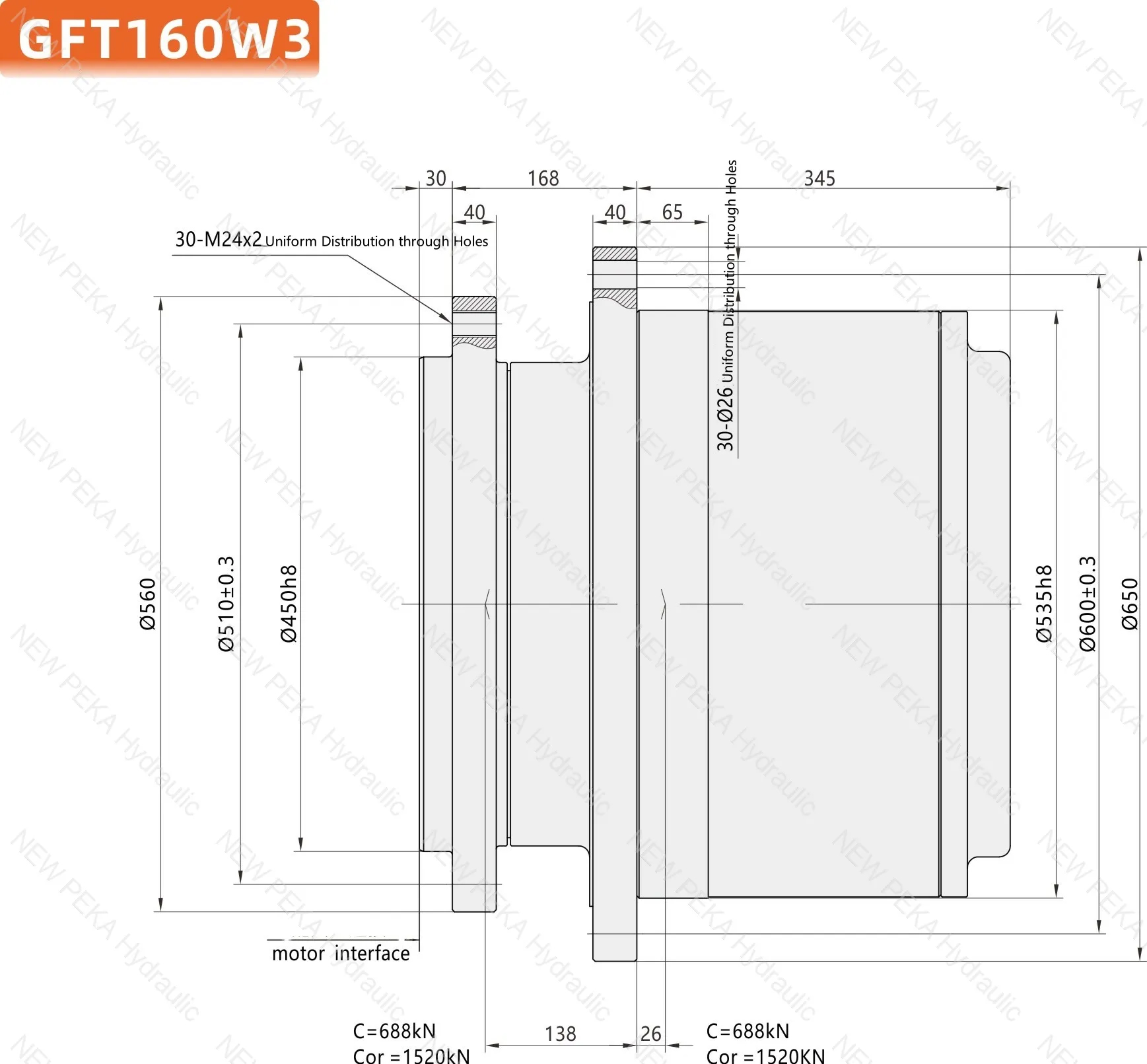

GFT160W3 140000 117
136
164
211
249
305 		A2FE107
A2FE125
A2FE160
A2FE180 		A6VE107 A6VE160 3500 1400 1.8-5 685
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

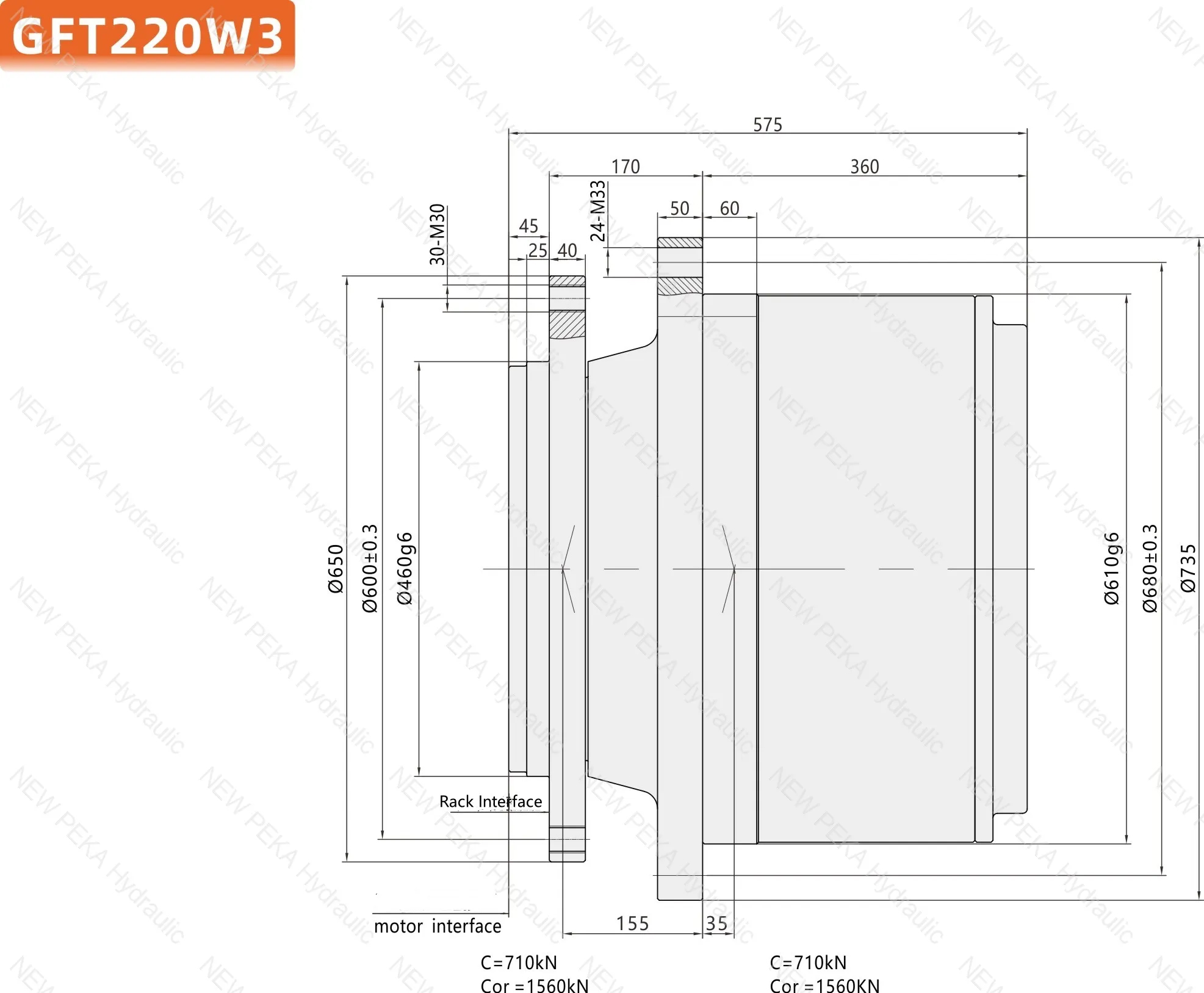

GFT220W3 200000 125
155
189
246
293
365 		A2FE107
A2FE125
A2FE160
A2FE180 		A6VE107
A6VE160
A6VM200
A6VM355 		3500 1400 1.8~5 850
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

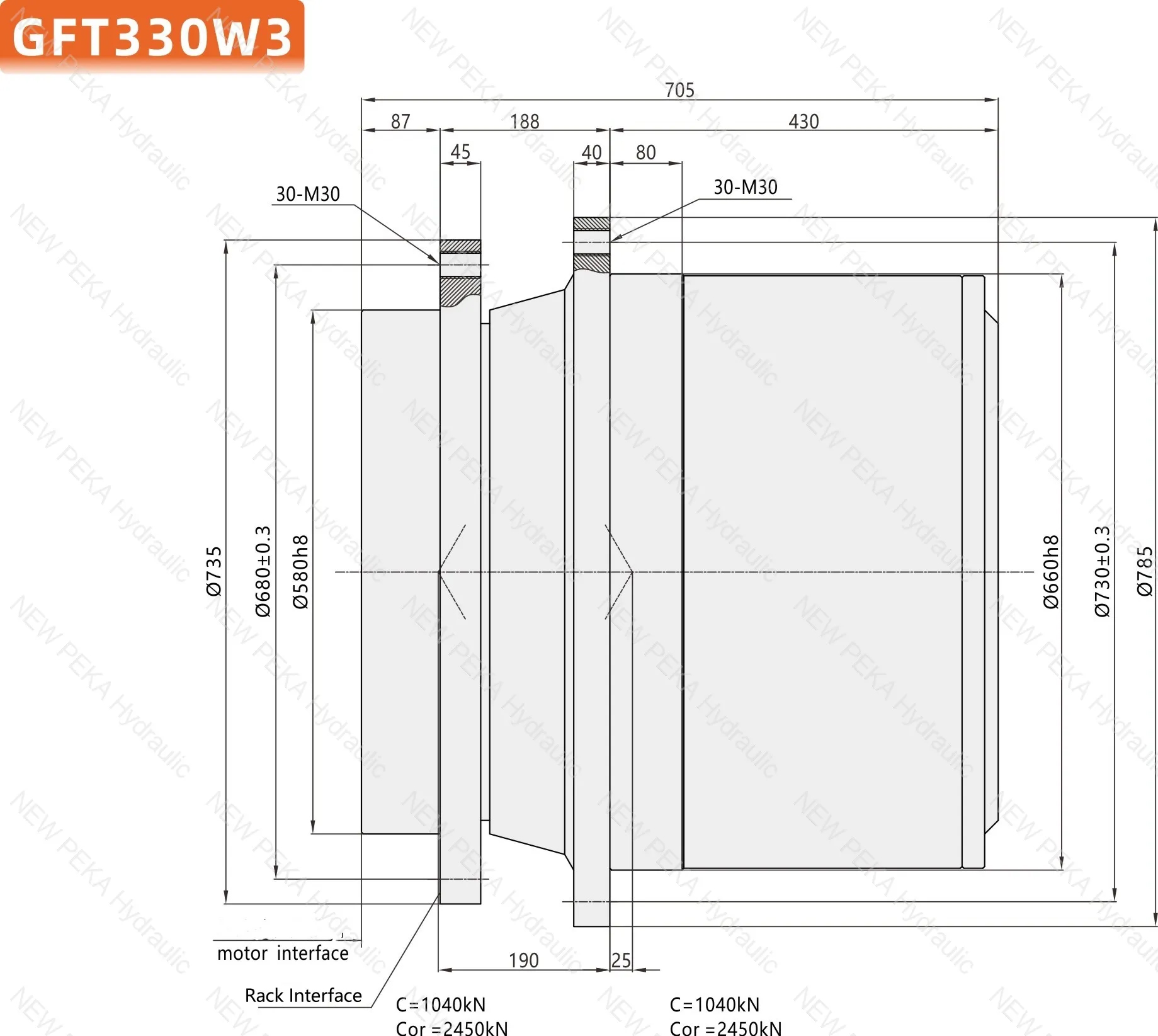

GFT330W3 275000 169
210
252
302 		A2FE160
A2FE180
A2FE250
A2FE355 		A6VE160
A6VE250
A6VM200
A6VM355 		3500 2500 1.8~5 1285
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

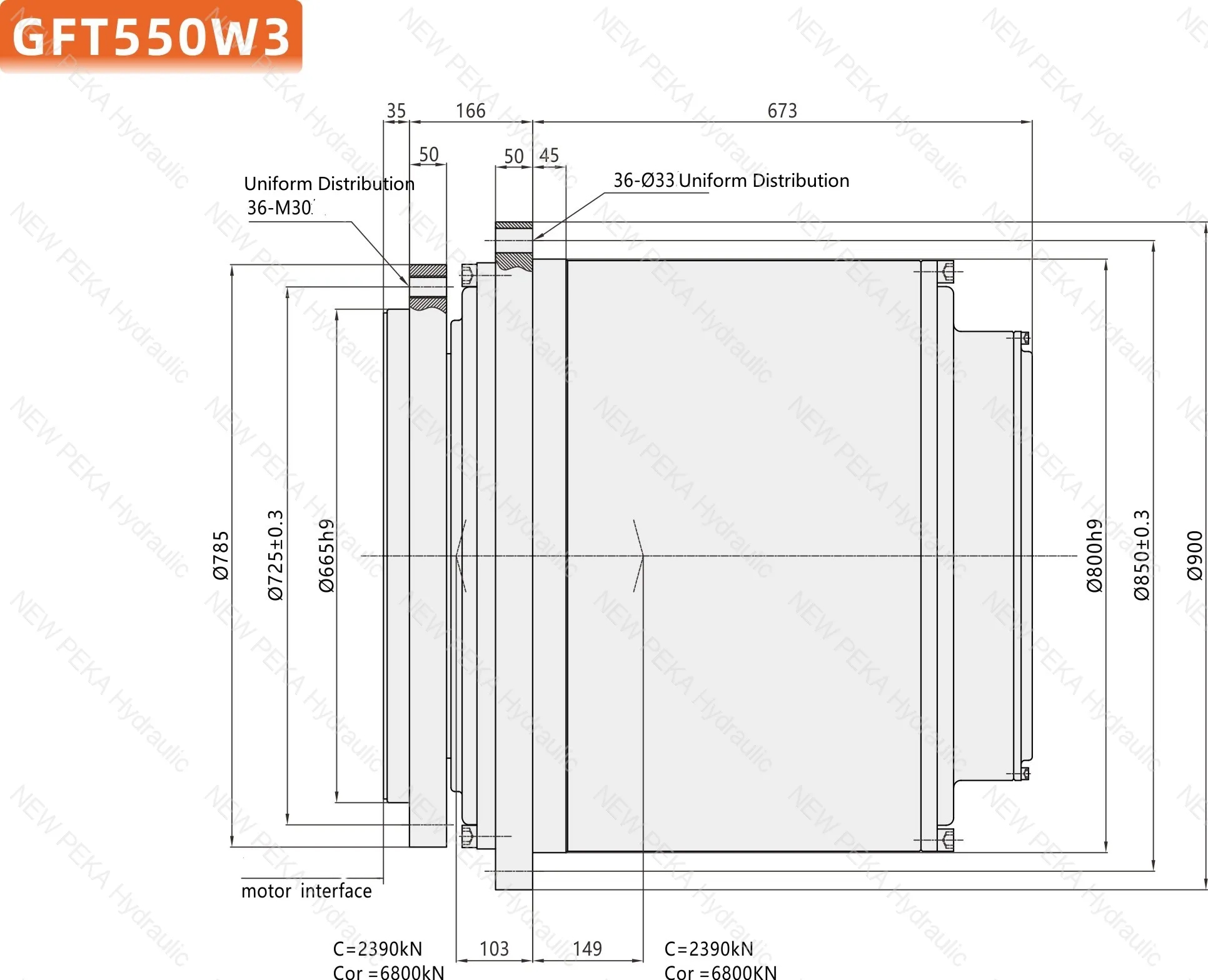

GFT550W3 450000 102
123
185
227 		A2FE180
A2FE250
A2FE355
A2FM250
A2FM500 		A6VE250 3500 3200 1.8-5 2235
A6VM200
A6VM355
A6VM355
A4VM500
Model  Output Torque Tmax Nm Ratio Hydraulic motor Max.input Speed r/min Braking Torque max. Nm Brake Press. Mpa Weight
kg

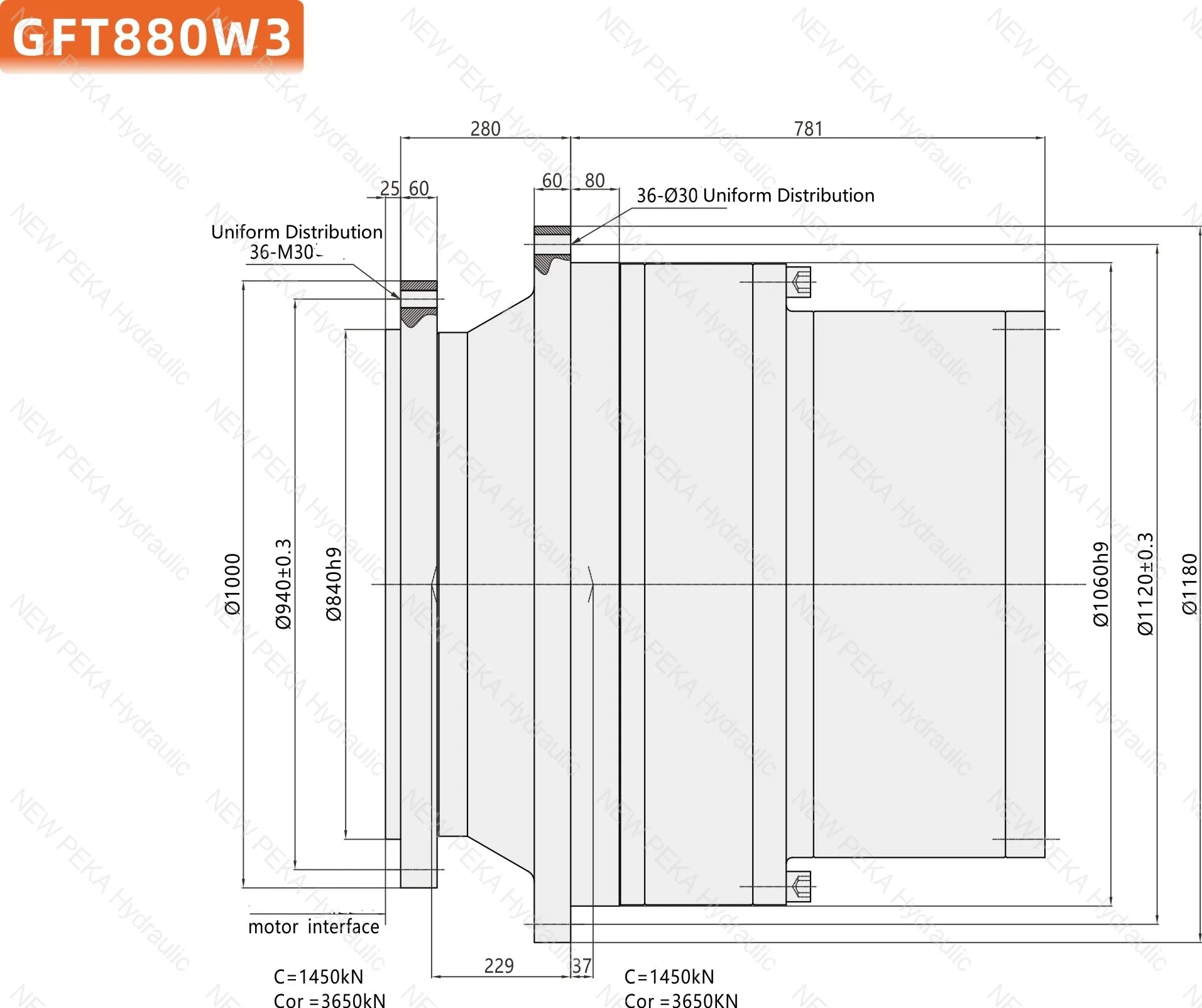

GFT880W3 750000 127
180
236
294 		A2FE180
A2FE250
A2FE355
A2FM250
A2FM500 		A6VE250
