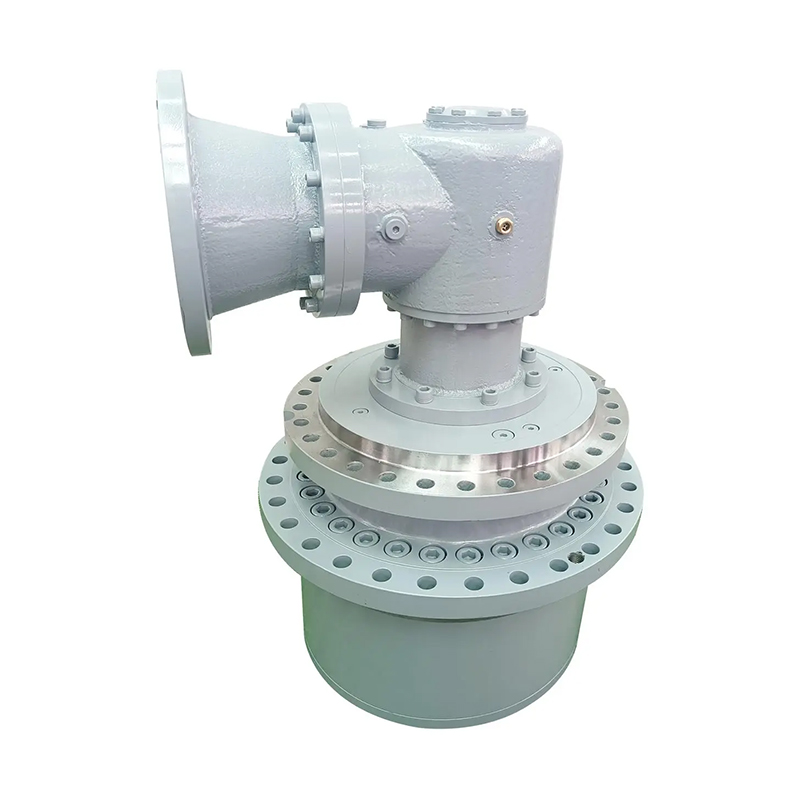

GFT880W3 winch drive

GFT-W winch drive series are ideal drive components for winches. The series have proven their worth under arduous applicatiorn conditions in the most unfavorable operating environments.Due to their extremefy compact design,the gear units can be mounted inside the cable drum in a space-saving manner.
Feature: The drives feature high efficiency.compact size, and long service life. The drives are designed for direct flange installation of a variabie or fixed displacement motor.

Application: If required, the motor and functional valve manifolds could be supplied with the gearbox. The multi-disc parking brake arranged on the input side is not a service brake, but a static holding brake.

Send Inquiry

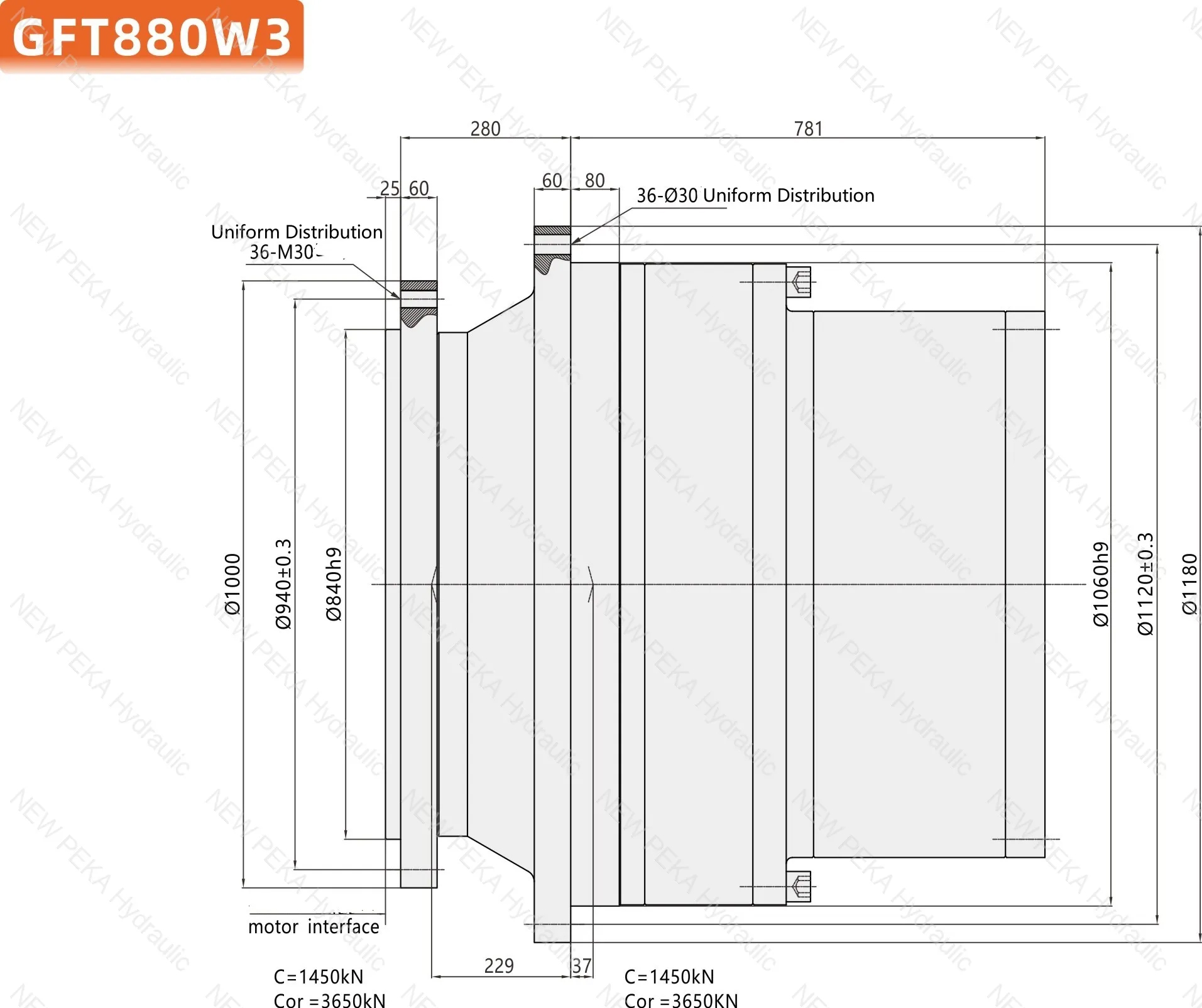

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg
GFT880W3	750000	127 180 236 294	A2FE180 A2FE250 A2FE355 A2FM250 A2FM500	A6VE250 A6VM200 A6VM355 A4VM500	3500	3200	1.8~5	4350

Production and Processing

Factory Environment

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.

GFT-W End supporting bearing series
