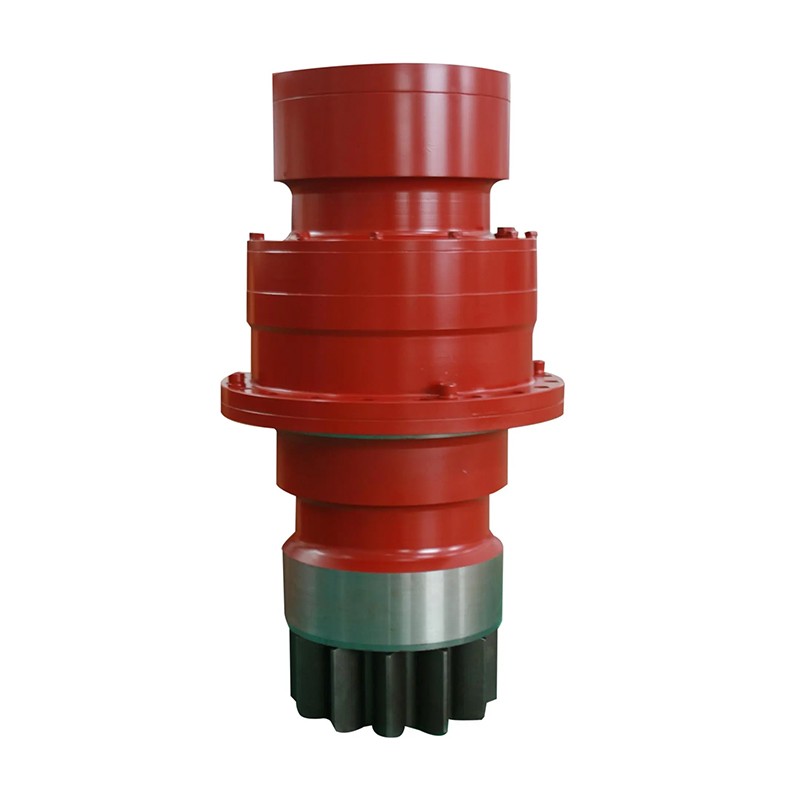

GFB swing drive

GFT-W winch drive series are ideal drive components for winches. The series have proven their worth under arduous applicatiorn conditions in the most unfavorable operating environments.Due to their extremefy compact design,the gear units can be mounted inside the cable drum in a space-saving manner.
Feature: The drives feature high efficiency.compact size, and long service life. The drives are designed for direct flange installation of a variabie or fixed displacement motor.

Application: If required, the motor and functional valve manifolds could be supplied with the gearbox. The multi-disc parking brake arranged on the input side is not a service brake, but a static holding brake.

Send Inquiry

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

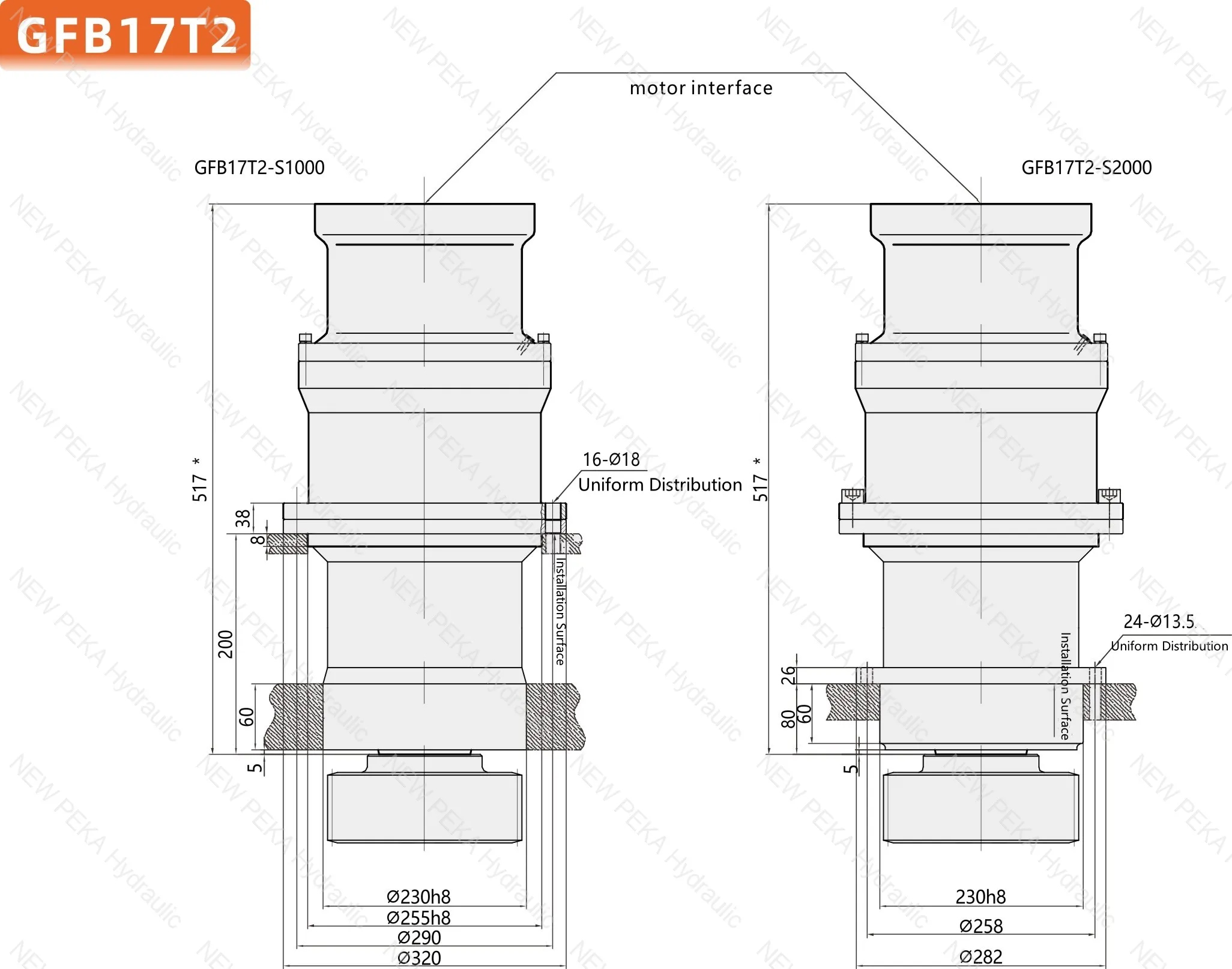

GFB17T2	12700	27 33 39 46 55	A2FM45 A2FM55 A2FM63 HMF50	A2FE45 A2FE56 A2FE63 HMF55	3500	450	1.8~5	130

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg
GFB17T3	12700	79 89 104	A2FM28 A2FM45 A2FM55 HMF28	A2FE32 A2FE45 A2FE56 HMF35	3500	450	1.8~5	150

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

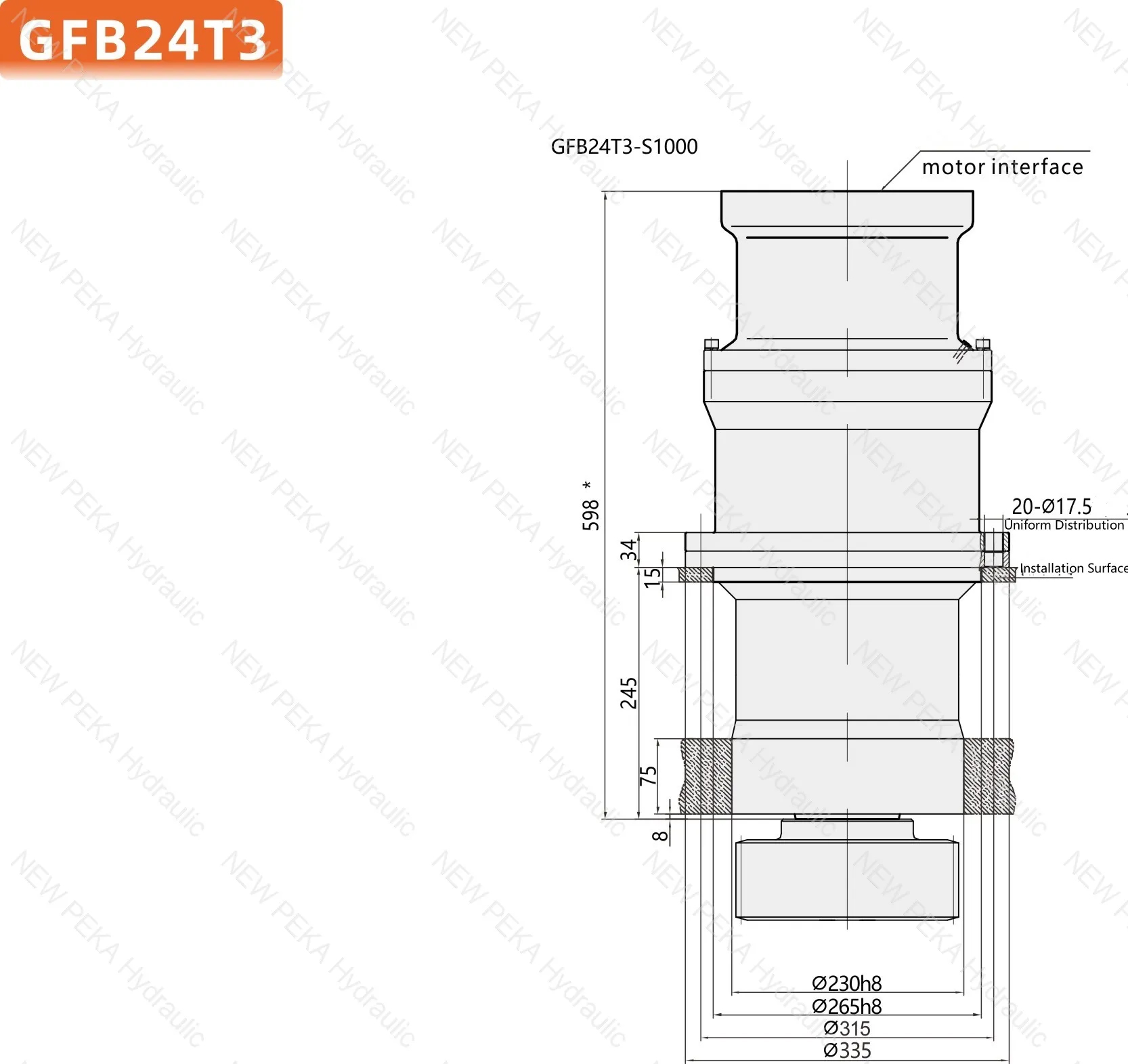

GFB24T3	17500	91 104 122 138	A2FM28 A2FM45 A2FM55 HMF28	A2FE32 A2FE45 A2FE56 HMF35	3500	450	1.8~5	150

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

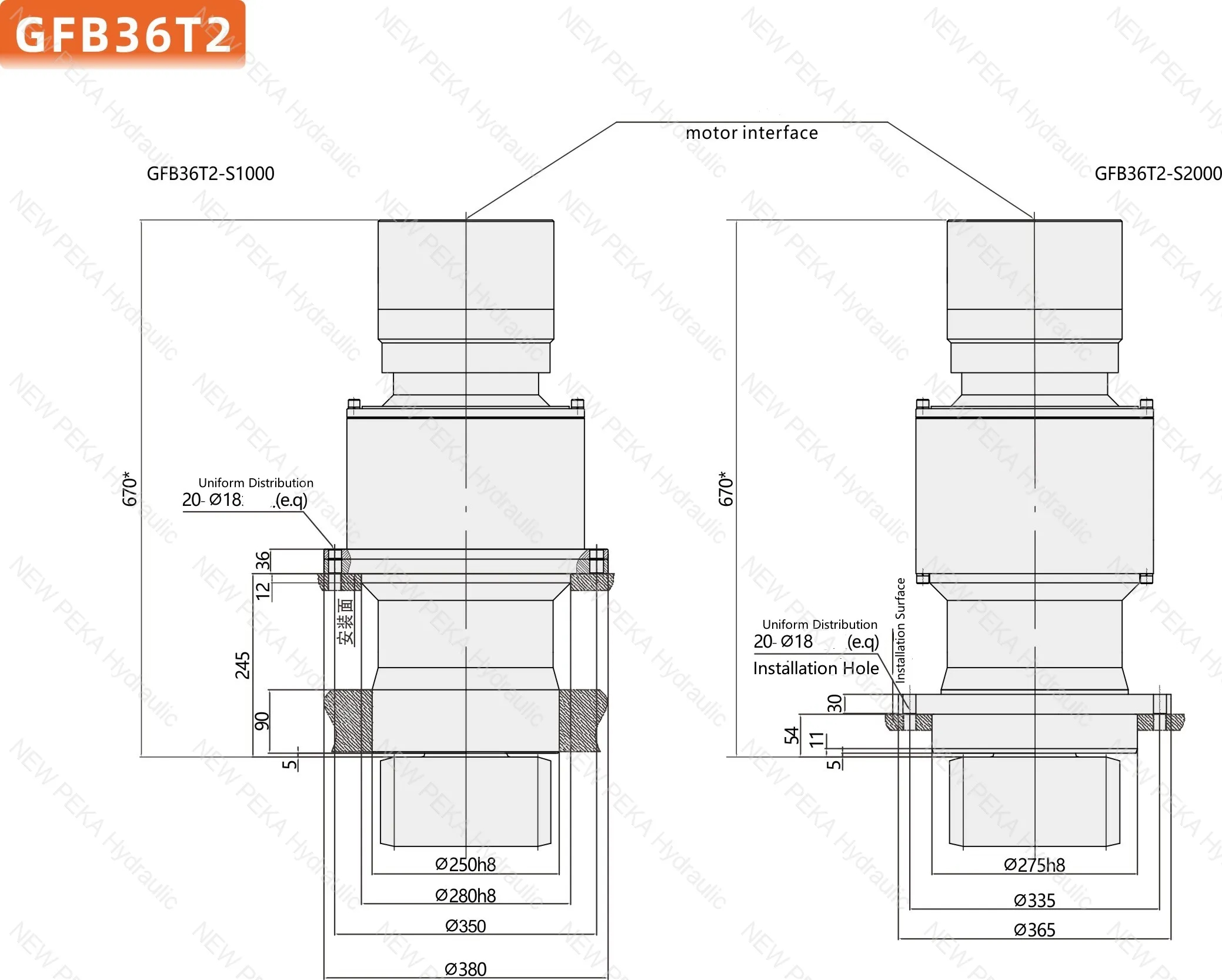

GFB36T2	28500	44 52 63 24 42 48	A2FM80 A2FM107 A2FM125 HMF105	A2FE80 A2FE90 A2FE107 A2FE125	3500	800	1.8~5	210

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

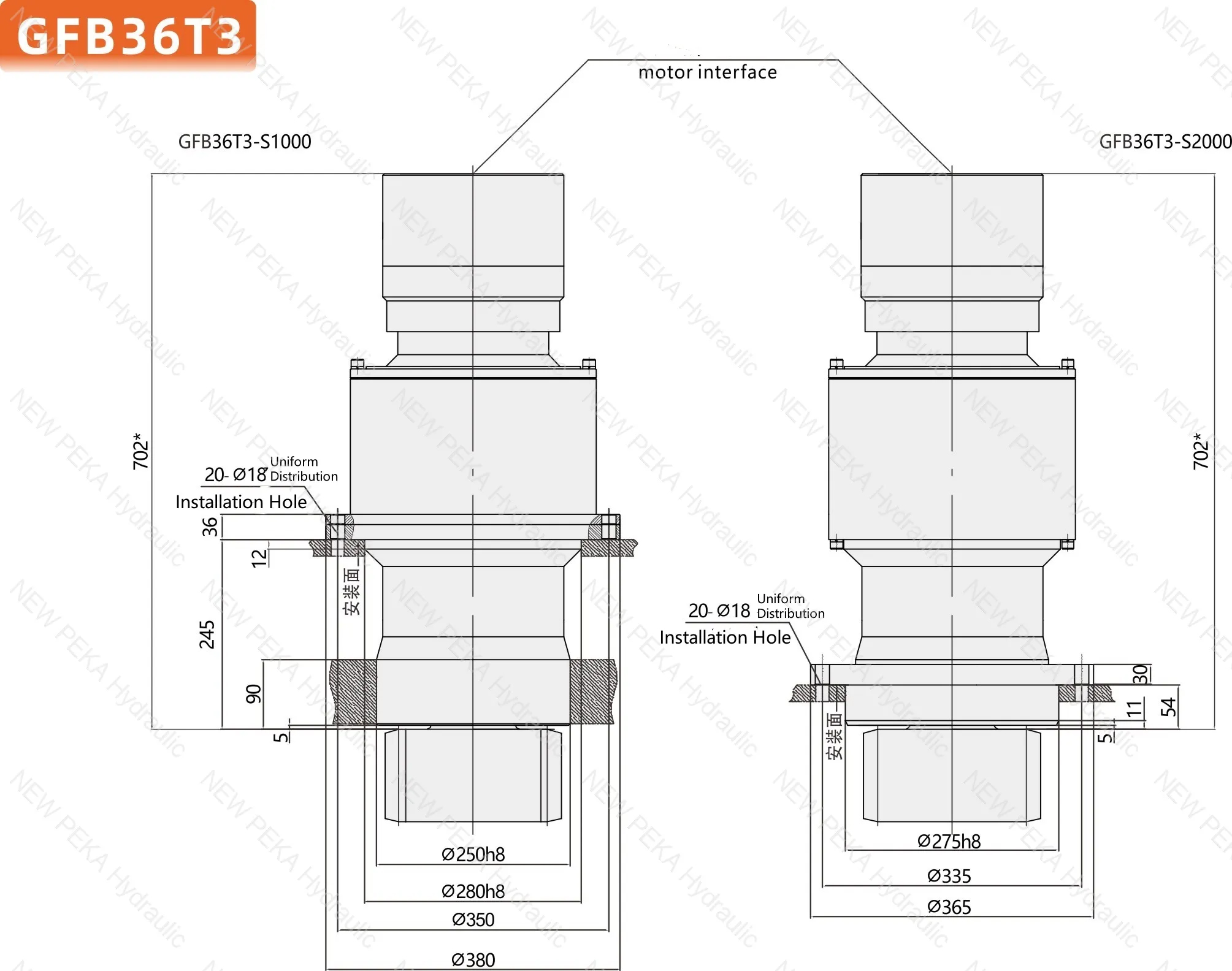

GFB36T3	28500	68 80 101 118 131	A2FM55 A2FM63 A2FM80 HMF75	A2FE56 A2FE63 A2FE80 A2FE90	3500	800	1.8~5	235

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

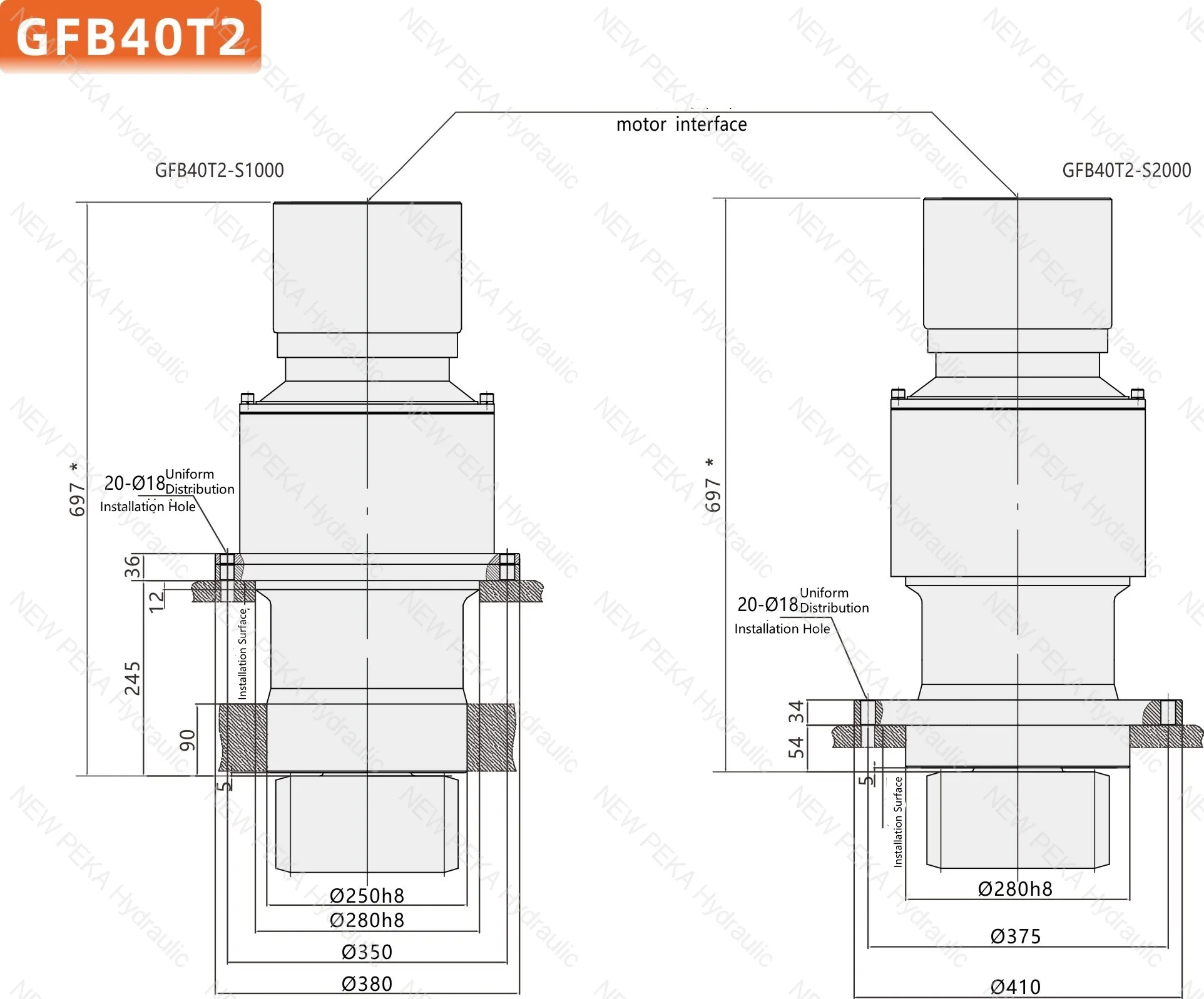

GFB40T2	29000	37 42 49 60	A2FM55 A2FM63 A2FM80 A2FM107	A2FE63 A2FE80 A2FE107 A2FE125	3500	800	1.8-5	255

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

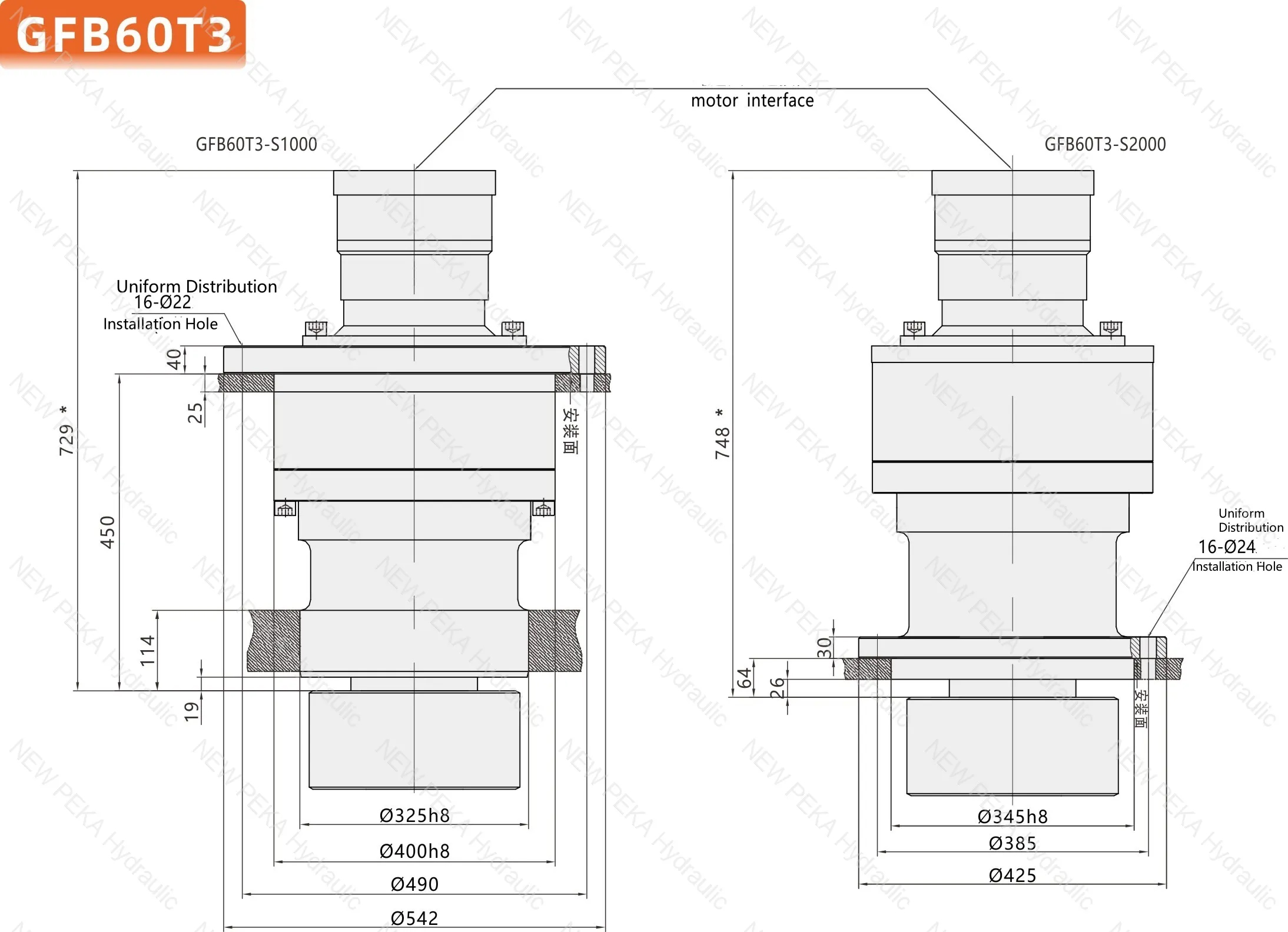

GFB60T3	48500	88 96 107 121 141 171	A2FM55 A2FM63 A2FM80 HMF105	A2FE56 A2FE63 A2FE80 A2FE90	3500	1000	1.8~5	500

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

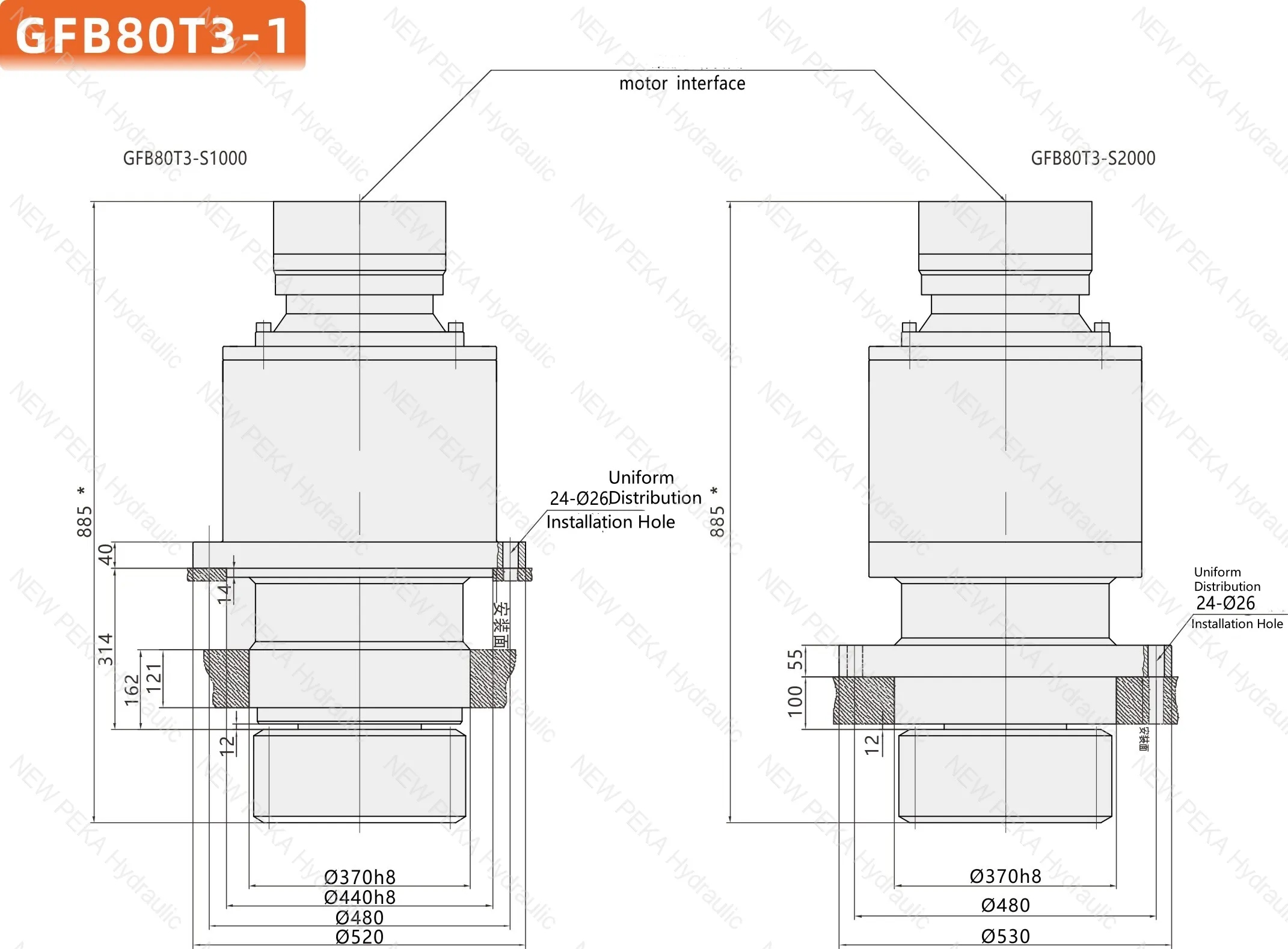

GFB80T3-1	68300	79 100 112 128 151 186	A2FM55 A2FM63 A2FM80 A2FM107	A2FE63 A2FE80 A2FE107 A2FE125	3500	1000	1.8~5	620

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

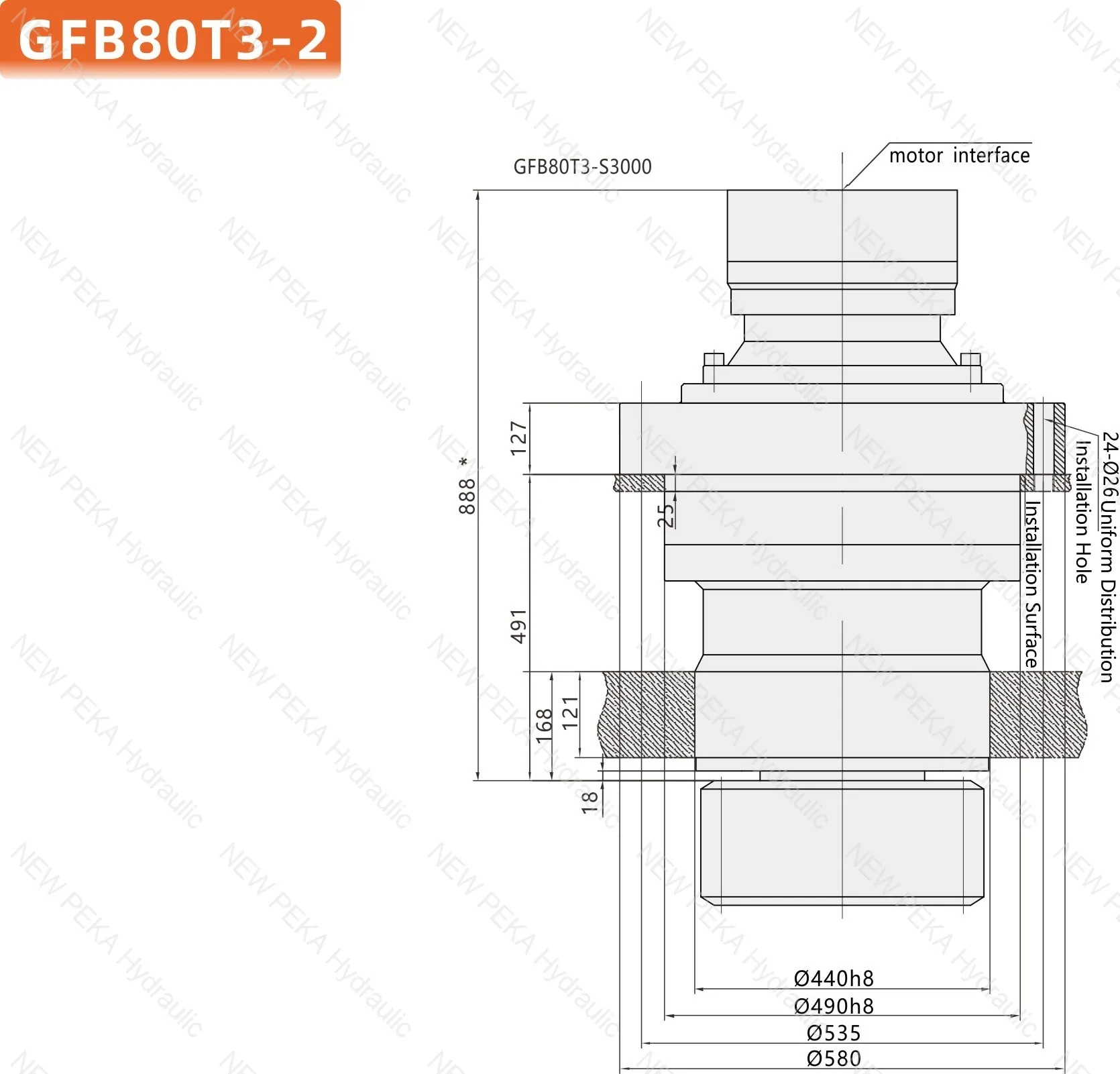

GFB80T3-2	68300	79 100 112 128 151 186	A2FM125 A2FM160 A2FM200 A2FM250	A2FE107 A2FE125 A2FE160 A2FE180	3500	1000	1.8-5	620

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

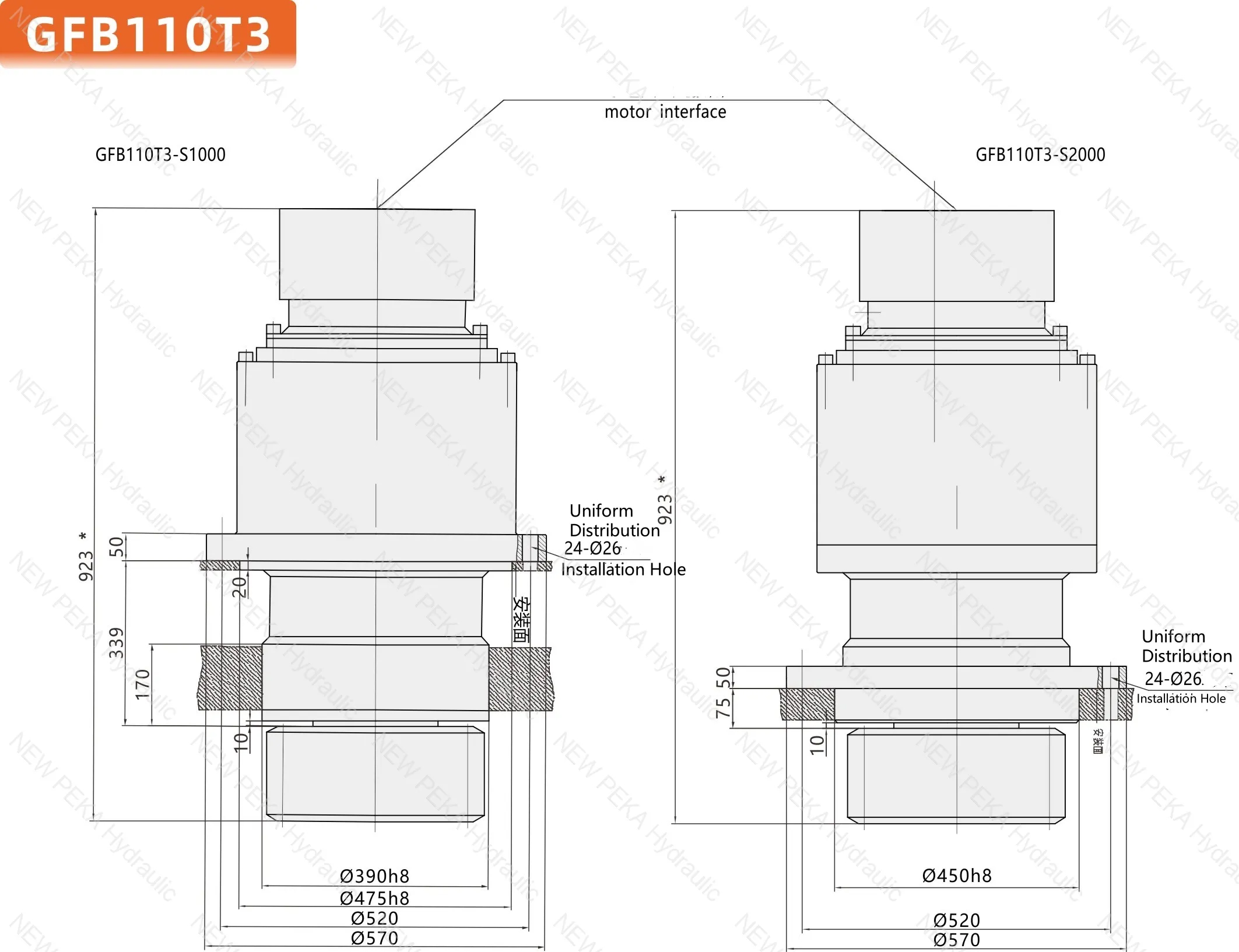

GFB110T3	93300	97 116 130 148 175 216	A2FM125 A2FM160 A2FM200 A2FM250	A2FE107 A2FE125 A2FE160 A2FE180	3500	1200	1.8~5	645

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

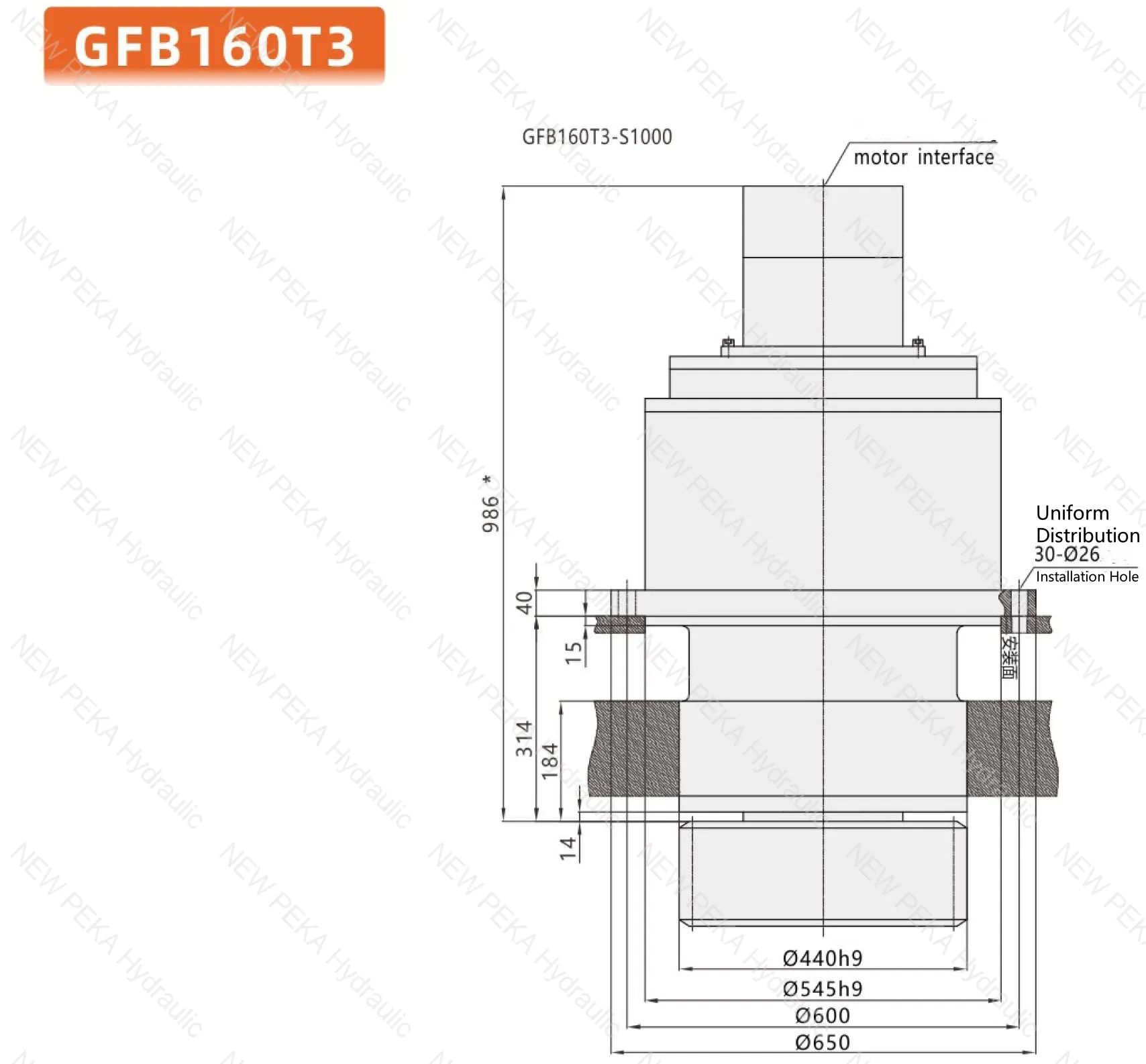

GFB160T3	136500	163 212 252	A2FM125 A2FM160 A2FM200 A2FM250	A2FE125 A2FE160 A2FE180 HMF165	3500	1200	1.8~5	1025

Model	Output Torque Tmax Nm	Ratio	Hydraulic motor		Max.input Speed r/min	Braking Torque max. Nm	Brake Press. Mpa	Weight kg

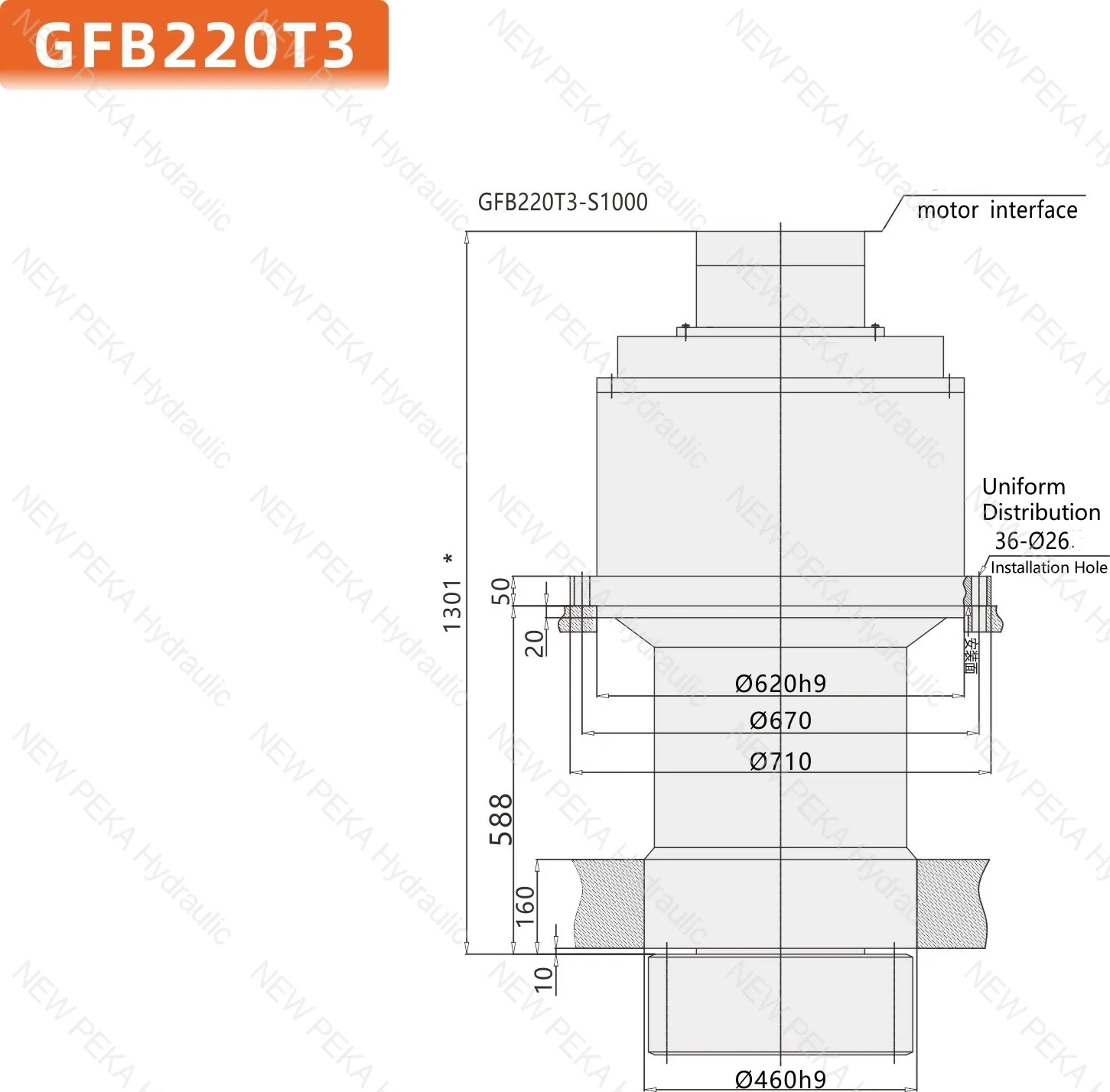

GFB220T3	213000	97 116 130 148 175 216	A2FM125 A2FM160 A2FM200 A2FM250	A2FE125 A2FE160 A2FE180 HMF210	3500	1300	1.8-5	1285

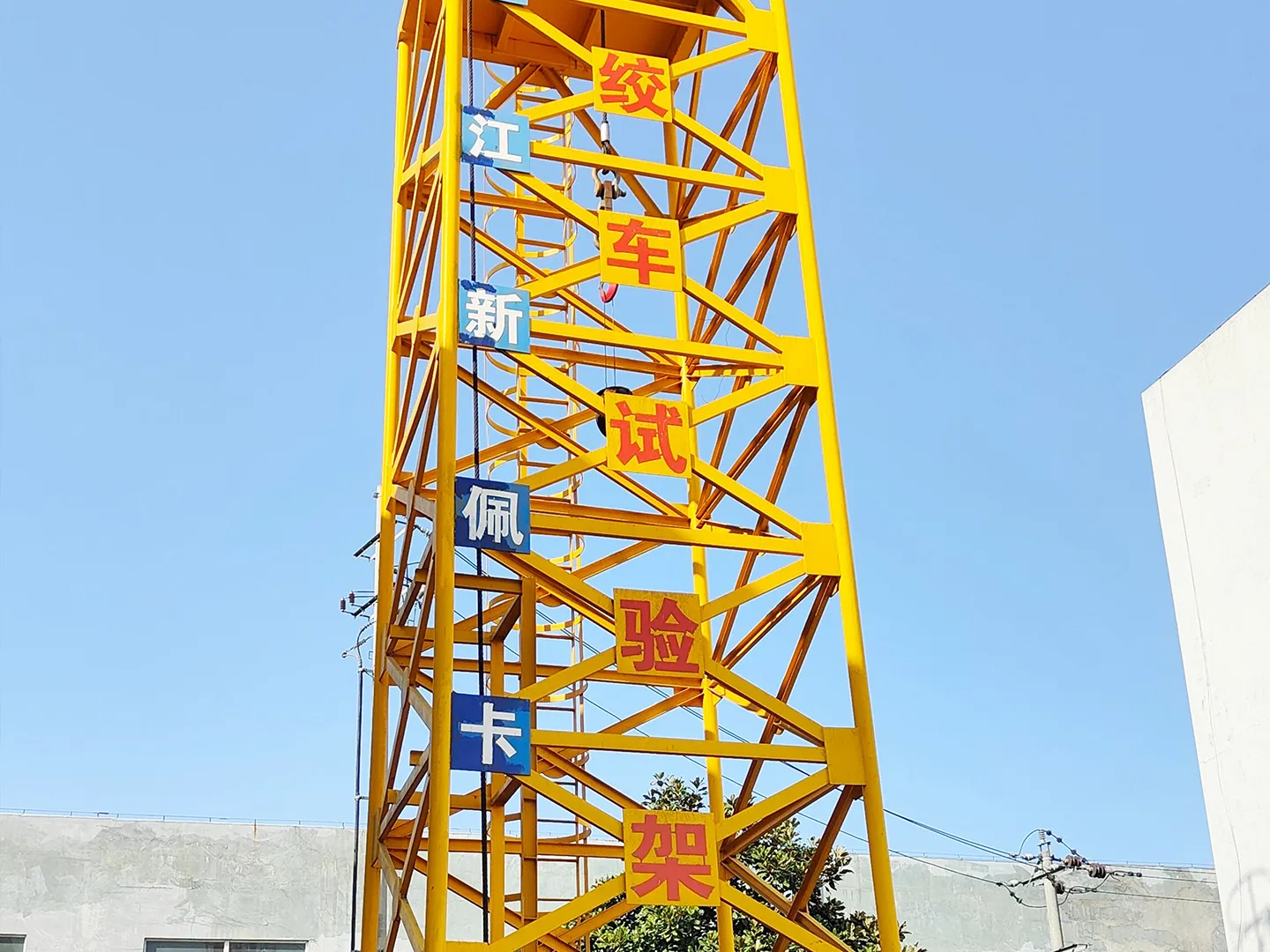

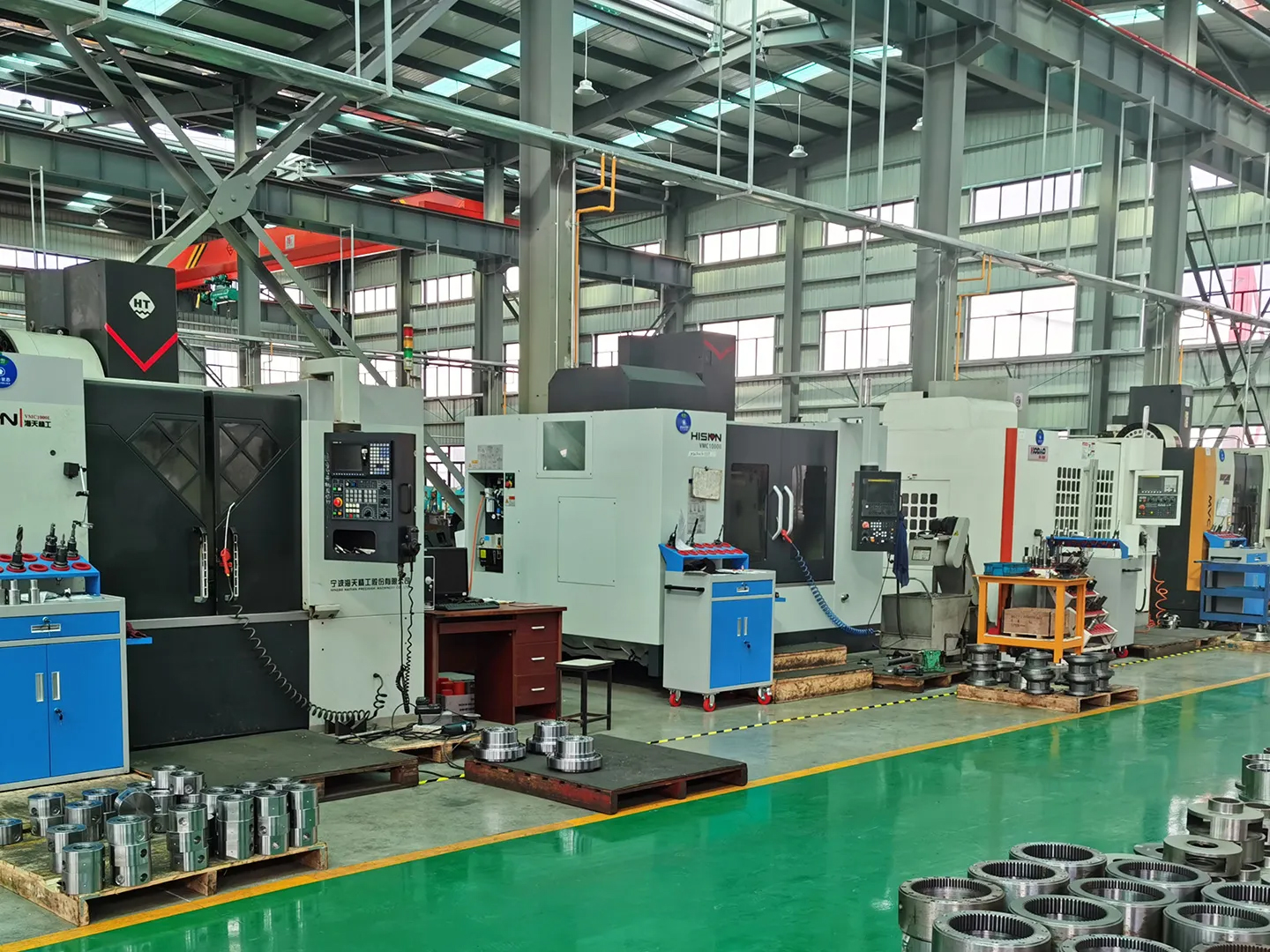

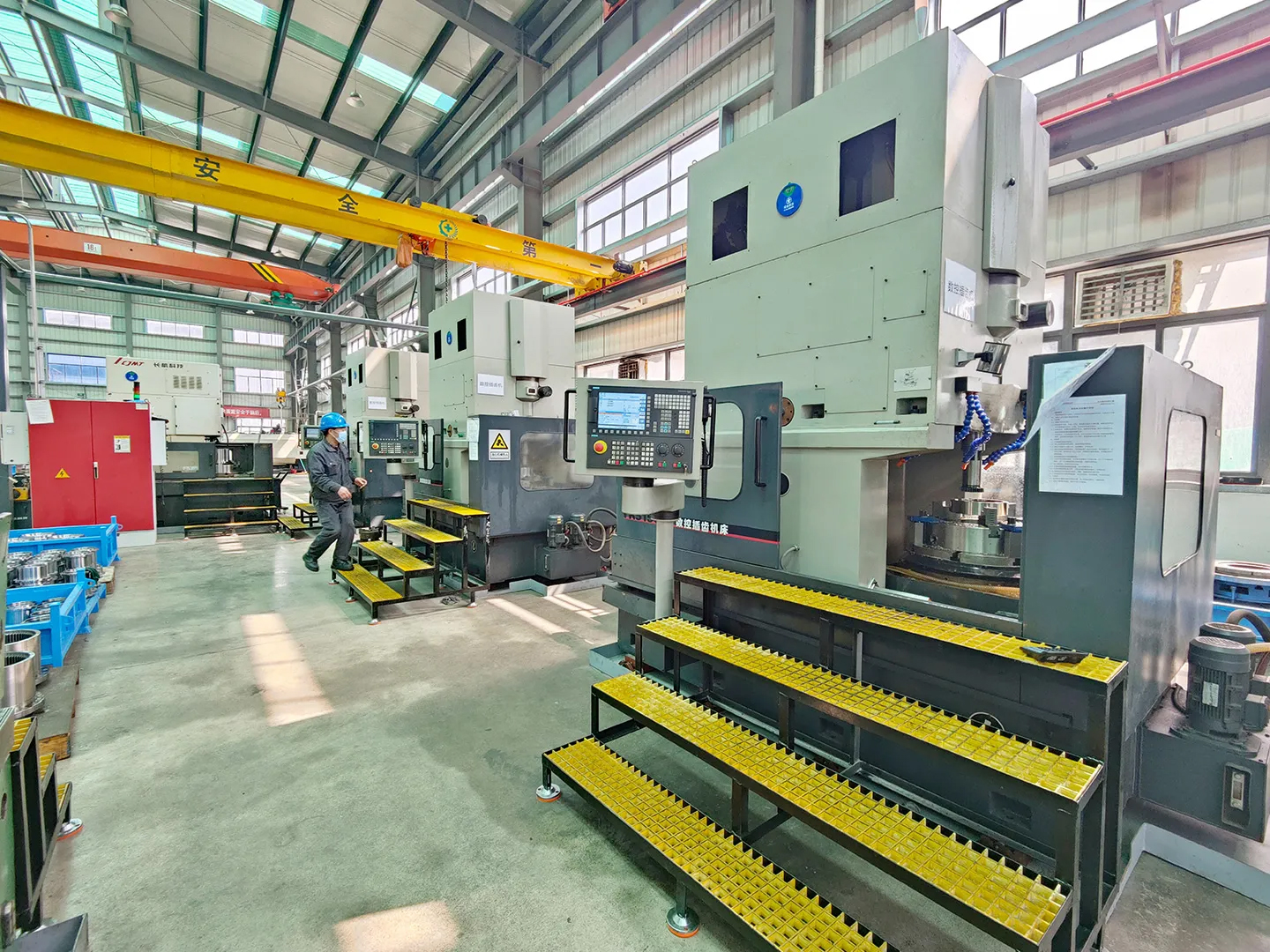

Production and Processing

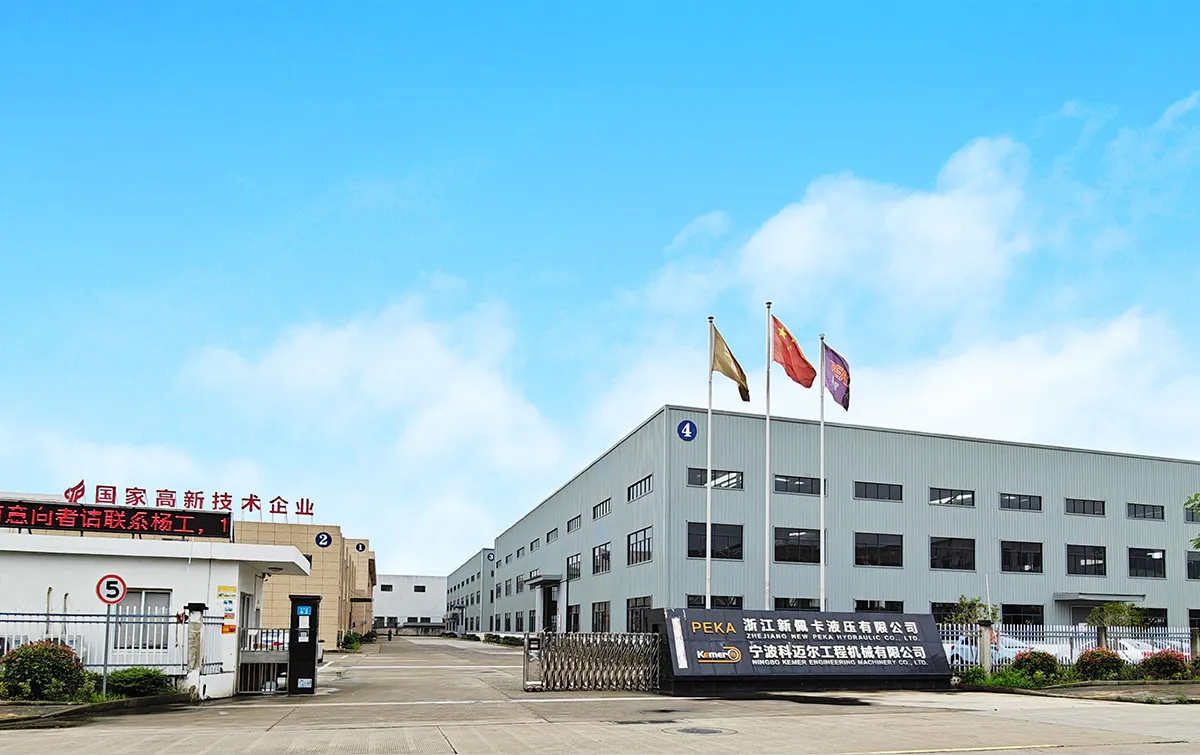

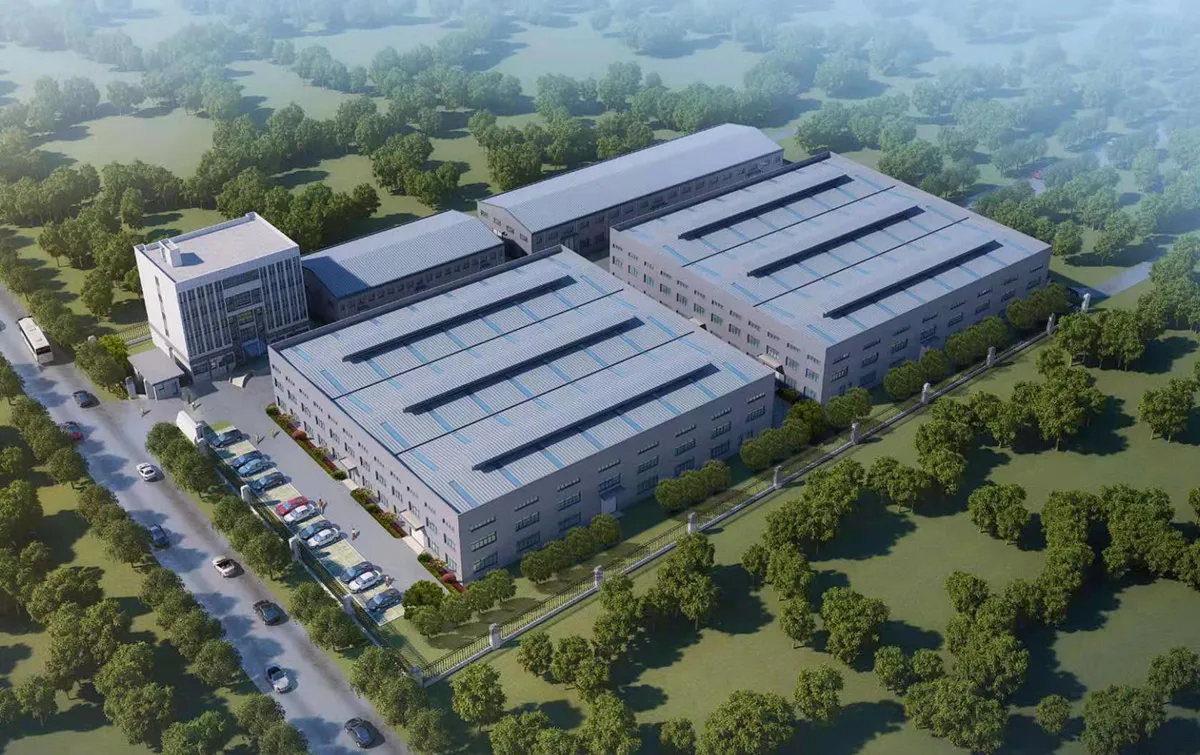

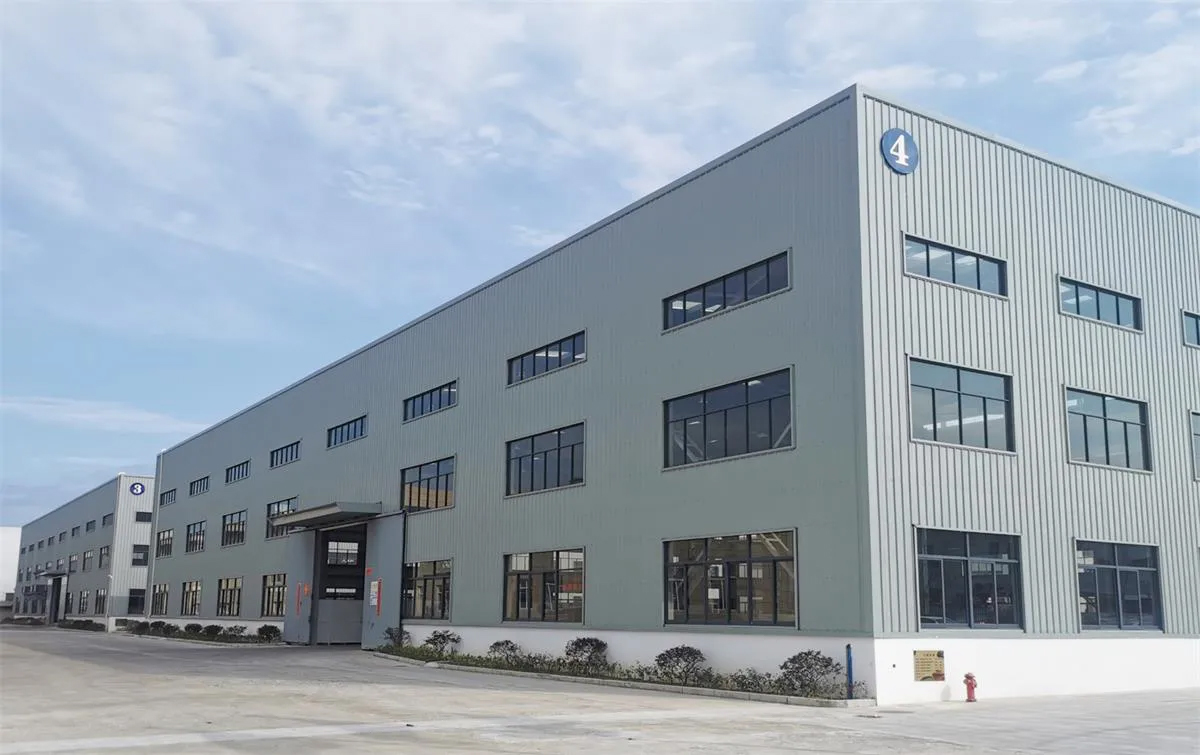

Factory Environment

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
