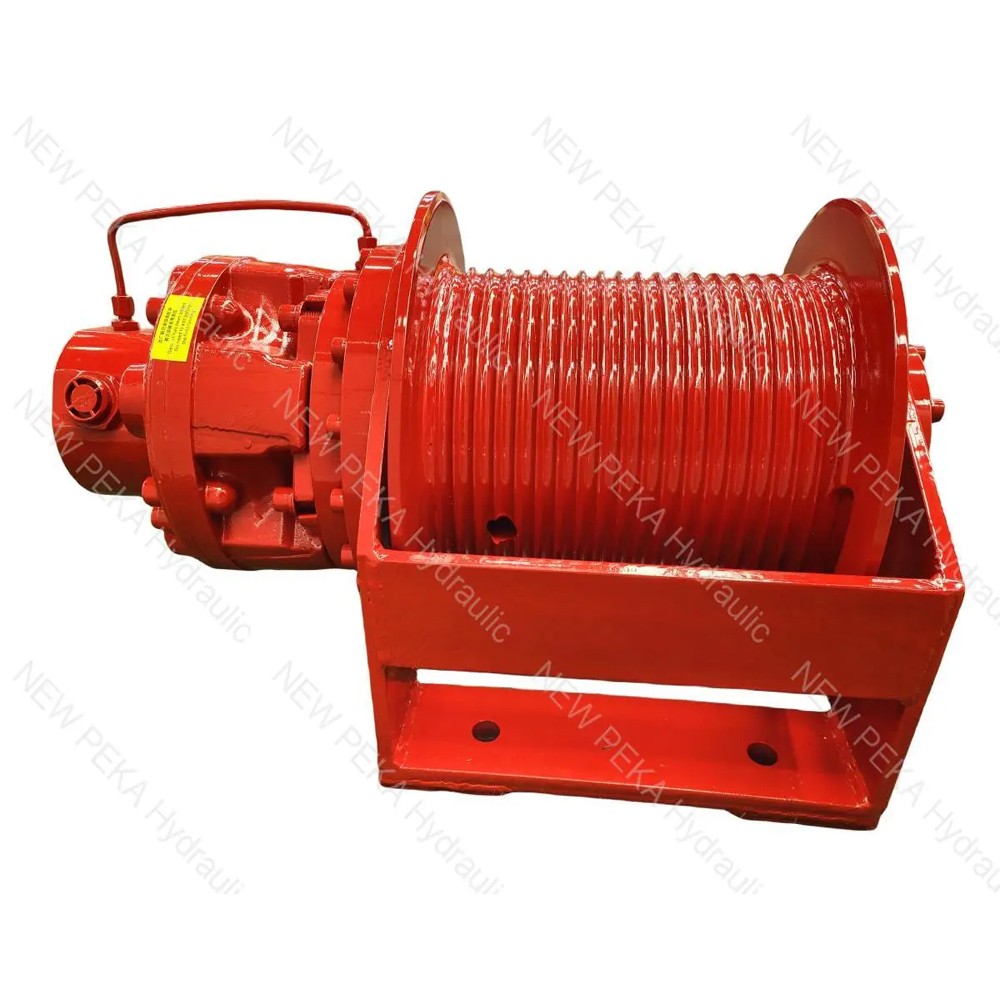

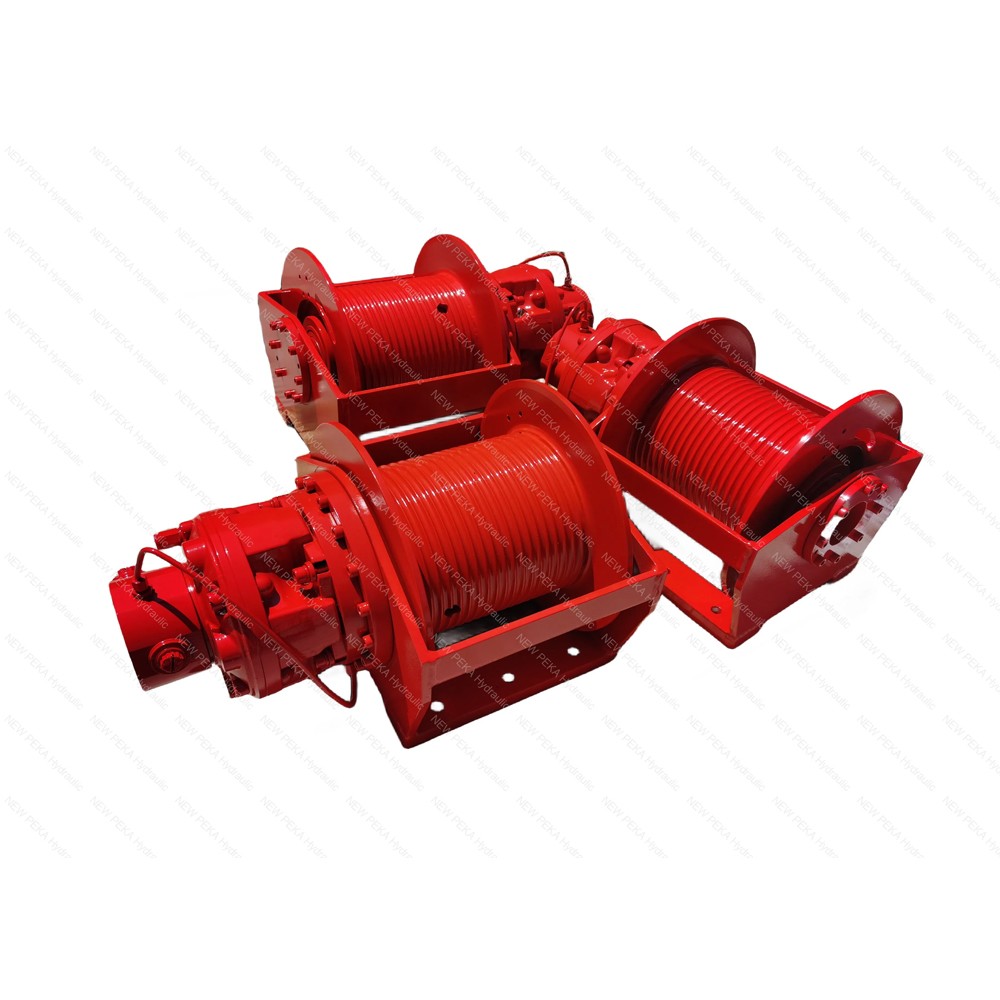

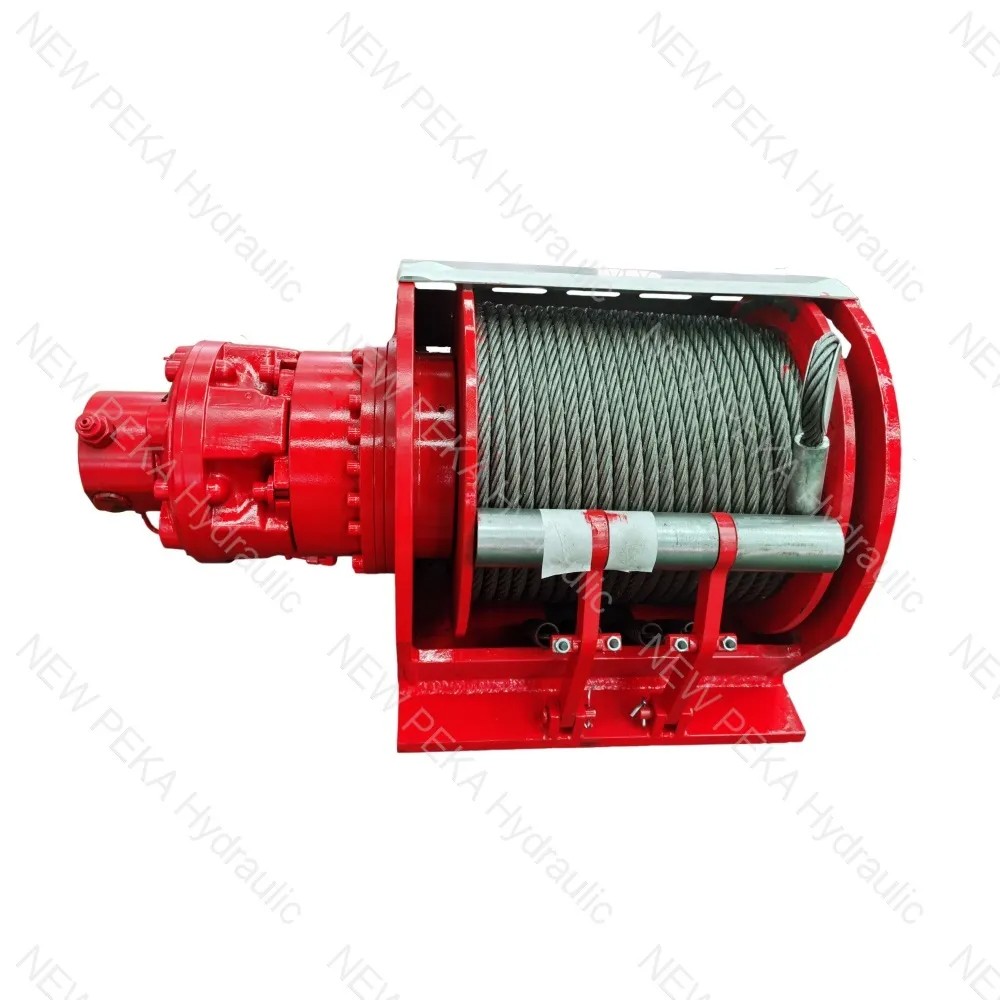

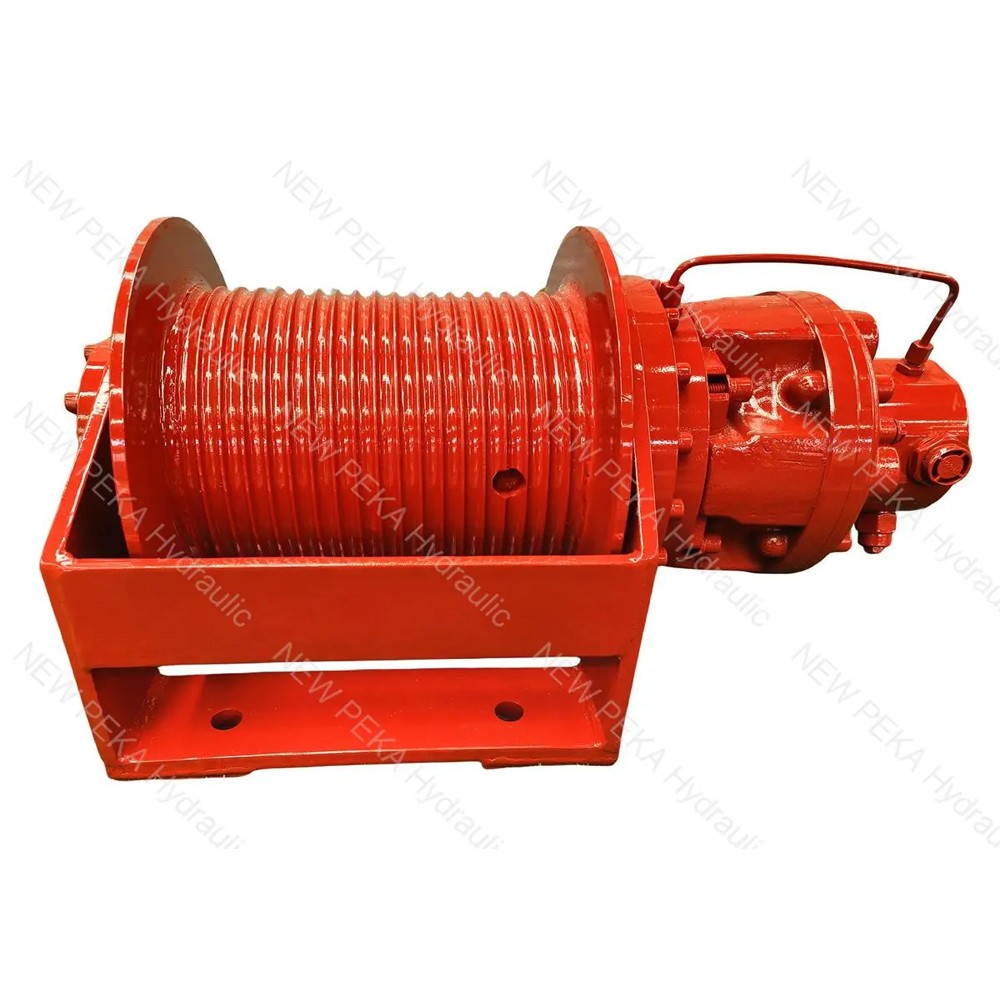

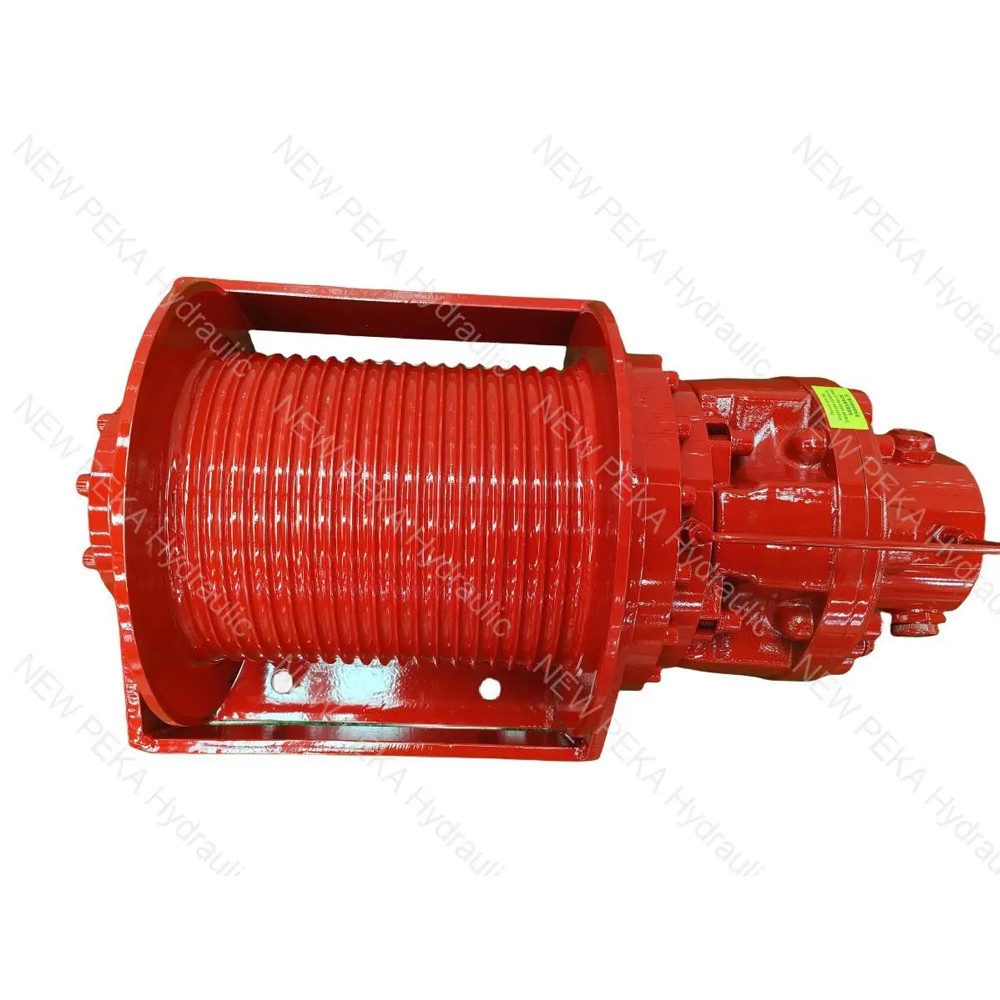

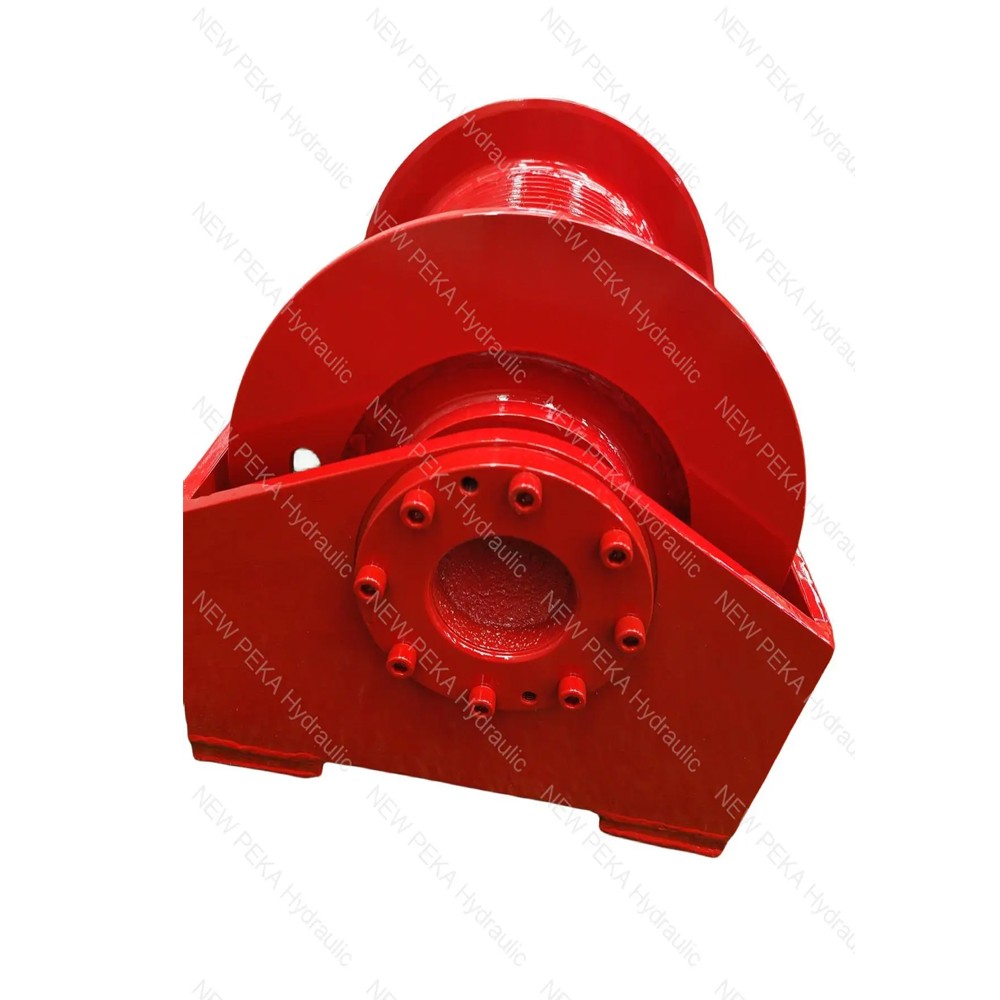

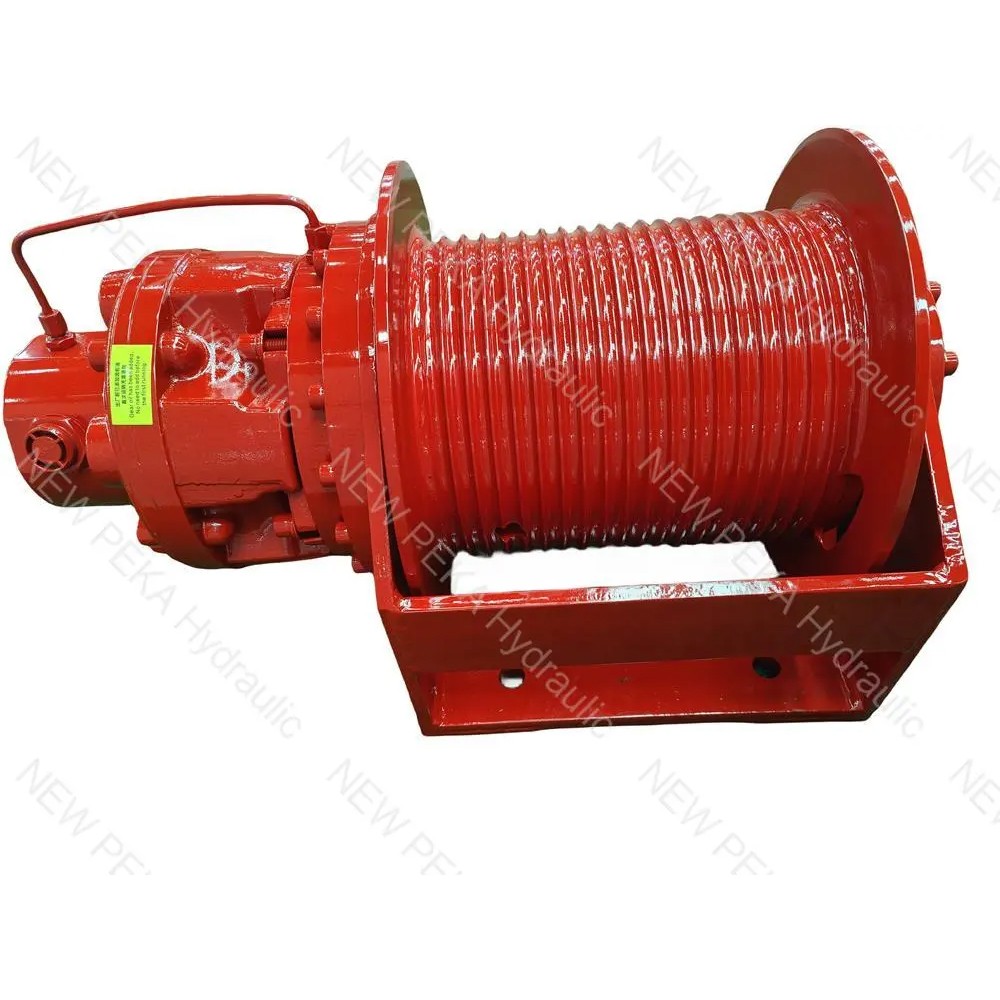

Description:GW hydraulic winch is composed of oil distributor GN hydraulic motor, Z brake, C reducer, reel and stand. The oil distributor include one-way balance valve, brake and high pressure shuttle valve.
Feature:GW winch has its own valve group, so that it makes hydraulic system more simple and increases stability of the transmission device.The hydraulic valve group of GW winch solve the problem of empty hook vibrating and fall again during hoisting. So GW winch can lift and put down stably.When starting and working, GW winch is high efficiency, low energy consumption, low noise and beautiful form.
Application:Traction equipment of gravity crushing traction equipment、crawlers and Marine cranes、track cranes、pipe hoist machine、grap bucket and drilling machine with crushing functions
| Model | The 1st layer | Reel bottom diameter(mm) | Total displacement （ml/r） | Working pressure diff.(MPa) |
Rope diameter (mm) |
Wire rope Capacity(m) |
Hydraulic motor |
Model of planetary reducer | |
| Pull (kN) | Rope speed（m/min） | ||||||||

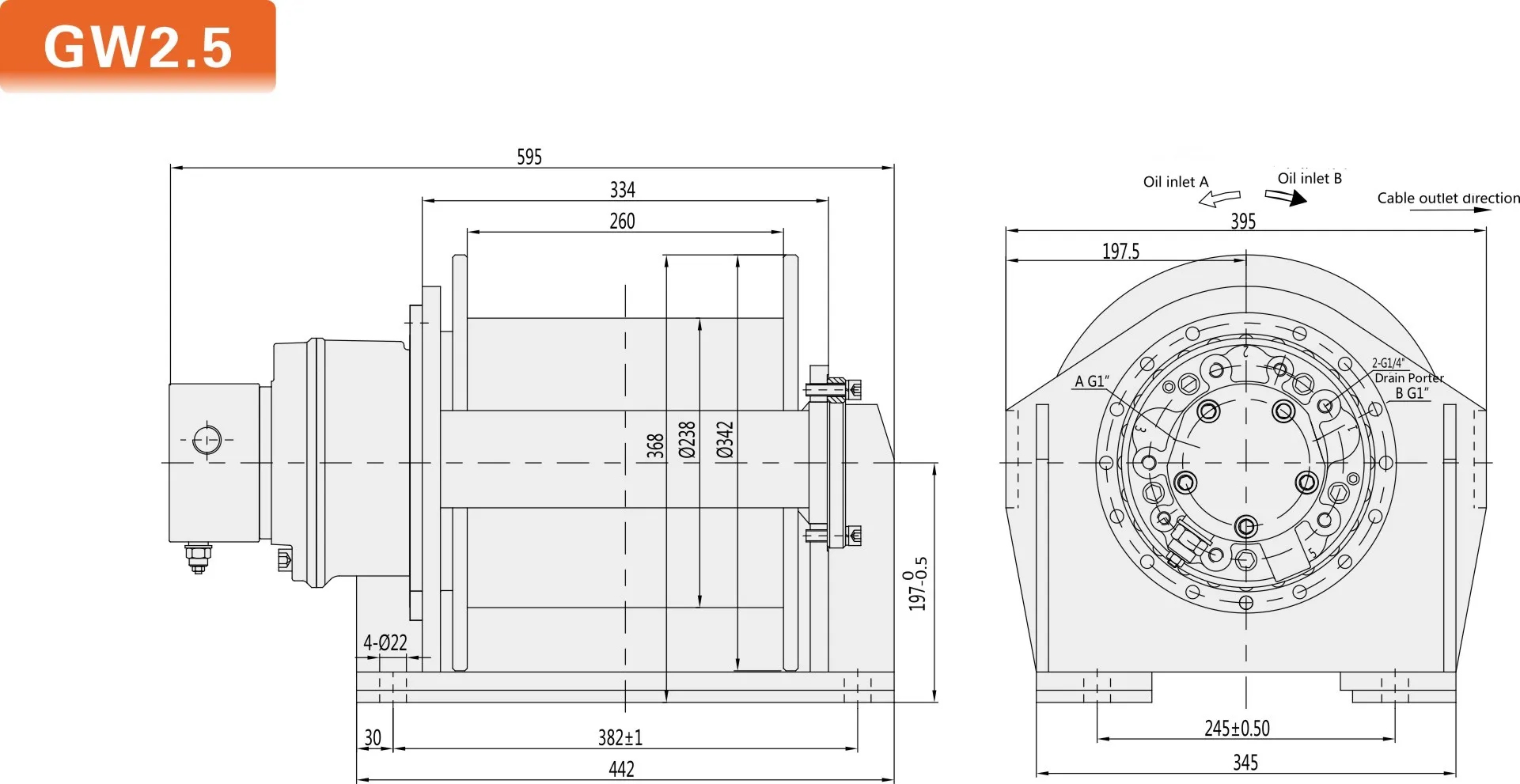

| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 575 | 15 | 10 | 60 | GN05-110D51 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 1050 | 17 | 12 | 50 | GN05-200D51 |
C2.5-5.5 |
