12-15T hydraulic winch
12-15T hydraulic winch

12-15T hydraulic winch

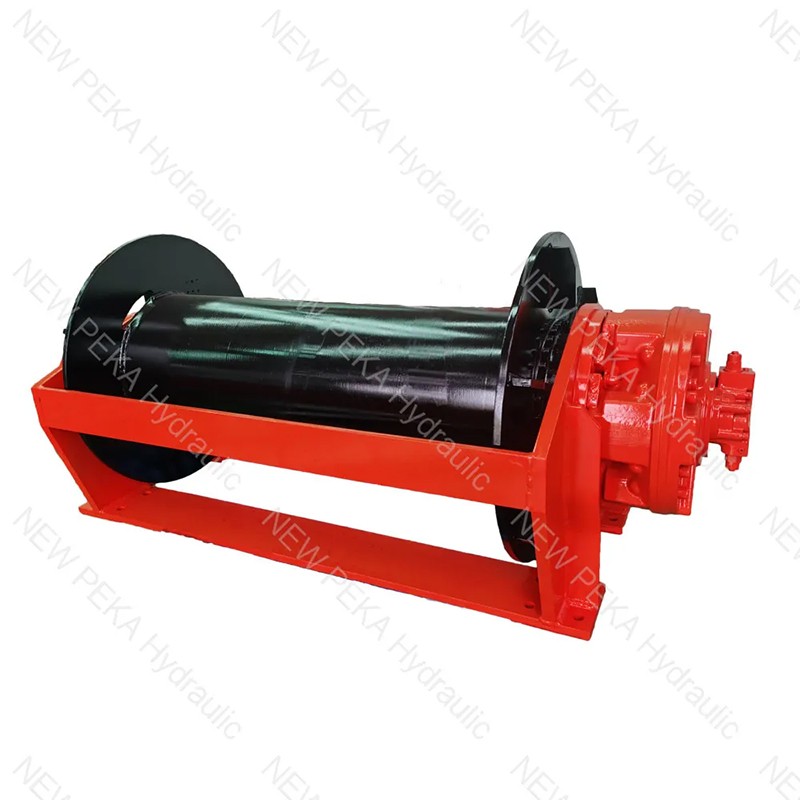

Description:GW hydraulic winch is composed of oil distributor GN hydraulic motor, Z brake, C reducer, reel and stand. The oil distributor include one-way balance valve, brake and high pressure shuttle valve.
Feature:GW winch has its own valve group, so that it makes hydraulic system more simple and increases stability of the transmission device.The hydraulic valve group of GW winch solve the problem of empty hook vibrating and fall again during hoisting. So GW winch can lift and put down stably.When starting and working, GW winch is high efficiency, low energy consumption, low noise and beautiful form.
Application:Traction equipment of gravity crushing traction equipment、crawlers and Marine cranes、track cranes、pipe hoist machine、grap bucket and drilling machine with crushing functions
Send Inquiry

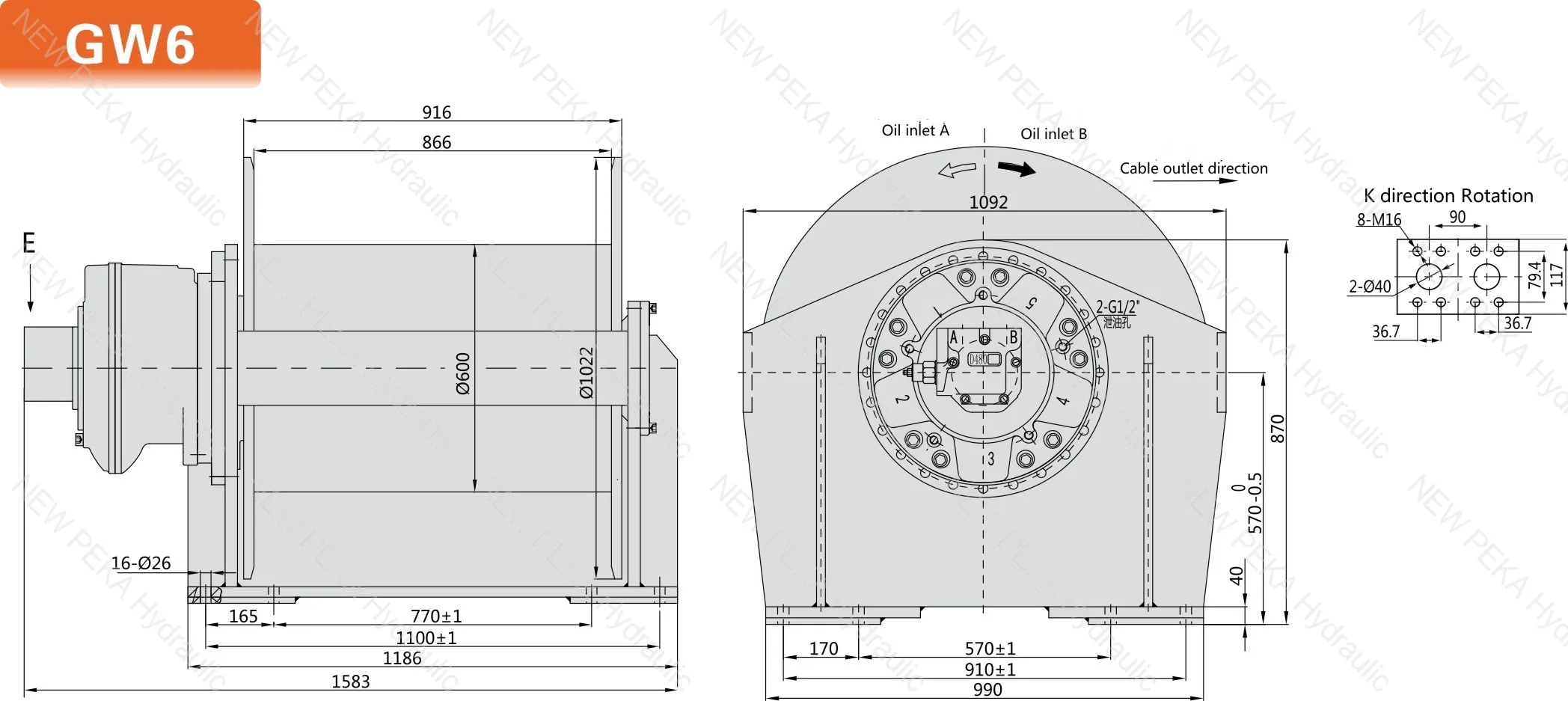

 Model The 1st layer Reel bottom diameter(mm) Total displacement  （ml/r） Working pressure diff.(MPa) Rope diameter (mm) Wire rope Capacity(m) Hydraulic motor Model of planetary reducer
Pull  (kN) Rope speed（m/min）
GW6-120-176-30-ZP 120 0-30 600 16725 17 30 175 GN6-3000D480101 C6-5.5
GW6-150-150-34-ZP 150 0-25 600 16725 19.8 40 150 GN6-3000D480101 C6-5.5
Similar product recommendations

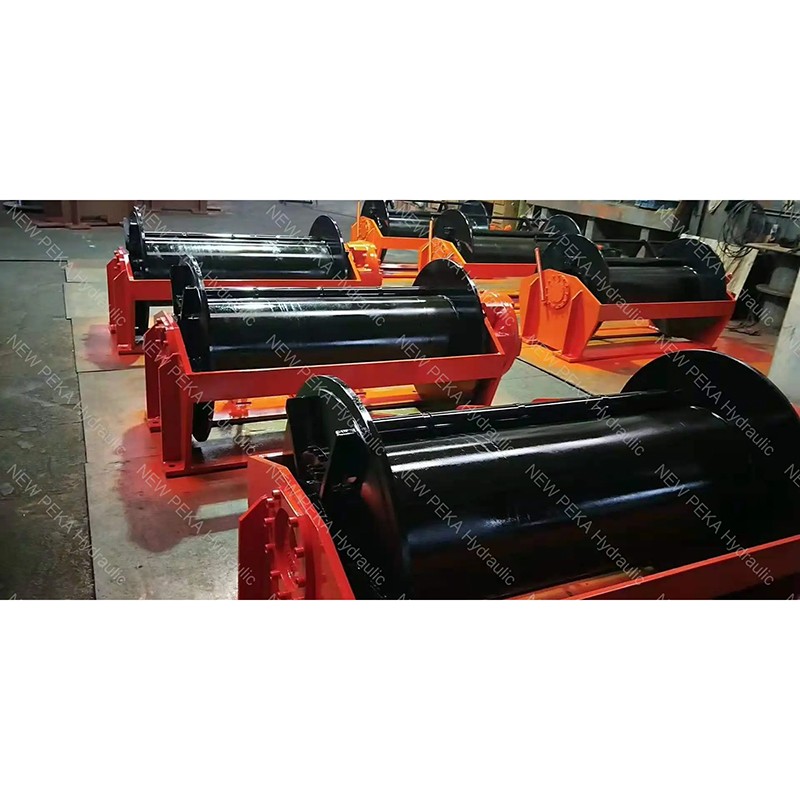

Production and Processing

  • client
  • client
  • client

Factory Environment

  • client
  • client
  • client

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
