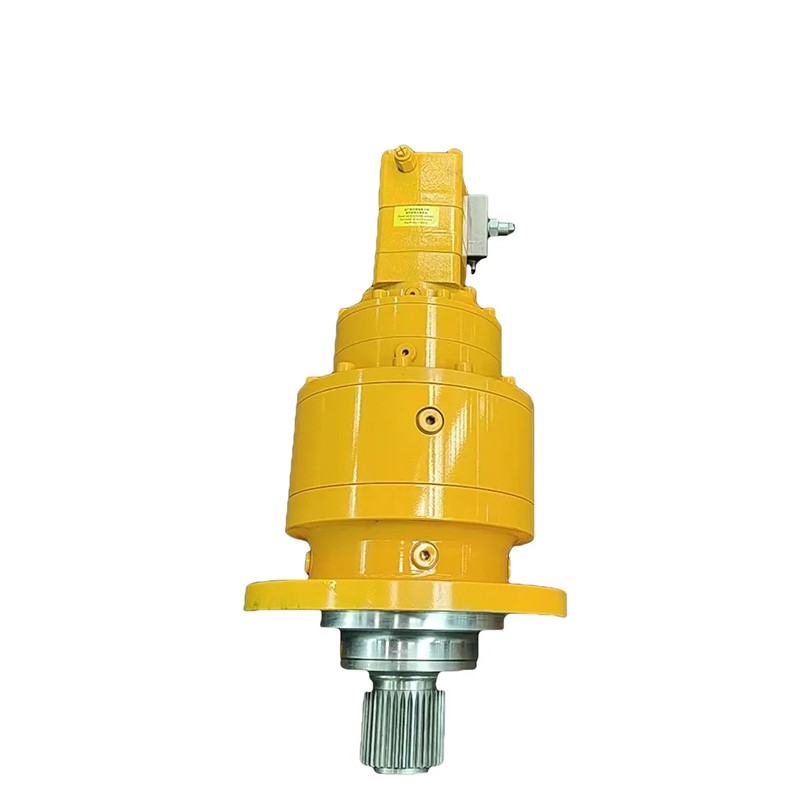

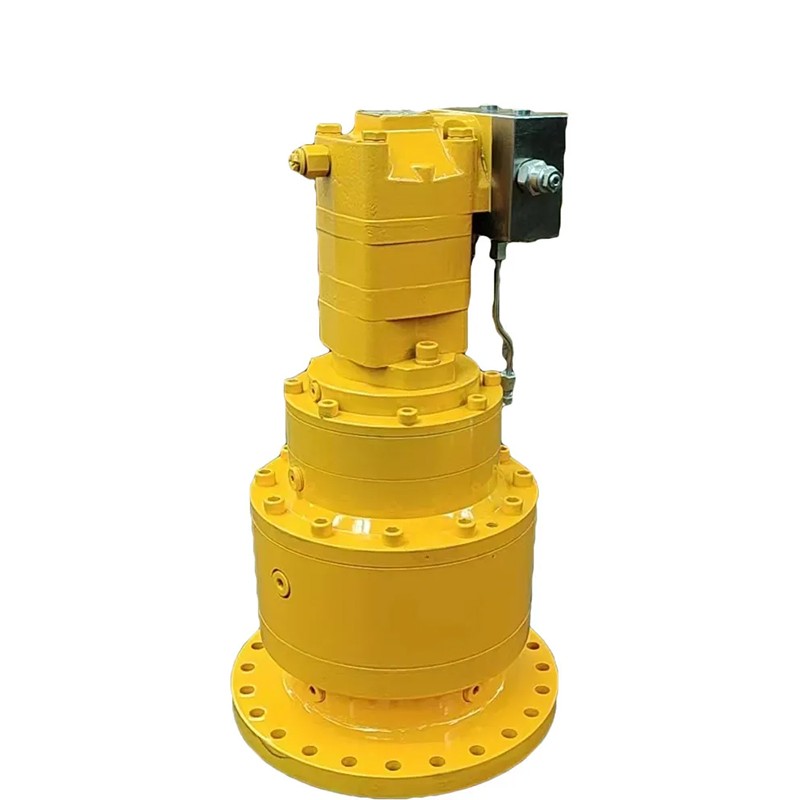

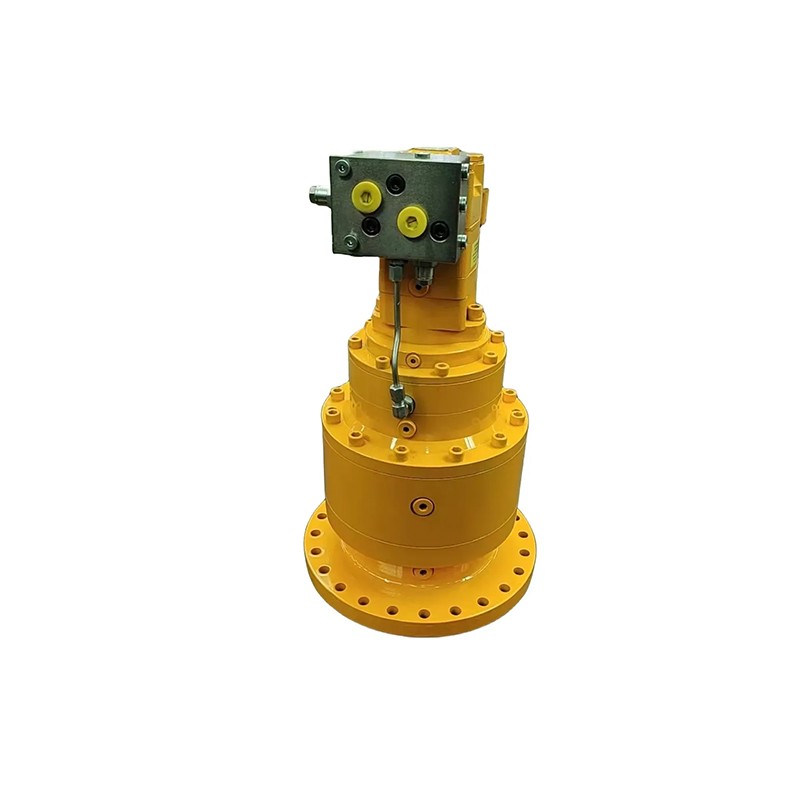

PCM Hydraulic Transmission Devices

Description:PCM hydraulic transmission is made up of hydraulic motor,multi-disc friction braker and planetary gearbox decelerator.

Feature:Having Characteristics of small、light、large torque,high start and transmission efficiency, low noise,etc.Output shaft can bear large radial force.

Application:Hydraulic transmission can be applied in kinds of hydraulic transmission system and rotating facilities.

Send Inquiry
Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

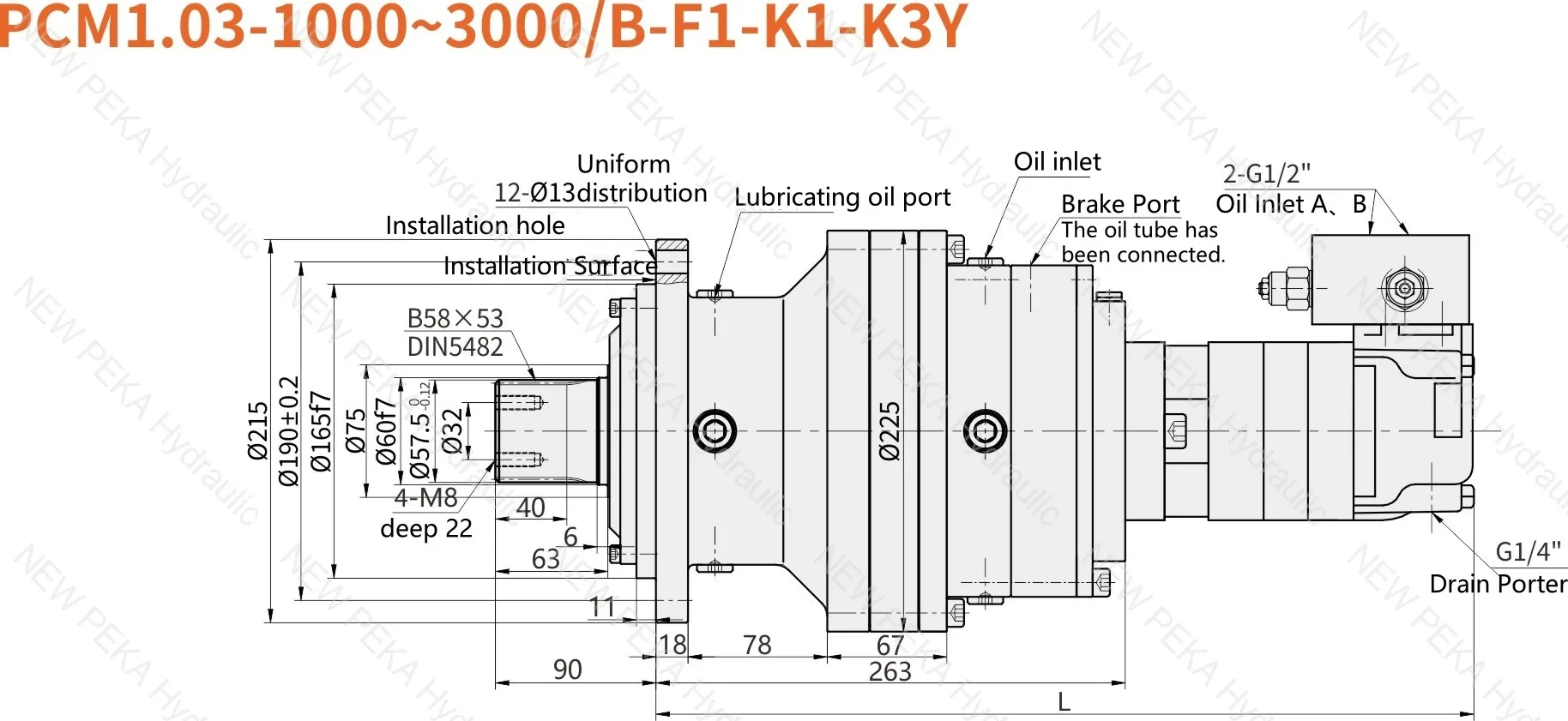

PCM1.03-1000/B 728.6 1000 1300 11.5 15 9-60 2.6 1660 4.58 BM4-160 85 429
PCM1.03-1500/B 921.3 1500 1750 13.6 16 9-60 2.6 2216 4.58 BM4-200 85 433.5
PCM1.03-2000/B 1456.8 2000 2700 11.5 16 9-50 2.6 2771 4.58 BM4-320 85 446
PCM1.03-3000/B 1842.6 3000 3250 13.7 15 9-40 2.6 3880 4.58 BM4-400 85 455
 Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

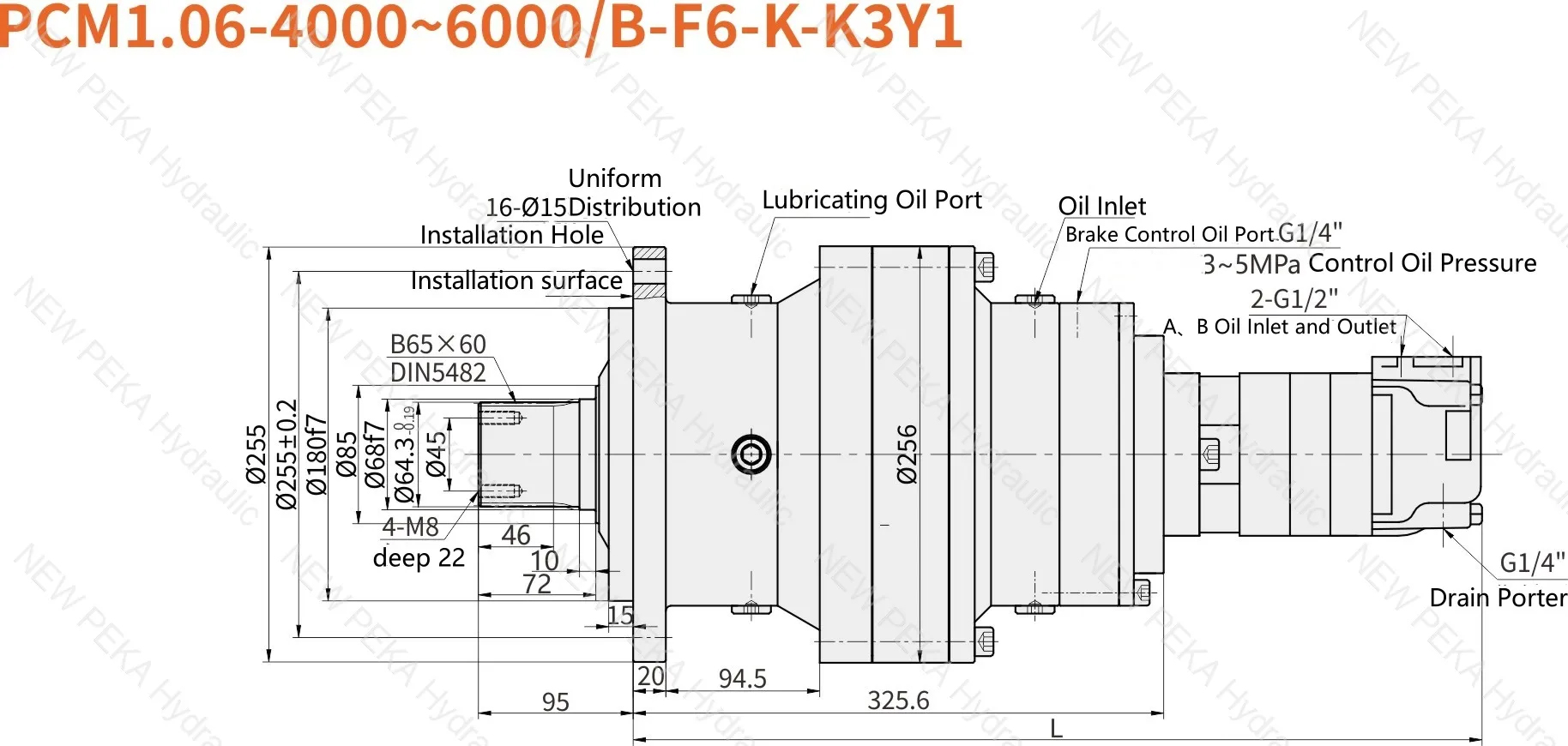

PCM1.06-4000/B 2731.3 4000 5000 12.3 15.5 7-40 3.0  7430 4.42 BM5-630 130 474
PCM1.06-5000/B 3481.1 5000 6000 12.0  14.5 6-35 3.0  7430 4.42 BM5-800 130 488
PCM1.06-6000/B 4284.4 6000 6500 11.7 12.7 6-30 3.0  7430 4.42 BM5-985 130 503
Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

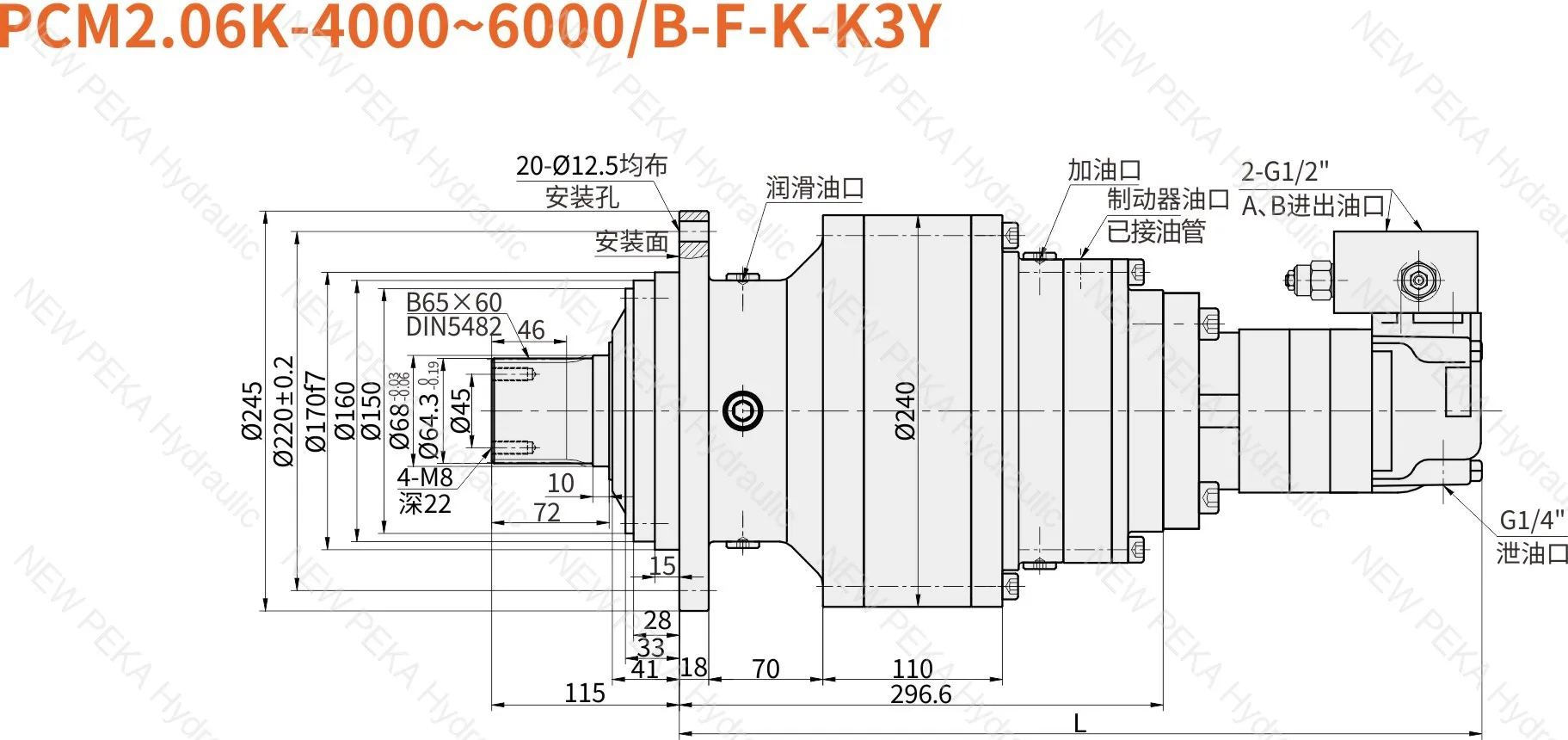

PCM2.06K-4000/B 3990.6 4000 5000 8.5 10.7 3-15 3.0  9260 25.13 BM4-160 83 435
PCM2.06K-5000/B 3990.6 5000 6000 10.6  12.8 3-15 3.0  9260 25.13 BM4-160 83 435
PCM2.06K-6000/B 5046.1 6000 6500 10.0  11.0  3-15 3.0  9260 25.23 BM4-200 83 439
 Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

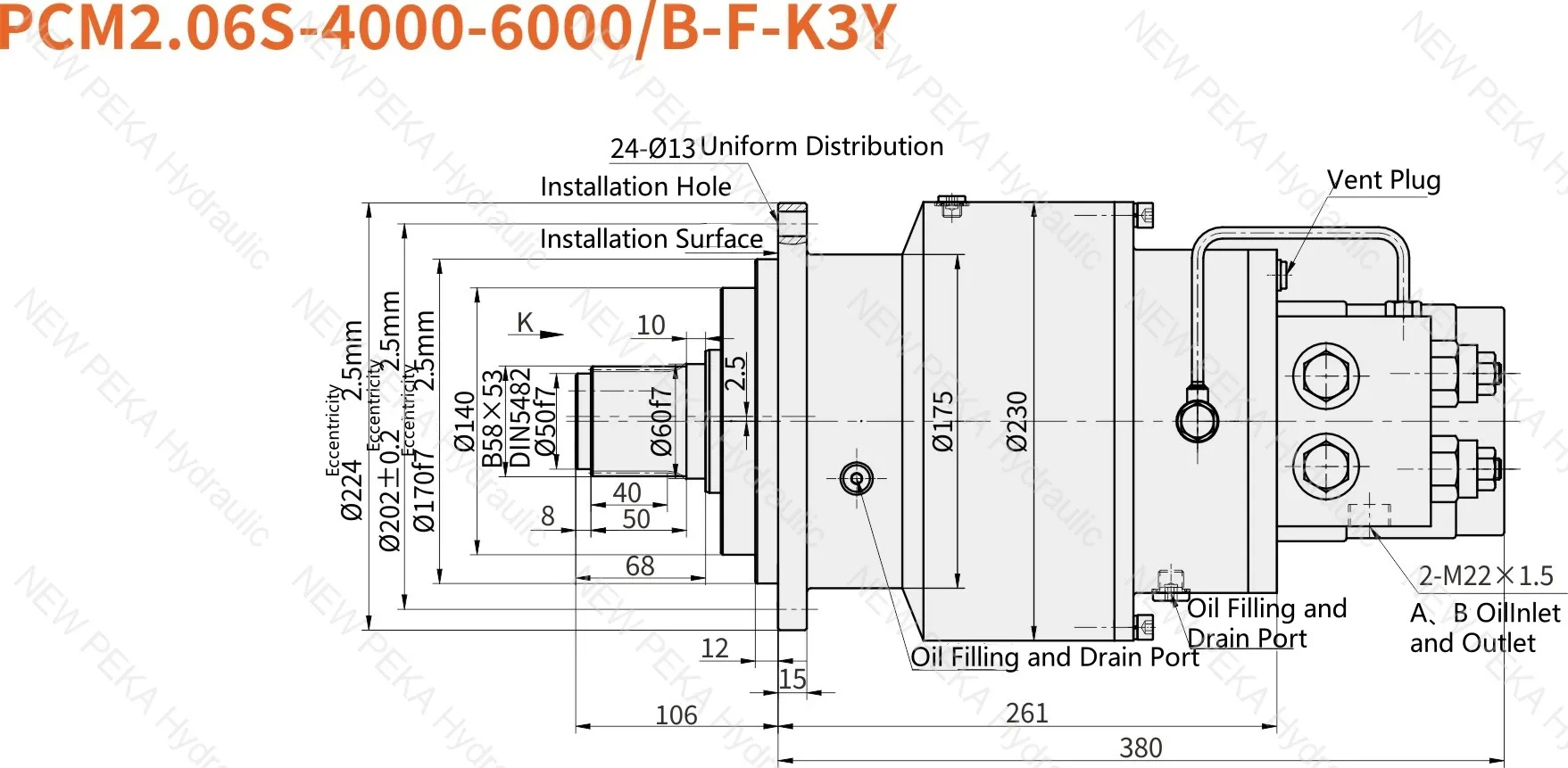

PCM2.06S-4000/B 2509.5 4000 4500 13.9 15.7 3-15 3.0  9201 24.97 BM3-100 78 -
PCM2.06S-5000/B 4015.2 5000 6000 10.5  12.6 3-12 3.0  9201 24.97 BM3-160 78 -
PCM2.06S-6000/B 5016.5 6000 6500 10.4  11.3  3-10 3.0  9201 24.97 BM3-200 78 -
 Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

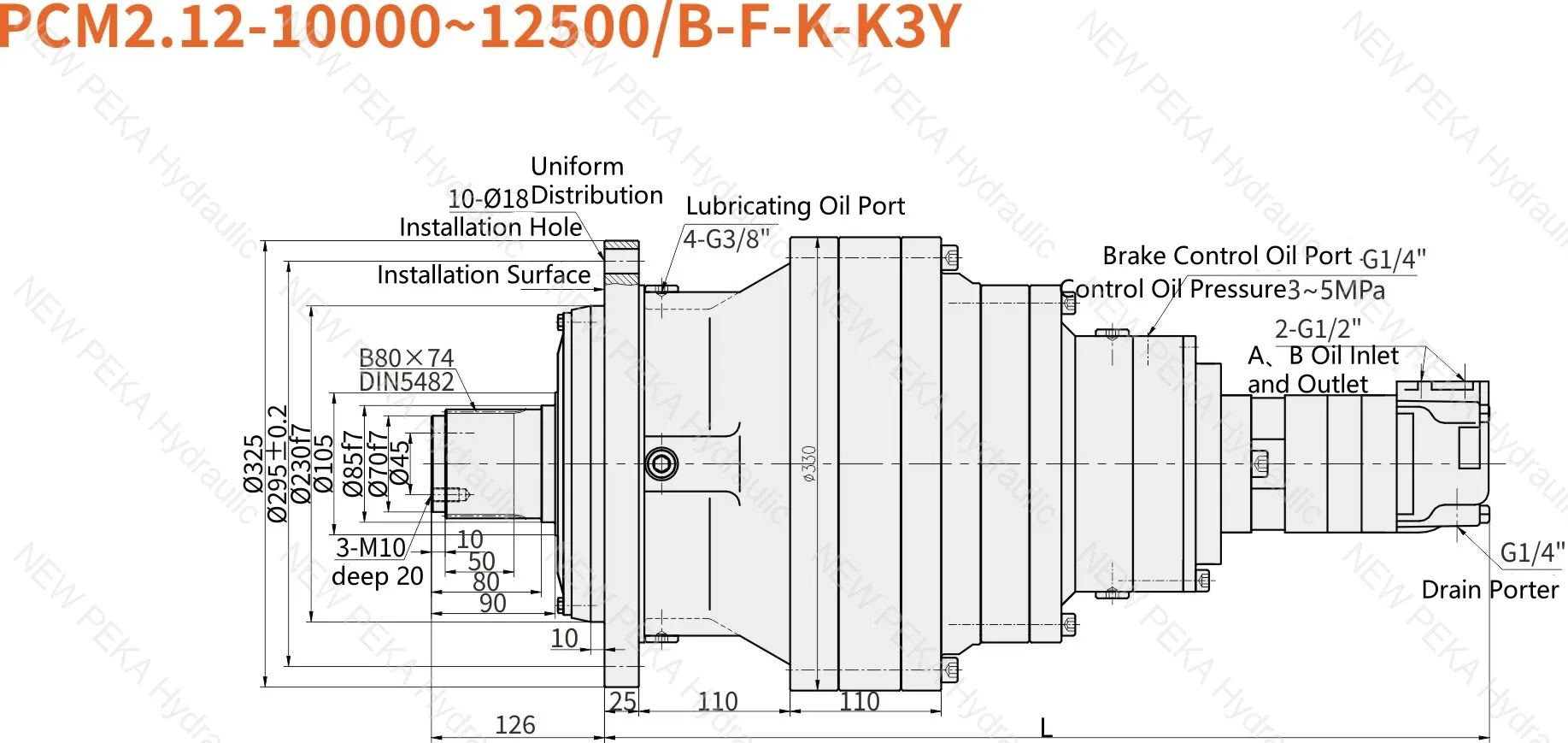

PCM2.12-10000/B 6971.9 10000 12500 12.0  15.0  2-15 2.8  25900 22.14 BM5S1-315 200 576.5
PCM2.12-12500/B 8849.4 12500 15000 11.7  14.0  1.5-15 2.8  25900 22.14 BM5S1-400 200 583.5
 Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

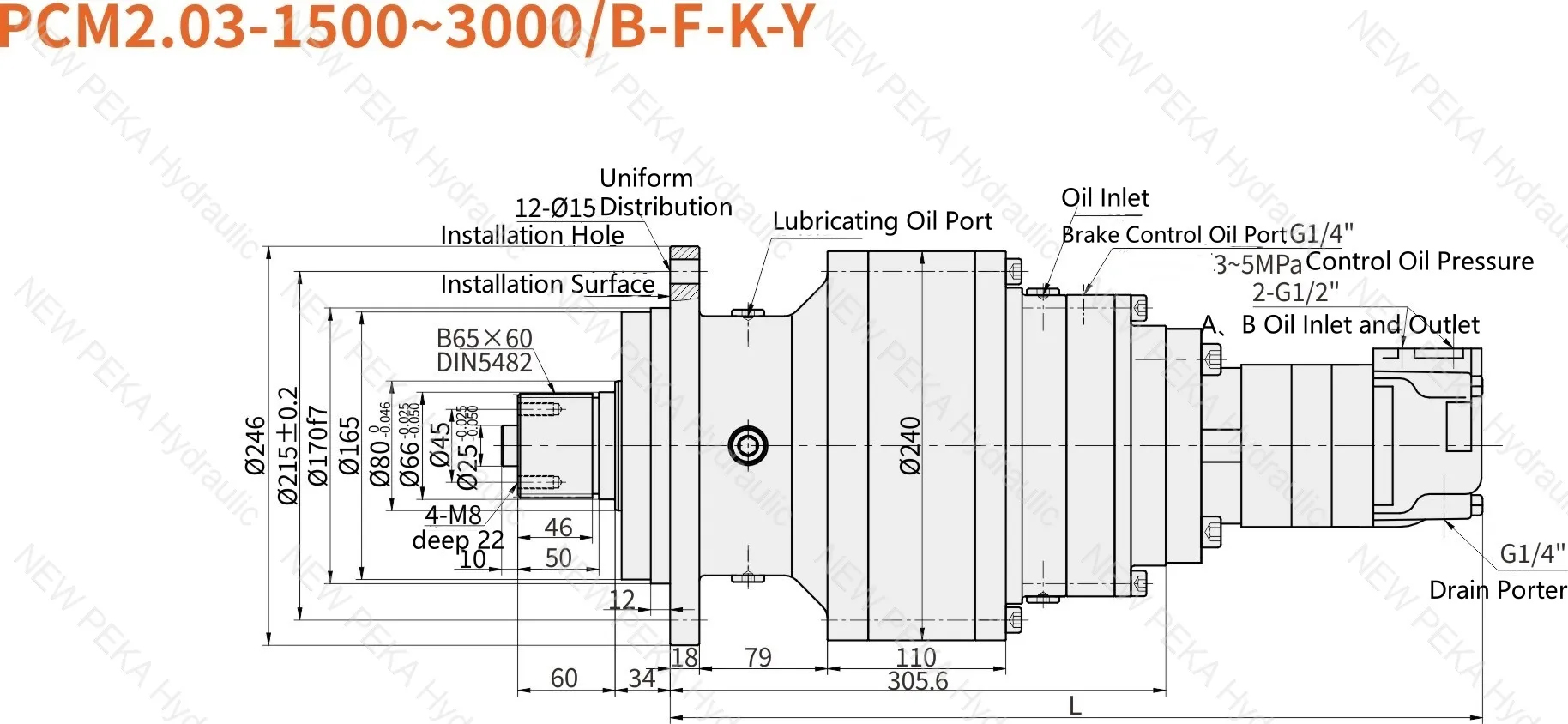

PCM2.03-1500/B 1783.9 1500 2000 7.4 10.0  3-15 1.1 4742 22.16 BM3-80 78 594
PCM2.03-2000/B 2227.1 2000 3000 7.9 12.0  3-15 1.1 4742 22.16 BM3-100 78 597.5
PCM2.03-3000/B 2798.8 3000 4000 9.0  12.0  3-15 1.1 4742 22.16 BM3-125 78 602
 Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

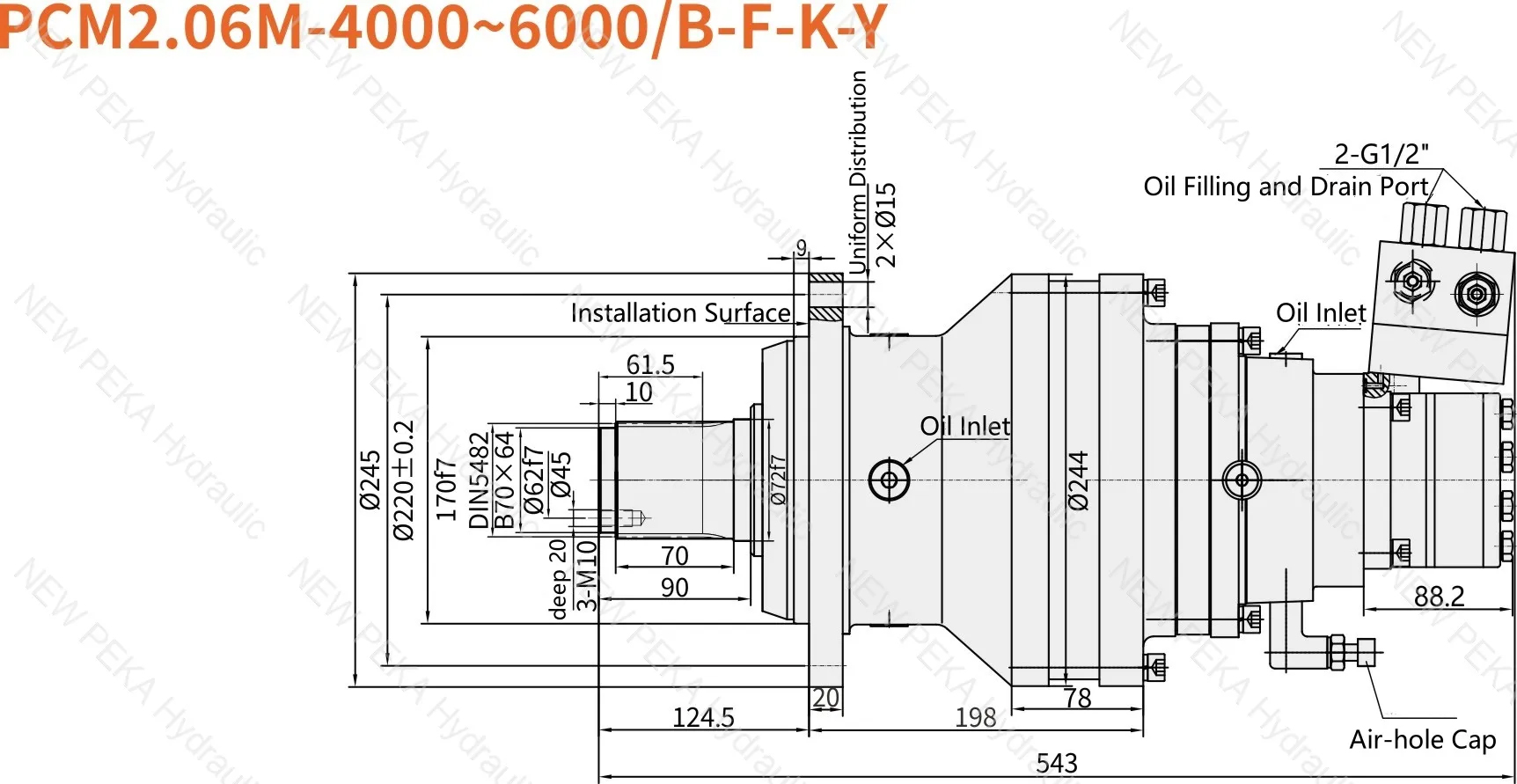

PCM2.06M-4000/B 2509.5 4000 4500 13.9 15.7 3-15 3.0  9201 24.64 BMR-100 105 628
PCM2.06M-5000/B 4015.2 5000 6000 10.5  12.6 3-12 3.0  9201 24.64 BMR-100 105 638.5
PCM2.06M-6000/B 5016.5 6000 6500 10.4 11.3 3-10 3.0  9201 24.64 BMR-100 105 645.5
Model Displacement(ml/r) Outpur Torque(N.m) Working Pressure(Mpa) Speed range(r/min) Braker Ratio of gearbox Associated motor Weight(kg) Length(mm)
Rated torque Max torque Rated pressure Max pressure Releasing pressure(Mpa) Brake torque(N.m)

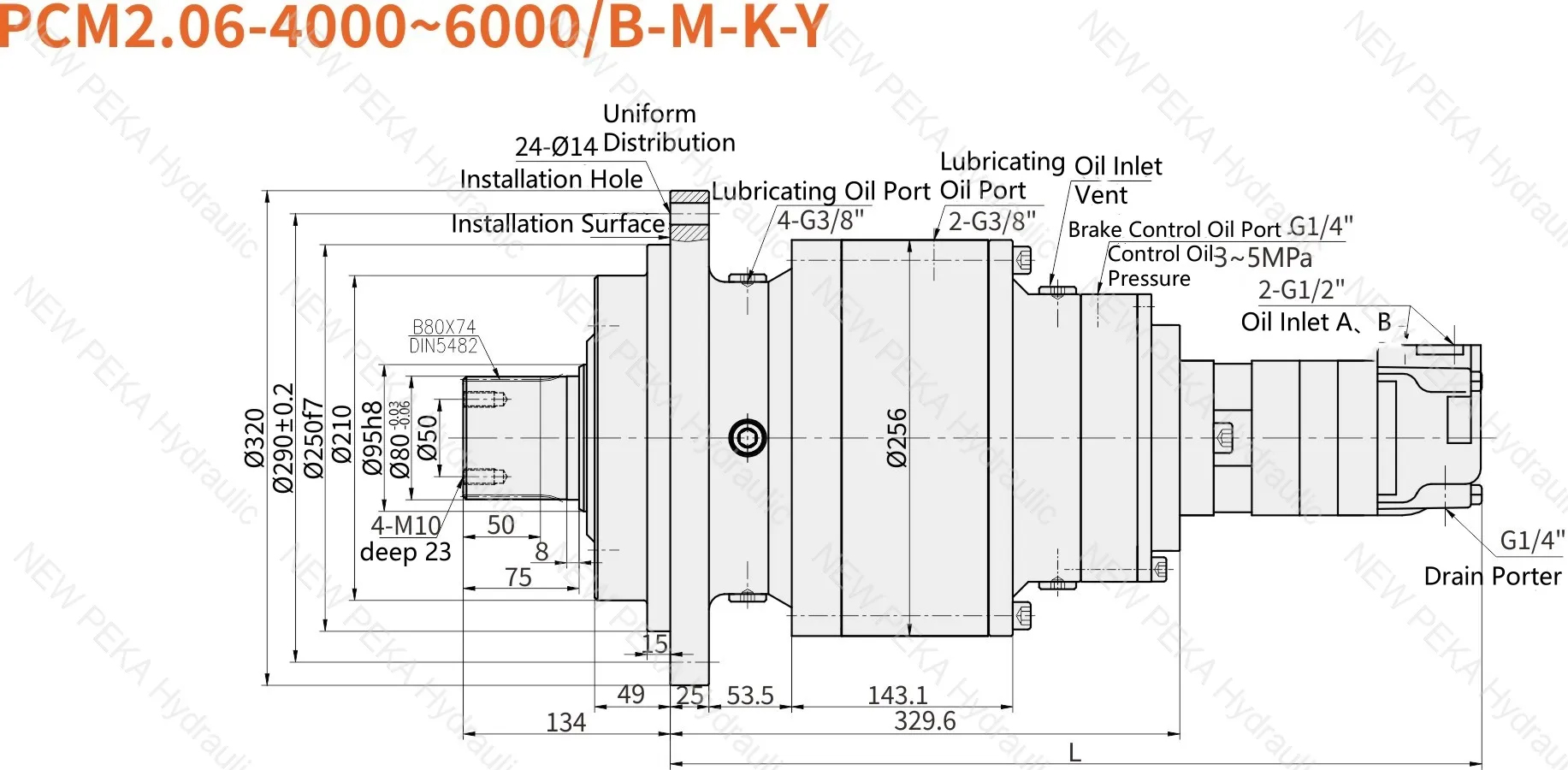

PCM2.06-4000/B 2509.5 4000 4500 13.9 15.7 3-15 3.0  9201 24.97 BM3-100 105 628
PCM2.06-5000/B 4015.2 5000 6000 10.5  12.6 3-12 3.0  9201 24.97 BM3-160 105 638.5
PCM2.06-6000/B 5016.5 6000 6500 10.4  11.3  3-10 3.0  9201 24.97 BM3-200 105 645.5
Model Displa
