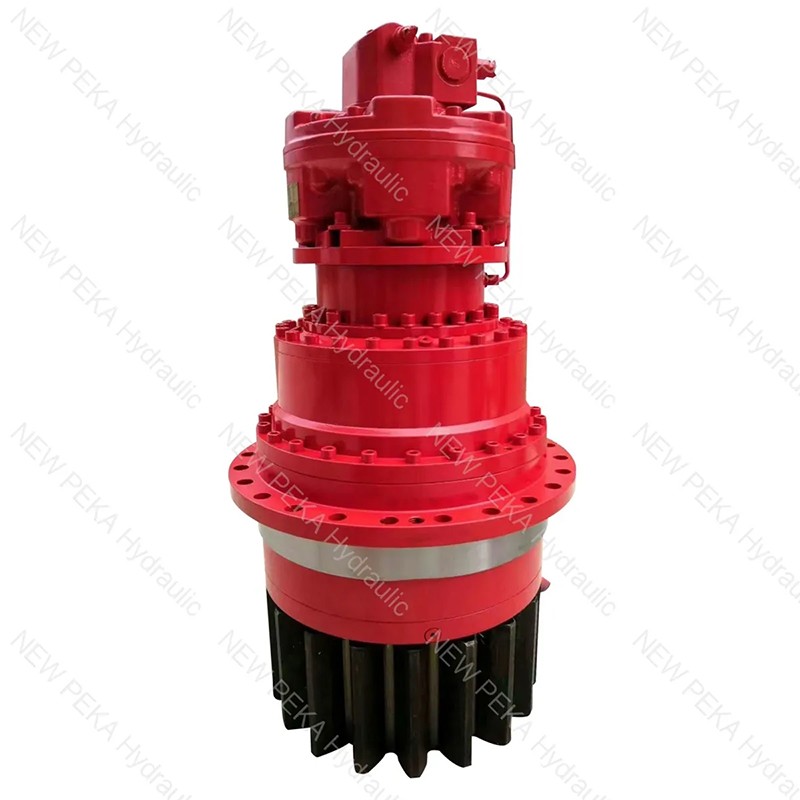

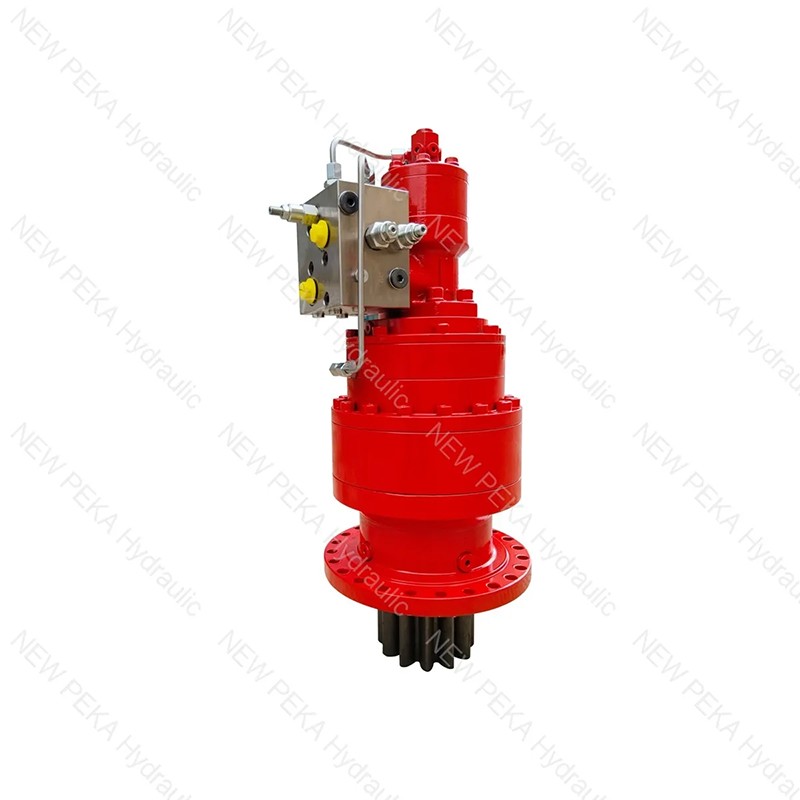

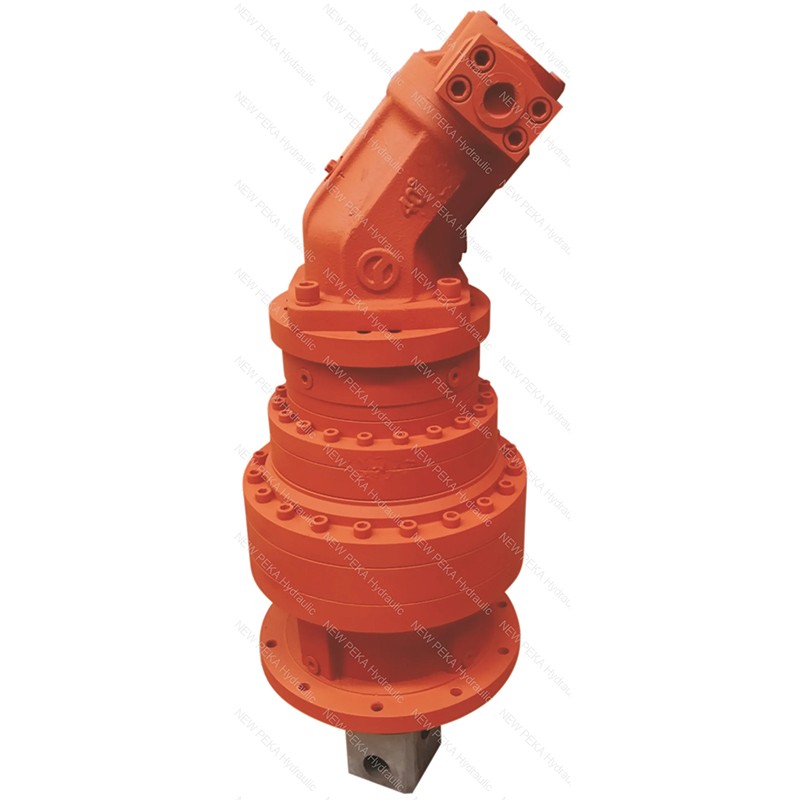

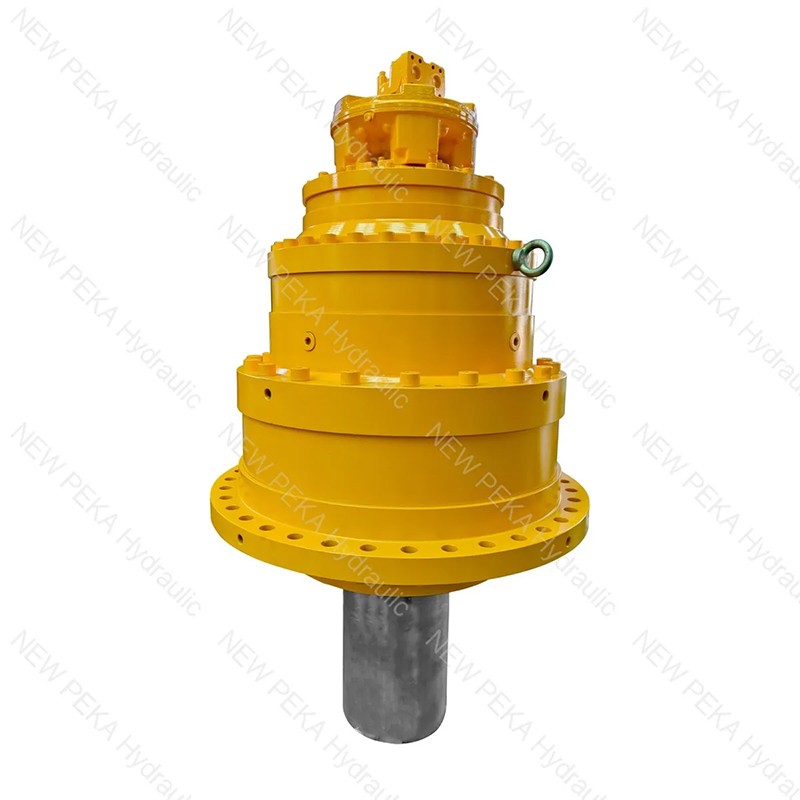

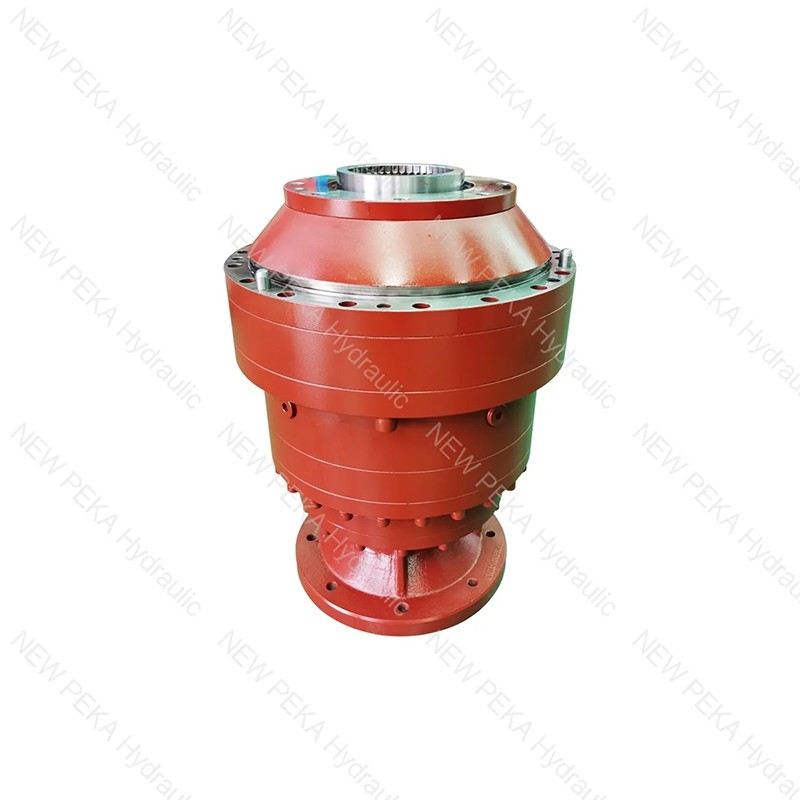

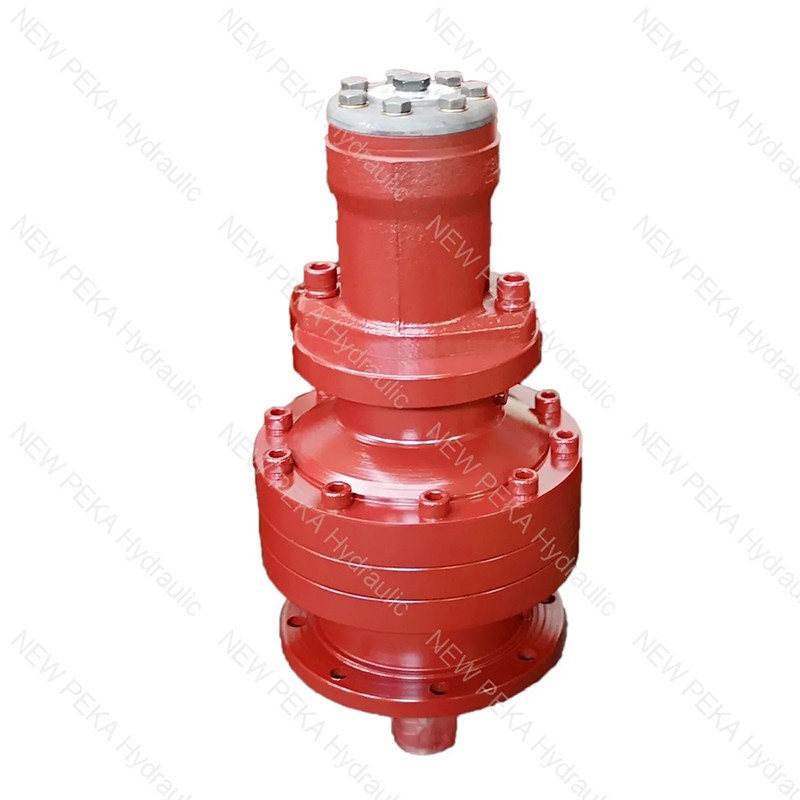

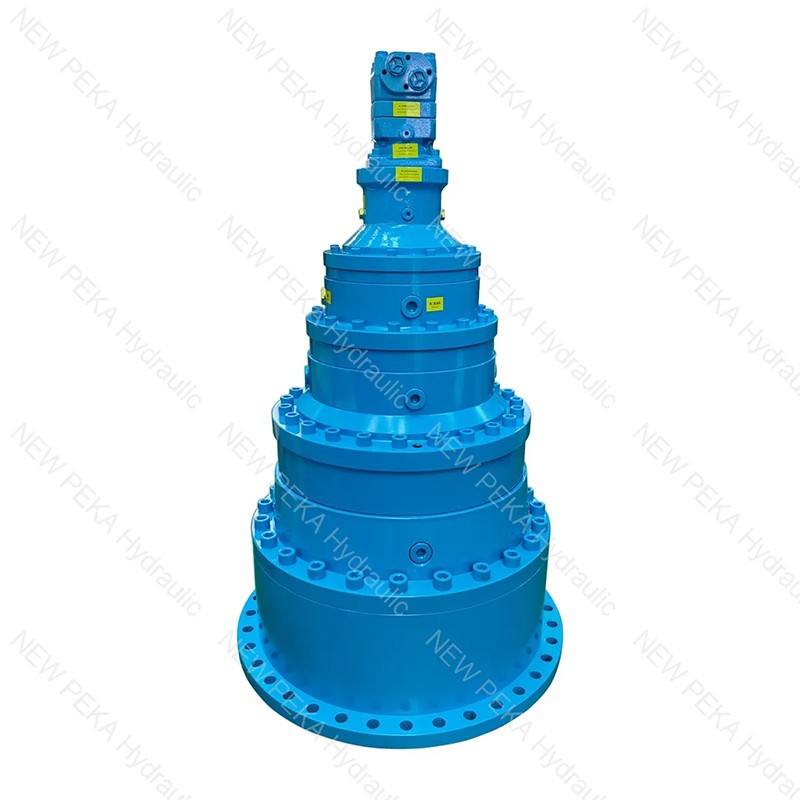

300 series planetary gearbox
300 series planetary gearbox

300 series planetary gearbox

Zhejiang New Peka Hydraulic Co., is professional manufacturing company of various panetary gearboxes. At present, we produced many series planetary gear box, travel drives , swing drives,winch drives.Which has grown to the 10,000 kinds of specification, reduction ratio range of 3.3~9000, the output torque range of 500~1200,000N.m, products exported to United States, Europe,Australia,England, the Middle Eastand Southeast.The installation and dimensions of the Planetary gearbox are consistent with BONFIGLIOLI,BREVINI,DINAMIC OIL,REGGIANA RIDUTTORI,COMER,REXROTH,ROSSI,ZOLLERN,FAIRFIELD, AUBURN GEAR, OMNI GEAR, O&K, etc. Our gearboxes can be used to replace these brands.
Send Inquiry
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

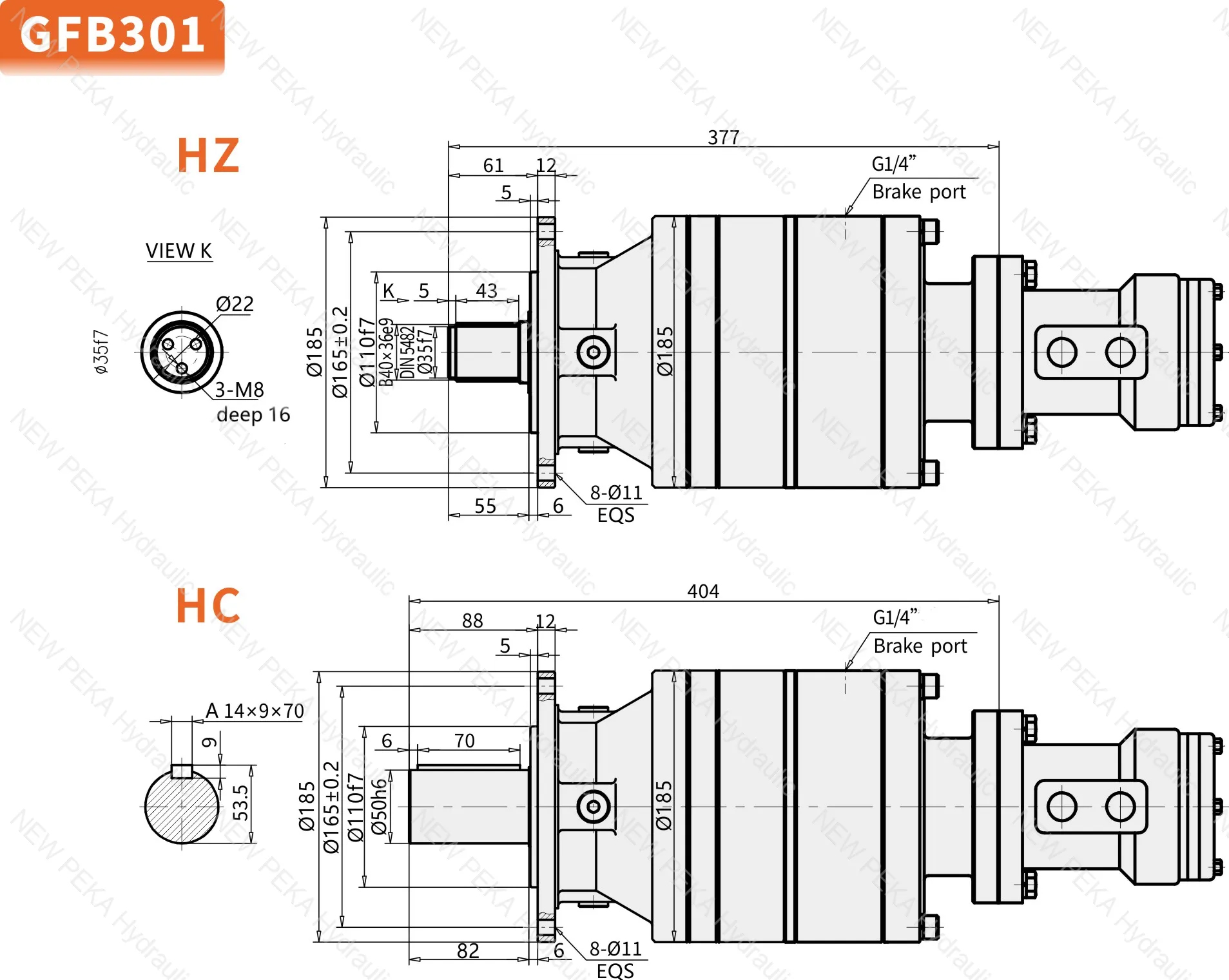

GFB301 1750 2500 4.3 5.8 14.8 18.2 20.1 30.7 63.2 85.6 105 192 OMP OMS 300
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

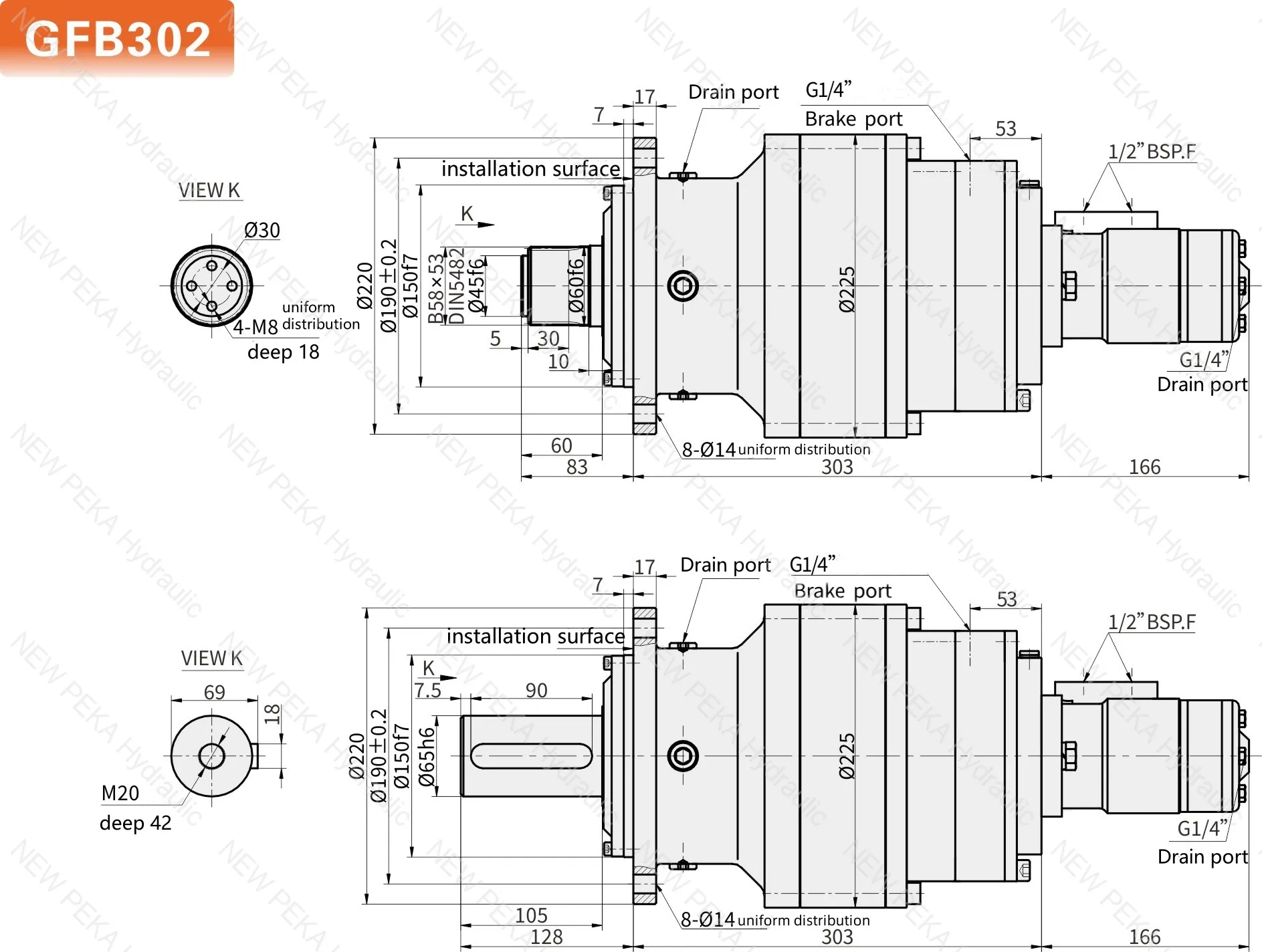

GFB302 3000 5000 4.2 5.6  16.2 20.5 28.6 38.4 63.1 78.3 98.5 158.5 OMP80 100 125 160 OMS80 100 125 160 1000
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

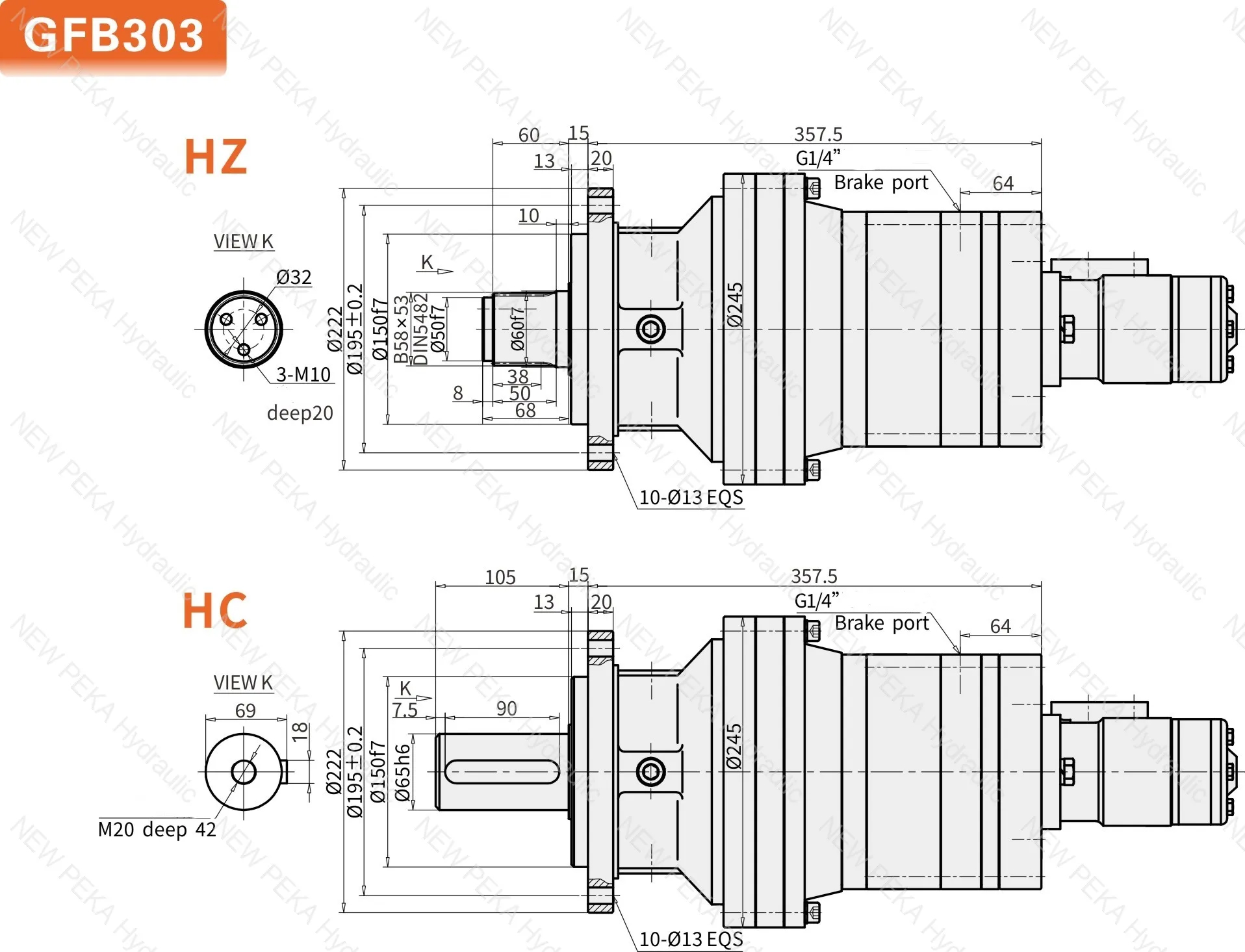

GFB303 2500 4000 4.3 5.3 15.3 18.1 24.5 38.4 63.1 77.2 105 178 OMP OMS A2FM32、45 A2FM56、63 450
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

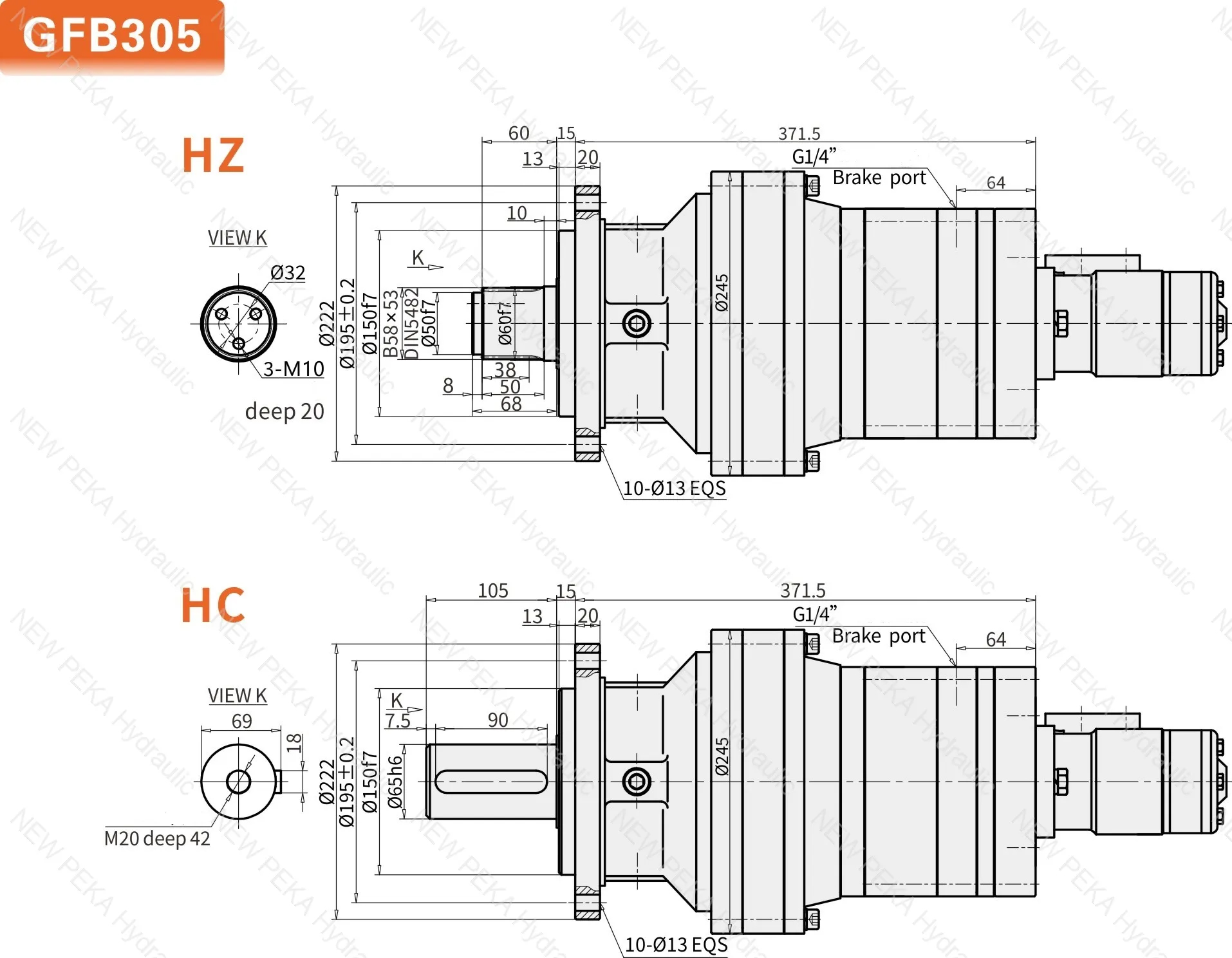

GFB305 5000 7500 4.3 6.2 15.3 18.1 24.5 38.4 63.1 77.2 105 178 OMS OMT A2FM45、56、63 500
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

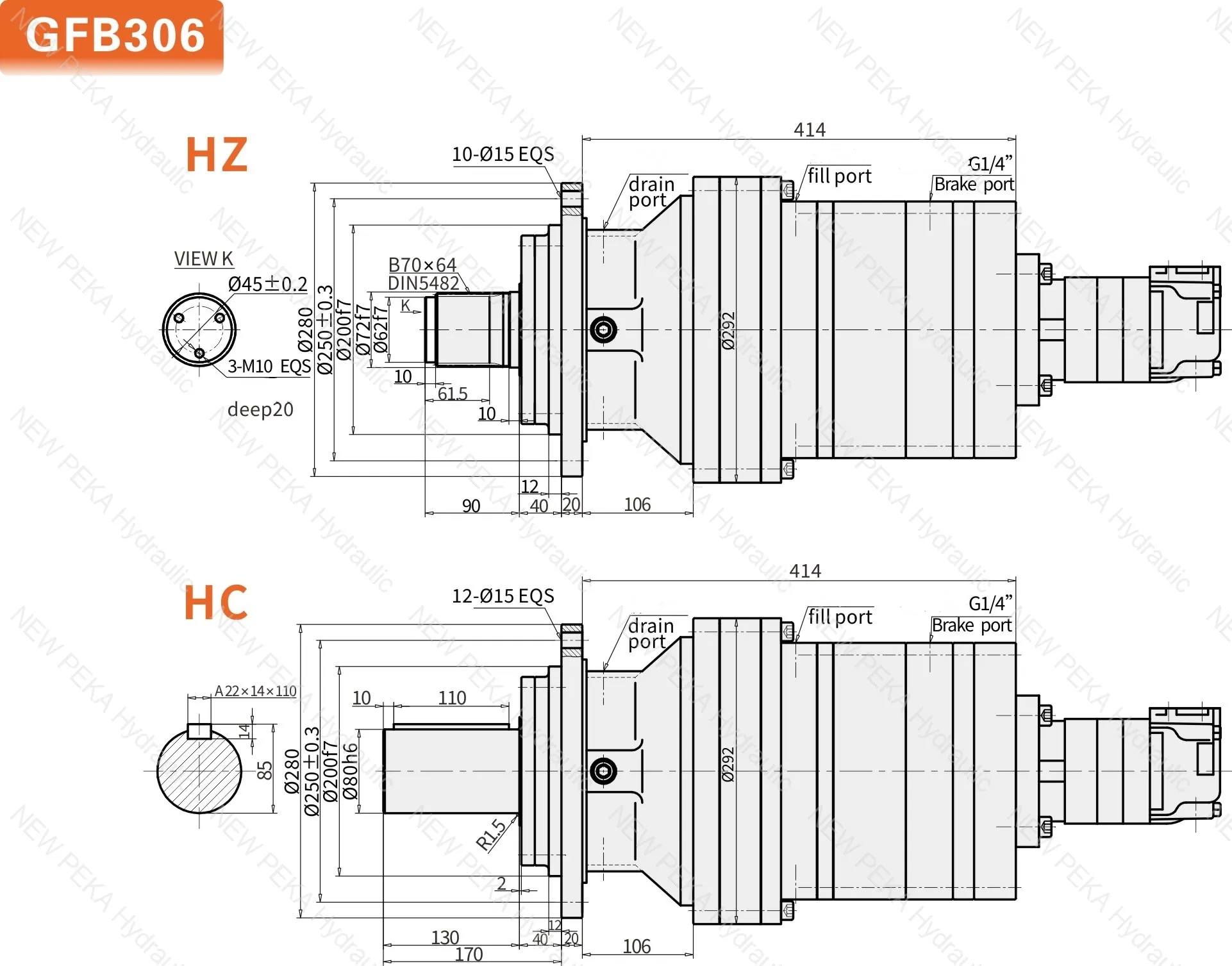

GFB306 8500 11000 4.3 6.2 18.1 24.5 38.4 46.5 63.1 81.9 105 184 OMS OMT A2FM45、56、63 600
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

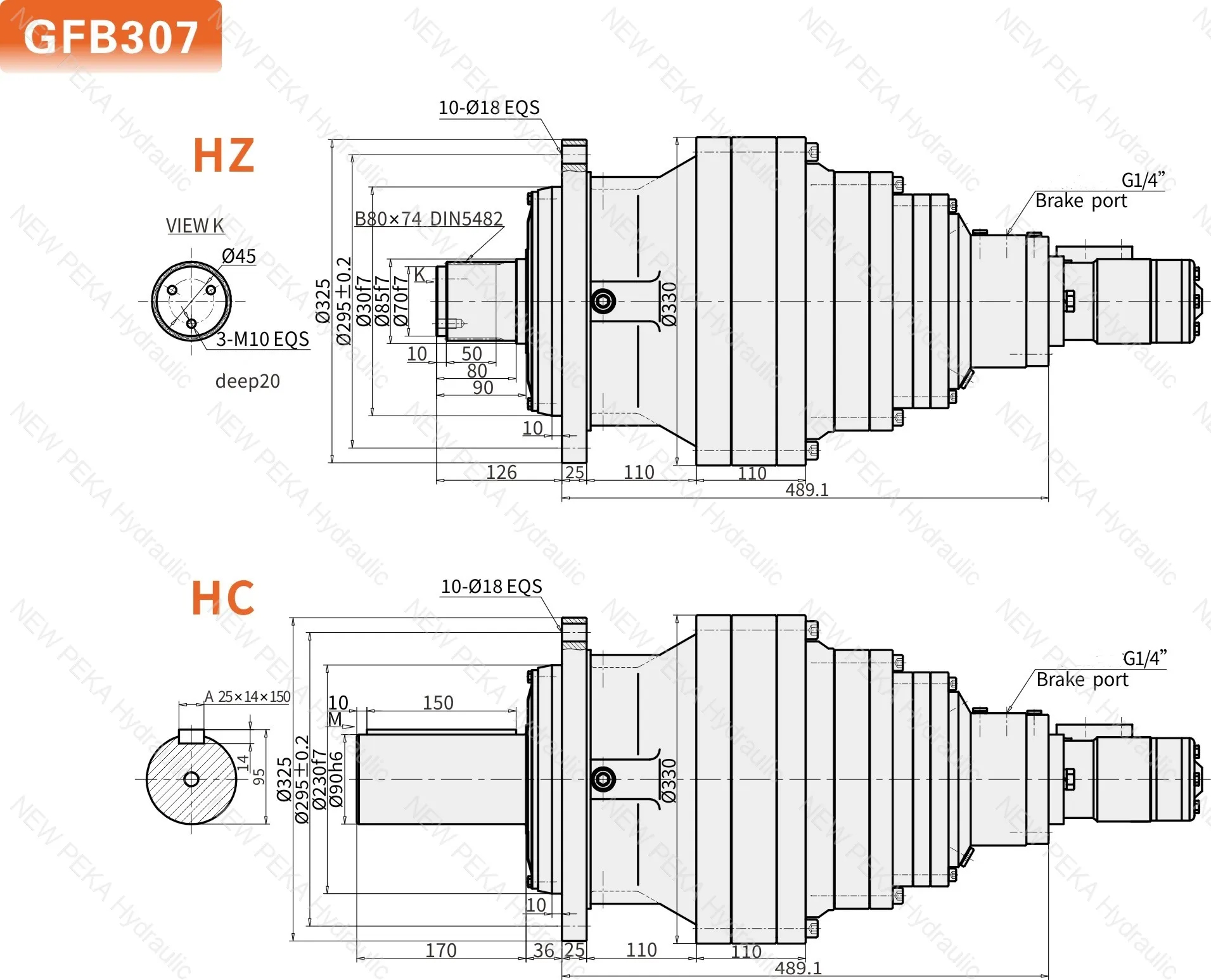

GFB307 12500 17000 5.3 6.2 17.4 28 36.1 46.7 60.5 80.6 100 202 OMS OMT
A2FM56、63、80
A2FM90、107、125 		700
Model Output Torque(N.m) Ratio Hydraulic Motor  Max Brake Torque(N.m)
Rated  Max One Grade Two Grade Three Grade

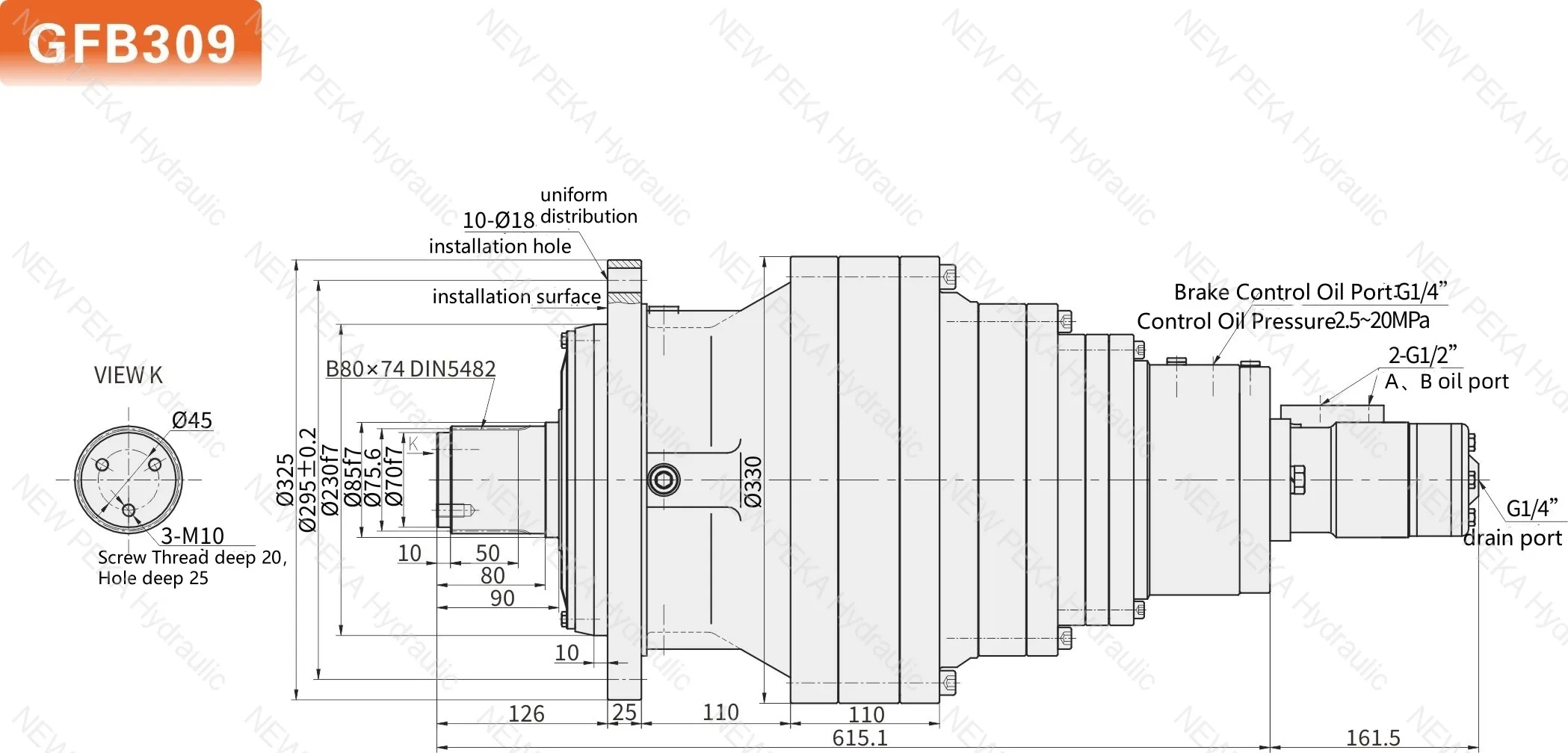

GFB309 18000 24000 4.2 5.3 21.8 28.2 38.6 46.7 60.5 80.6 104.6 162.5 A2FM80 107 125 160 180
A6VM80 107 160
OMP OMS OMT 		850
