25T hydraulic capstan

Description:PYJP250 hydraulic winch consists of hydraulic motor, 2-stage planetary gear reducer, arrester, drum, etc.
Feature: 1.Full-float typed planetary gear reducer makes the operation more stable,the structure more reasonable.
2.Adopt multidisc-typed friction normally-closed brake makes the brake torque larger, safer and more reliable.
3.The product is featured by its small size, compact construction and high transmission efficiency.
4.Free spooling function.
5.Adopt high efficiently hydraulic motor with long use life.
6.The installation bracket can be manufactured according to the customer's requirement.
7.According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.
8.Adopt manual, or pneumatic clutch.
9.Manufacture according to GJB82-86 National Military Hydraulic Winch Standard.

Send Inquiry

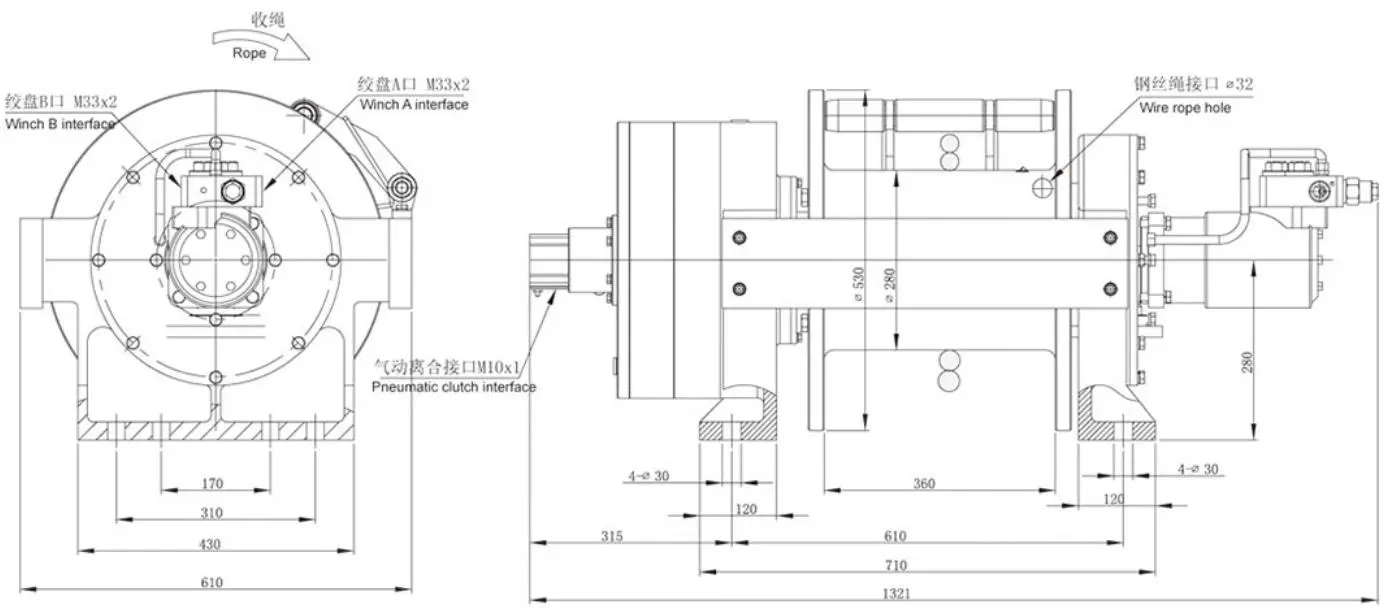

Model	The 1st layer		Response pressure of brake(Mpa)	Oil pressure(Mpa)	Oil flow(L/min)	Drum diameter×Bottom diameter×Length(internal)mm	Drum capacity(m)	Suggested high-intensity wire rope diameter(mm)	Net weight(kg）
	Rated rope pull (kN)	Rope speed（m/min）
PYJP250	245	5.5	<2.5	18	120	530×280×360	55	φ30	560

Production and Processing

Factory Environment

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
