Ningbo Kemer Engineering Machinery Co., Ltd. was founded in 2 0 1 2, after more than ten years of development, with an annual production capacity of more than 1 0 0,0 0 0 sets of various types of track undercarriage,products can be customized according to customer’s requirement.
The load capacity of steel track undercarriage is from 0.5tons to 120tons.
The load capacity of rubber track undercarriage is from 1tons to 10tons.

Our products are widely used in the following applications:

Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.

Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.

Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.

Mine: movable crusher,heading machine,conveying equipment etc.

Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.

Send Inquiry
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

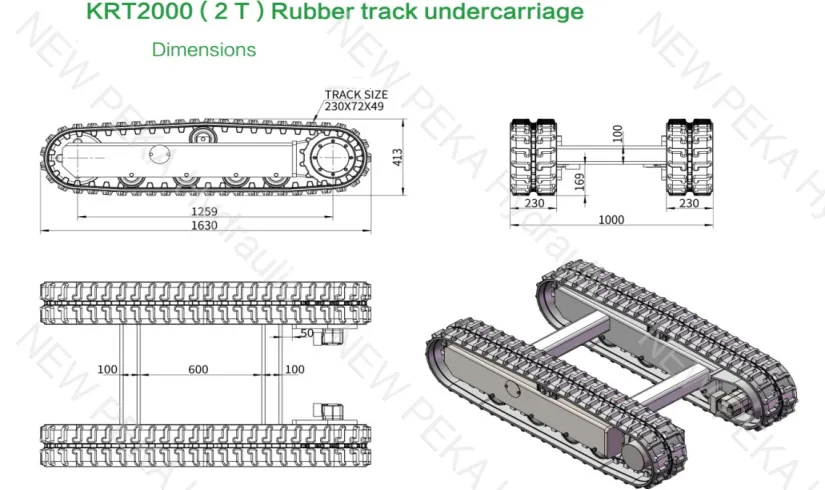

KRT2000 200 14 62 1.5 34 30 400 2000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

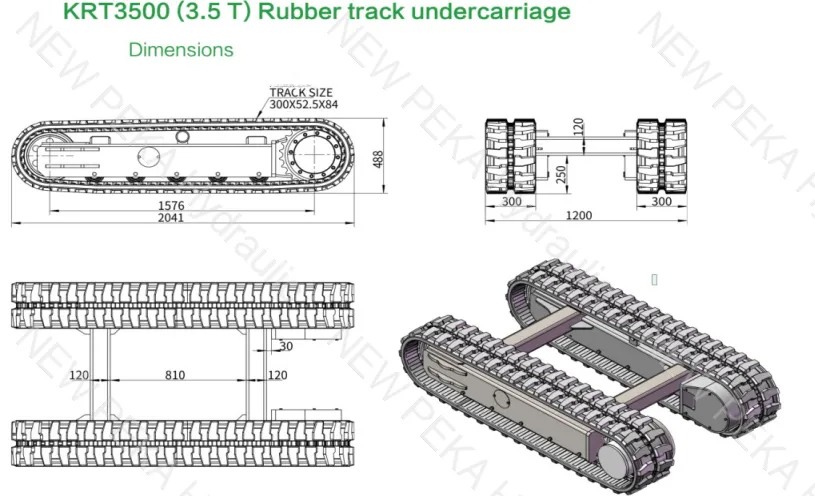

KRT3500 44/22 27 114 1/2 36 30 700 3500
ype/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

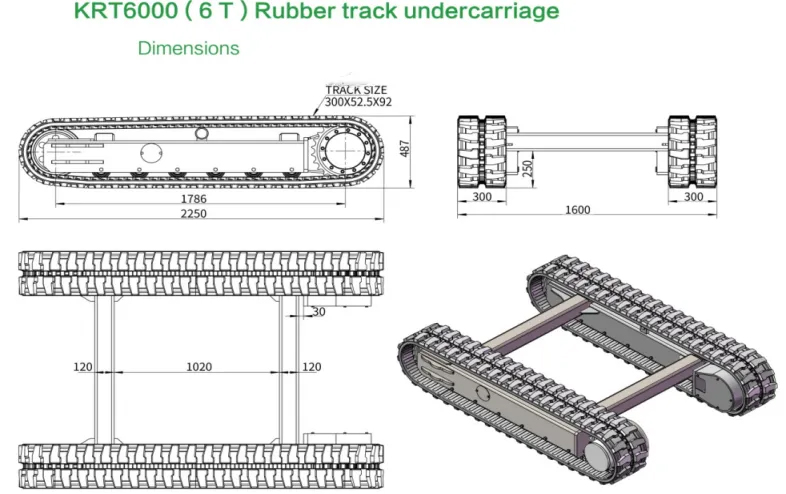

KRT6000 44/22 20 143 1/2 55 30 900 6000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

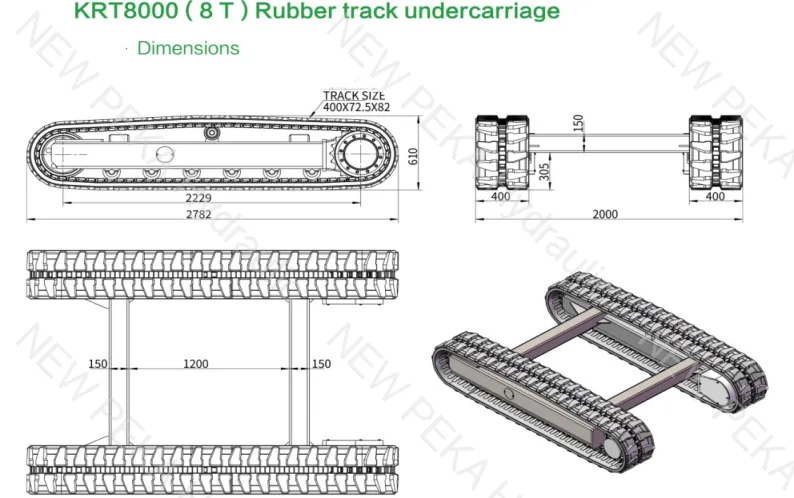

KRT8000 53/34 25 184 1.2/1.8 44 30 1200 8000
Similar product recommendations

Production and Processing

  • client
  • client
  • client

Factory Environment

  • client
  • client
  • client

HYDRAULIC WINCH FAQ

Frequently Asked Questions
1.Q:ls your company a trader or manufacturer?
A:We are the manufacturer.
2.Q: How's your products?
A We have professional engineers and experienced team.And with many years experience in this field,our product are wildly welcomed
3.Q:How's your price?
A:Our price is based on the quality, we give the competitive price! Here you can own Europe quality on Chinese price!
4. Q:How's your after-sale service?
A:we can give you one years after sales warranty.
5:Q What's your MOQ?
A: 1 set
6. Q:How to place order?
A:In order to recommend a suitable drawing and quotation to you,we need to know:
1.Load capacity and rope speed of 1st layer
2.Rope diameter
3.Rope capacity
4.Working pressure
5.What equipment is it used on,better to show me photos
6.Lifting or pulling
7.Daily working hours
8.Order quantity

WHY CHOOSE US?

1. We have 15 years of experience in Hydraulic products and track undercarriage.We are Top-Ten Company in this field in China.
2. High Quality products at Competitive Prices + On-time Delivery + Excellent After-sales Service
3. Innovation Design and producing ability + Provide customized design for customers.
4. Good Protection of your Sales area, ideas of Design and all your Private information.
5. Providing One-stop solutions in this fields 6.We also have other series for your choice.If you are interested in our products,please feel free to contact with us.
