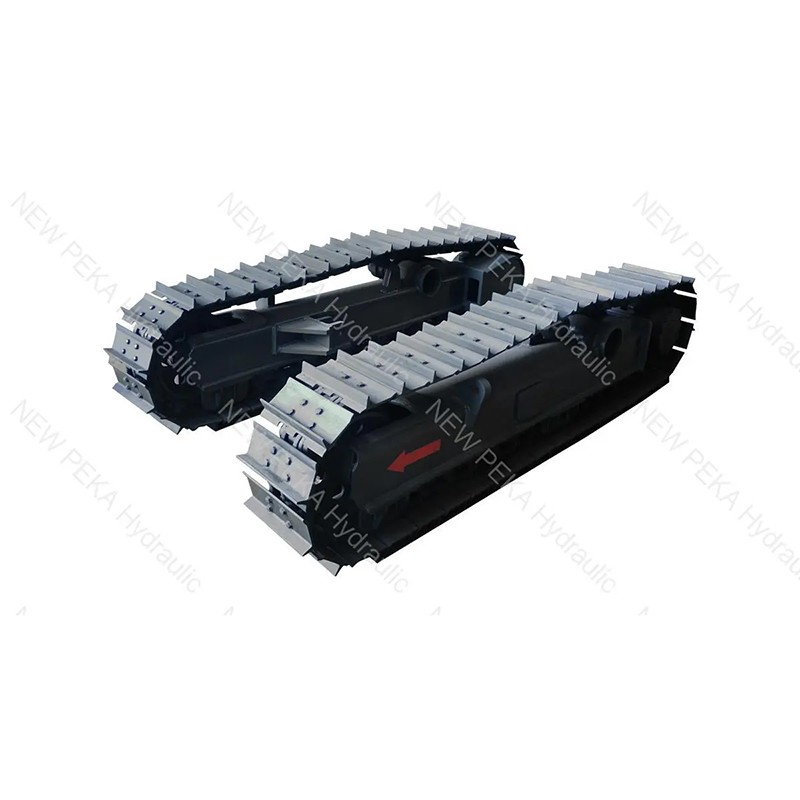

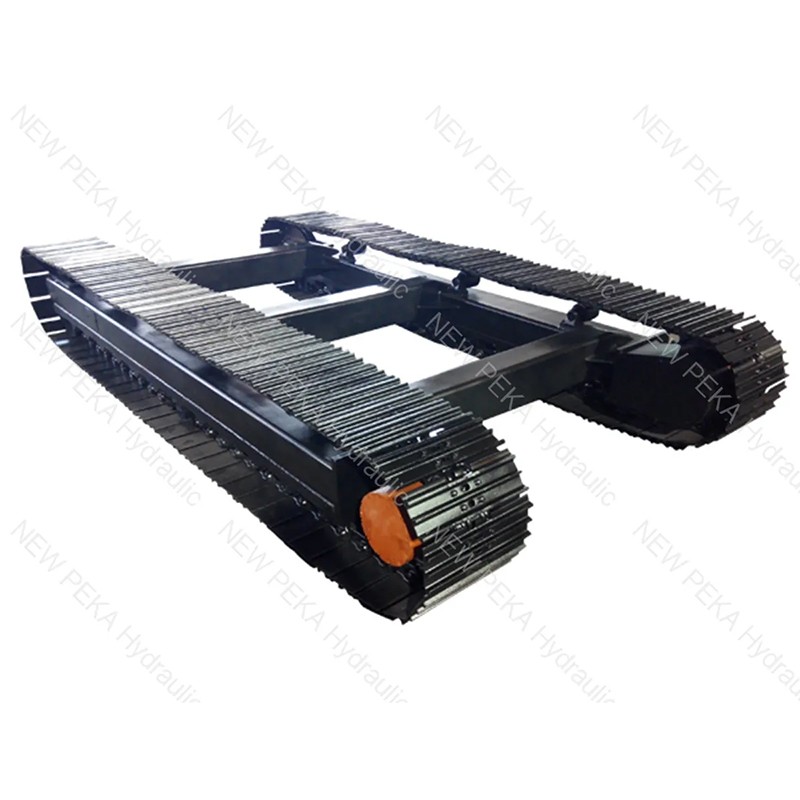

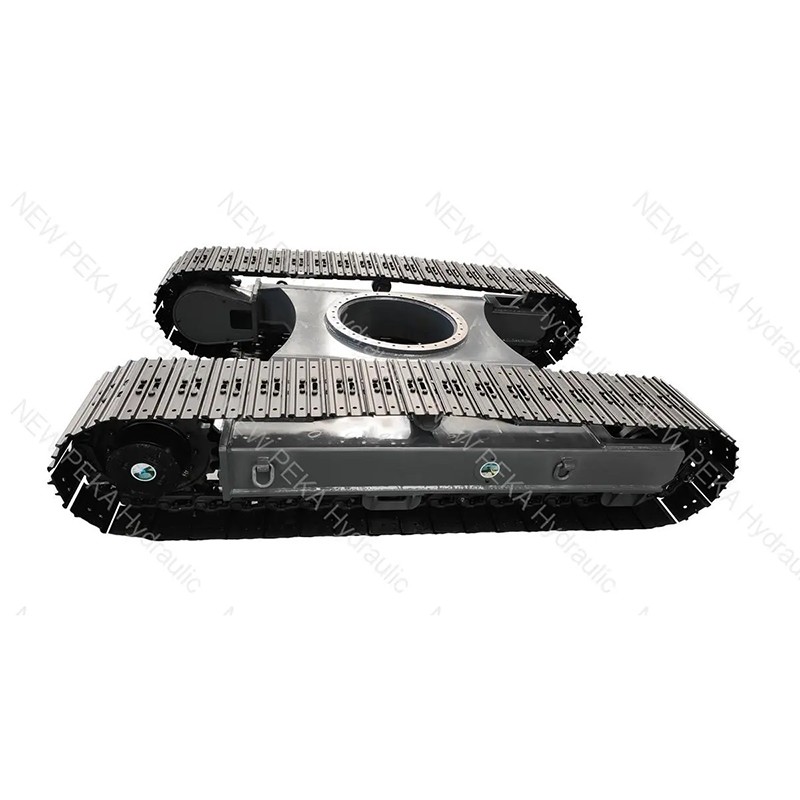

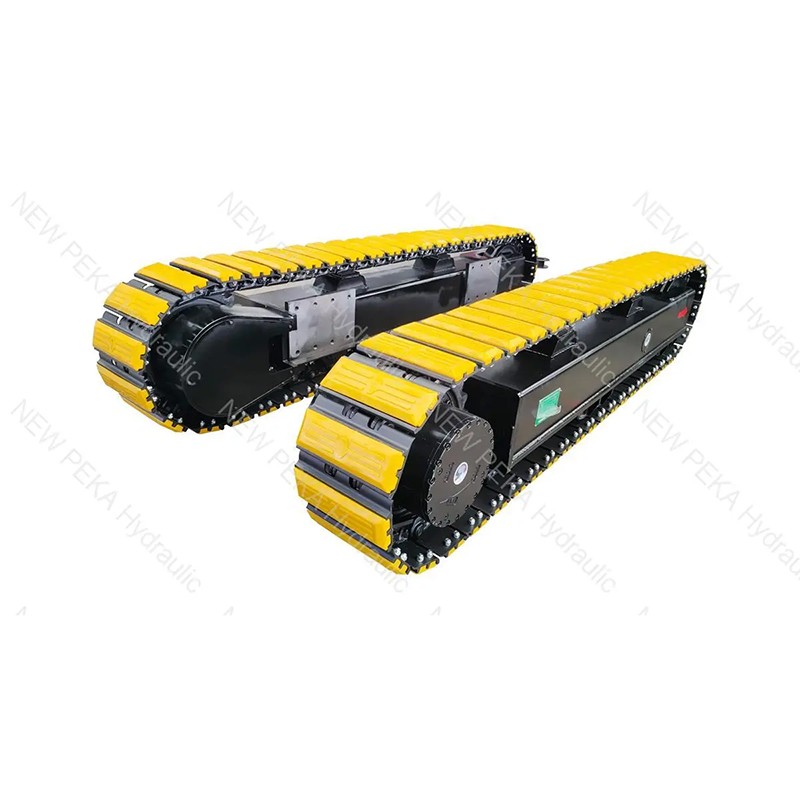

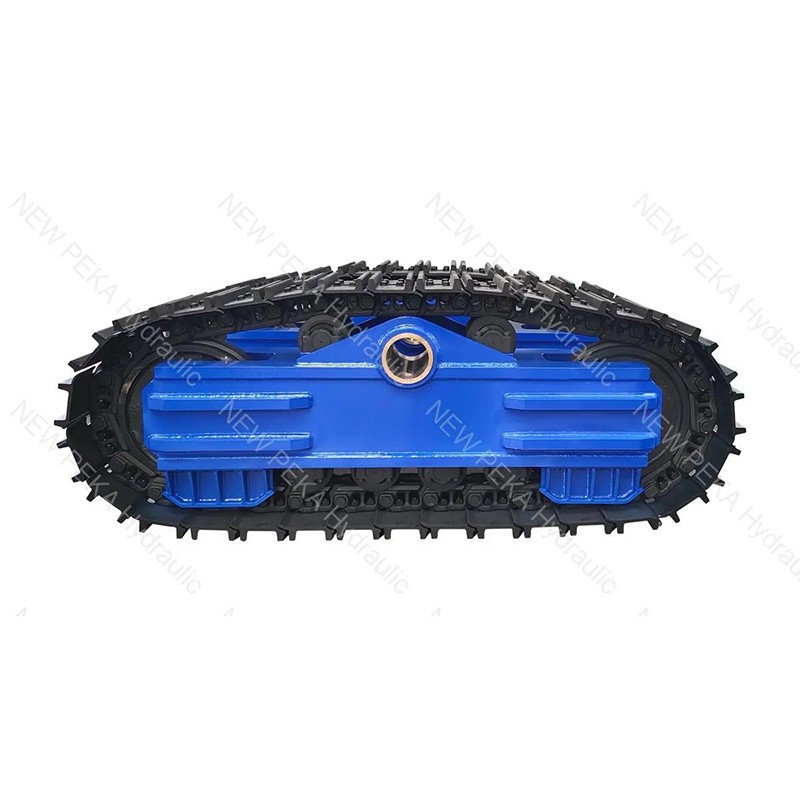

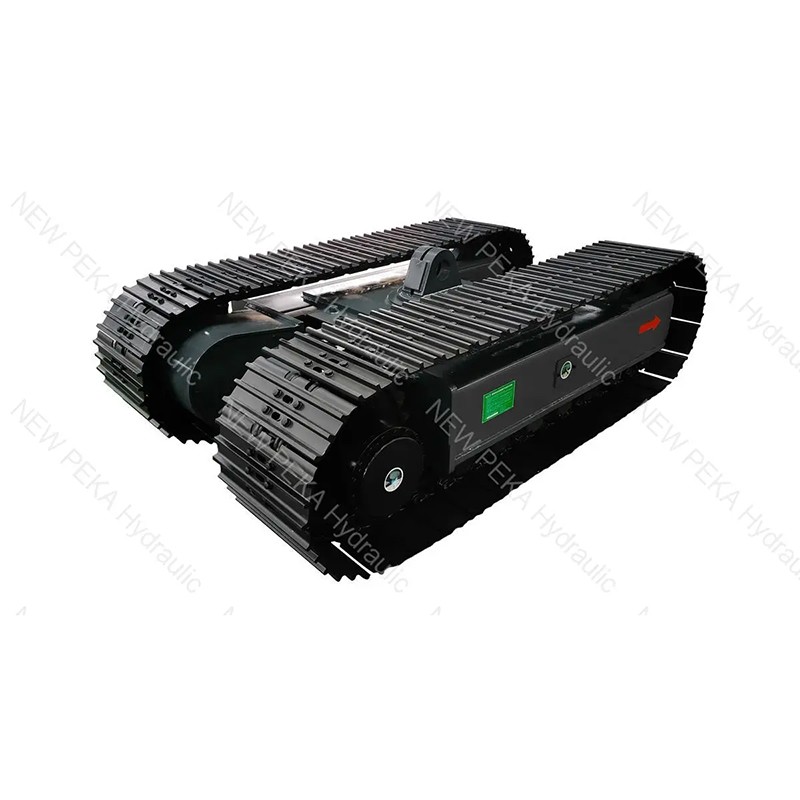

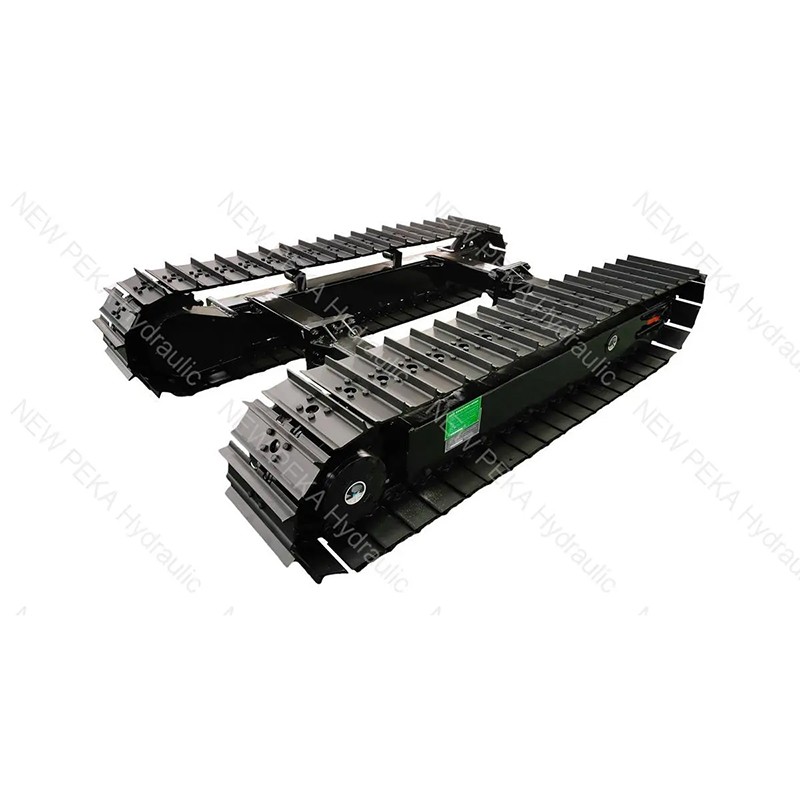

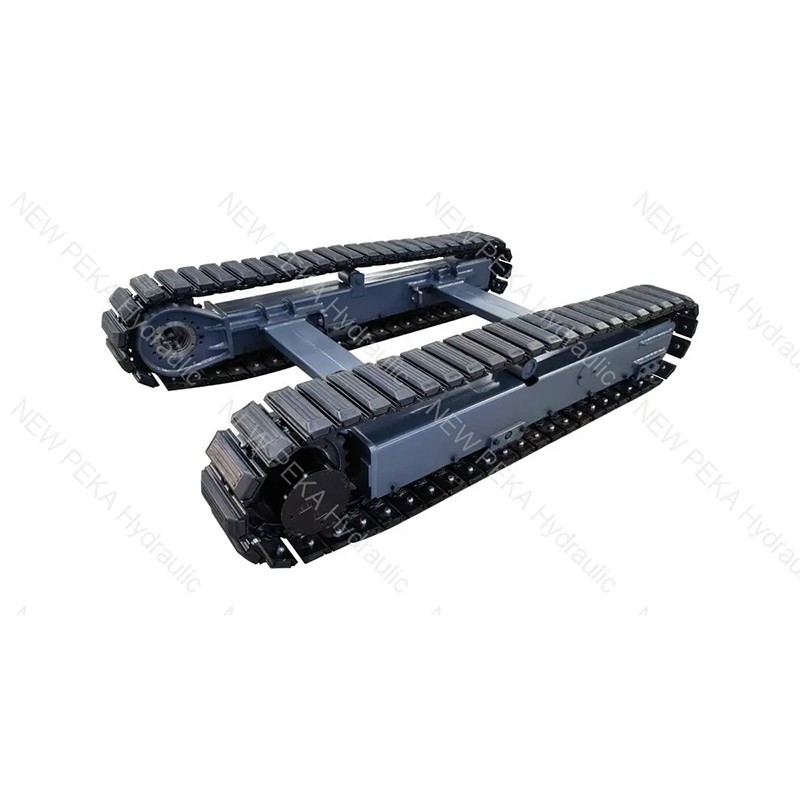

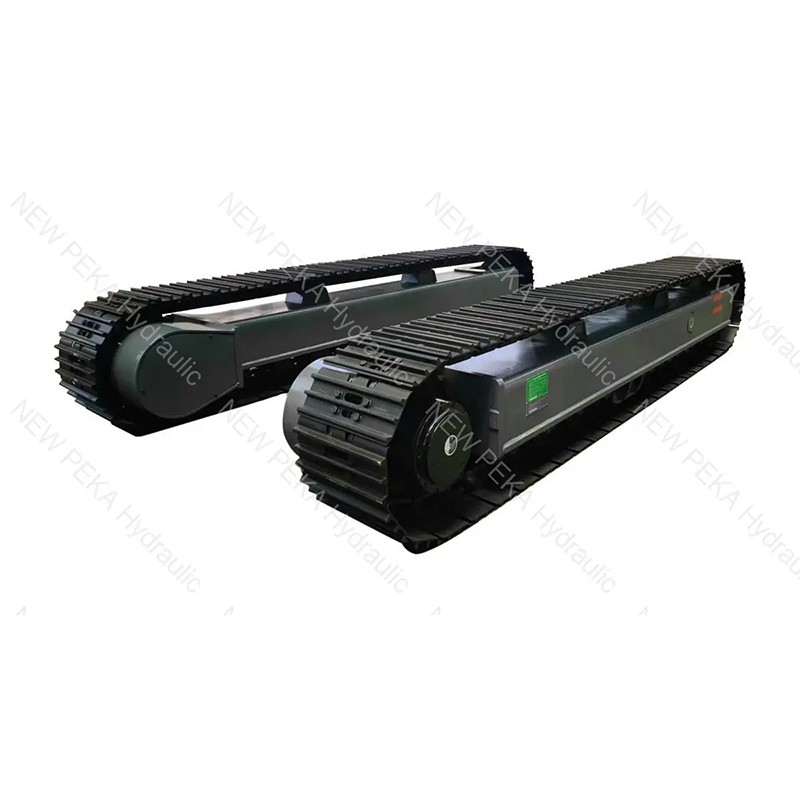

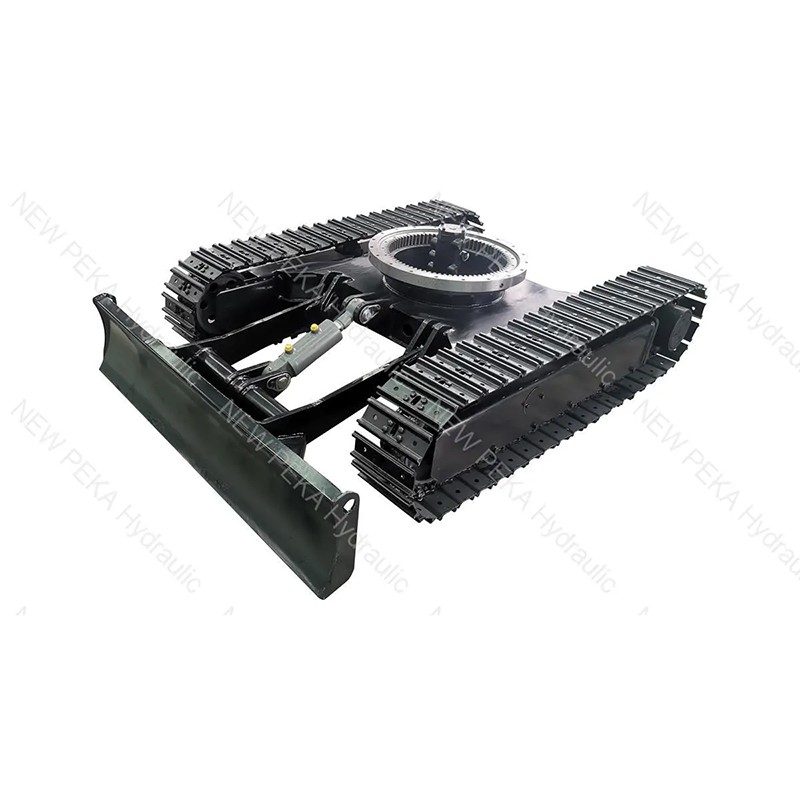

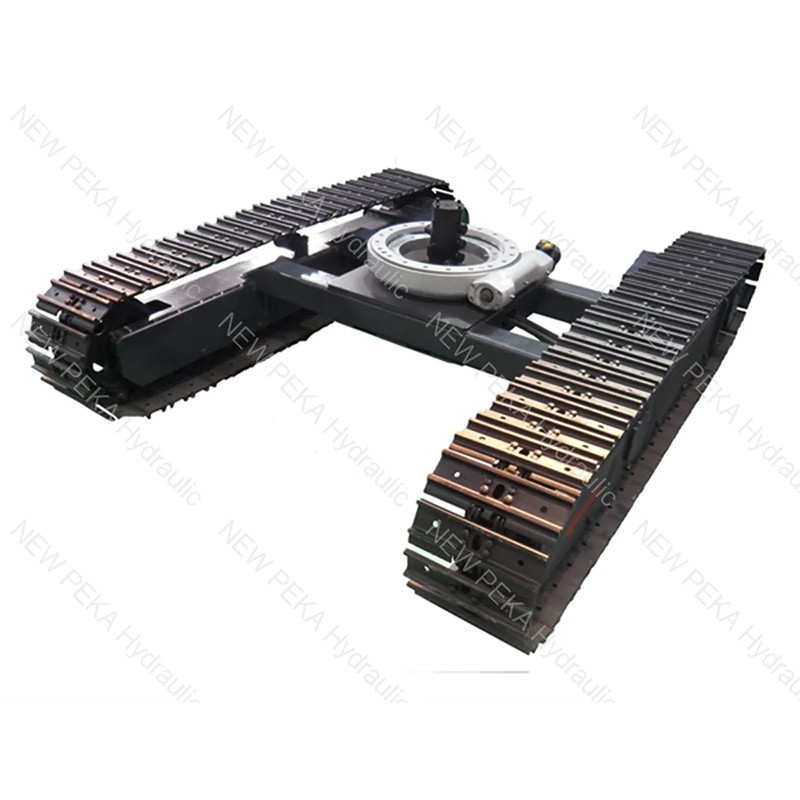

Steel track undercarriage
Steel track undercarriage

Steel track undercarriage

Ningbo Kemer Engineering Machinery Co., Ltd. was founded in 2 0 1 2, after more than ten years of development, with an annual production capacity of more than 1 0 0,0 0 0 sets of various types of track undercarriage,products can be customized according to customer’s requirement.
The load capacity of steel track undercarriage is from 0.5tons to 120tons.
The load capacity of rubber track undercarriage is from 1tons to 10tons.

Our products are widely used in the following applications:

Drilling Rig: Anchoring drill, water well drilling rig,Core drilling rig,jet drilling rig,down-hole drill,crawler hydraulic drilling rig,For poling Rig,trenchless drill etc.

Mechanical Engineering: Excavator,small pile driver,aerial work platform,small size loader etc.

Coal mine: Slag removing machine,underground drilling rig,Full hydraulic drilling rig,Hydraulic drill carriage and rock loading machine etc.

Mine: movable crusher,heading machine,conveying equipment etc.

Agricultural equipment: cane harvester,lawn mower,Ditching machine,etc.

Send Inquiry
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

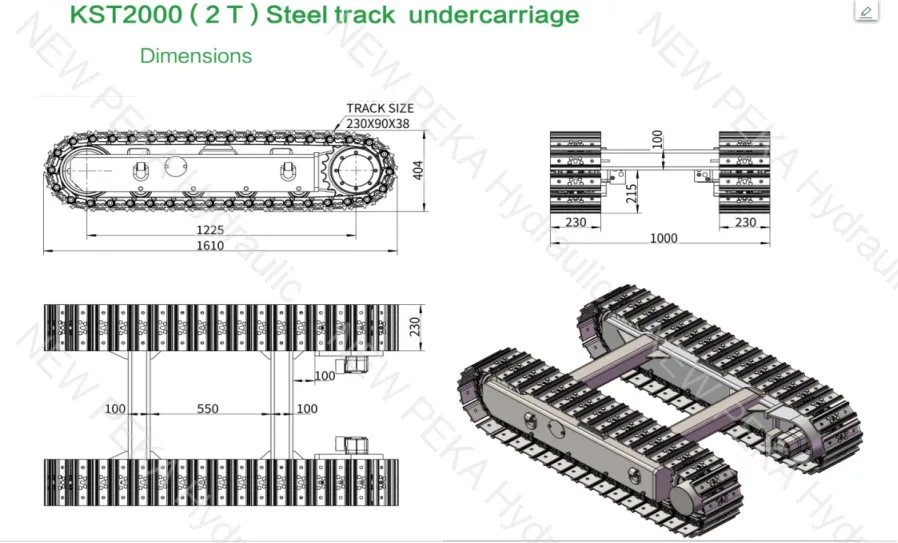

KST2000 200 14 34 3 35 30 500 2000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg
KST3500 44/22 16 59 1.8/3.7 36 30 1100 3600
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg
KST6000 53/34 25 99 2.3/3.6 36 30 1400 6000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg
KST8000 53/34 25 99 2.3/3.6 44 30 1800 8000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

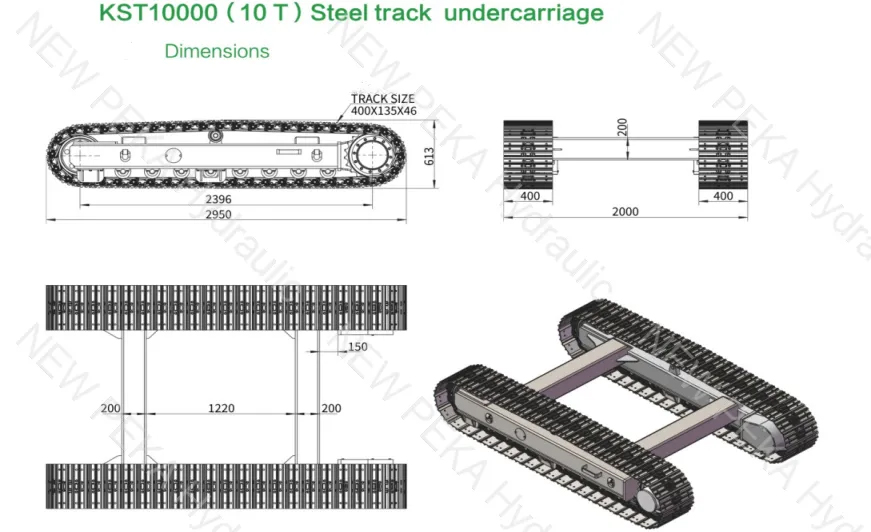

KST10000 62/39 25 116 2/3 51 30 2000 10000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

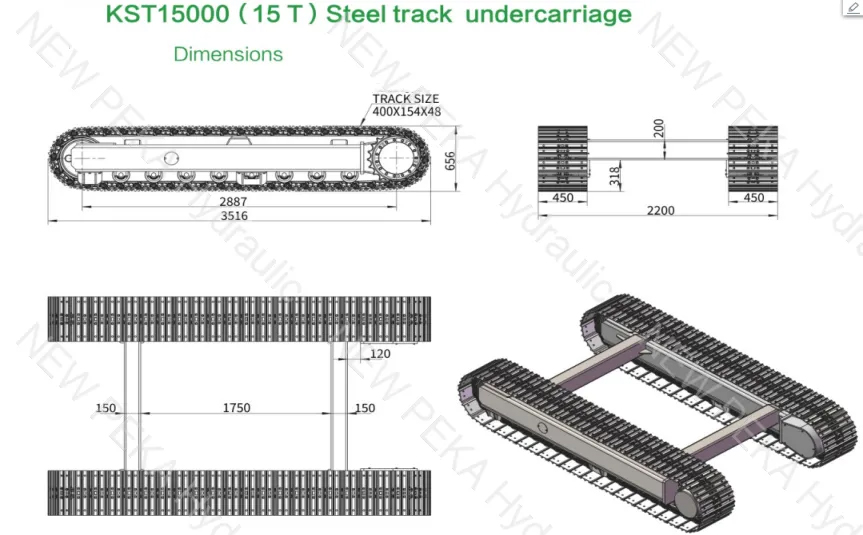

KST15000 81/48 25 132 2.8/4.7 57 30 2800 15000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

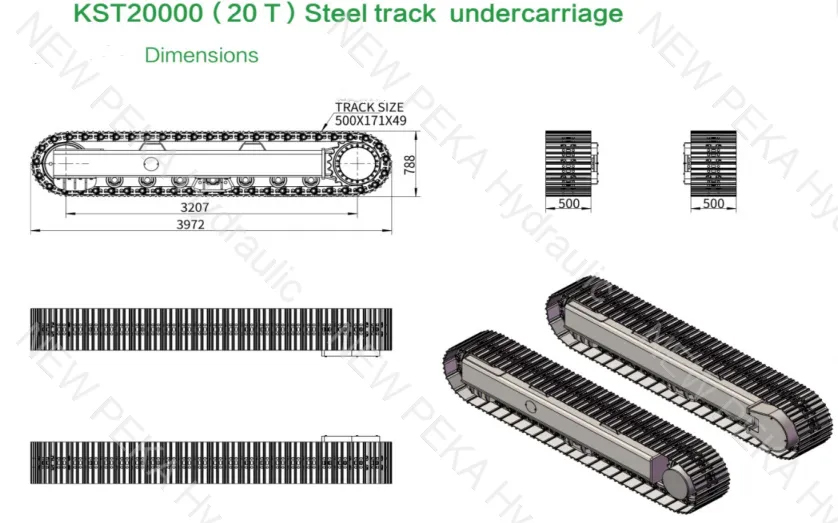

KST20000 176/122 25 223 3/4.4 61 20 4600 20000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

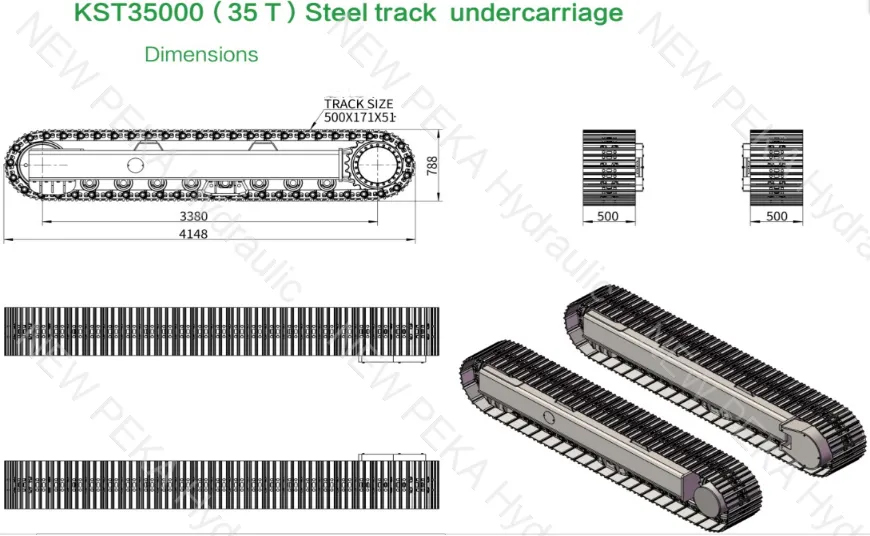

KST35000 176/122 25 223 3/4.4 102 20 4800 35000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

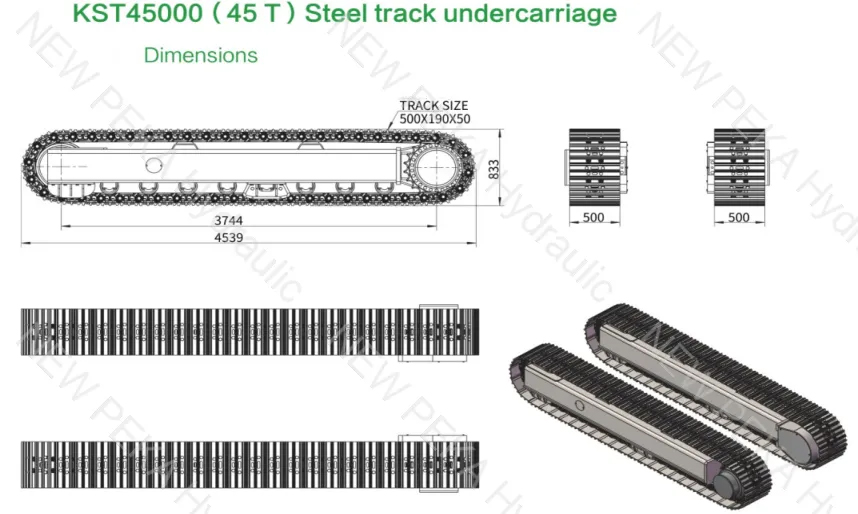

KST45000 181/113 30 352 3.2/5.1 118 30 6200 45000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

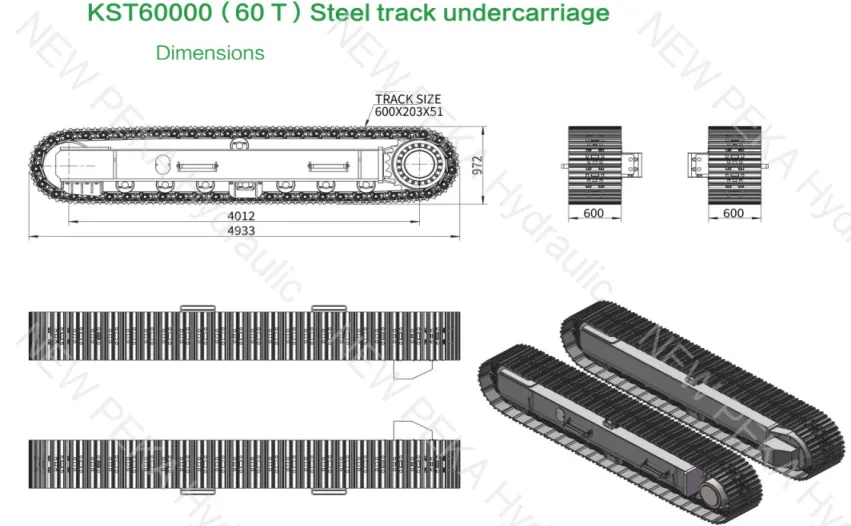

KST60000 125 25 489 1.7 122 15 9600 60000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

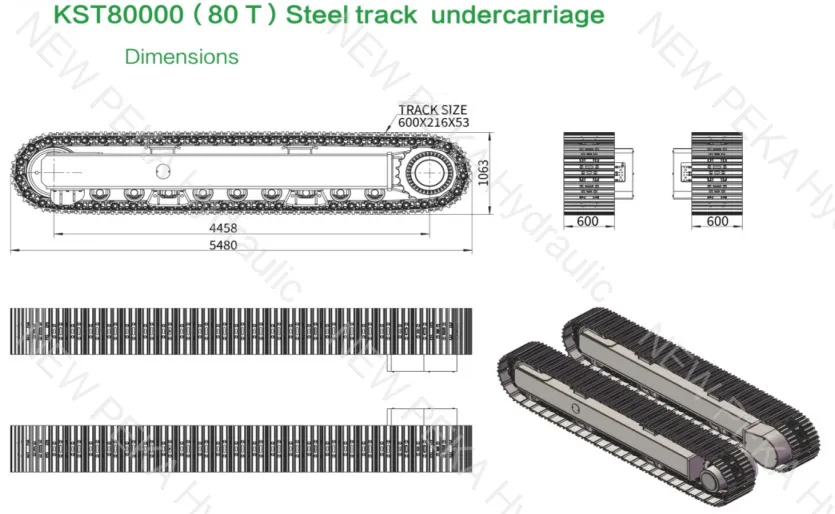

KST80000 125 25 534 1.7 1.6 15 12800 80000
Type/Performance parameter Motor displacement ml/r Work pressure Mpa  Traction force KN Travel speed km/h  Ground pressure Kpa Max grade ability a°  Dead weight kg Load capacity kg

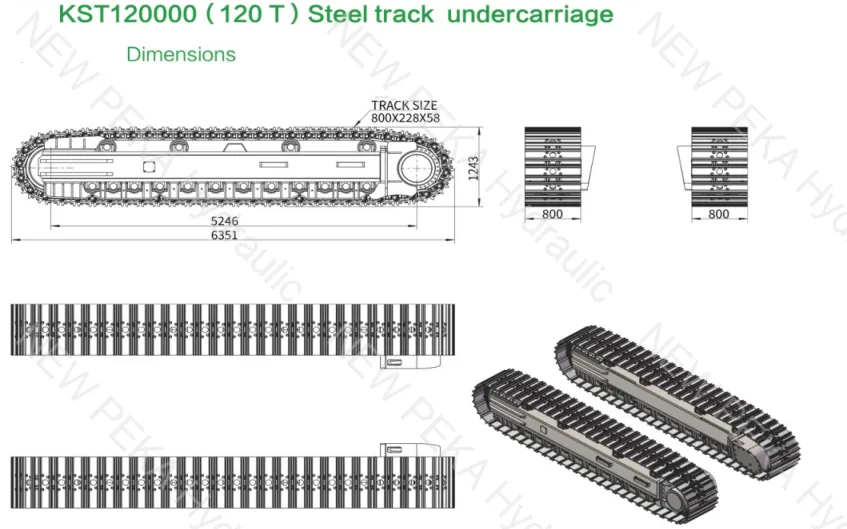

KST120000 125 25 703 1.2 140 15 25200 120000
