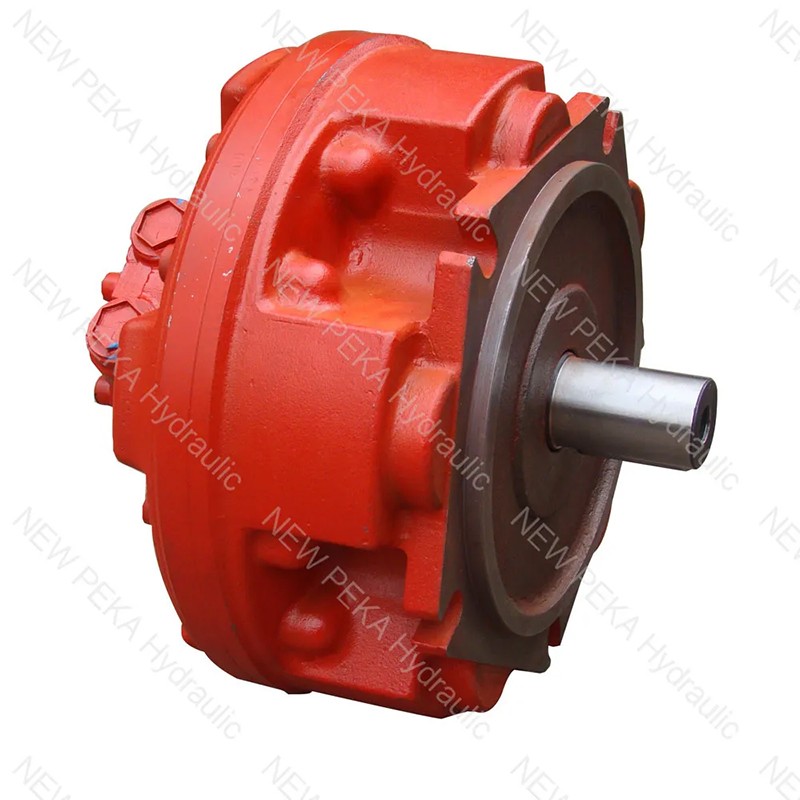

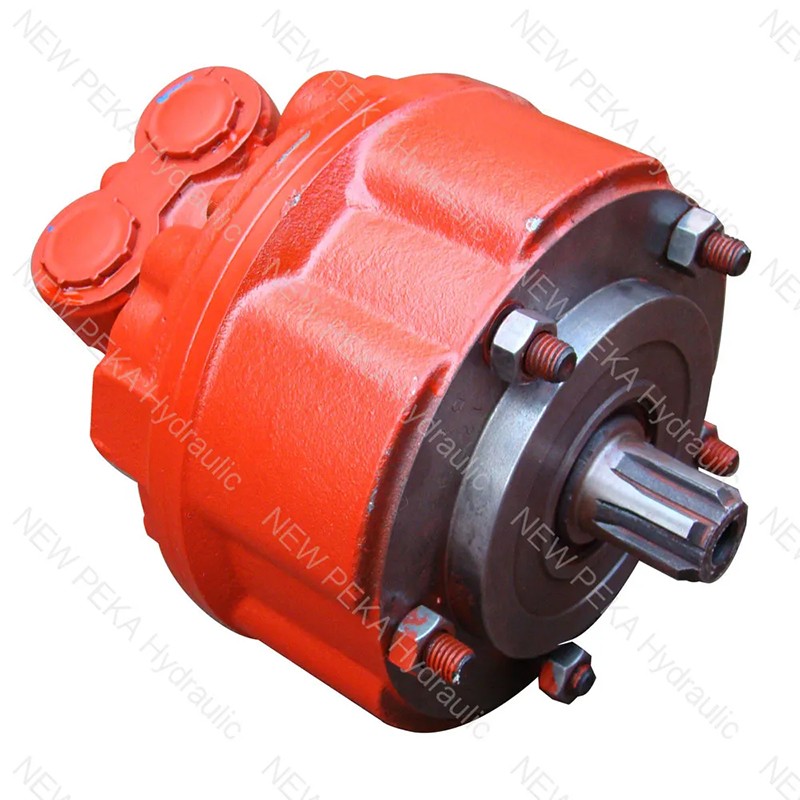

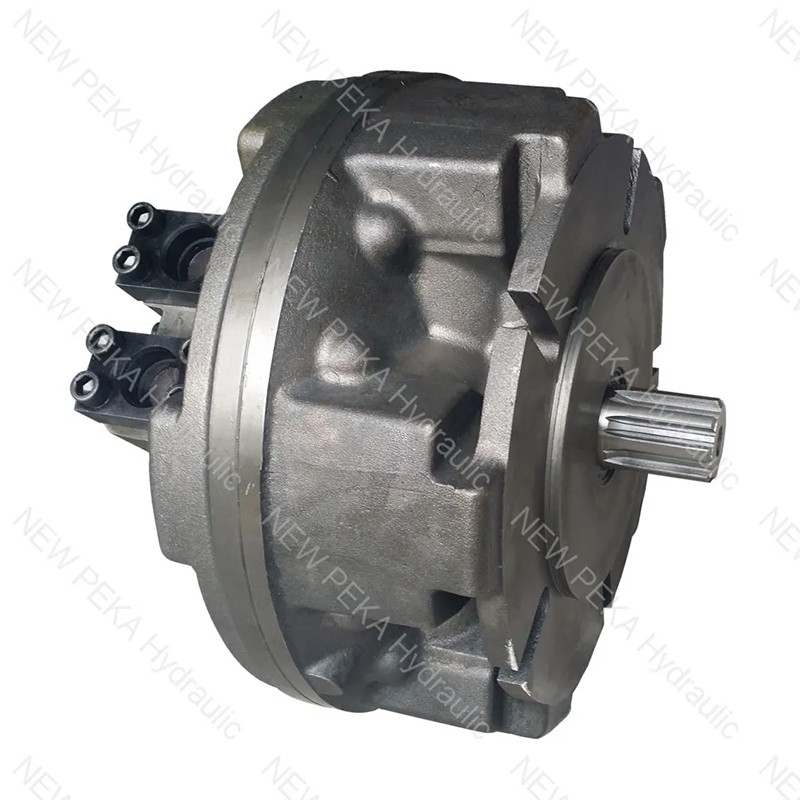

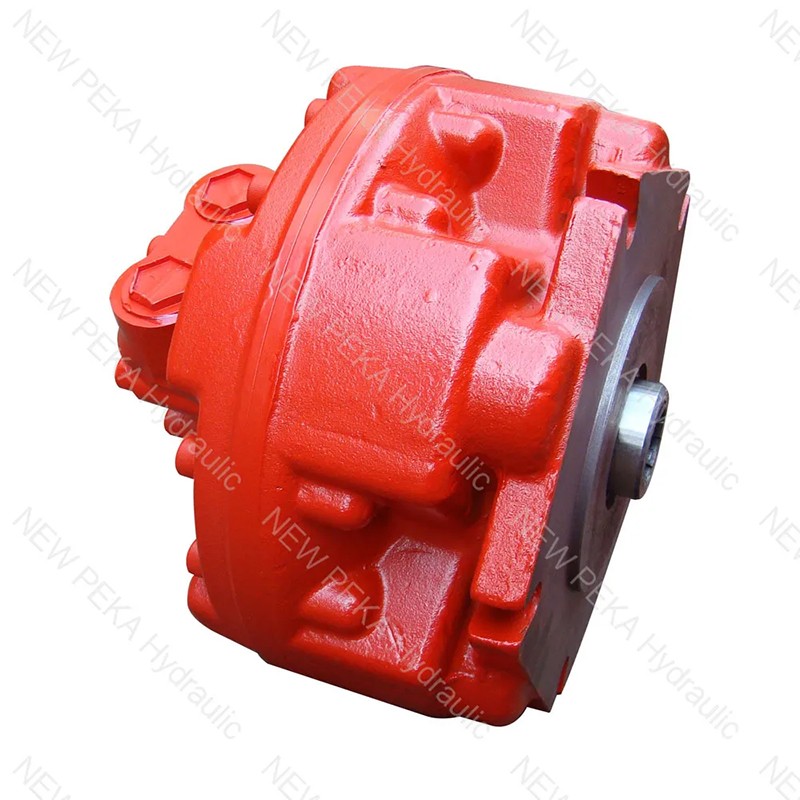

Description: We manufacture Italian SAl motor for many years and base on that we develop new product of GN hydraulic motor.It was tested by Shanghai Hydraulic Research Institute and be certified that combination property of GM hydraulic motor is the same level as original hydraulic motor of SAI company of italy. GN hydraulic motor includes all series and we aiready have mass production.After be used by customers from diflerent industries for more than one year, all esperience indicate that GN hydraulic motor can supersede import product completely.

Feature: Eliminate wearing oilless bearing and adopt hydrostatic equilibrium technology. so it proiongs motor working time and increase working pressure. Core parts of GN motor are produced by pentahedron machining center. it makes very high machining accuracy, increase more than 5% mechanical efficiency and reduce 10% noise. Do revolution on traditional heat treatment technoiogy and adopt new type of low carbon alloy steel to increase the strength of output shaft of the motor.This can final increase output torque of the motor. GN motor has its own proprietary intelliectual property rights and includes 3 proprietary technoliogy. Its excellent combination property is obviously much higher than same type products of other Chinese manufacturers. Now GN motor has been exported to North America and some European market.
Application: GN hydraulic motor can be used on following application: Hydraulic system of injection molding machine Light industry machine、Construction equipment、Metallurgical machine、Mining equipment、Raillway equipment、Barges equipment Environmental protection equipment、Farm machinery Machine tool.

Send Inquiry

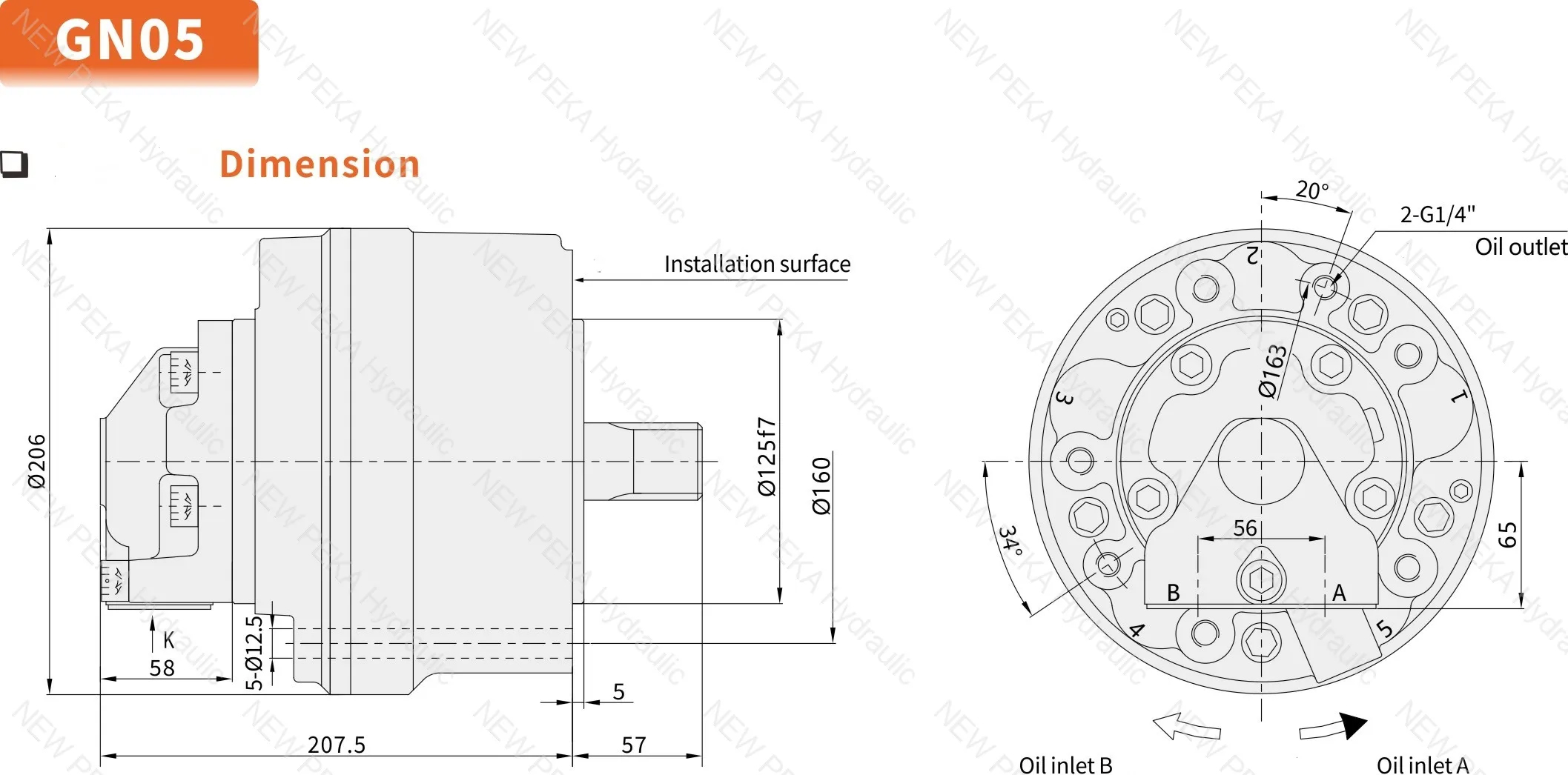

GN 05 FIVE STAR 60 75 90 110 130 150 170 200
Theoretical Displacement Ml/r 63.4 76.9 86 115 129 150 166 190
Torque/Mpa Nm/Mpa 10 12.2 13.6 18.2 20.5 23.8 26.3 30.2
Rated Pressure Mpa 25 25 25 25 25 25 25 25
Rated rotational speed r/min 550 550 500 500 480 480 450 400
Rated Torque Nm 210 260 290 385 435 505 585 675
Peek power Kw 33 33 33 33 33 33 33 33
Max.Pressure Mpa 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque Nm 250 305 345 460 515 600 700 800
Peek rotational speed r/min 950 950 950 850 850 850 760 760
Weight kg 22 22 22 22 22 22 22 22

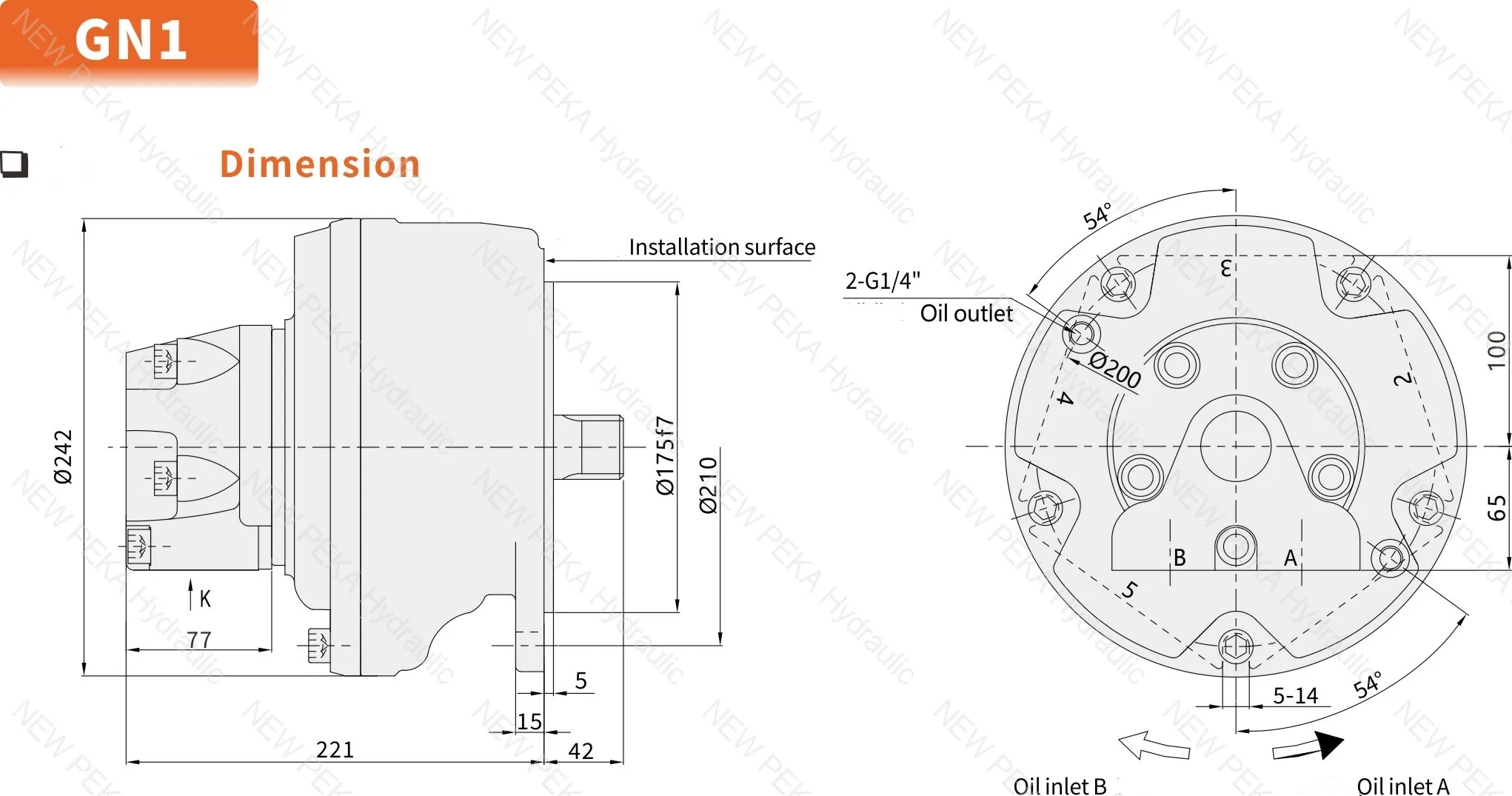

GN1 FIVE STAR 100 150 175 200 250 300 320 350
Theoretical Displacement Ml/r 98.5 153 172 201 243 289 314 339
Torque/Mpa Nm/Mpa 15.6 24.3 27.3 31.9 38.6 45.9 49.9 53.9
Rated Pressure Mpa 25 25 25 25 25 25 25 25
Rated rotational speed r/min 440 440 440 440 360 280 280 250
Rated Torque Nm 330 515 610 710 860 1025 1115 1200
Peek power Kw 48 48 48 48 48 48 48 48
Max.Pressure Mpa 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque Nm 395 610 725 845 1025 1220 1325 1430
Peek rotational speed r/min 950 950 850 760 650 600 550 500
Weight kg 31 31 31 31 31 31 31 31

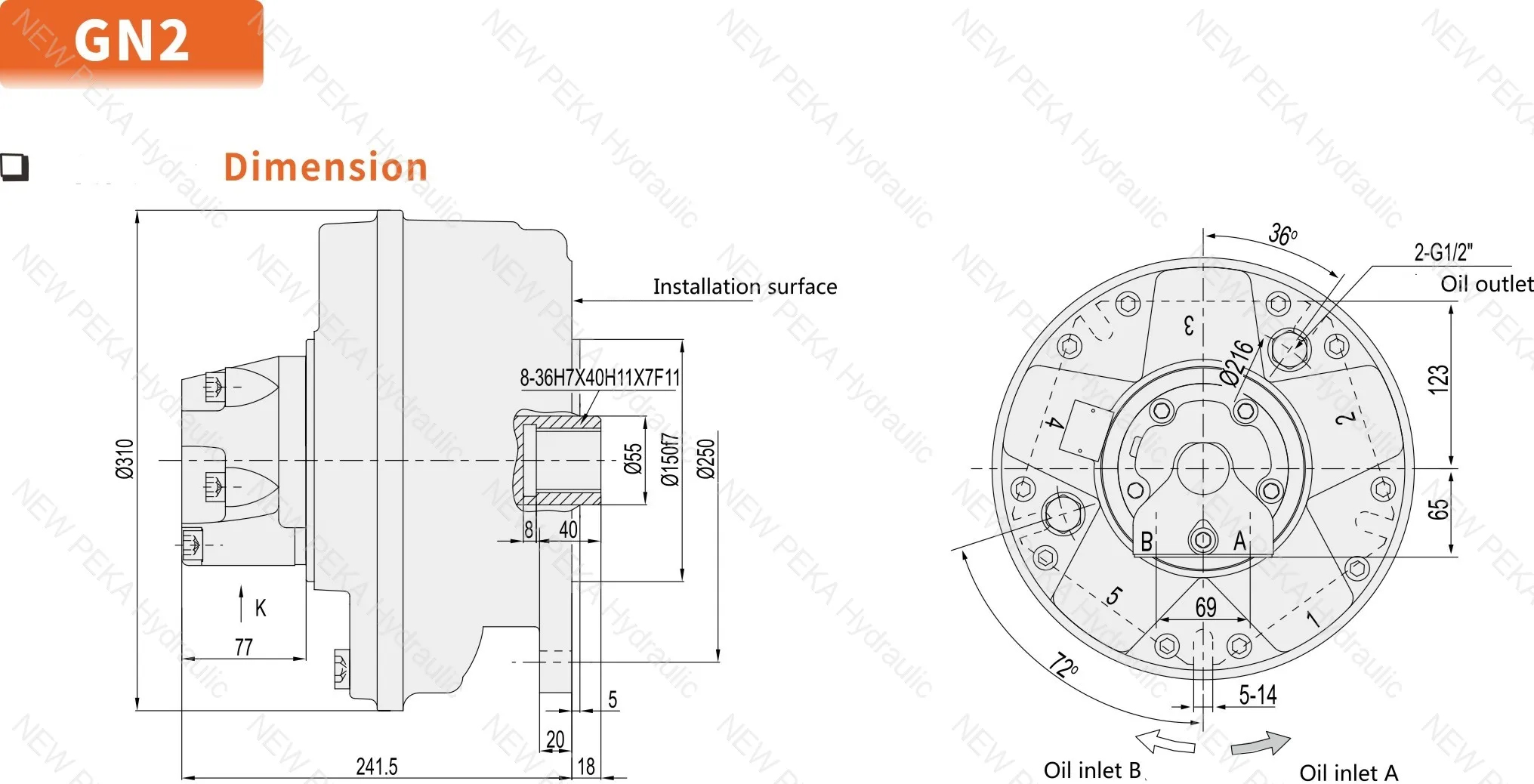

GN2 FIVE STAR 200 250 300 350 420 500 600 630
Theoretical Displacement Ml/r 192 251 304 346 424 492 565 623
Torque/Mpa Nm/Mpa 30.5 39.9 48.3 55 67.4 78.2 89.8 99
Rated Pressure Mpa 25 25 25 25 25 25 25 25
Rated rotational speed r/min 400 400 360 360 300 280 250 220
Rated Torque Nm 680 890 1080 1225 1505 1745 2005 2210
Peek power Kw 59 59 59 59 59 59 59 59
Max.Pressure Mpa 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque Nm 810 1060 1285 1460 1790 2075 2385 2630
Peek rotational speed r/min 760 760 700 700 700 650 650 550
Weight kg 51 51 51 51 51 51 51 51

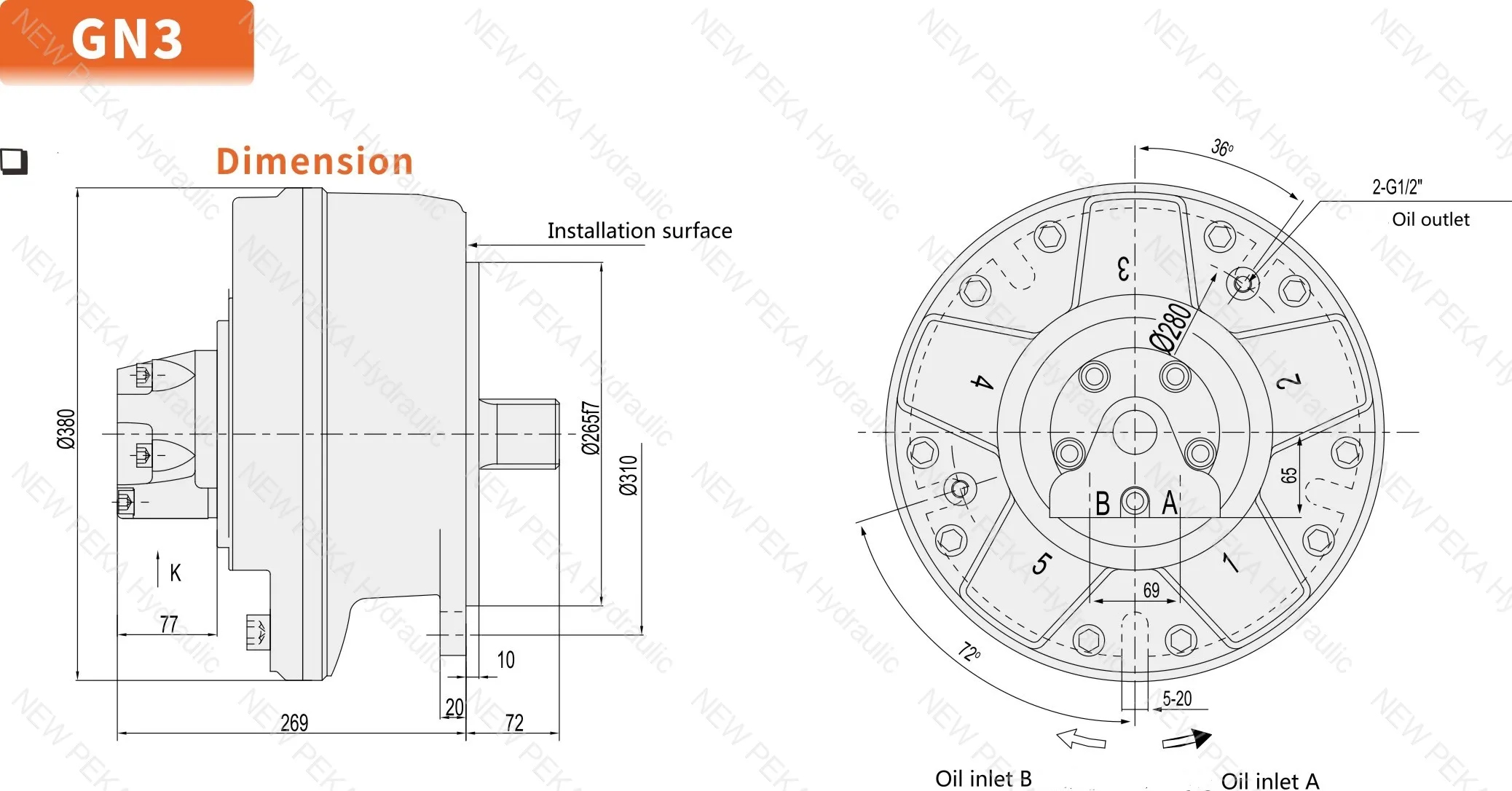

GN3 FIVE STAR 350 425 500 600 700 800 900 1000
Theoretical Displacement Ml/r 351 425 485 594 689 791 872 987
Torque/Mpa Nm/Mpa 55.8 67.5 77.1 94.4 109 125 138 156
Rated Pressure Mpa 25 25 25 25 25 25 25 25
Rated rotational speed r/min 400 400 360 360 300 280 250 220
Rated Torque Nm 1245 1510 1720 2110 2475 2845 3130 3550
Peek power Kw 80 8O 80 80 80 80 8O 80
Max.Pressure Mpa 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque Nm 1480 1795 2050 2510 2950 3385 3730 4225
Peek rotational speed r/min 650 600 550 500 450 450 380 330
Weight kg 87 87 87 87 87 87 87 87

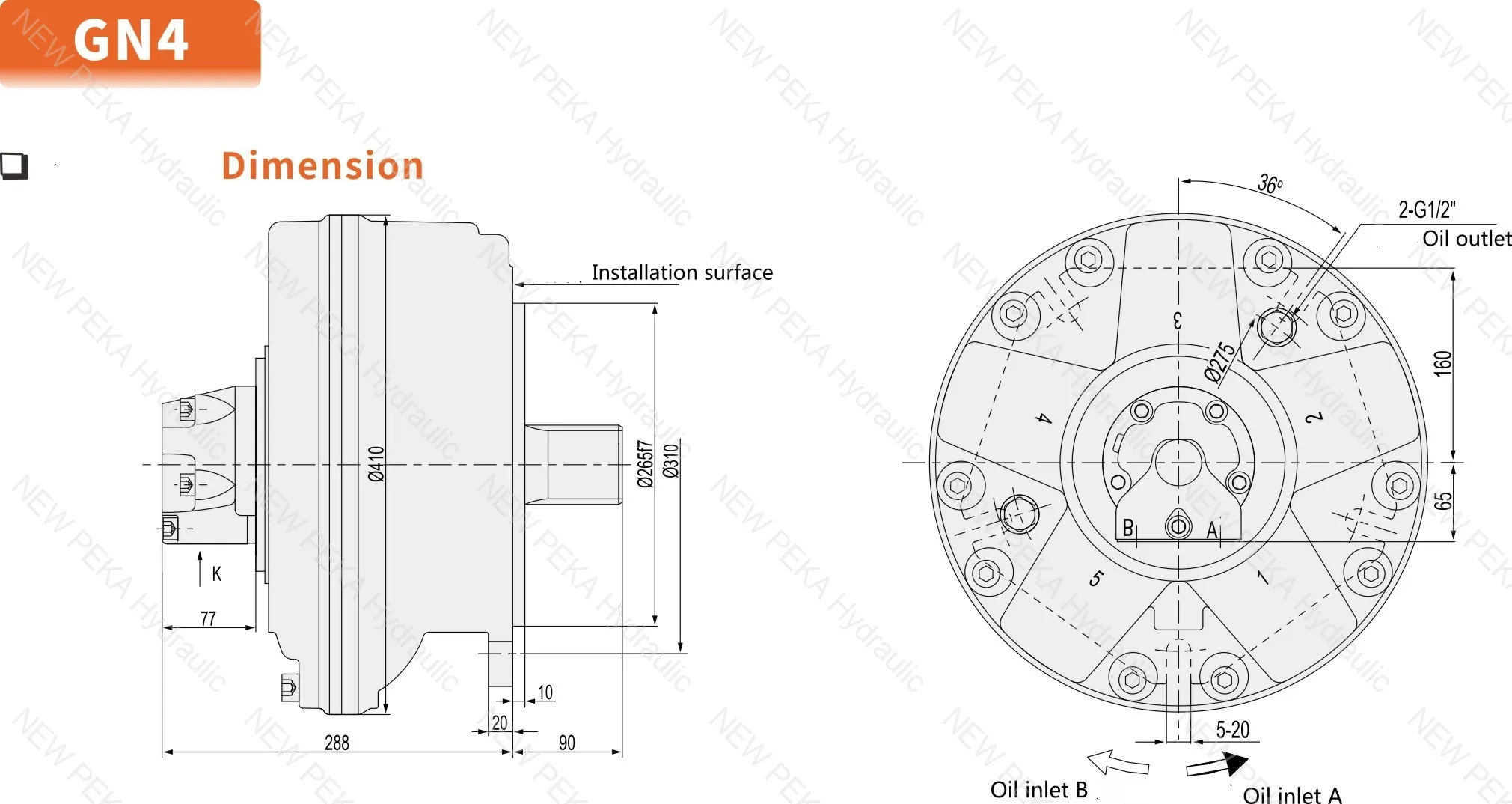

GN4 FIVE STAR 500 600 800 900 1000 1100 1250 1300
Theoretical Displacement Ml/r 503 615 792 904 1022 1116 1247 1315
Torque/Mpa Nm/Mpa 79.9 97.7 125 143 162 177 198 209
Rated Pressure Mpa 25 25 25 25 25 25 25 25
Rated rotational speed r/min 400 400 360 320 270 240 220 190
Rated Torque Nm 1785 2185 2845 3250 3675 4010 4485 4730
Peek power Kw 100 100 100 100 100 100 100 100
Max.Pressure Mpa 31.5 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque Nm 2125 2595 3390 3870 4375 4775
